Terra Part # 6924-08A
$5,796
Usually ships in 12-18 business days

Want it faster ? Read about FasTrak

Need it now? Ask about our FasTrak expediting service!
Accessories related to Terra Part # 6924-08A
75107

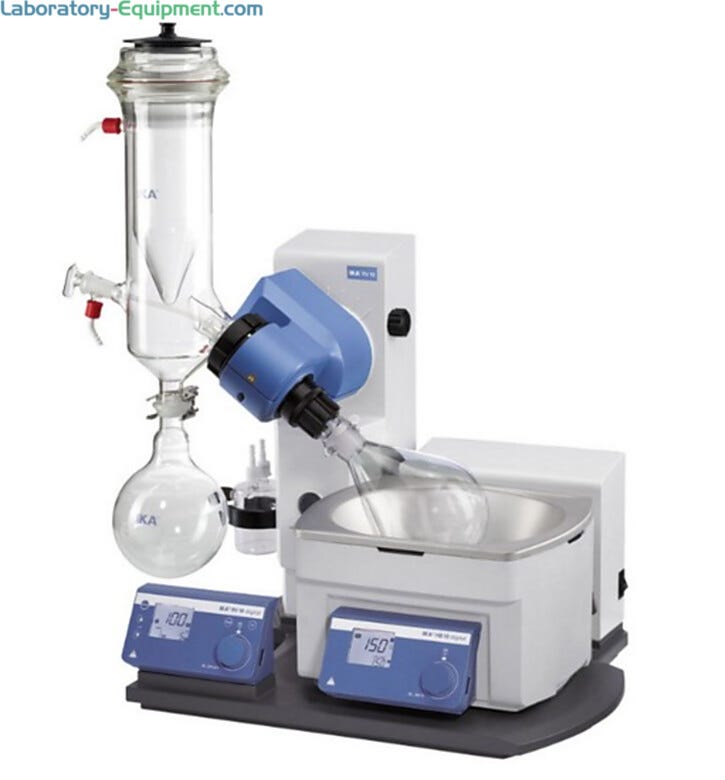

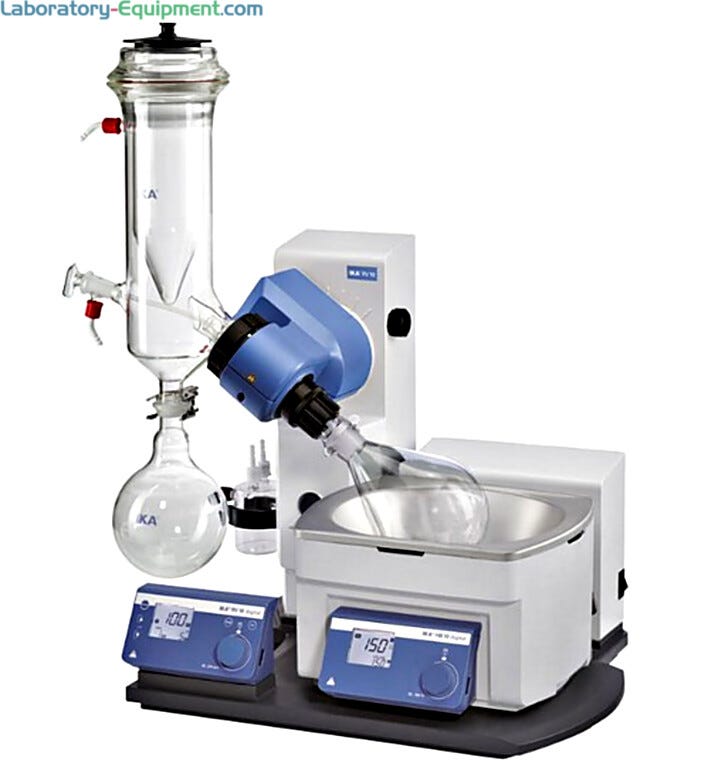

Evaporator; RV 10 Digital with coated Dry Ice Condenser, Rotary, IKA, 120 V

• Standalone operation possible, pivoting safety hood as accessory

• For distillation of volatile solvents with low boiling points

• Color graphic display operation

• Ergonomic design easy to handle and operate

• Motorized lift (stroke 140 mm) with "safety stop" function

• Includes digital heating bath, dry ice condenser and coated glassware for enhanced user safety via shatter protection

• Type of cooling: Vertical

• Cooling surface [cm2]: 1500 cm²

• Speed range: 5 – 280 rpm

• Digital Display: Yes

• Heat control accuracy: 1[±K]

• RS 232 Control: Yes

• Timer: Yes

• Motor Principle: Brushless DC motor

• Soft Start: Yes

• Adjustable Head Angle: 0 to 45°

• Bath Volume Maximum: 3 liters

• Lift: Motorized

• Reversible Rotation Direction: Yes

• Stroke: 140 mm

• Heating temp range: RT-180°C

• Heat Output [W]: 1300

• Permissible ambient temperature: 5 - 40 °C

• Permissible relative humidity: 80%

• Protection class according to DIN EN 60529: IP 20

• Evaporator piston lifts out upon power failure Adjustable end position recognition protects the glass from breaking

• Digital speed display

• Moves right and left in interval operation for the drying process

• Timer function for time lapse controls

• Water-oil heating bath with integrated carry handles with safe handling

• Heats up quickly because of optimized bath volumes

• Push-off mechanism to loosen tightly fitting pistons

• Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)

• DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])

Rotary or Centrifugal Evaporator?: Rotary

Maximum Sample Volume: 3000 mL

Type: Evaporator

Included Accessories: Vertical Glassware

Model: RV 10

Manufactured by: IKA

Shatterproof Glassware: Yes

Digital Control: Digital Timer

Chamber Material: Powder Coated Steel

Evaporator Configuration: Shatterproof Dry Ice Condenser

Manufacturer SKU: 0010005210

Format: Benchtop

Unit of Measure: EA

Electrical Specifications: 120 V, 1,400 W, 50/60 Hz

Weight, Product: 44.09 lb

Dimensions, Product: 19.68" W x 16.92" D x 16.14" H

Weight, Shipping: 56 lb

Dimensions, Shipping: 25" W x 21" D x 21" H

Package Type: Box

Buy Accessories

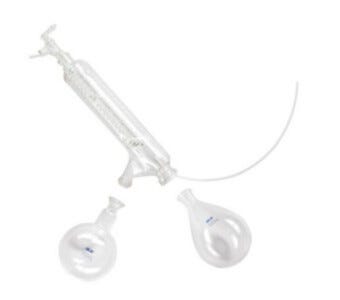

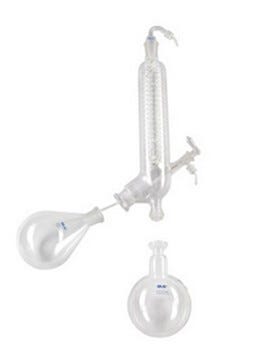

  1. Vertical and diagonal glassware units for standard distillation | 6924-22 displayed
    $1,674
    Increase Down Increase Up
  2. Vertical and diagonal glassware units for standard distillation | 6924-22 displayed
    $1,698
    Increase Down Increase Up
  3. Vertical and diagonal glassware units for standard distillation | 6924-24 displayed
    $1,419
    Increase Down Increase Up
  4. Vertical and diagonal glassware units for standard distillation | 6924-24 displayed
    $1,555
    Increase Down Increase Up

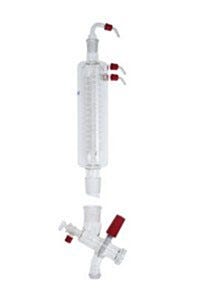

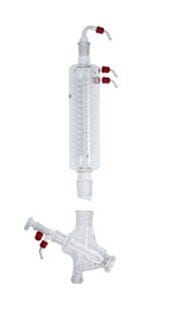

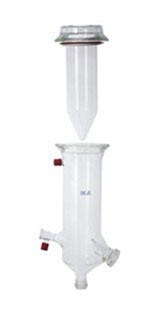

  5. Vertical condensers, vertical-intensive condensers with manifold and dry ice condensers efficiently feed solvent | 6924-26 displayed
    $2,265
    Increase Down Increase Up
  6. Vertical condensers, vertical-intensive condensers with manifold and dry ice condensers efficiently feed solvent | 6924-26 displayed
    $3,251
    Increase Down Increase Up
  7. Vertical condensers, vertical-intensive condensers with manifold and dry ice condensers efficiently feed solvent | 6924-28 displayed
    $2,365
    Increase Down Increase Up
  8. Vertical condensers, vertical-intensive condensers with manifold and dry ice condensers efficiently feed solvent | 6924-28 displayed
    $2,610
    Increase Down Increase Up
  9. Vertical condensers, vertical-intensive condensers with manifold and dry ice condensers efficiently feed solvent | 6924-30 displayed
    $2,532
    Increase Down Increase Up
  10. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $69
    Increase Down Increase Up
  11. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $79
    Increase Down Increase Up
  12. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $116
    Increase Down Increase Up
  13. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $119
    Increase Down Increase Up
  14. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $126
    Increase Down Increase Up
  15. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $186
    Increase Down Increase Up
  16. Evaporative flasks have a heavy wall for vacuum applications and are balanced to prevent run-out during rotation | 6924-34 displayed
    $292
    Increase Down Increase Up

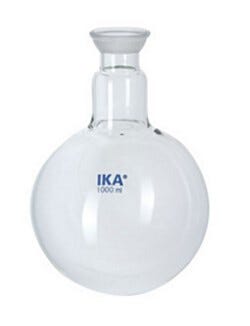

  17. Coated models offer enhanced shatter protection | 6924-41 displayed
    $112
    Increase Down Increase Up
  18. Coated models offer enhanced shatter protection | 6924-41 displayed
    $116
    Increase Down Increase Up
  19. Coated models offer enhanced shatter protection | 6924-41 displayed
    $117
    Increase Down Increase Up
  20. Coated models offer enhanced shatter protection | 6924-41 displayed
    $121
    Increase Down Increase Up
  21. Coated models offer enhanced shatter protection | 6924-41 displayed
    $200
    Increase Down Increase Up
  22. Coated models offer enhanced shatter protection | 6924-41 displayed
    $371
    Increase Down Increase Up
  23. Coated models offer enhanced shatter protection | 6924-41 displayed
    $233
    Increase Down Increase Up
  24. Coated models offer enhanced shatter protection | 6924-41 displayed
    $258
    Increase Down Increase Up
  25. Coated models offer enhanced shatter protection | 6924-41 displayed
    $297
    Increase Down Increase Up
  26. Coated models offer enhanced shatter protection | 6924-41 displayed
    $320
    Increase Down Increase Up
  27. Coated models offer enhanced shatter protection | 6924-41 displayed
    $381
    Increase Down Increase Up
  28. Coated models offer enhanced shatter protection | 6924-41 displayed
    $484
    Increase Down Increase Up

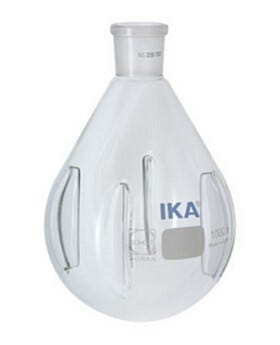

  29. Helps to avoid powders from accumulating on wall of flask | 6924-53 displayed
    $270
    Increase Down Increase Up
  30. Helps to avoid powders from accumulating on wall of flask | 6924-53 displayed
    $292
    Increase Down Increase Up
  31. Helps to avoid powders from accumulating on wall of flask | 6924-53 displayed
    $353
    Increase Down Increase Up

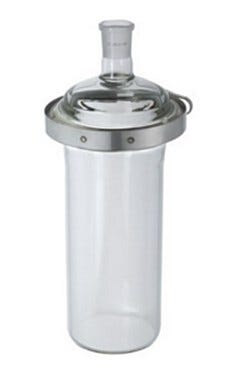

  32. Evaporation Cylinder retrieves viscous substances | 6924-56 displayed
    $1,010
    Increase Down Increase Up
  33. Evaporation Cylinder retrieves viscous substances | 6924-56 displayed
    $1,337
    Increase Down Increase Up

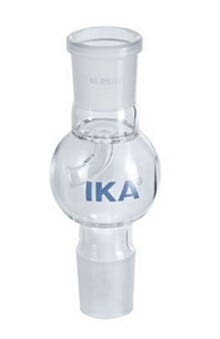

  34. Stops foam from entering receiving flask | 6924-58 displayed
    $229
    Increase Down Increase Up

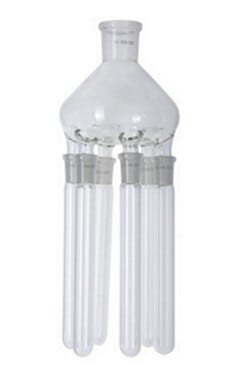

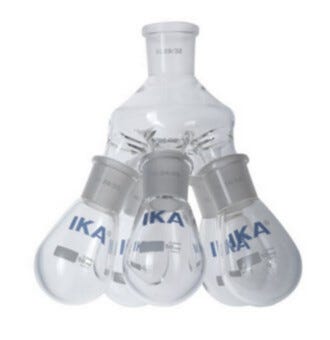

  35. Distilling spider for use with laboratory rotary evaporator | 6924-59 displayed
    $941
    Increase Down Increase Up
  36. Distilling spider for use with laboratory rotary evaporator | 6924-59 displayed
    $1,497
    Increase Down Increase Up
  37. Distilling spider for use with laboratory rotary evaporator | 6924-59 displayed
    $2,093
    Increase Down Increase Up
  38. Distilling spider for use with laboratory rotary evaporator | 6924-62 displayed
    $1,237
    Increase Down Increase Up
  39. Distilling spider for use with laboratory rotary evaporator | 6924-62 displayed
    $1,243
    Increase Down Increase Up

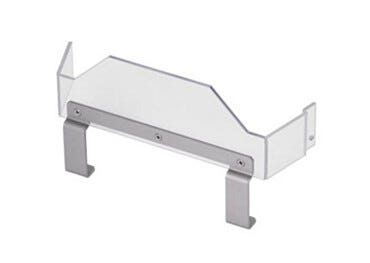

  40. Protects operator against splashes of hot liquid | 6924-66 displayed
    $404
    Increase Down Increase Up

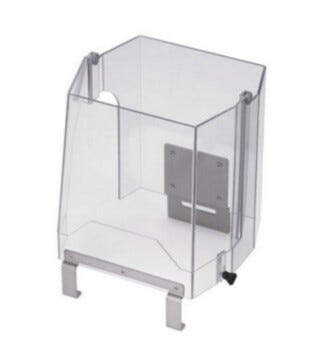

  41. Protects user from hot liquid splashes and flask breakage | 6924-67 displayed
    $1,464
    Increase Down Increase Up

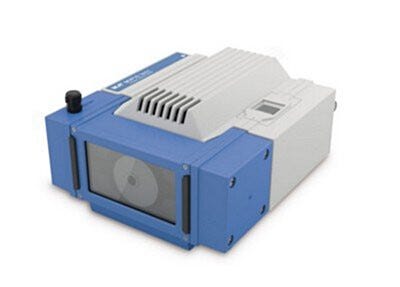

  42. For dry, oil-free applications | 6924-68 displayed
    $2,392
    Increase Down Increase Up
  43. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

IKA RV10 Features and Benefits

Additional Features of RV 10 Rotary Evaporators

Rotating evaporators provide four times the distillation efficiency compared to conventional distillation devices. The rotating function of rotary evaporators increases the surface area of the vessel and speeds up the distillation process. IKA takes this to a higher level by offering variants that widen the breadth of functionality, safety and use of the RV 10 Series. For labs performing complex and demanding distillation processes, there is the RV 10 Digital and the RV 10 Control.

Configurations
  • V (Vertical): includes vertical glassware
  • V-C: includes coated shatterproof glassware; provides added safety
  • Auto Models: automated Boiling Point Detection, Speed Control Pump and 10 program functions
  • Dry Ice Condenser (standard and coated): for distilling low-boiling point solvents with an option for a shatterproof coated model (“C”) for added safety
  • FLEX: does not include glassware; allows customization of glassware setup for specific applications
Advantages of RV 10 Rotary Evaporators
  • Better warmth transfer
  • Quicker heating
  • Increase in distilling speed
  • Avoidance of boiling delays
  • Avoidance of overheating
  • Gentle distilling under vacuum
Applications
  • Recycling of solvent waste
  • Extractions
  • Concentration of substances
  • Drying of powders
  • Separation of material mixtures
  • Distilling of low-boiling solvents
  • Distilling of temperature-sensitive substances under vacuum
  • Distilling of oxygen-sensitive substances under inert gas
  • Chemical synthesis under reflux
RV 10 Basic Features
  • Includes: vertical glassware (standard or coated), analog water/oil heating bath with built-in carrying handles and adjustable safety circuit, “stand alone“ operation is possible, pivoting safety hood as an accessory, Woulff bottle to protect vacuum pump against solvent condensation
  • Available with Dry Ice Condenser for distilling solvents with low-boiling points
  • Ergonomic design of front control unit for safe and simple operation
  • Motorized lift (stroke 140 mm) with “safety stop“ function, evaporator flask automatically lifted out of the heating bath in event of power failure
  • Adjustable end position recognition protects the glass from breaking
  • Speed range from 20 to 280 rpm
  • Smooth start from 100 rpm
  • Digital speed display
  • Left- right interval operation rotates clockwise and counterclockwise for the drying process
  • Timer function for time lapse control
  • Optimized bath volumes for quick heating
  • Push-off mechanism loosens tight fitting flasks
  • Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)
Exclusive Features of RV 10 Digital
  • All RV 10 Digital Rotary Evaporators share the same properties as the RV 10 Basic
  • Provides reproducible results with data transfer feature and remote operation from a PC
  • Micro controller controls temperature of heating bath
  • Digital temperature display
  • Infrared interface for data transfer from the heating bath to the drive unit
  • RS 232 interface for PC remote operation with labworldsoft®
  • Timer function shuts off heating bath at completion of timer sequence
Exclusive features of RV 10 Control
  • All RV 10 Control Rotary Evaporators share the same properties as the RV 10 Digital
  • Includes: integrated vacuum controller with central display for automatic distilling and ramp programming
  • Integrated solvent library (scalable by the user)
  • Distillation specific parameters stored for standard distillations
  • Automatic transfer of measurements and distillation type with one key press
  • Programmable volume controlled distillation
  • Color graphic display
  • Display of distillation curves
  • Automatic ventilation at the end of each test
  • Cooling water and heating bath switched off automatically at the end of tests
  • Integrated cooling water monitoring
  • Heating bath safety management; automatic heating bath monitoring with distillation stop in event of temperature errors
ModelRV 10 BasicRV 10 DigitalRV 10 Control
Type of coolingVerticalFLEX: N/A
V and V-C, Dry Ice Condensers: Vertical
FLEX, FLEX Auto: N/A
th V, V-C, V Auto, V-C Auto, Dry Ice Condenser: Vertical
Cooling surface [cm2]
Dry Ice Condenser: 620 cm²
V, V-C and Dry Ice Condenser/ Coated: 1500 cm²
Dry Ice Condenser: 620 cm²
FLEX: 0 cm²
V, V-C and Dry Ice Condenser coated: 1500 cm²
Dry Ice Condenser: 620 cm²
FLEX, FLEX Auto: 0 cm²
V, V-C, V Auto, V-C Auto, Dry Ice Condenser coated: 1500 cm²
Dry Ice Condenser: 620 cm²
Speed range20 – 280 rpm20 – 280 rpmFLEX, V, V-C and Dry Ice Condensers/coated: 20 to 280 rpm
FLEX Auto, V Auto, V-C Auto: 5 to 280 rpm
Digital DisplayNoYesYes
Heat control accuracy5 [±K]1[±K]1[±K]
Automated Boiling Point DetectionNoNoFLEX, V, V-C: No
FLEX Auto, V Auto, V-C Auto, Dry Ice Condenser (and Coated): Yes
Includes Speed Controlled PumpNoNoFLEX, V, V-C, Dry Ice Condenser (coated): No
FLEX Auto, V Auto, V-C Auto: Yes
Vacuum controller integratedNoNoYes
Measurement accuracyN/AN/A2 +/- mbar
Vacuum adjustment rangeN/AN/A1050-1 mbar
Vacuum measurement rangeN/AN/A1050-1 mbar
RS 232 ControlNoYesYes
Program FunctionNoNoFLEX,  FLEX Auto V, V-C, V-Auto, V-C Auto: 10 individual procedures
Dry Ice Condenser(and coated): No
Voltage
(specify when ordering)
220 - 240 / 115 / 100 – 120 V220-240 /115/100-240/
100-120/100-115
VFLEX Auto: 220-240 /115/100-240/100-120/100-115
V, V-C, V Auto, V-C Auto, and Dry Ice Condenser and Coated: 220-240/115/100-120/100-115 V
Dimensions19.68W x 16.92D x 16.14H in. (500 x 430 x 410 mm)
Frequency50/60 Hz
Power Input1400W
TimerYes
Motor PrincipleDC
Soft StartYes
Adjustable Head Angle0 to 45°
Bath Volume Maximum3 liters
LiftMotorized
Reversible Rotation DirectionYes

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.

Hide
You need at least 2 products to compare Compare Clear All
Compare Products
