6924-68
Terra Part # 6924-68
$2,588
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Terra Part # 6924-68
62304
$2,588
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Product Details
  • Cylinder: 2
  • Flow Rate: 13 l / min
  • Pump rate max.  (50/60Hz): 1.7 m³/h
  • Pump rate max.  (50/60Hz):28.3 l/min
  • Final pressure without gas ballast: 8 mbar
  • Final pressure with gas ballast: 15 mbar
  • Connection diameter suction side: 10 mm
  • Suction levels: 2
  • Connection diameter pressure side: 10 mm
  • Gas ballast valve: yes
  • Input pressure min.: 7 mbar
  • Input pressure max.: 1050 mbar
  • Speed dependent pressure control: no
  • Speed range: 1380 - 1680 rpm
  • Nominal speed: 1380 rpm
  • Vacuum sensor: no
  • Venting valve: no
  • Condensate trap: no
  • Emission condenser: no
  • Noise at low pressure: 65 dB(A)
  • Dimensions (W x H x D): 9.64 x 12.59 x 6.10 in.  (245 x 320 x 155 mm)
  • Weight: 25.35 lbs.  (11.5 kg)
  • Permissible ambient temperature: 10 - 40 °C
  • Permissible relative humidity: 80 %
  • Protection class according to DIN EN 60529: IP 54
  • RS 232 interface: no
  • USB interface: no
  • Analog output: no
  • Voltage: 230 / 115 / 100 V
  • Frequency: 50/60 Hz
  • Power input: 180 W

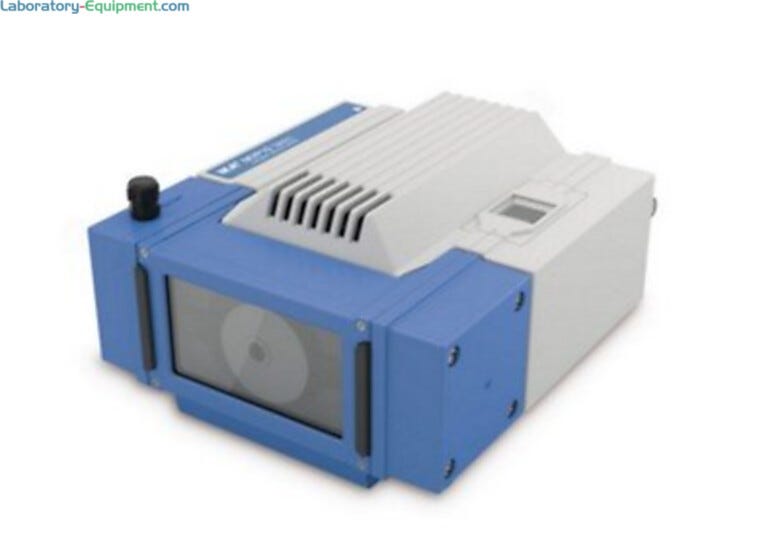

  • For use with rotary evaporators
  • Slim-line, compact design and long service life
  • Straightforward servicing and simple maintenance
  • Diaphragm pump that is highly resistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compounds
  • Applications: dry, oil-free

Type: Pump

Manufactured by: IKA

Manufacturer SKU: 3980001

Unit of Measure: EA

Weight, Product: 25.35 lb

Dimensions, Product: 9.64" W x 12.59" D x 6.1" H

Weight, Shipping: 30 lb

Dimensions, Shipping: 15" W x 18" D x 12" H
