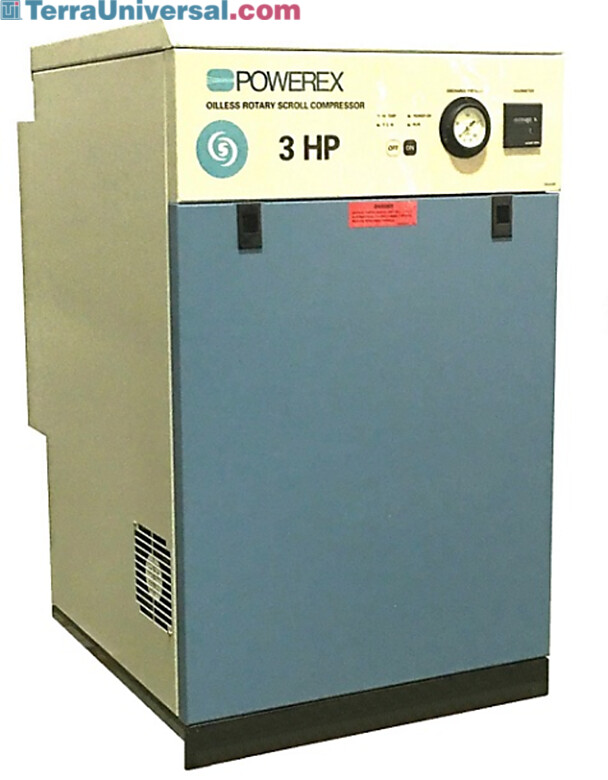

Offers very low noise levels, virtually vibration-free operation, and maintenance-free performance. | 9505-41 displayed

Compressor; Scroll, 3 HP, 10 gal, 8.6 SCFM, 8.0 Amps, 230 V

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Air Compressor operates maintenance free, with only two moving parts
  • Includes air-cooled after-cooler, run-hour meter, and power indicator light, run and high-temp
  • Vibration-free, quiet (49dB) operation
  • Motor overload protection, air pressure gauge, and high-temp switch
  • Dry type inlet filter ensures that air enters the unit 99% particle-free

• Type: Scroll

• Oil-less: Yes

• Power: 3 HP

• Tank Capacity: 10 gal

• System F.L.A.: 8.0 Amps

• Service Pressure (PSIG): 116 PSIG

• SCFM @ 100 PSIG: 8.6 SCFM

• Unit of Measure: EA

Read more
ISO 7 Icon
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
9505-41
Terra Part # 9505-41
$7,894
Usually ships in 42-48 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 9505-41
25491
Compressor; Scroll, 3 HP, 10 gal, 8.6 SCFM, 8.0 Amps, 230 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Air Compressor operates maintenance free, with only two moving parts
  • Includes air-cooled after-cooler, run-hour meter, and power indicator light, run and high-temp
  • Vibration-free, quiet (49dB) operation
  • Motor overload protection, air pressure gauge, and high-temp switch
  • Dry type inlet filter ensures that air enters the unit 99% particle-free
  • Cooling fan keeps operating temperature low, extending the life for bearings and seals
  • Self-lubricating, long-life tip seal
  • Continuous air delivery
  • Single phase 3HP units will require installation of an additional 30 gal. external tank

• Type: Scroll

• Oil-less: Yes

• Power: 3 HP

• Tank Capacity: 10 gal

• System F.L.A.: 8.0 Amps

• Service Pressure (PSIG): 116 PSIG

• SCFM @ 100 PSIG: 8.6 SCFM

• Unit of Measure: EA

• Marks & Listings: UL

• Electrical Specifications: 230 V, 8.1 A, 1,863 W, 3 Ph, 50 Hz

• Weight, Product: 250 lb

• Dimensions, Product: 24" W x 25" D x 39" H

• Weight, Shipping: 256 lb

• Dimensions, Shipping: 28" W x 30" D x 44" H

• Package Type: Box
