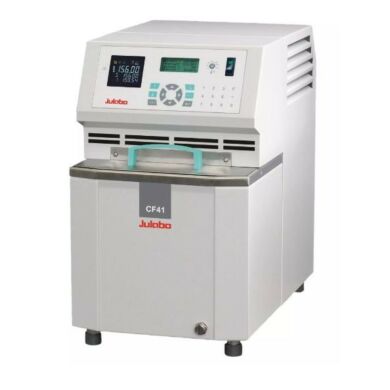

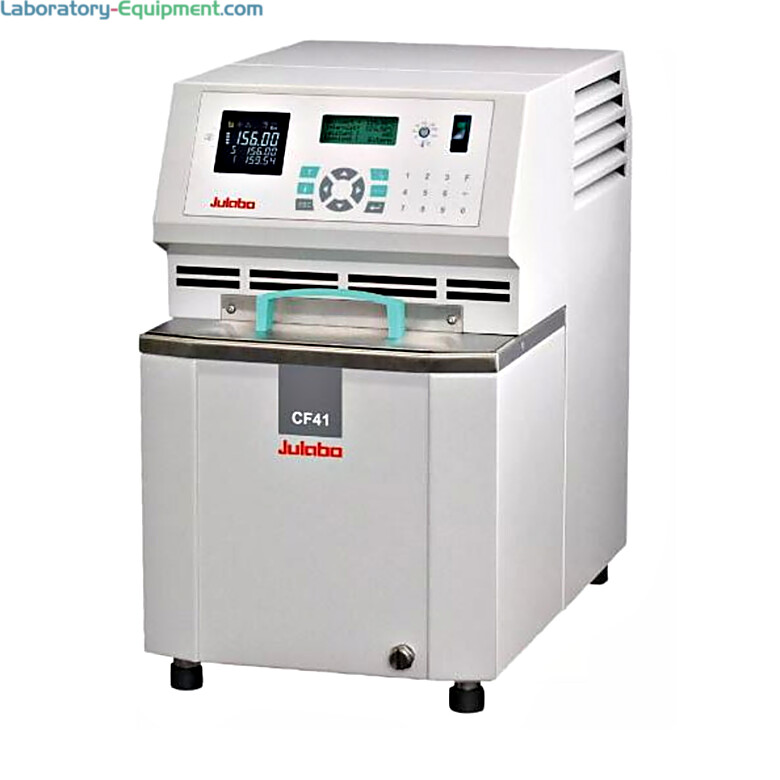

High-Tech CF41 Cryo-Compact Circulator by Julabo with a -40°C to +200°C temperature range, a 5.5L capacity, and up to 26L/min flow rate for demanding applicatio | 2540-07 displayed
Circulators

CF41 Cryo-Compact Refrigerated/Heating Circulator, 5.5L, -40C to +200C, RS232/RS485, Cascade Temperature Control, Programmer, Julabo, 9400341.2, 115V

  • High Tech CF41 Cryo-Compact Refrigerated/Heating Circulator ideal for benchtop or fume hood placement
  • Used in demanding lab applications with a working temperature from -40 to +200°C
  • Dual screen display with splash-proof numeric keypad, ICC cascade temperature control, RS232/RS485 interface, SMART PUMP, PT100 connection, integrated programmer, temperature control features, and ATC3 3-point calibration
  • 1kW heating capacity, R134a refrigerant and classification III according to DIN 12876-1
  • Includes: 2 barbed fittings each for tubing 8 and 12 mm ID (pump connections M16x1 male)

• Type: Compact

• Temperature Range: -40 to 200°C

• Tank Capacity: 20.8 L

• Refrigerated: Yes

• Heated: Yes

• Power: 470W

• Family: CF

• Manufacturer SKU: 9400341

• Unit of Measure: EA

Read more
Manufacturer SKU: 9400341.2
Manufactured By: Julabo
Warranty: 2 Year Limited Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
2540-07
Terra Part # 2540-07
$10,979
Usually ships in 12-18 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2540-07
47513
CF41 Cryo-Compact Refrigerated/Heating Circulator, 5.5L, -40C to +200C, RS232/RS485, Cascade Temperature Control, Programmer, Julabo, 9400341.2, 115V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • High Tech CF41 Cryo-Compact Refrigerated/Heating Circulator ideal for benchtop or fume hood placement
  • Used in demanding lab applications with a working temperature from -40 to +200°C
  • Dual screen display with splash-proof numeric keypad, ICC cascade temperature control, RS232/RS485 interface, SMART PUMP, PT100 connection, integrated programmer, temperature control features, and ATC3 3-point calibration
  • 1kW heating capacity, R134a refrigerant and classification III according to DIN 12876-1
  • •  Includes: 2 barbed fittings each for tubing 8 and 12 mm ID (pump connections M16x1 male)
  • Specifications:
  • Filling volume: 4 to 5.5 liters
  • Working temperature range °C: -40 to +200
  • Temperature stability °C: ±0.02
  • Ambient temperature °C: +5 to +40
  • Temperature display resolution °C: 0.01
  • Usable bath opening in. (W x L x D): 7.5 x 1.2 x 7.5
  • Refrigerant R449a
  • Filling weight: 153g
  • Global Warming Potential for R134a: 1397
  • Carbon dioxide equivalent: 0.213741
  • Heating capacity: kW 1
  • Cooling capacity °C/kW: -30/0.12, -20/0.28, 0/0.4, 20/0.47
  • Viscosity max. cSt: 70
  • Pump capacity flow pressure: 22 to 26 l/min
  • Pump capacity pressure: 5.8 to 10.2 psi
  • Maximum suction: 2.9 to 5.8 psi
  • Power consumption: 16A
  • Fluid type: Water, Silicone, Water/Glycol
  • Features of 115V CF41:
  • Optional interfaces: alarm output, REG/EPROG, and standby-input
  • Integrated external Pt100 sensor connection for measurement and control
  • Integrated programmer for 6 x 60 steps
  • Dual Screen Display: LCD dialog display and VFD
  • ICC Intelligent Cascade Temperature Control for automatic adaption of heat supplied to thermal bath requirements
  • TCF Temperature Control Features enable user access to important temperature control parameters to manually adjust or adapt control to specific application
  • Display: VFD and interactive LCD dialog display
  • RS232/RS485 interface for PC connection
  • SMART PUMP, electronically adjustable pump stages
  • Stainless steel bath tank and integrated bath cover
  • ATC3 3-Point-Calibration: Absolute temperature calibration adjusts offset at three temperatures for accurate temperature pattern
  • Displays adjustable high-temperature cut-out
  • Pump connections for external temperature applications
  • Early warning system for low liquid level
  • Cooling compressor: 1-stage air
  • Immersion pump
  • Class III (FL) according to DIN 12876-1
  • IP Code: IP 21
  • NRTL
  • Splash-proof keypad
  • Front drain
  • Ergonomic and small-footprint design for easy operation in small space environments
  • Class III (FL) according to DIN 12876-1
  • Green technology: environmentally friendly materials and technology
  • Undergoes thorough quality testing prior to leaving JULABO facility
  • Additional voltage versions available: 230V, 115V CSA/UL
Show more

• Type: Compact

• Temperature Range: -40 to 200°C

• Tank Capacity: 20.8 L

• Refrigerated: Yes

• Heated: Yes

• Power: 470W

• Family: CF

• Manufacturer SKU: 9400341

• Unit of Measure: EA

• Electrical Specifications: 115 V, 14 A, 1,000 W, 1 Ph, 60 Hz

• Weight, Product: 97 lb

• Dimensions, Product: 11" W x 18.25" D x 18.25" H

• Weight, Shipping: 230 lb

• Dimensions, Shipping: 32" W x 24" D x 42" H

• Package Type: Vendor

Show more
