CF40 Cryo-Compact by Julabo with a -40°C to +150°C temperature range, a 5.5L capacity, RS232 interface, and a 15L/min flow rate for routine lab applications | 2540-05 displayed
Circulators

CF40 Cryo-Compact Refrigerated/Heating Circulator, 5.5L Fill Volume, -40⁰C to +150⁰C, RS232, PID, Julabo, 9400340.2, 115V

  • Economy CF40 Cryo-Compact Refrigerated/Heating Circulator ideal for benchtop or fume hood placement
  • Used in routine lab applications with a working temperature from -40 to +150 °C
  • Large, bright LED display, PID temperature control, RS232 interface, and ATC3 calibration
  • 1 kW heating capacity, R449a refrigerant and classification III according to DIN 12876-1
  • Includes: barbed fittings each for tubing 8 and 12 mm ID (pump connections M16x1 male)

• Type: Compact

• Temperature Range: -40 to 150°C

• Tank Capacity: 20.8 L

• Refrigerated: Yes

• Heated: Yes

• Power: 470W

• Family: CF

• Manufacturer SKU: 9400340.2

• Unit of Measure: EA

Read more
Manufacturer SKU: 9400340.2
Manufactured By: Julabo
Warranty: 2 Year Limited Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
2540-05
Terra Part # 2540-05
$9,545
Usually ships in 12-18 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2540-05
47511
CF40 Cryo-Compact Refrigerated/Heating Circulator, 5.5L Fill Volume, -40⁰C to +150⁰C, RS232, PID, Julabo, 9400340.2, 115V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Economy CF40 Cryo-Compact Refrigerated/Heating Circulator ideal for benchtop or fume hood placement
  • Used in routine lab applications with a working temperature from -40 to +150 °C
  • Large, bright LED display, PID temperature control, RS232 interface, and ATC3 calibration
  • 1 kW heating capacity, R449a refrigerant and classification III according to DIN 12876-1
  • •  Includes: barbed fittings each for tubing 8 and 12 mm ID (pump connections M16x1 male)
  • Specifications:
  • Filling volume: 4 to 5.5 liters
  • Working temperature range °C: -40 to +150
  • Temperature stability °C: ±0.03
  • Ambient temperature °C: +5 to +40
  • Temperature display resolution °C: 0.1
  • Usable bath opening in. (W x L x D): 7.5 x 1.2 x 7.5
  • Refrigerant R449a
  • Filling weight: 153g
  • Global Warming Potential for R449a: 1397
  • Carbon dioxide equivalent: 0.213741
  • Heating capacity: kW 1
  • Cooling capacity °C/kW: -30/0.12, -20/0.28/0/0.4, 20/0.47
  • Viscosity max. cSt: 30
  • Pump capacity flow pressure: 15 l/min
  • Pump capacity pressure: 5.1 psi
  • Power consumption: 16A
  • Fluid type: Water, Silicone, Water/Glycol
  • External Devices: Remote control
  • Features of 115V CF40:
  • Stainless steel bath tank and integrated bath cover
  • ATC3 3-Point-Calibration: Absolute temperature calibration adjusts offset at three temperatures for accurate temperature pattern
  • Displays adjustable high-temperature cut-out
  • Pump connections for external temperature applications
  • Early warning system for low liquid level
  • Cooling compressor: 1-stage air
  • Immersion pump
  • Class III (FL) according to DIN 12876-1
  • IP Code: IP 21
  • Precise PID temperature with set control parameters, temperature stability ±0.02...±0.2 °C
  • Extra bright LED temperature display
  • Splash-proof keypad
  • Front drain
  • Ergonomic and small-footprint design for easy operation in small space environments
  • RS232 interface
  • Class III (FL) according to DIN 12876-1
  • Green technology: environmentally friendly materials and technology
  • Undergoes thorough quality testing prior to leaving JULABO facility
  • Additional voltage versions available: 230V, 115V CSA/UL
Show more

• Type: Compact

• Temperature Range: -40 to 150°C

• Tank Capacity: 20.8 L

• Refrigerated: Yes

• Heated: Yes

• Power: 470W

• Family: CF

• Manufacturer SKU: 9400340.2

• Unit of Measure: EA

• Electrical Specifications: 115 V, 16 A, 1,000 W, 1 Ph, 60 Hz

• Weight, Product: 97 lb

• Dimensions, Product: 11" W x 18.1" D x 18.1" H

• Weight, Shipping: 230 lb

• Dimensions, Shipping: 32" W x 24" D x 42" H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Basic 47 Hood from Labconco (shown with optional base cabinet and work surface) | 3646-00 displayed
    Group of 8 products
    Basic Laboratory Fume Hoods from Labconco From
    As low as $6,033
    Some ship in 5 - 7 days
  2. XStream Labconco fume hood shown with clean-sweep sash handle and rear downflow dual baffle system | 1538-32 displayed
    Group of 16 products
    Protector XStream Laboratory Fume Hoods by Labconco From
    As low as $8,871
    Some ship in 25 - 29 days
  3. Arium Comfort II produces ASTM Type 1 and Type 2 water in a single system available with a UV lamp and a TOC monitor in select models | 9510-PP-01 displayed
    Group of 12 products
    Arium Comfort II Combined Lab Water Systems by Sartorius From
    As low as $14,247
    Some ship in 12 - 16 days
Buy Accessories

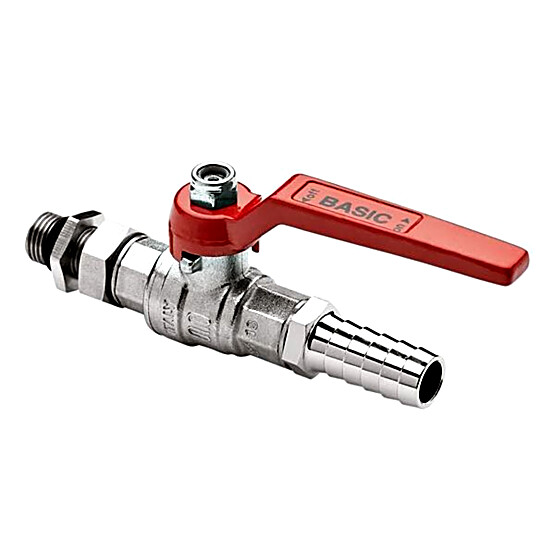

  1. Drain Tap with a maximum temperature of +150°C for use with Julabo Circulators, 8970452 | 2540-77 displayed
    Accessories; Drain tap Ships Free Free shipping in contiguous USA In stock
    $201
    Increase Down Increase Up

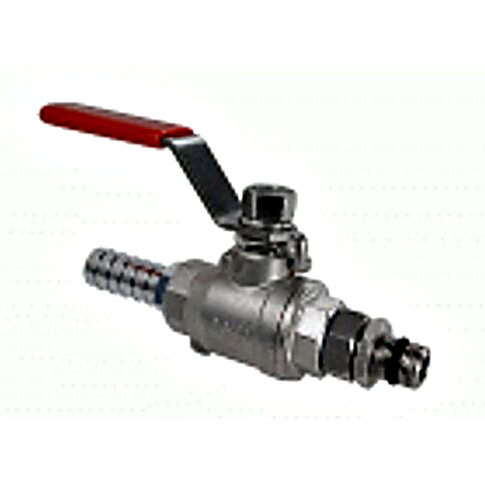

  2. Stainless Steel Drain Tap with a maximum temperature of +200°C for Julabo Circulators, 8970450 | 2540-78 displayed
    Accessories; Drain tap, Stainless Steel Ships Free Free shipping in contiguous USA In stock
    $439
    Increase Down Increase Up

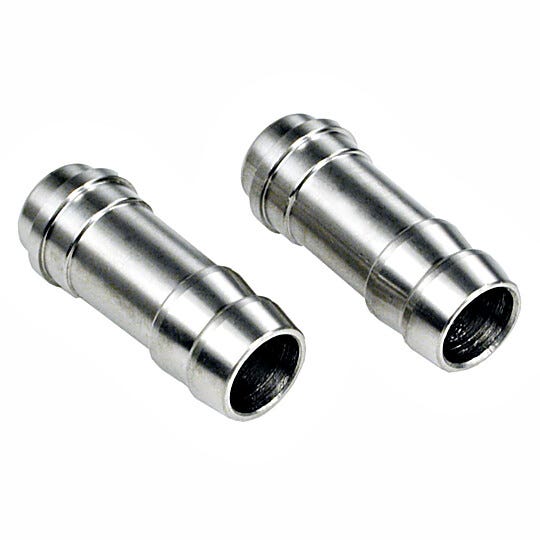

  3. 13.5mm OD Adapter Barbed for 12mm ID Tubing compatible with Julabo Circulators, 8970445, Qty. 2 | 2540-83 displayed
    Accessories; 2 Barbed fittings for tubing 12 mm inner dia. Ships Free Free shipping in contiguous USA In stock
    $43
    Increase Down Increase Up

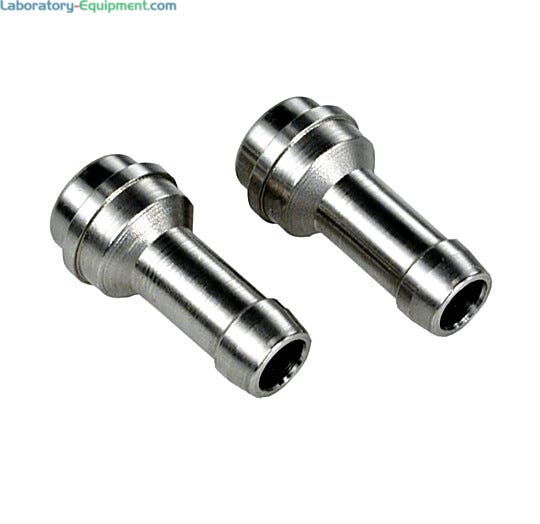

  4. 9.5mm OD Adapter Barbed for 8mm ID Tubing for use with M16x1 cap nuts (8970490) compatible with Julabo Circulators, 8970446, Qty. 2 | 2540-85 displayed
    Accessories; 2 Barbed fittings for tubing 8 mm inner dia. Ships Free Free shipping in contiguous USA In stock
    $43
    Increase Down Increase Up

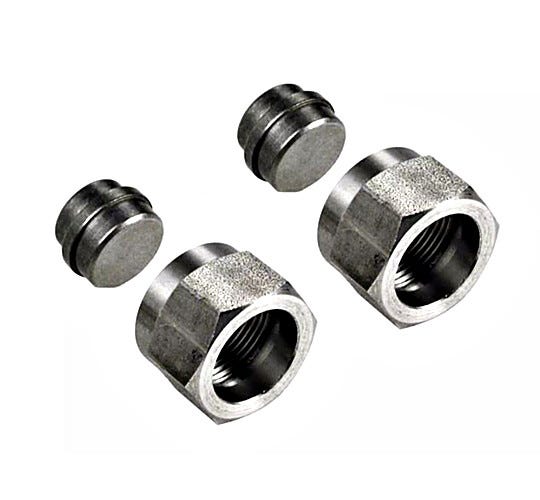

  5. M16 x 1 Nuts for CD, CP, DD, MS, MX and Cryo-Compact Series by Julabo, 8970490, Qty. 2 | 2540-88 displayed
    Accessories; 2 Collar nuts M16x1 female Ships Free Free shipping in contiguous USA In stock
    $40
    Increase Down Increase Up

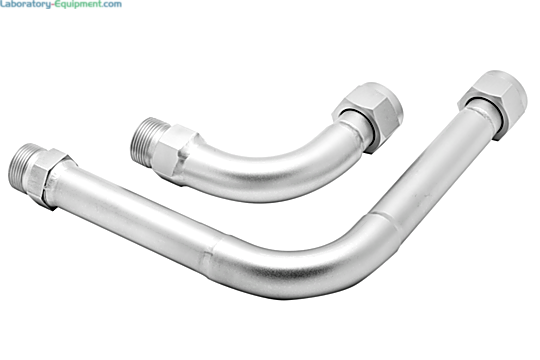

  6. 2 Elbow fittings 90, M16x1 female/male, offset, for use with M16x1 male or female connections | 2540-90A displayed
    Accessories; 2 Elbow fittings 90°, M16x1 female/male, offset Ships Free Free shipping in contiguous USA In stock
    $412
    Increase Down Increase Up
  7. 2 Adapters M16x1 f. to NPT 1/4″ m | 2540-91A displayed
    Accessories; Adapters M16x1 female to NPT 1/4" male Ships Free Free shipping in contiguous USA In stock
    $79
    Increase Down Increase Up
  8. Two adapters M16x1 female to NPT 1/4" female; suitable for Julabo Series: HE, HL, SE, SL, CF models | 2540-92A displayed
    Accessories; Adapters M16x1 female to NPT 1/4" female Ships Free Free shipping in contiguous USA In stock
    $148
    Increase Down Increase Up
  9. Two adapters M16x1 female to NPT 3/8" male; suitable for Julabo Series: HE, HL, SE, SL, CF models | 2540-93A displayed
    Accessories; Adapters M16x1 female to NPT 3/8" male Ships Free Free shipping in contiguous USA In stock
    $150
    Increase Down Increase Up
  10. Two adapters M16x1 female to NPT 3/8" female; suitable for Julabo Series: HE, HL, SE, SL, CF models | 2540-94A displayed
    Accessories; Adapters M16x1 female to NPT 3/8" female Ships Free Free shipping in contiguous USA In stock
    $209
    Increase Down Increase Up
  11. Two adapters M16x1 female to NPT 1/2" male; suitable for Julabo Series: HE, HL, SE, SL, CF models | 2540-95A displayed
    Accessories; Adapters M16x1 female to NPT 1/2" male Ships Free Free shipping in contiguous USA In stock
    $168
    Increase Down Increase Up
  12. Two adapters M16x1 female to NPT 1/2" female; suitable for Julabo Series: HE, HL, SE, SL, CF models | 2540-96A displayed
    Accessories; Adapters M16x1 female to NPT 1/2" female Ships Free Free shipping in contiguous USA In stock
    $205
    Increase Down Increase Up
  13. Two adapters M16x1 male to NPT 1/4" (6 mm) female. Suitable for Julabo Series: HE, HL, SE, SL, CF models | 2540-97A displayed
    Accessories; Adapters M16x1 male to NPT 1/4" female Ships Free Free shipping in contiguous USA In stock
    $135
    Increase Down Increase Up
  14. Stainless Steel Adapter M16x1 male to 1/2" BSP female compatible with Julabo Circulators, 8891008 | 2540-98 displayed
    Accessories; Adapter M16x1 male to BSP 1/2" female Ships Free Free shipping in contiguous USA In stock
    $189
    Increase Down Increase Up

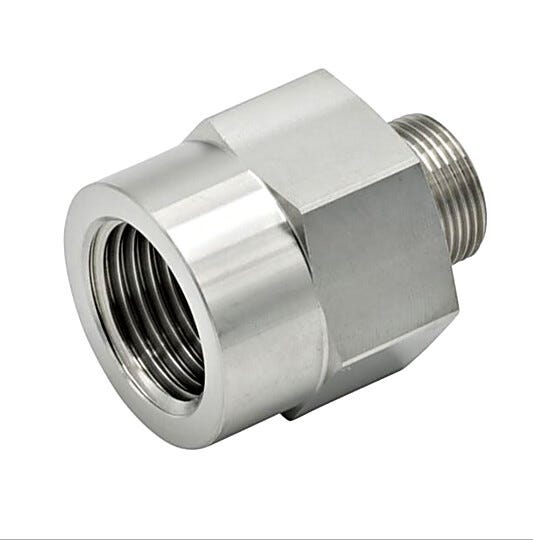

  15. Stainless Steel Male Adapter to M16x1 m to 3/4″ BSP female compatible with Julabo Circulators, 8891009 | 2540-99 displayed
    Accessories; Adapter M16x1 male to BSP 3/4" female Ships Free Free shipping in contiguous USA In stock
    $222
    Increase Down Increase Up

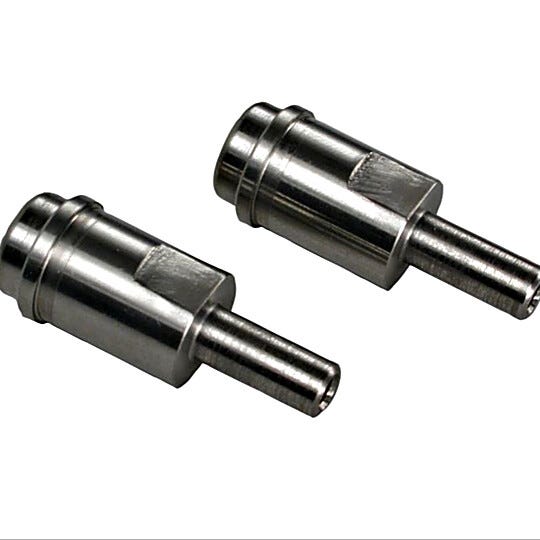

  16. Adapter M16x1 F to 1/4″ tube stub by Julabo, 8890011, Qty. 2 | 2440-00 displayed
    Accessories; Adapters M16x1 female to tube 1/4" male Ships Free Free shipping in contiguous USA In stock
    $156
    Increase Down Increase Up

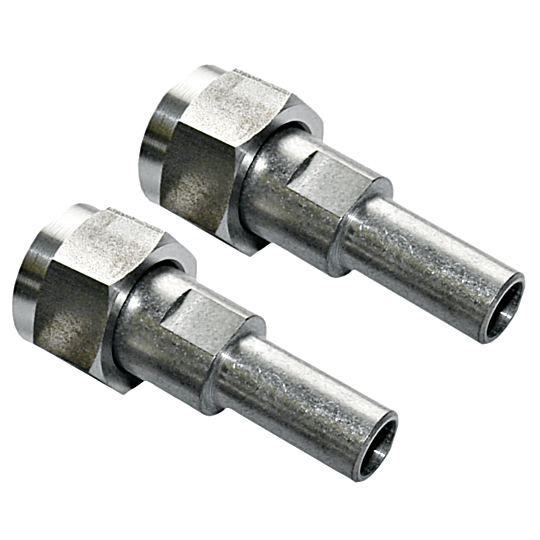

  17. Adapter M16x1 f to 3/8" tube stub compatible with Julabo Circulators, 8890012, Qty. 2 | 2440-01 displayed
    Accessories; Adapters M16x1 female to tube 3/8" male Ships Free Free shipping in contiguous USA In stock
    $156
    Increase Down Increase Up

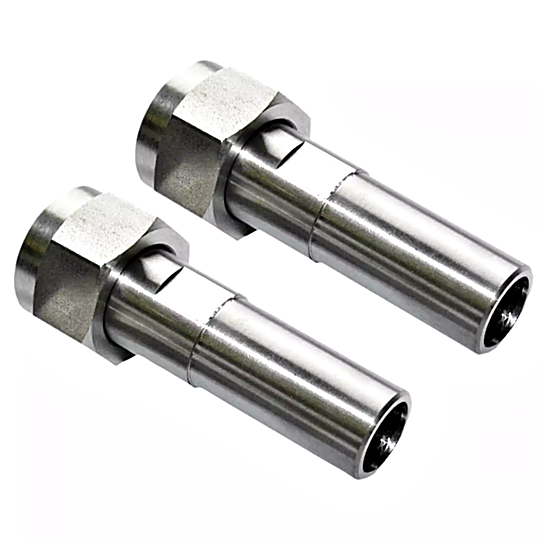

  18. Adapter M16x1 f to 1/2" tube stub compatible with Julabo Circulators, 8890013, Qty. 2 | 2440-02 displayed
    Accessories; Adapters M16x1 female to tube 1/2" male Ships Free Free shipping in contiguous USA In stock
    $156
    Increase Down Increase Up

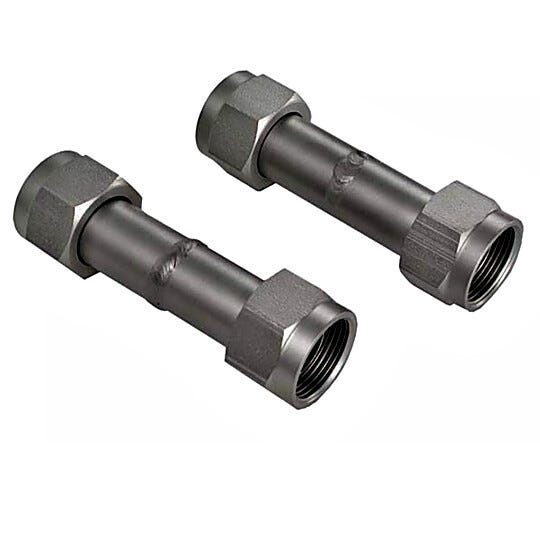

  19. Adapter M16x1 f to M 16x1 female compatible with Julabo Circulators, 8890024, Qty. 2 | 2440-03 displayed
