Overall: 6.1"W x 6.4"D x 3.7"H (155 x 165 x 95mm)
Electrical: 100-240V
Rated Power: 40w
Output Voltage: 36V DC
Speed Control Accuracy: ±1
Stir Speed: 100 to 2000rpm
Stirring Power Relative to Rated Power: 10 to 100 (10 levels)
Starting Times: 5 sec. To 60 min.
Pause Times:5 sec. To 60 min.
Ambient Temperature Range: 0° to 40°C at 80% relative humidity
Weight: 1.5 lbs. (0.7kg)
Compatible with Telesystems and Maxi Stirrers
Order as replacement controller
Higher speeds and more power settings compared to Standard and Telemodul 20 C controllers
Power output booster to 40w handles more demanding stirring tasks
Saves energy with 10 power settings: decrease power consumption and lower heat output
Single-handed operation: straightforward turn and press adjustment wheel
Three Individual program store and recall keys for rapid start-up
Stores in memory last used settings
Gentle back and forth stirring motion with Rocking/shake mode (reverses stir bar direction)
RS-232 interface allows data transfer and PC control

• Manufacturer SKU: 50090774

• Unit of Measure: EA

• Electrical Specifications: 100/240 V

• Weight, Product: 1.3 Lbs

• Dimensions, Product: 6.1"W x 6.4"D x 3.7"H

• Weight, Shipping: 5 Lbs

• Dimensions, Shipping: 8" W x 8" D x 6" H

• Package Type: Box

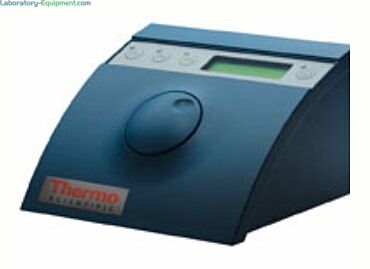

Cimarec Telemodul i40C Controllers
