6926-70A
Terra Part # 6926-70A
$35,886
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 6926-70A
75286

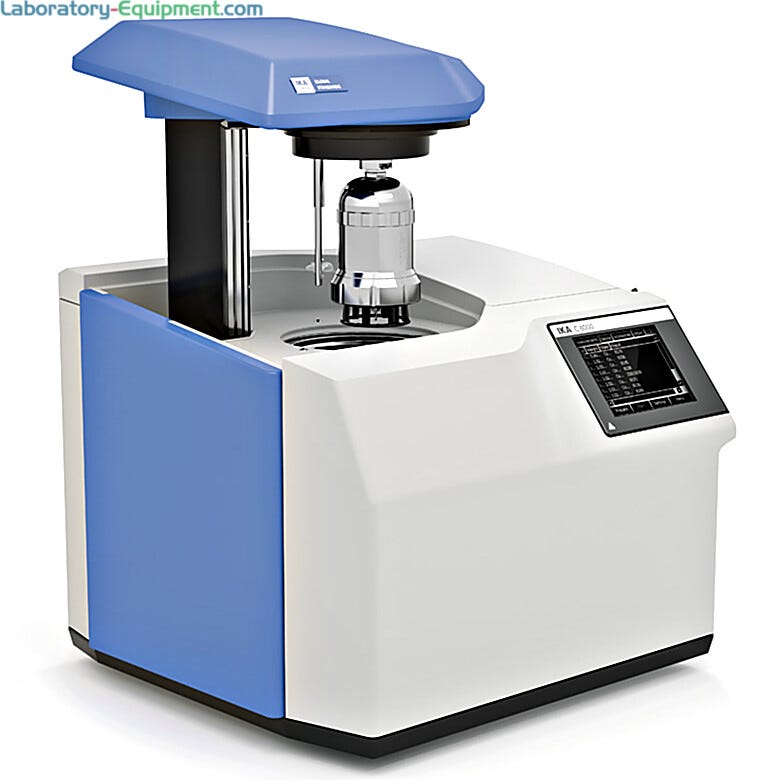

Calorimeter: C6000, 3 Measuring Modes, No Chiller, IKA, 115 V
Product Details
  • Includes C 6000 global standards calorimeter and C 6010
  • Standard decomposition vessel
  • For gross determination of calorific values of laboratory solids and liquids
  • Start temperature settings: 22 °C, 25 °C, 30°C
  • Reproducibility (1g benzoic acid NBS39i): Adiabatic: 0.05 %
  • RSD/Isoperibol: 0.05 %RSD/ Dynamic: 0.15 %RSD
  • Min/Max Working Temperature: 22 °C/30°C
  • Cooling medium temperature Min/Max: 12 °C/27 °C
  • Cooling medium permissible operating pressure: 1.5 bar
  • Cooling medium: tap water
  • Min/max flow rate: 60 l/h to 70 l/h
  • Rec.  Flow rate at 18°C: 60 l/h
  • Oxygen operating pressure max.: 40 bar
  • Maximum energy input: 40,000 J
  • Resolution of temperature sensor PT 1000: 0.0001
  • Power ON-time/Operator time: 100%/< 1 min
  • Operating oxygen pressure: 30 bar
  • Permissible ambient temperature: 20 - 25 °C
  • Permissible relative humidity: 80%
  • Automatic functions: Oxygen filling, venting and flushing/Water filling and drain/Ignition and ignition energy determination for each experiment
  • Display: TFT with touch screen
  • Number of decomposition vessel per unit: 4
  • Decomposition vessel ID: automatic (RFID)
  • Oxygen bomb calorimeter with latest technology, variability and automation
  • Spherical decomposition vessel design improves heat transfer and shortens measurement times
  • Software displays chart and correction calculation of globally used standards
  • Additional data management with removable SD Card and Ethernet interface
  • RFID technology for automatic decomposition vessel determination
  • Easy bomb preparation with new “turned around” design of new crucible holder
  • Analysis according to: DIN 51900/DIN EN: ISO 1716, ISO 9831, 15170/DIN CEN TS 14918/ASTM: D240, D4809, D1989, D5865, E711 ISO 1928 and GB T213
  • Protection class according to DIN EN 60529: IP 20
  • Interfaces: RS232 scale, USB printer, RS232 PC, test rack and SD-Card, keyboard

Cooling Method: Water Flow

Halogen Resistant: No

Chiller: No

Modes: Adiabatic, Isoperibol, Dynamic

Maximum Working Temperature: 30°C

Model: C6000

Manufacturer SKU: 0010004533

Unit of Measure: EA

Electrical Specifications: 115 V, 1,700 W, 50/60 Hz

Weight, Product: 88.5 lb

Dimensions, Product: 19.7" W x 17.7" D x 16.7" H

Weight, Shipping: 98 lb

Dimensions, Shipping: 25" W x 23" D x 23" H

Buy Accessories

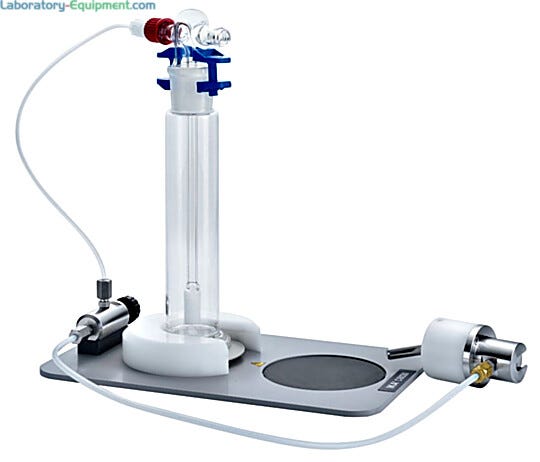

  1. C 6030 Venting station  |  6926-72 displayed
    C6030 Venting station Ships Free Free shipping in contiguous USA
    $3,882
    Increase Down Increase Up

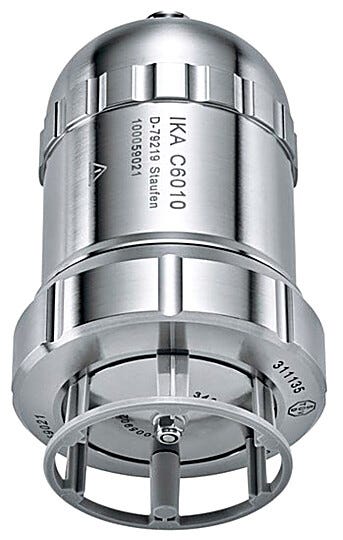

  2. Standard decomposition vessel  |  6926-73 displayed
    C6010 Decomposition Vessel, Standard Ships Free Free shipping in contiguous USA
    $5,073
    Increase Down Increase Up
  3. Standard decomposition vessel  |  6926-73 displayed
    C6012 Decomposition Vessel, Halogen Resistant Ships Free Free shipping in contiguous USA
    $9,629
    Increase Down Increase Up

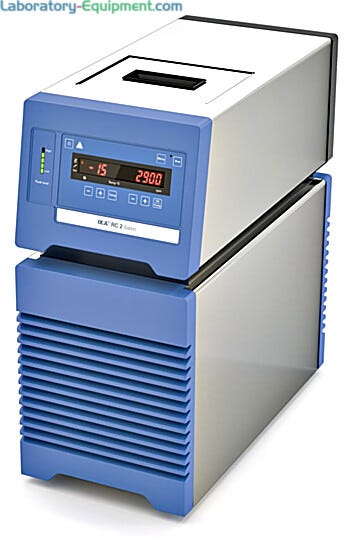

  4. Designed for cooling applications up to -20 C.  |  6925-66 displayed
    RC 2 Basic, Recirculating Chiller Ships Free Free shipping in contiguous USA In stock
    $5,052
    Increase Down Increase Up

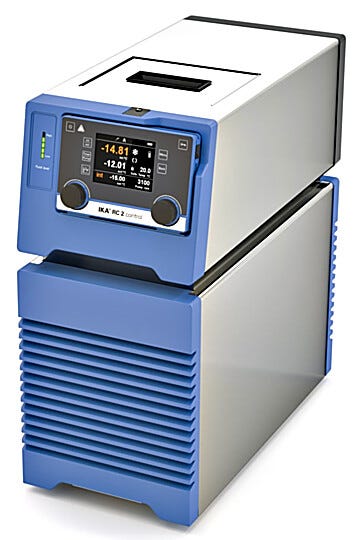

  5. Measures and controls temperature  |  6926-75 displayed
    RC 2 Control Ships Free Free shipping in contiguous USA
    $7,657
    Increase Down Increase Up

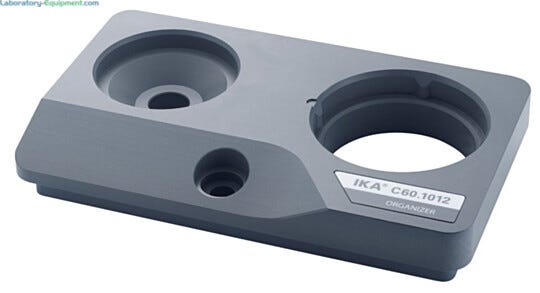

  6. C 60.1012 Organizer  |  6926-76 displayed
    C60.1012 Organizer Ships Free Free shipping in contiguous USA
    $418
    Increase Down Increase Up
  7. C6000.10 Set of Spare Parts
    C6000.10 Set of Spare Parts Ships Free Free shipping in contiguous USA
    $1,998
    Increase Down Increase Up
  8. 6000.12 Set of Spare Parts
    6000.12 Set of Spare Parts Ships Free Free shipping in contiguous USA
    $4,731
    Increase Down Increase Up

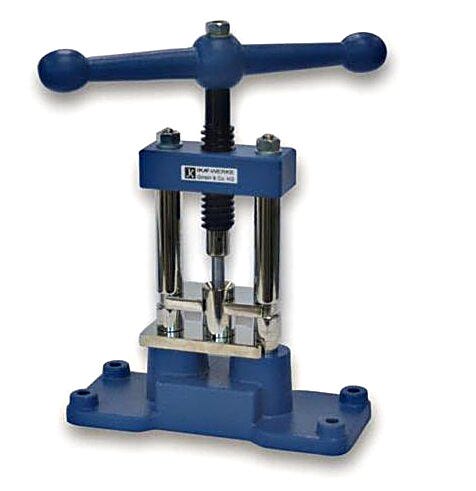

  9. Manual pellet press for powders; good combustible substances  |  6925-67 displayed
    C21 Pelleting Press Ships Free Free shipping in contiguous USA In stock
    $4,469
    Increase Down Increase Up

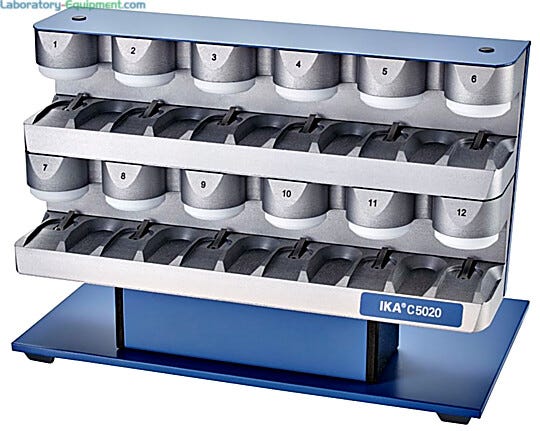

  10. For reliable registration and managment of up to 12 samples  |  6926-56 displayed
    C5020 Sample Rack Ships Free Free shipping in contiguous USA
    $8,494
    Increase Down Increase Up

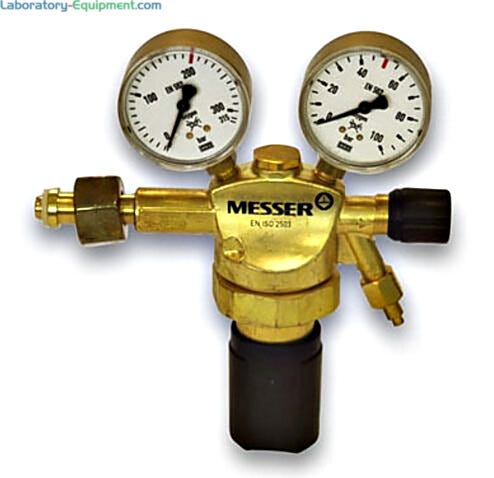

  11. To reduce the oxygen pressure from the bottle to 30 bar  |  6926-44 displayed
    C29 Pressure Gauge, Oxygen Ships Free Free shipping in contiguous USA
    $2,032
    Increase Down Increase Up

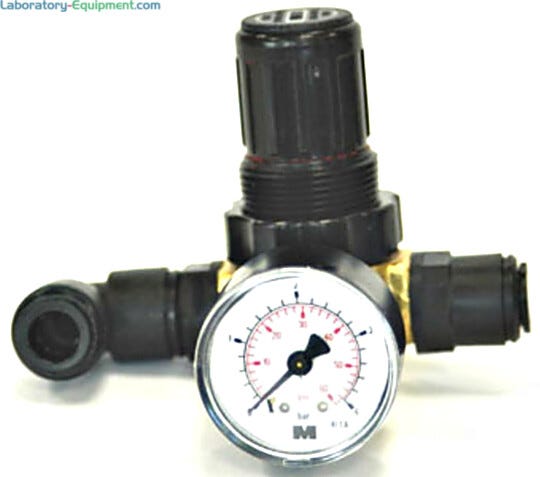

  12. Useful for manually regulate pressure  |  6926-57 displayed
    C25 Pressure Regulating Valve Ships Free Free shipping in contiguous USA
    $1,325
    Increase Down Increase Up

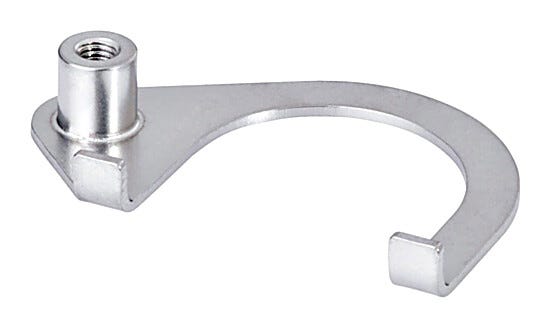

  13. Useful for materials with low caloric values  |  6925-64 displayed
    C5010.8 Crucible Holder, small Ships Free Free shipping in contiguous USA In stock
    $331
    Increase Down Increase Up

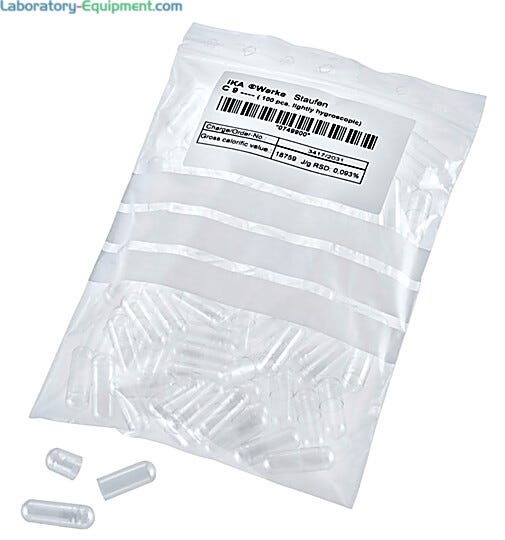

  14. Capsules prevents splashing of the sample when igniting  |  6925-72 displayed
    C9 Gelatine Capsules Ships Free Free shipping in contiguous USA In stock
    $86
    Increase Down Increase Up

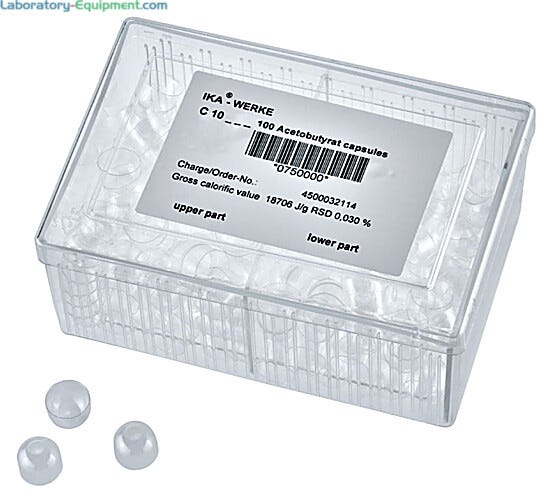

  15. Capsules prevents splashing of the sample when igniting  |  6925-73 displayed
    C10 Acetobutyrate Capsules Ships Free Free shipping in contiguous USA In stock
    $353
    Increase Down Increase Up

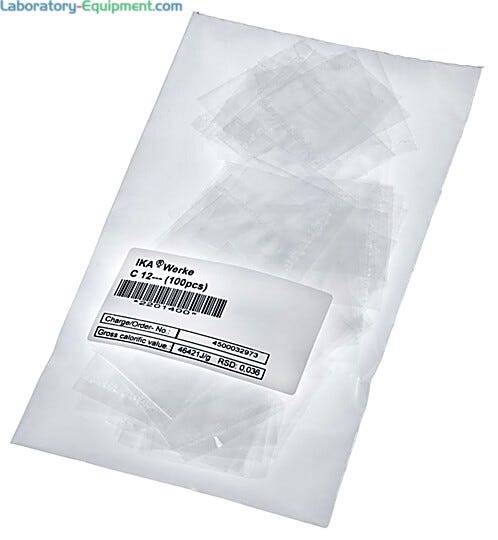

  16. To fill in samples with low calorific value, powdery, and with low specific gravity  |  6925-74 displayed
    C12 Combustion Bags 40 x 35 mm Ships Free Free shipping in contiguous USA In stock
    $107
    Increase Down Increase Up

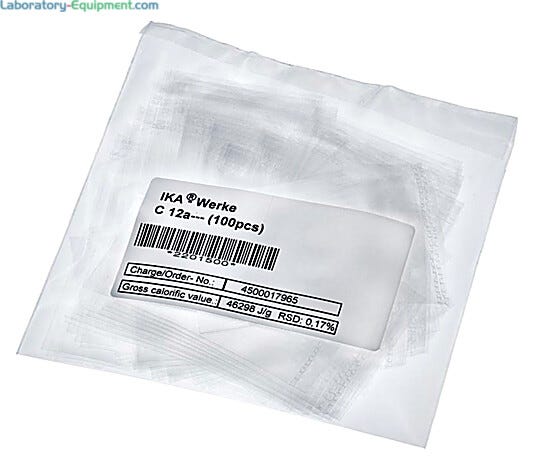

  17. To fill in samples with low calorific value, powdery, and with low specific gravity  |  6925-75 displayed
    C12 A Combustion Bags 70 x 35 mm Ships Free Free shipping in contiguous USA In stock
    $114
    Increase Down Increase Up

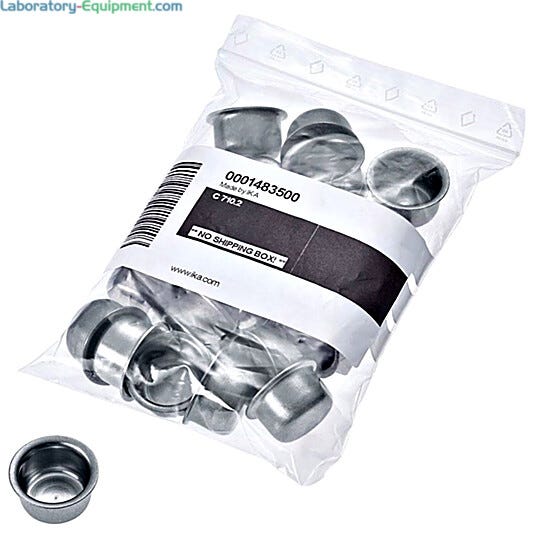

  18. A single crucible is allowed to be used for up to 25 combustions  |  6925-71 displayed
    C710.2 Set of VA Combustion Crucibles Ships Free Free shipping in contiguous USA In stock
    $468
    Increase Down Increase Up

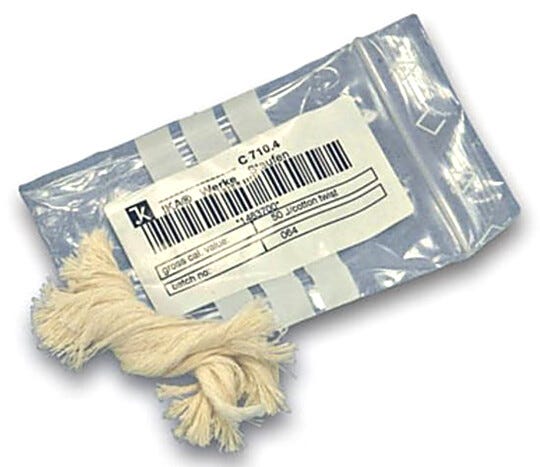

  19. Cotton Threads for ignition of IKA Calorimeters  |  6926-45 displayed
    C710.4 Cotton Thread, Cut to Length Ships Free Free shipping in contiguous USA
    $122
    Increase Down Increase Up

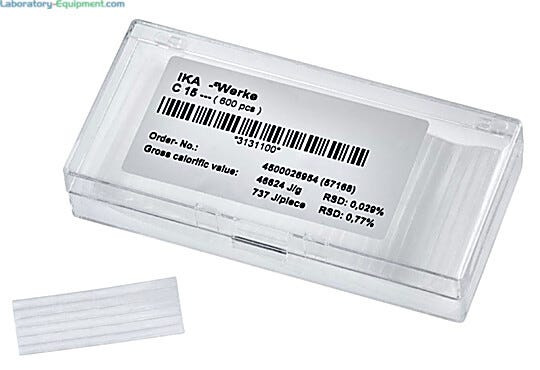

  20. For hard flammable, water containing samples  |  6925-76 displayed
    C15 Paraffin Strips Ships Free Free shipping in contiguous USA In stock
    $121
    Increase Down Increase Up

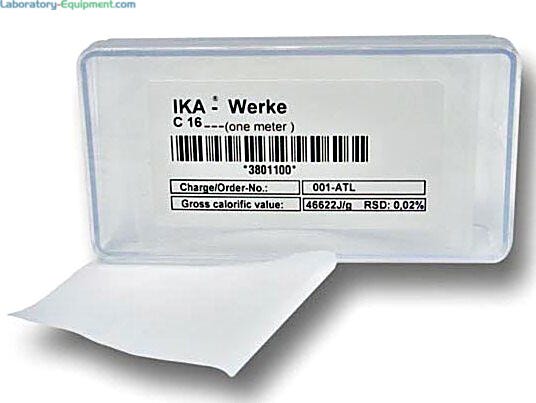

  21. For closing the crucible combustion aid for liquids with volatile components,  |  6925-77 displayed
    C16 Parafilm Ships Free Free shipping in contiguous USA In stock
    $352
    Increase Down Increase Up

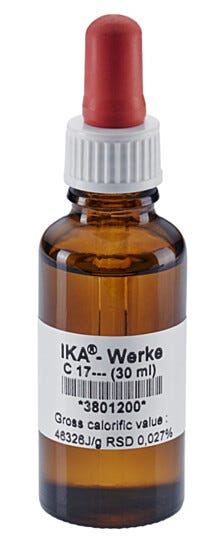

  22. Combustion aid for samples with high watercontent percentage  |  6925-78 displayed
    C17 Paraffin Ships Free Free shipping in contiguous USA In stock
    $580
    Increase Down Increase Up

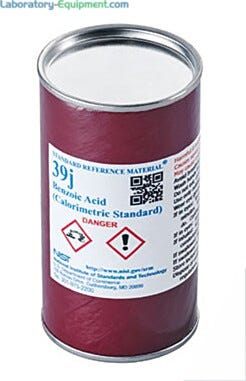

  23. High pure Benzoic acid powder  |  6925-79 displayed
    C43 Benzoic Acid NBS 39i Ships Free Free shipping in contiguous USA In stock
    $1,357
    Increase Down Increase Up

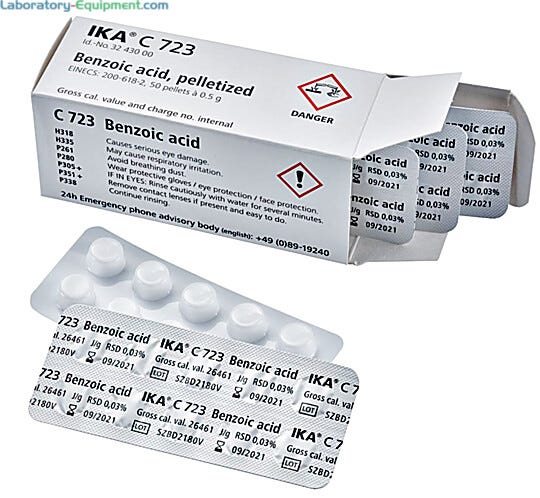

  24. With IKA-certified gross calorific value for Standard-calibrations  |  6925-80 displayed
    C723 Benzoic Acid, Blister Package Ships Free Free shipping in contiguous USA In stock
    $69
    Increase Down Increase Up

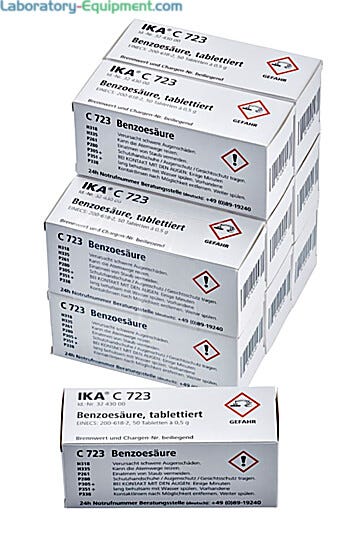

  25. With IKA-certified gross calorific value for Standard-calibrations  |  6925-81 displayed
    C723 Benzoic Acid BIG Package Ships Free Free shipping in contiguous USA In stock
    $567
