Terra Part # 6925-66
$3,375
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Terra Part # 6925-66
63543
$3,375
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping

• Product Dimensions: 8.7"W x 18.7"D x 20.7"H (220 x 475 x 525 mm)

• Weight: 61.7 lbs. (28.0 kg)

• Frequency: 50/60 Hz

• Power input: 300 W

• Voltage: 115 V

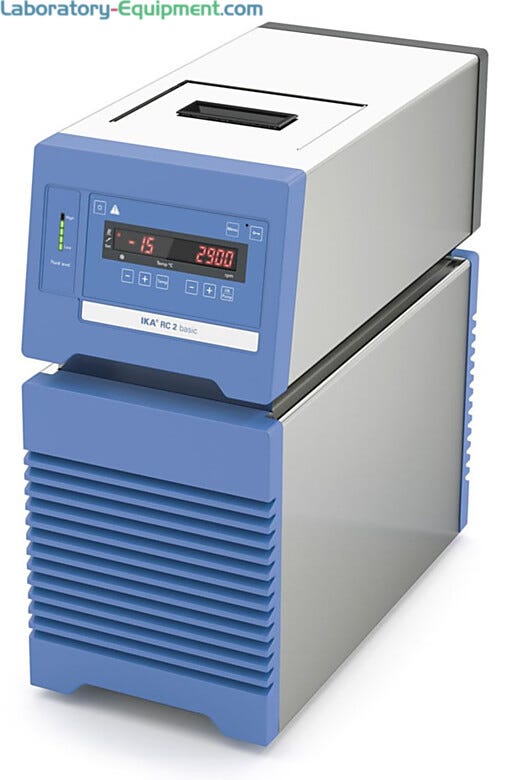

• Appliance type: Recirculating Chiller

• Pressure max.: 20 bar

• Cooling capacity (20 °C): 400 W

• Cooling capacity (10 °C): 370 W

• Cooling capacity (0 °C): 320 W

• Cooling capacity (-10 °C): 240 W

• Cooling capacity (-20 °C): 130 W

• Operating temperature min.: -20 °C

• Working temperature min.: -20 °C

• Working temperature max.: room temp. °C

• Temperature display: yes

• Temperature control: PID

• Working temperature sensor: PT 100

• Working temperature display: LED

• Connection for ext. Temperature sensor: PT 100

• Display resolution : 0.1 ±°C

• Display for operation with ext. Sensor: yes

• Warning function optical: yes

• Warning function acoustic: yes

• Warning function excess temperature: yes

• Warning function insufficient temperature: yes

• Sub-level protection: yes

• Over-level protection: yes

• Bath volume min: 1.4 l

• Bath volume max.: 4.0 l

• Pump type: Pressure- / suction pump

• Pump capacity adjustable: yes

• Pump pressure max. (0 liters discharge flow): 0.3 bar

• Pressure pump (suction side) (0 liter flow): 0.2 bar

• Pump pressure max. (0 bar back pressure): 18 l/min

• Pump connection: M16x1

• Calibration option : yes

• Multi-Interface: yes

• RS 232 interface: yes

• USB interface: yes

• Laboratory chilling unit required for operation of the C 1 Calorimeter

• Speed-controlled PEEK pump allows indirect continuous adjustment of the maximum pressure and flow rate

• Temperature stability of about ±0.1 K (@ -10 °C), enables handling of sophisticated applications

• Included feed hopper and bleed valve enable safe and clean handling of the thermofluid

• Easy to open front hood for convenient cleaning of the air filter

• High quality insulated 4 l bath reservoir allows the use of up to 2.5 liters of thermofluid in the external cooling circle without refilling

Manufacturer SKU: 4171001

Unit of Measure: EA

Weight, Product: 5 lb

Weight, Shipping: 10 lb

Package Type: Box
