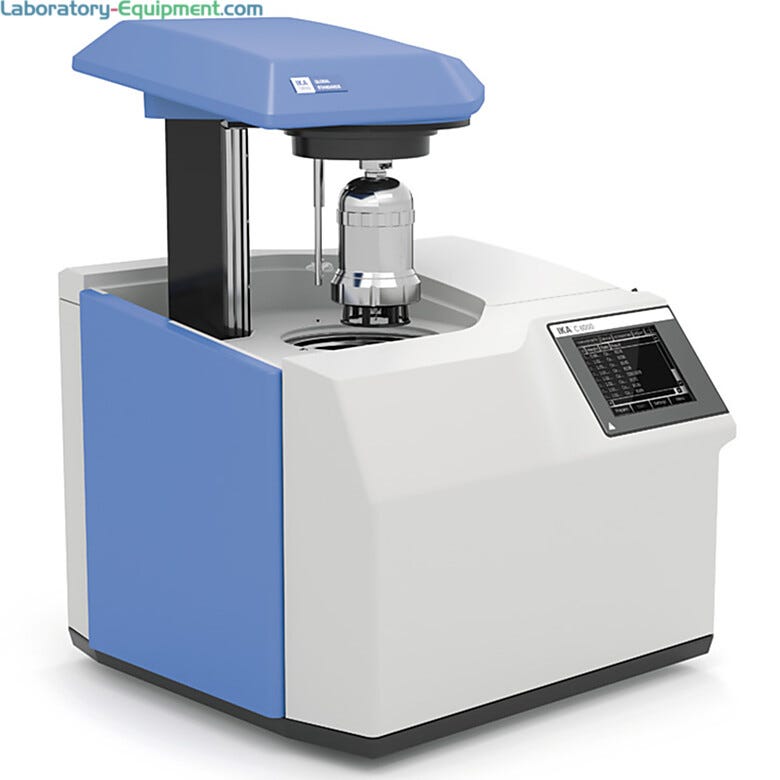

Calorimeter; C6000, 2 Measuring Modes, No Chiller, IKA, 115 V

• Includes C 6000 isoperibol calorimeter and C 6010 Standard decomposition vessel

• Measuring modes: Dynamic and Isoperibol

• Start temperature settings: 22 °C, 25 °C, 30°C

• Reproducibility (1g benzoic acid NBS39i): Isoperibol: 0.05 %

• RSD/ Dynamic: 0.15 %RSD

• Measurements/h: Isoperibol: 6, Dynamic: 4

• Min/Max Working Temperature: 22 °C/30°C

• Cooling medium temperature Min/Max: 12 °C/27 °C

• Cooling medium permissible operating pressure: 1.5 bar

• Cooling medium: tap water

• Min/max flow rate: 60 l/h to 70 l/h

• Rec. Flow rate at 18°C: 60 l/h

• Oxygen operating pressure max.: 40 bar

• Maximum energy input: 40,000 J

• Resolution of temperature sensor PT 1000: 0.0001

• Power ON-time/Operator time: 100%/< 1 min

• Operating oxygen pressure: 30 bar

• Permissible ambient temperature: 20 - 25 °C

• Permissible relative humidity: 80%

• Automatic functions: Oxygen filling, venting and flushing/Water filling and drain/Ignition and ignition energy determination for each experiment

• Display: TFT with touch screen

• Number of decomposition vessel per unit: 4

• Decomposition vessel ID: automatic (RFID)

• For gross determination of calorific values of laboratory solids and liquids

• Oxygen bomb calorimeter with latest technology, variability and automation

• Spherical decomposition vessel design improves heat transfer and shortens measurement times

• Software displays chart and correction calculation of globally used standards

• Additional data management with removable SD Card and Ethernet interface

• RFID technology for automatic decomposition vessel determination

• Easy bomb preparation with new “turned around” design of new crucible holder

• Analysis according to: DIN 51900/DIN EN: ISO 1716, ISO 9831, 15170/DIN CEN TS 14918/ASTM: D240, D4809, D1989, D5865, E711 ISO 1928 and GB T213

• Protection class according to DIN EN 60529: IP 20

• Interfaces: RS232 scale, USB printer, RS232 PC, test rack and SD-Card, keyboard
