6926-64A
Terra Part # 6926-64A
$39,679
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6926-64A
75276

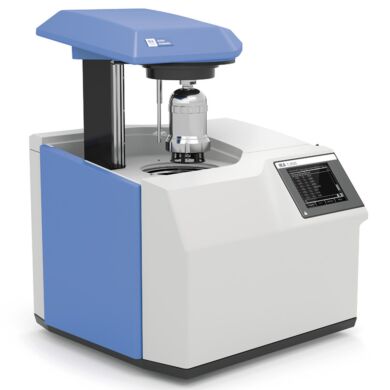

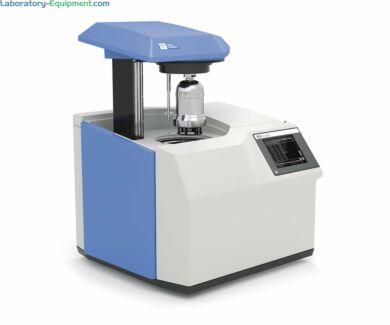

Calorimeter; C6000, 2 Measuring Modes, IKA, 115 V
  • Includes: C 6000 isoperibol calorimeter, C 6010 Standard decomposition vessel and the RC 2 chiller unit
  • Measurements/h: Isoperibol: 6, Dynamic: 4
  • For gross determination of calorific values of laboratory solids and liquids
  • Oxygen bomb calorimeter with latest technology, variability and automation
  • Software displays chart and correction calculation of globally used standards
  • Min/Max Working Temperature: 22-30°C
  • Cooling medium temperature Min/Max: 12-27 °C
  • Cooling medium permissible operating pressure: 1.5 bar
  • Cooling medium: tap water
  • Min/max flow rate: 60-70 l/h
  • Oxygen operating pressure max.: 40 bar
  • Maximum energy input: 40,000 J
  • Resolution of temperature sensor PT 1000: 0.0001
  • Power ON-time/Operator time: 100%/< 1 min
  • Operating oxygen pressure: 30 bar
  • Permissible ambient temperature: 20 - 25 °C
  • Permissible relative humidity: 80%
  • Automatic functions: Oxygen filling, venting and flushing/Water filling and drain/Ignition and ignition energy determination for each experiment
  • Display: TFT with touch screen
  • Decomposition vessel ID: automatic (RFID)
  • Spherical decomposition vessel design improves heat transfer and shortens measurement times
  • Additional data management with removable SD Card and Ethernet interface
  • RFID technology for automatic decomposition vessel determination
  • Easy bomb preparation with new “turned around” design of new crucible holder
  • Analysis according to: DIN 51900/DIN EN: ISO 1716, ISO 9831, 15170/DIN CEN TS 14918/ASTM: D240, D4809, D1989, D5865, E711 ISO 1928 and GB T213
  • Protection class according to DIN EN 60529: IP 20
  • Interfaces: RS232 scale, USB printer, RS232 PC, test rack and SD-Card, keyboard

Cooling Method: Water Flow

Halogen Resistant: No

Chiller: Yes

Modes: Isoperibol, Dynamic

Maximum Working Temperature: 30°C

Model: C6000

Manufacturer SKU: 0010004535

Unit of Measure: EA

Electrical Specifications: 115 V, 1,700 W, 50/60 Hz

Weight, Product: 161.5 lb

Dimensions, Product: 19.7" W x 17.7" D x 16.7" H

Weight, Shipping: 230 lb

Dimensions, Shipping: 25" W x 23" D x 23" H
