5608-27
Terra Part # 5608-27
$23,185
Accessories related to Terra Part # 5608-27
81163
BSX800V Compact Walk Through Dual Boot Scrubber, Wet, Vertical 3" Brush by Best Sanitizers
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Product Details

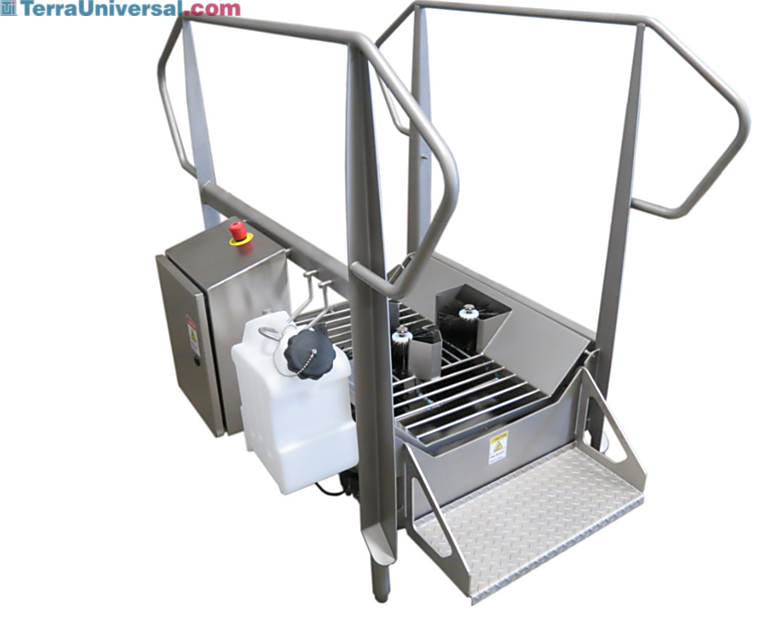

  • BSX800V Compact Walk Through Dual Wet Boot Scrubber with three 3" rotating vertical brushes and one horizontal sole brush
  • Solid stainless steel frame construction for secure walk throughs during wash downs
  • Diluted cleaning solution delivered via a stainless steel Venturi dilution valve and metering tip
  • •  Throughput: 1 user at a time; 15 to 25 users per minute
  • Tool less removable brushes for easy cleaning and re-assembly
  • Recommended:  Alpet® No-Rinse Quat Sanitizer
  • Use in plants with medium to high number of employees and in areas with medium amount of open space, access to water lines and accessible floor drains
  • BSX800V Features:
  • Unit activation with proximity sensor and spring loaded grate
  • Solid stainless steel frame, hinged access grade, two removable steel step, electrical enclosure, motor
  • Removable components and brushes
  • Sturdy handrail
  • Hinged steel access grate
  • Easy brush assembly
  • Self-draining tub for easy cleaning
  • Four adjustable dairy approved feet
  • Washdown motor rated at ½ hp and worm gear reducer
  • Solenoid activated brush spray system with a Venturi injector for sanitizer with flow rated
  • at 1.5 Gpm
  • Connection Requirements
  • 110V ac, 15 amp electrical connection required
  • 3/8" Nptf cold water connection, 50psi recommended
  • 1.5" Tri-clamp drain connection
  • Replacement Brushes:
  • USP20110: Vertical Brush 8″ Diameter x 2.5″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20111: Side Disc Brush 12″ Diameter (for use with BSX800-DAF, BSX1000V-DAF)
  • USP20113: Horizontal Brush 8″ Diameter x 6″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20114: Combination Brush Assembly (for use with BSX800-DAF, BSX1000-DAF)
  • USP20118: Brush Vertical Cyl 8″ x 6″ (for use with BSX600-DAF-6, BSX800V-DAF-6, BSX1000V-DAF-6)

Type: Wet

Configuration: Vertical 3" Brush

Manufactured by: Best Sanitizers

Manufacturer SKU: BSX800V

Material: Stainless Steel

Unit of Measure: EA

Electrical Specifications: 120 V, 15 A

Weight, Product: 400 lb

Dimensions, Product: 43" W x 54" D x 60" H

Buy Accessories
  1. Broad spectrum 1-Gallon (4) Alpet No-Rinse Quat Surface Sanitizer by Best Sanitizers for use with BSX Boot Scrubbers; NSF and EPA #SS10018  |  5608-38 displayed
    Alpet No-Rinse Quat Surface Sanitizer, 4x1-Gallon bottles, Best Sanitizers, SS10018
    $56
    Increase Down Increase Up

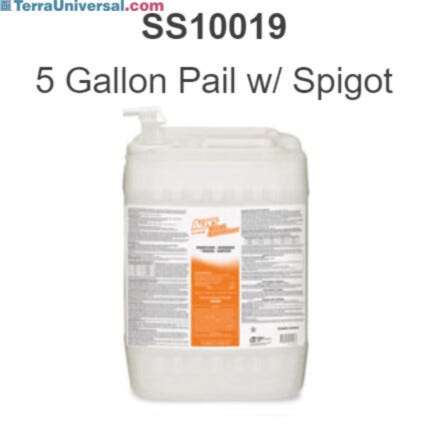

  2. Broad spectrum 5-Gallon Alpet No-Rinse Quat Surface Sanitizer by Best Sanitizers for use with BSX Boot Scrubbers; NSF and EPA #SS10019  |  5608-39 displayed
    Alpet No-Rinse Quat Surface Sanitizer, 5-Gallon-pail with spigot, Best Sanitizers, SS10019
    $60
    Increase Down Increase Up

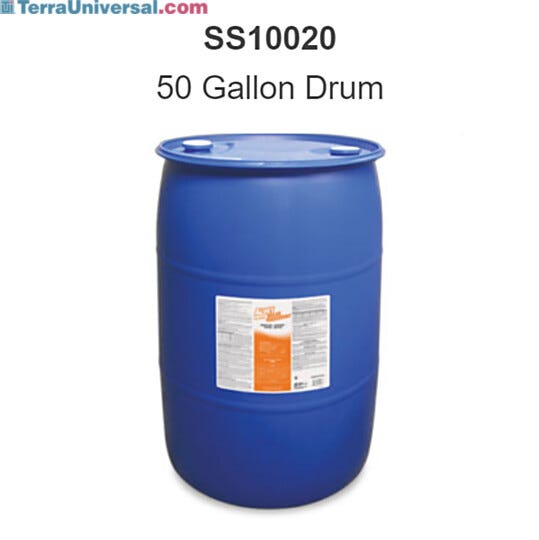

  3. Broad spectrum 50-Gallon Drum Alpet No-Rinse Quat Surface Sanitizer by Best Sanitizers for use with BSX Boot Scrubbers; NSF and EPA #SS10020  |  5608-40 displayed
    Alpet No-Rinse Quat Surface Sanitizer, 50-Gallon Drum, Best Sanitizers, SS10020
    $469
    Increase Down Increase Up

  • BSX800 Compact Walk Through Wet Boot Scrubber by Best Sanitizers BSX800 Compact Walk Through Dual Wet Boot Scrubber Video by Best Sanitizers
BSX800 Compact Walk Through Wet Boot Scrubber by Best Sanitizers

Features and Benefits

Solid Stainless Steel

BSX800 models feature a solid stainless steel frame construction ideal for use in medium traffic applications; also features stainless steel electrical enclosure, motor, worm gear reducer and hinged grade

Automatic Unit Activation

BSX800 models feature a proximity switch sensor that activates when a user steps on the spring loaded grate
