6800-22
Terra Part # 6800-22
$31,024
Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Terra Part # 6800-22
77469
$31,024
Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Unit is mounted on heavy-gauge steel bases with vibration isolators for quiet operation
  • Maximum discharge pressure is 650 psig
  • Unit includes instrument panel with gauges for different pressures and temperature
  • Forced lubrication system increases reliability and service life
  • Automatic belt tensioning promotes long belt life and optimum power transfer
  • Dimensions: 54 ½" x 29" x 32"
  • Rated Motor Power: 15 hp
  • Electrical Requirement: 460/3/60
  • Capacity: @190psi inlet 94 cfm
  • Temp. Range: 36 F° - 104°F
  • 150% minimum pull-up torque
  • Class F insulation
  • High efficiency EPAct compliant
  • Standard Anti-Vibration mounts
  • Motor efficiency (Comp.): 89%
  • Automatic belt drive tensioning system provides consistent power transmission and prolongs belt life
  • Aftercooler keeps compressed air outlet temperatures low
  • Full-flow filtration extends intervals between oil changes
  • High pressure discharge hose with check valve for easy operation
  • Inlet filter with automatic drain for booster protection

• Power: 15 HP

• Output: 94 CFM

• Service Pressure (PSIG): 650 PSIG

• Unit of Measure: EA

• Electrical Specifications: 460 V, 60 Hz

• Weight, Product: 639 lb

• Dimensions, Product: 54.5" W x 29" D x 32" H

Features and Benefits

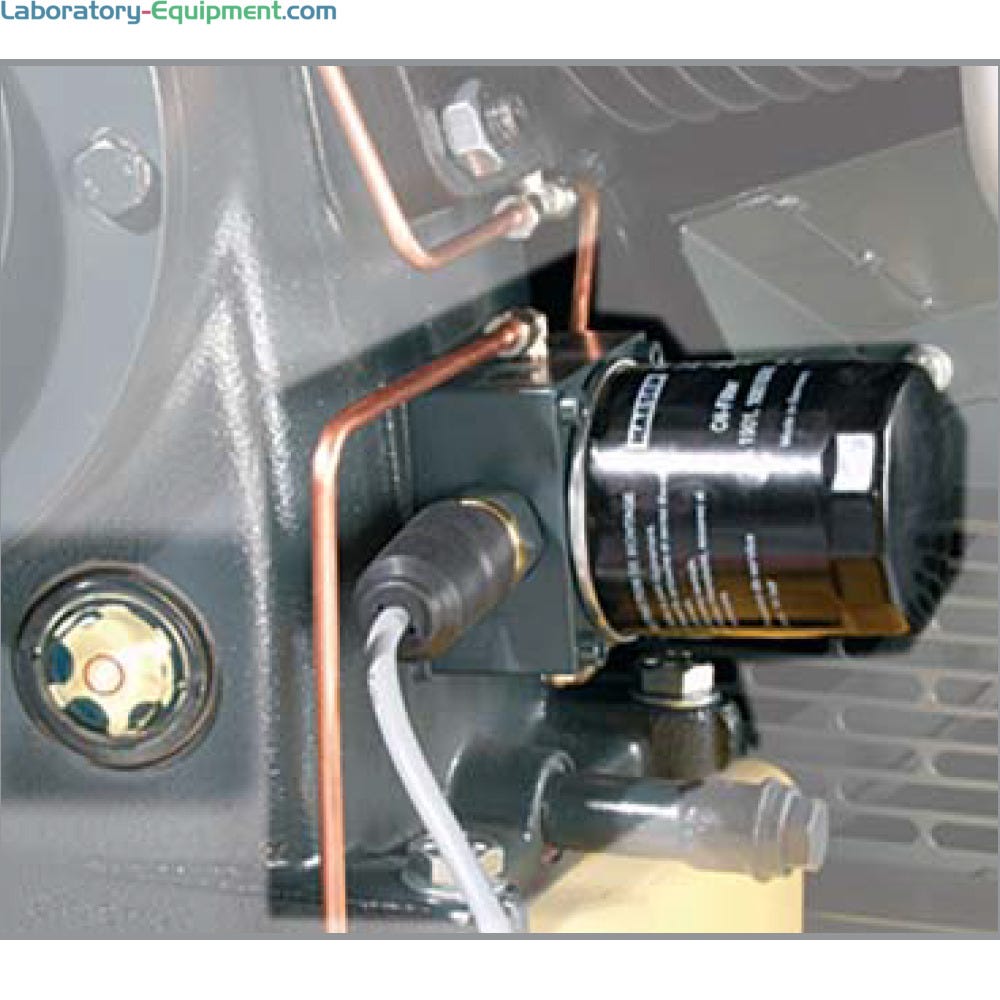

Forced Lubrication system by Kaeser

Forced lubrication system for booster compressors by Kaeser provides long service life and extends oil change interval.

Instrument panel for Booster Compressor

Instrument panel uses gauges for air temperature, oil pressure, inlet air pressure and discharge air pressure for booster compressor.

High pressure pump by Kaeser

High pressure pumps include low rotational speeds for consistent efficiency for booster compressors.
