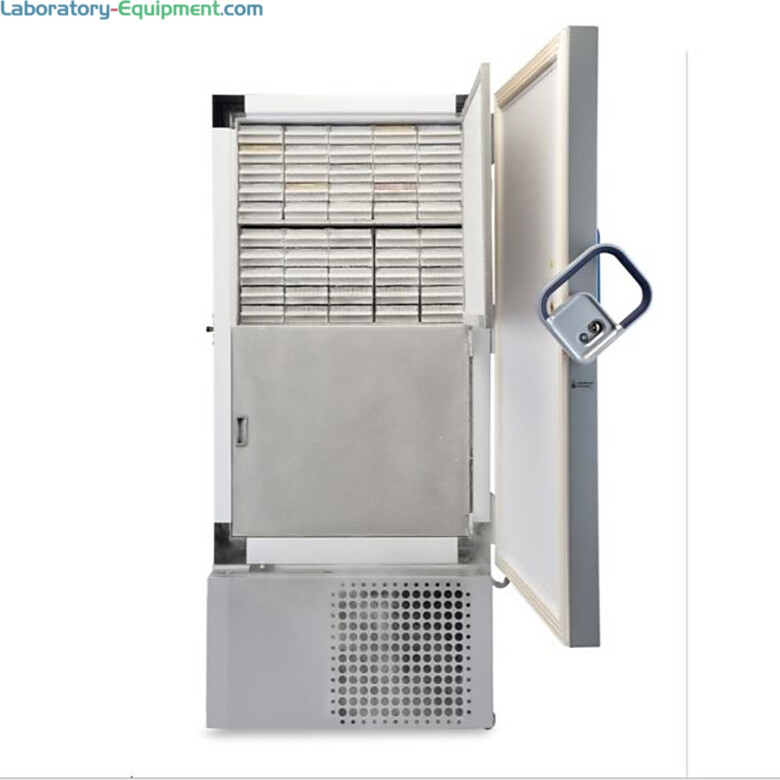

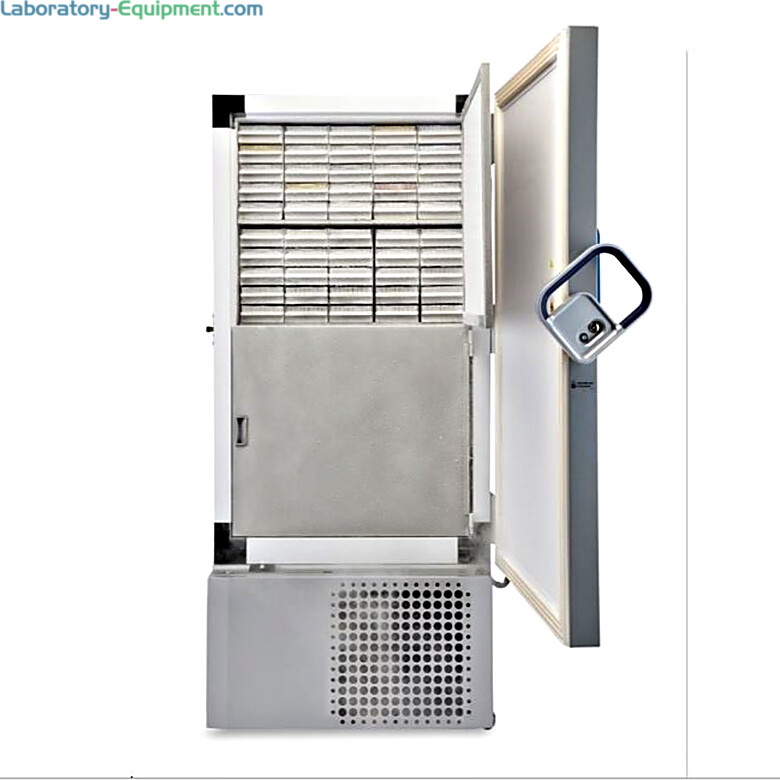

24.1 cu. ft. TSX5008FA Universal ULT Freezer by Thermo Scientific with a -40°C to -86°C range and an enhanced V-Drive for...*
*Actual product may vary
Ultra-Low Freezers (-80°C)

TSX50086FA TSX Universal ULT Freezer, 24.1 cu. ft., -40°C to -86°C Temperature Range, Thermo Fisher Scientific, 100-230V 50/60 Hz

  • Energy-efficient TSX50086FA 24.1 cu. ft. TSX Universal ULT Freezer with enhanced V-Drive, a 50,000 x 2 mL vial capacity that holds 500 2" boxes, and an extended setpoint up to -40°C
  • Enhanced V-Drive: better performance, tighter peak variation, uniformity, stability, faster pull-down and recovery times; adapts to lab environment for energy savings without compromising sample protection
  • Features an external power supply for seamless integration with smart technology
  • Certification/ Labels: ENERGY STAR, ACT, SNAP, EPA, cULus, CE
  • Includes: 3 adjustable and 1 fixed stainless steel shelves, 4 all-direction casters with locks

• Manufacturer SKU: TSX50086FA

• Capacity: 24.1 cu. ft.

• Freezer Temperature Range: -40°C to -86°C

• Set Point Temperature: –70°C

• Internal Dimensions: 28.8" W x 28.3" D x 51.2" H

• Manufactured by: Thermo Scientific

• Unit of Measure: EA

Read more
CE Mark Logo ULus Listed Energy Star SNAP Compliant
Manufacturer SKU: TSX50086FA
Manufactured By: Thermo Fisher
Warranty: Five-Year Manufacturer Warranty on Parts and Labor; 12-Years Compressor Parts
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6708-75
Terra Part # 6708-75
$22,076*
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 0-10 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6708-75
84651
TSX50086FA TSX Universal ULT Freezer, 24.1 cu. ft., -40°C to -86°C Temperature Range, Thermo Fisher Scientific, 100-230V 50/60 Hz
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Energy-efficient TSX50086FA 24.1 cu. ft. TSX Universal ULT Freezer with enhanced V-Drive, a 50,000 x 2 mL vial capacity that holds 500 2" boxes, and an extended setpoint up to -40°C
  • Enhanced V-Drive: better performance, tighter peak variation, uniformity, stability, faster pull-down and recovery times; adapts to lab environment for energy savings without compromising sample protection
  • Features an external power supply for seamless integration with smart technology
  • Certification/ Labels: ENERGY STAR, ACT, SNAP, EPA, cULus, CE
  • Includes: 3 adjustable and 1 fixed stainless steel shelves, 4 all-direction casters with locks
  • Improvements of TSX Universal Upright General Purpose ULT Freezer
  • 38% improvement in peak variation
  • 33% less energy consumption
  • 41% improvement in pull-down time
  • 52% improvement in door-open recovery time
  • 20% reduction in environmental footprint
  • 57% faster re-entry; improved pressure relief port (PEP) enables re-entry in just 30 seconds
  • Features
  • Long-term reliability testing and 100% end of line tests ensure TSX Universal models meet stringent quality standards
  • Meets diverse research demands with next-generation features
  • Whisper-quiet operation and simplified software updates
  • Manufactured in a Zero-Waste to Landfill certified facility
  • Next generation features user-centric navigation and design
  • Onboard software: streamlines startup, integration and easy access to updates and new features
  • Access Security: standard Key Lock, Padlock Loop, Setpoint and Settings
  • On-Board Data logging: Temperature, Events, Diagnostics
  • Connectivity: Thermo Scientific™ InstrumentConnect Compatible (required additional hardware sold separately)
  • InstrumentConnect: real-time health status, customizable report downloads, mobile and web applications, in-app alerts, emails and push messaging, measurement data, bulk download and export, alarms, even notifications, detailed event descriptions, 6-month notification card of active alarms/events, lifetime historical data storage and report , summary health report regeneration
  • Smart View Compatibility    with Onboard accessory 5V and POE outlets
  • Aligns with global sustainability goals
  • Options (Speak to a Terra Product Specialist for details):
  • Stainless steel interior
  • LN2 and CO2 backup systems
  • Factory-installed power cords
  • Racks for 2", 3" boxes
  • Racks for microplates
  • Racking shelf Kits
  • Audible and Visual High and Low Temperature Alarms, Wireless
  • Optional NFC Key Card Access
  • Smart View
  • Specifications:
  • Temperature Range: -40°C to -86°C
  • Expanded Setpoint: -40°C to –70°C setpoint
  • Capacity: 24.1 cu. ft. (682L)
  • Vial Capacity: 50,000 x 2 mL
  • Holds: 2 in. Boxes (500)
  • Rack Capacity: 20
  • Door Opening Recovery: 13 mins. @ 20°C
  • Peak Variation at -80C: 3.3
  • Average Uniformity: 3.1
  • Average Stability: 0.2
  • Pull down (20° C to -80° C) minutes (hours): 250 (4)
  • 1-minute open door Ambient Running @ -75°C): 15 minutes
  • Temperature Resolution: 0.1°C
  • Temperature Stability: 0.2°C
  • Compressor: V-Drive
  • Door Style: Outer (1), Inner (2)
  • No. of Doors: 1
  • Refrigerant: R290 (1st stage), R170 + R290 mix (2nd stage)
  • Defrost:    Manual
  • Exterior Finish: Painted Cold Rolled Steal
  • Cabinet Material: Scratch-resistant Painted Steel (Optional stainless steel)
  • Chamber Material    : Cold-rolled Steel
  • Insulation: Vacuum Insulation Panels (VIP) + Water-Blown Polyurethane Foam (SNAP-compliant)
  • Setpoint Security: 2 Modes with Full Password or PIN options
  • Display: Touch-Screen LCD
  • Ports: 2 Rear Access Ports
  • DBA: 43.6
  • ENERGY STAR Power Consumption: 0.31 kw-hr/day/ft.

• Manufacturer SKU: TSX50086FA

• Capacity: 24.1 cu. ft.

• Freezer Temperature Range: -40°C to -86°C

• Set Point Temperature: –70°C

• Internal Dimensions: 28.8" W x 28.3" D x 51.2" H

• Manufactured by: Thermo Scientific

• Unit of Measure: EA

• Electrical Specifications: 100-230V, 50/60 Hz

• Dimensions, Product: 34" W x 37.6" D x 78" H

• Weight, Shipping: 755 lb

• Dimensions, Shipping: 40" W x 49" D x 84" H

Show more
Other products you may find relevant
  1. Workstations & Tables
    Workstations & Tables
  2. Chairs & Stools
    Chairs & Stools
  3. Metro Shelving Systems
    Metro Shelving Systems
  4. Carts
    Carts

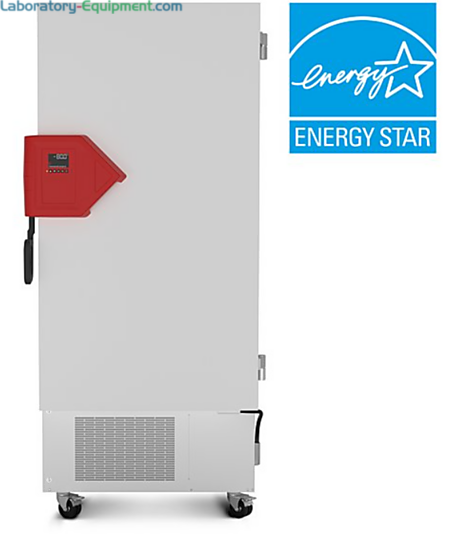

  5. Energy-efficient 16.8 cu. ft. UFV Ultra-Low Temperature Freezer by BINDER with R-290 and R-170 with detachable inner doors and stainless steel interior | 6707-94 displayed
    Group of 4 products
    UF V Series Ultra-Low Temperature Upright Freezers by BINDER From
    As low as $12,074
    Some ship in 20 - 25 days
  6. Thermo Scientific’s MaxQ™ 6000 Orbital Shakers offer a large interior volume and precise incubation of samples | 5322-22 displayed
    Group of 4 products
    MaxQ™ 6000 Incubated/Refrigerated Stackable Shakers by Thermo Scientific From
    As low as $12,282
    Some ship in 10 - 20 days
  7. Developed to cater to the growing needs of the research, pharmaceutical, and clinical communities | 3030-01 displayed
    Group of 4 products
    SOLO Automated Pipettor by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
Page 1 of 2
Buy Accessories

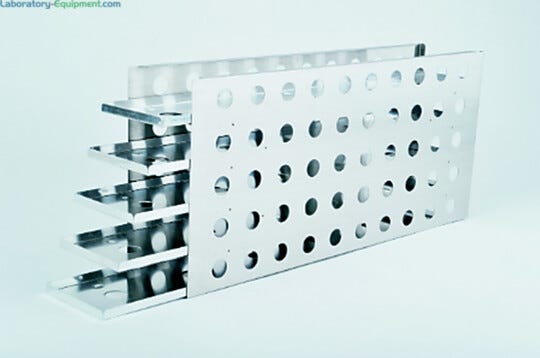

  1. Maximize the storage space in the ultra-low temperature freezer | 5321-19 displayed
    Rack; Sliding Drawer, 25 Boxes, 5.5" W x 26.3" D x 11.9" H, for 8800 and TSU Freezers, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $237
    Increase Down Increase Up

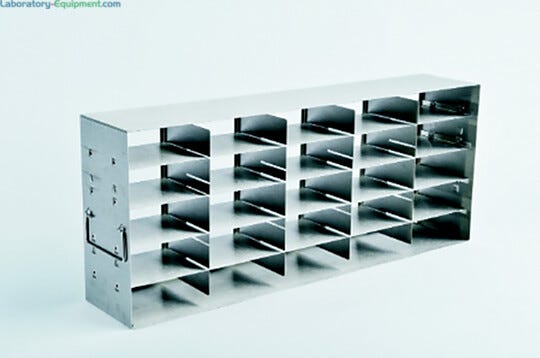

  2. Maximize the storage space in the ultra-low temperature freezer | 5321-20 displayed
    Rack; Side Access Adjustable, 24 Boxes, 5.4" W x 26.5" D x 10.9" H, for 88000 and TSU Freezers, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $253
    Increase Down Increase Up

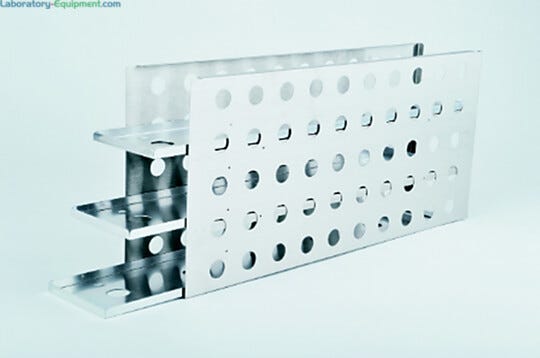

  3. Maximize the storage space in the ultra-low temperature freezer | 5321-21 displayed
    Rack; Sliding Drawer, 15 Boxes, 5.5" W x 66.8" D x 11.9" H, for 88000 and TSU Freezers, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $237
    Increase Down Increase Up

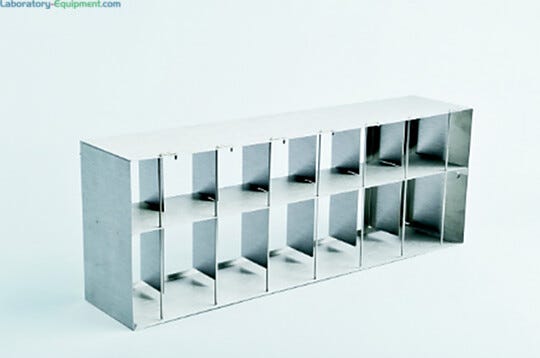

  4. Maximize the storage space in the ultra-low temperature freezer | 5321-25 displayed
    Rack; Side Access, Microplates, 5.5" W x 25.7" D x 11.9" H, for 88000 and TSU Freezers, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $229
    Increase Down Increase Up

  • How to operate: Thermo Scientific TSX Universal ULT Freezer User interface navigation How to operate: Thermo Scientific TSX Universal ULT Freezer User interface navigation
  • How to operate: Thermo Scientific TSX Universal ULT Freezer What is universal voltage? How to operate: Thermo Scientific TSX Universal ULT Freezer What is universal voltage?
  • Box to bench setup: Thermo TSX Universal ULT Freezer Selecting proper installation location Box to bench setup: Thermo TSX Universal ULT Freezer Selecting proper installation location
  • How to operate: Thermo Scientific TSX Universal ULT Freezer Utilizing 5v and POE power ports How to operate: Thermo Scientific TSX Universal ULT Freezer Utilizing 5v and POE power ports
How to operate: Thermo Scientific TSX Universal ULT Freezer User interface navigation
Operating instructions and interface navigation of Thermo Scientific TSX Universal ULT Freezer How to operate: Thermo Scientific TSX Universal ULT Freezer User interface navigation Video shows operating instructions, and the user-centric interface navigation of TSX Universal ULT Freezer by Thermo Fisher Scientific

Features and Benefits

Enhanced V-Drive

From high-end use academic labs to longer-term storage facilities, the enhanced V-Drive variable speed compressor delivers better performance adaptable across diverse workflows

Optional Light

TSX Universal ULT Freezers can be equipped with an optional exterior illumination light bar that provides safety alerts and alarm indications for sample protection

Connectivity

Included external power supply seamlessly connects to smart technology with InstrumentConnect (hardware sold separately) for a centralized asset management and 24/7 remote monitoring

Better Performance

Enhanced V-Drive features a 38% improved peak variation, 33% decrease in energy usage, 41% improvement in pull-down time and a 52% improvement in door-open recovery time compared to previous TSX ULTs

Inner Doors

Features two inner doors with an optional five-door configuration provides added sample protection
Products similar to this one
  1. ENERGY STAR TSX Series -86°C ULT Freezers by Thermo Fisher Scientific in four capacities feature a capacitive touch display and advanced security features
    Group of 4 products
    TSX Series Ultra-Low Upright Freezers by Thermo Fisher Scientific From
    As low as $19,517
    Some ship in 3 - 5 days

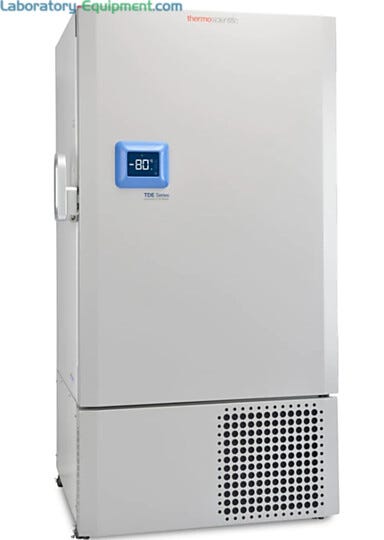

  2. TDE Series Ultra-Low Temperature Freezers are FDA Class II medical devices for use in white blood, skin, bone and plasma storage; in four capacity sizes
