Physical Dimensions: 25 ± 0.2 mm x 76 ± 0.3 mm x 0.940 mm ± 0.025 mm
Material: silicon dioxide proprietary glass
Barcode: Yes; each slide contains a unique barcode
Atomic smoothness: ±20 Å
Precision corner chamfer (1.4 mm)
Glass cleaning procedure: Triple temperature, quadruple phase atomic
Moisture content: Undetectable
Optical QC procedure: 6-tier inspection and laser scanning
Intrinsic fluorescence: Ultra-low
Background reactivity: Ultra-low
Signal uniformity (22 x 72 mm area): ±1%
Amino group density (per mm2): 2 x 10^13
Minimum microarray feature size: 1 µm
Maximum microarray feature number (22 x 72 mm area): 396,000,000
Quantity: 25
Homogenous SiO2 groups provide superior silane reactivity photolithography and contact printing
Use as starting point for gel and membrane coatings (e.g. Polyacrylamide and nitrocellulose)
Ultra-high electrostatic binding capacity and extremely low background fluorescence
Electrostatically immobilizes long oligos and cDNAs for gene expression and genotyping assays
Extremely low background fluorescence
Widely-used for ex situ and in situ synthesis
Manufactured in Class 1 cleanrooms
Custom sizes, laser and chrome fiducials available (contact us for details)
Compatible with scanners and microarrayers from Arrayit and other brands
Anti-static packaging
Shelf life: Stable when stored at room temperature (25°C) for 6 months from the date of receipt

• Manufacturer SKU: SMM2BC

• Unit of Measure: EA

• Weight, Product: 2 lb

• Weight, Shipping: 4 lb

• Package Type: Box

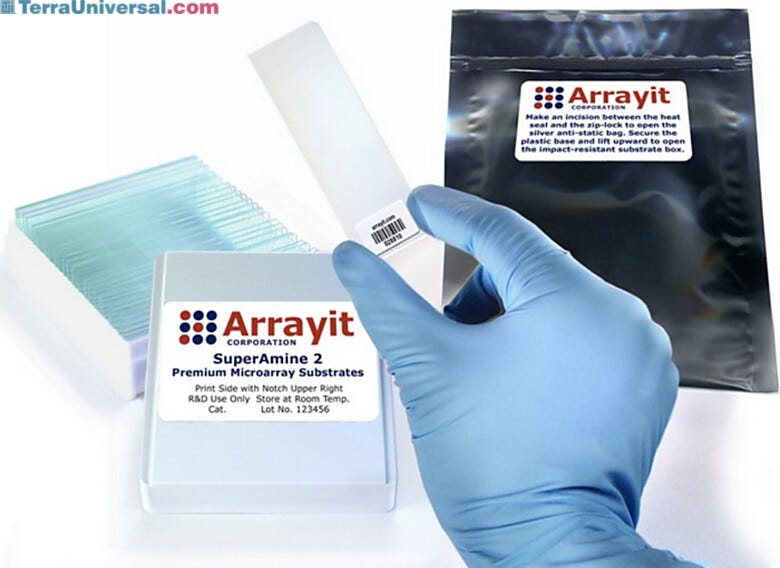

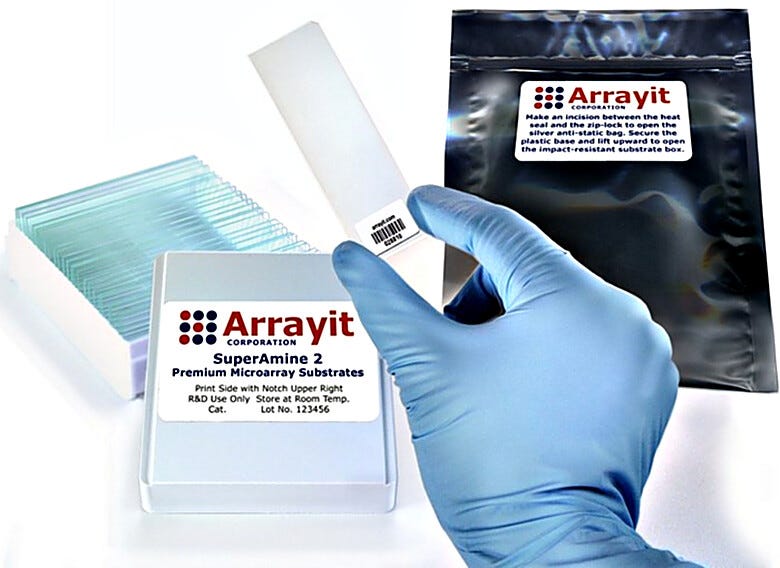

SuperAmine 2 Barcoded (Box of 25)
