Ideal for routine heating and drying applications in research, clinical or industrial laboratory environments
Ovens

Oven; 6.2 cu. ft., Heratherm General Protocol, Gravity Convection, Stainless Steel Interior, Thermo Fisher Scientific, 51028114, 240 V

  • 240V Benchtop OGS180 Heratherm General Protocol Heating and Drying Oven with gravity convection for routine heating and drying lab applications up to 250°C
  • Gravity convection features: gentle drying ideal for airflow sensitive materials such as powders, foils and other delicate samples
  • 6.2 cu. ft. (176L) energy-efficient model features corrosion-resistant stainless steel chamber with easy-to-clean rounded corners
  • Interior dimensions: 17.2"W x 23.2"D x 26.8"H
  • Includes: two wire-mesh shelves; optional factory-installed options

• Maximum Temperature: 250°C

• Material: Stainless Steel

• Capacity: 6.2 cu. ft.

• Convection Type: Gravity

• Manufacturer SKU: 51028114

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: 51028114
Manufactured By: Thermo Fisher
Warranty: 2 years parts and labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3614-80
Terra Part # 3614-80
$2,887
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3614-80
54386
Oven; 6.2 cu. ft., Heratherm General Protocol, Gravity Convection, Stainless Steel Interior, Thermo Fisher Scientific, 51028114, 240 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • 240V Benchtop OGS180 Heratherm General Protocol Heating and Drying Oven with gravity convection for routine heating and drying lab applications up to 250°C
  • •  Gravity convection features: gentle drying ideal for airflow sensitive materials such as powders, foils and other delicate samples
  • 6.2 cu. ft. (176L) energy-efficient model features corrosion-resistant stainless steel chamber with easy-to-clean rounded corners
  • Interior dimensions: 17.2"W x 23.2"D x 26.8"H
  • •  Includes: two wire-mesh shelves; optional factory-installed options
  • Specifications for 51028114:
  • Temperature range: 50°C to 250°C
  • Spatial temperature deviation at 150 °C: ± 5 °C
  • Temperature deviation over time at 150 °C: ± 0.4 °C
  • Footprint (m2 /sq. ft.): 0.47 / 5.1
  • Chamber volume (L /cu. ft.): 176 / 6.2
  • Temperature uniformity: +/- 3.5
  • Temperature stability: +/- 0.4 °C at 150 °C
  • Interior material: stainless steel AISI 430
  • Exterior material: coated steel
  • Shelf capacity: 19
  • Maximum shelf load: 55 lbs. (25 kg)
  • Features:
  • Applications: drying, curing, heated storage and vulcanization, in research, clinical or industrial environments
  • Benchtop models are stackable with optional stacking kit
  • Microprocessor-based touch button controls
  • Large, easy to view vacuum fluorescent display
  • Easy calibration routine
  • Manually controlled fresh air damper vents the work space; equipped with an external slider rotary button control
  • Data logging: access port for independent data monitoring via exhaust vent for external temperature sensor
  • RS232 interface, built-in timer, On/off timer functions
  • Sample protection with automatic over-temperature alarm system
  • Doors open at over 180° for easy access
  • Smooth inner chamber with rounded corners for easy cleanup
  • Excellent footprint to volume ratio

• Maximum Temperature: 250°C

• Material: Stainless Steel

• Capacity: 6.2 cu. ft.

• Convection Type: Gravity

• Manufacturer SKU: 51028114

• Unit of Measure: EA

• Electrical Specifications: 240 V, 14 A, 3,360 W, 60 Hz

• Weight, Product: 146 Lbs

• Dimensions, Product: 25.2"W x 29.1"D x 36.2"H

• Weight, Shipping: 186 Lbs

• Dimensions, Shipping: 31.2"W x 35.1"D x 42.2"H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
Buy Accessories

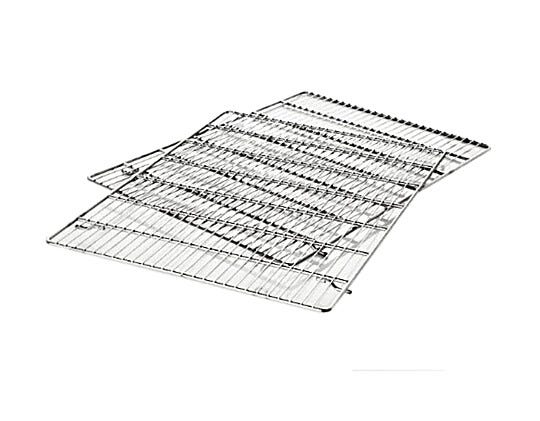

  1. | 1711-23 displayed
    Wire mesh shelf, 16.61 x 22.07 in Ships Free Free shipping in contiguous USA In stock
    $142
    Increase Down Increase Up
  2. | 1711-23 displayed
    Wire mesh shelf, 17.64 x 20.12 in Ships Free Free shipping in contiguous USA In stock
    $145
    Increase Down Increase Up

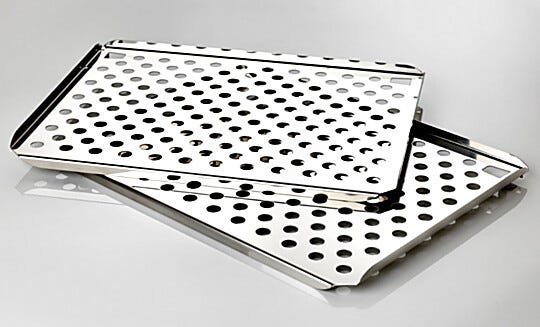

  3. Provides durable surface with excellent abrasion resistance | 1711-30 displayed
    Stainless steel perforated shelf, 17.28 x 21.69 in Ships Free Free shipping in contiguous USA In stock
    $191
    Increase Down Increase Up
  4. Attach an optional particle filter to the fresh air intake for additional air purification in your ovens | 1711-36 displayed
    Fresh air particle filter for connection to the fresh air vent (intake) for all Heratherm ovens Ships Free Free shipping in contiguous USA In stock
    $607
    Increase Down Increase Up

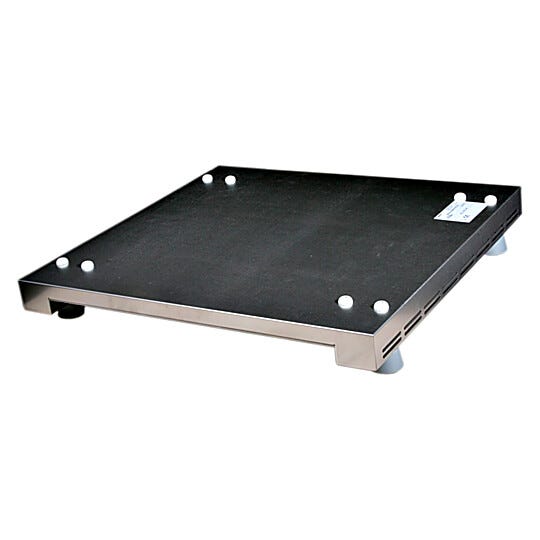

  5. Heratherm stacking kits are ideally suited for laboratory environments conserving work space | 1711-37 displayed
