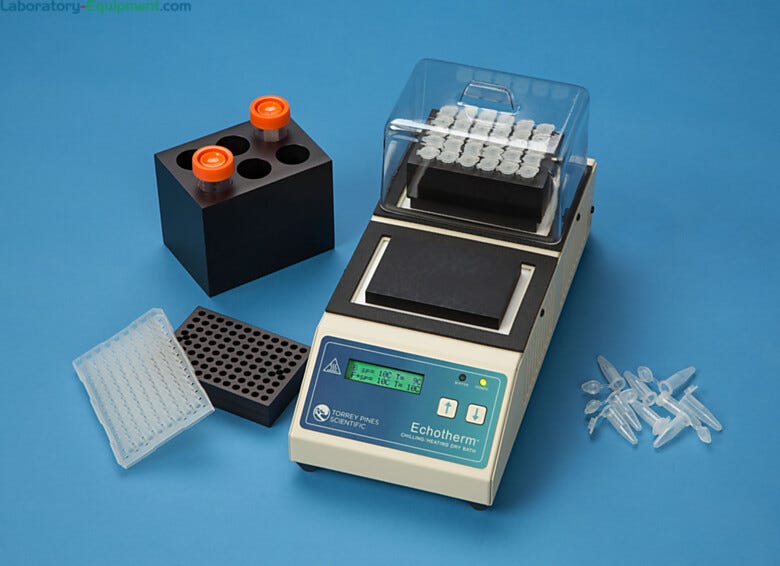

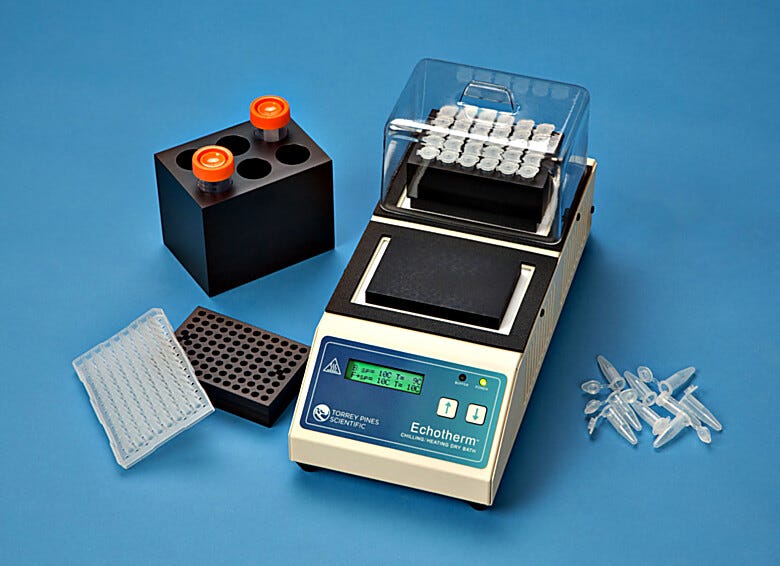

ECHOtherm Model IC22 Two-Position Electronic Chilling/Heating Dry Baths by Torrey Pines Scientific

Need Help?

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Want a quote quickly ?

Select Product

Voltage All 120 V 240 V Sort Order: Descending Ascending	Type All Multi-Block Sort Order: Descending Ascending	Controls All Digital Sort Order: Descending Ascending	Maximum Temperature All 100°C Sort Order: Descending Ascending	Minimum Temperature All -10°C -20°C Sort Order: Descending Ascending	Block Positions All 2 Sort Order: Descending Ascending	Manufacturer SKU All IC22 IC22-2 IC22XT IC22-2XT Sort Order: Descending Ascending	Terra Part #	Price	Ships in
120 V	Multi-Block	Digital	100°C	-10°C	2	IC22	5005-04	$1,793	5-7 Days	2	Ships Free Free shipping in contiguous USA In stock
120 V	Multi-Block	Digital	100°C	-20°C	2	IC22XT	5005-05	$2,007	5-7 Days	3	Ships Free Free shipping in contiguous USA In stock
240 V	Multi-Block	Digital	100°C	-10°C	2	IC22-2	5005-04-220	$1,577	5-7 Days	4	Ships Free Free shipping in contiguous USA In stock
240 V	Multi-Block	Digital	100°C	-20°C	2	IC22-2XT	5005-05-220	$1,835	5-7 Days	5	Ships Free Free shipping in contiguous USA In stock

Voltage

Type

Controls

Maximum Temperature

Minimum Temperature

Block Positions

Manufacturer SKU

* *

Some ship in:

Usually Ships in:

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Select a product line for product summary

Product Details

Product Details

Each station has its own Peltier-type heating/chilling plate, allowing two sets of samples to be maintained at different temperatures simultaneously
Unloaded temperature ranges from -10°C to 100°C (-20°C to 100°C on the XT model)
Each station has a dedicated timer and data-logger
Compact size saves space on a crowded lab bench
Two internal fans remove heat buildup within the unit
Digital display shows set-point temperature and measured temperature of both plates
Buffer light on the front panel (next to Power light) indicates when the unit is collecting data points
Remote access to data via the RS232 I/O port
Optional aluminum blocks are black anodized for better heat transfer and protection from spills, with the bottoms of the blocks machined to nest onto the plate to prevent movement
Applications: enzyme reactions and deactivations; substitute for an ice bucket; temporary storage of DNA or other biological materials at the workstation; sample incubation or freezing
