Demo Available
Demo Available
Terra Part # 6924-89
$10,223
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping

Maximum Speed: 24000 rpm

• Speed display: scale

• Speed range: 6500 rpm - 24000 rpm

• Motor rating input/output: 500/300W

• Frequency: 50/60 Hz

• Pump rate: 11.6 l/min

• Noise without element: 73 dB(A)

• Extension arm diameter: 13 mm

• Extension arm length: 175 mm

• Chamber volume: 26 ml

• Attainable vacuum: 1 mbar

• Pressure max.: 6 bar

• Weight: 8.4 lbs. (3.8 kg)

• Unit does not contain dispersing element or grinding tubes

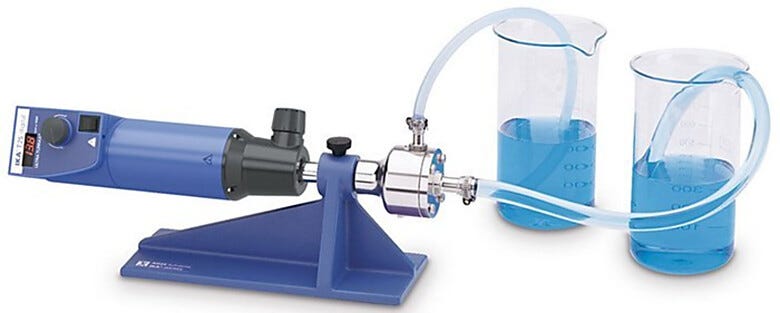

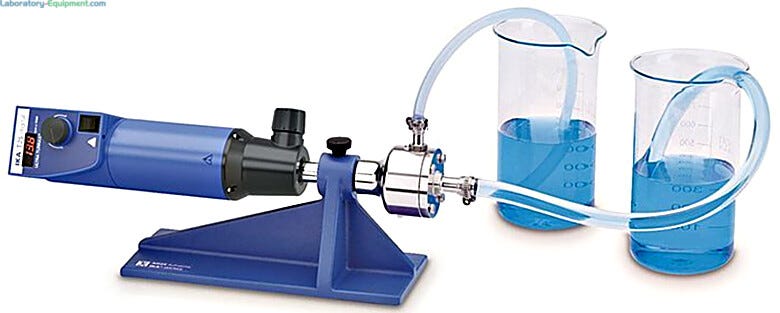

• For-air free, sterile, and inline suspension, emulsifying and deagglomeration

• Vacuum or pressurized operation (up to 6 bar)

• Compact and modular design for easy assembly and transport

• Sterilizable, autoclave-compatible

• Table-top or stand-supported

• Allows integration of pump between intake nozzle and vessel for processing viscous fluids

• Not suited for continuous or cyclical continuous operation

Maximum Processing Volume: 26 mL

Maximum Speed: 24000 rpm

Electrical Specifications: 115 V, 4.3 A, 500 W, 50/60 Hz

Weight, Product: 8.4 Lbs

Weight, Shipping: 15 Lbs

Dimensions, Product: 17.7"W x 3.9"D x 4.7"H

Dimensions, Shipping: 20" W x 5" D x 8" H

Type: Inline

Package Type: Box

Unit of Measure: EA

Features and Benefits

UTL 25 Specifications

UTL 25 digital Inline ULTRA-TURRAX® Specifications

  • Motor rating input/output: 500/300 W
  • Pump rate: 11.6 L/min
  • Speed range: 6500 to 25000 rpm
  • Speed control: Stepless
  • Speed display: Scale
  • Speed deviation: 1%
  • Noise without element: 73 dB(A)
  • Extension arm diameter: 13 mm
  • Extension arm length: 175 mm
  • Chamber volume: 26 ml
  • Attainable vacuum : 1 mbar
  • Pressure max: 6 bar
  • Process type: inline
  • Permissible ambient temperature: 5° to 40°C
  • Permissible relative humidity [%]: 80%
  • Protection class per DIN EN 60529: IP 20
  • Dimensions (W x H x D): 17.7 x 4.7 x 3.9 in (450 x 120 x 100 mm)
  • Voltage: 115 V / 230 V
  • Frequency: 50/60 Hz
  • Power input: 500 W
