Terra Part # 6924-95
$1,699
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6924-95
62563

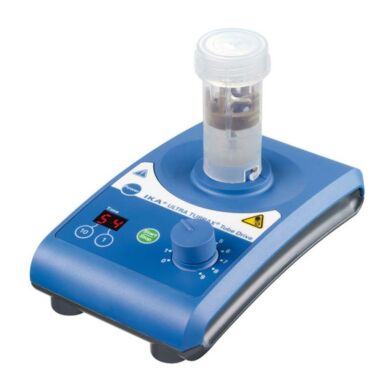

Disperser; ULTRA-TURRAX, Tube Drive, IKA
  • Electrical Specifications: 120 V, 0.2 A, 20 W, 50/60 Hz
  • Type: Batch
  • Motor rating input: 20 W/ 17 W
  • Speed range: 300 - 6000 rpm
  • Dimensions (W x H x D): 3.9 x 1.6 x 6.3 in.  (100 x 40 x 160 mm)
  • Speed deviation: 10%
  • Speed control: stepless
  • Speed display: scale
  • Noise without element: 50 dB(A)
  • Weight: 1.65 lbs.  (0.75 kg)
  • Voltage: 100 - 120 V
  • Frequency: 50/60 Hz
  • DC Voltage: 24 V
  • Current consumption: 800 mA
  • USB interface: no
  • Reversible direction: yes
  • Optional grinding tubes sold separately
  • Prevents cross-contamination
  • Disposable gamma-sterilized sample tubes with pierceable membrane covers
  • Overload motor protection, rotating knob for speed adjustment, turbo function,
  • Provides safe processing of toxic, infectious or noxious samples
  • Collecting tray protects against leaks
  • Patented; Multilingual menu; No cleaning required
  • Sold separately: tubes in 2 - 15 ml and 15 - 50 ml capacities
  • Protection class according to DIN EN 60529: IP 20

Type: Batch

Maximum Speed: 6000 rpm

Speed Range: Stepless

Controls: Digital

Model: Tube Drive

Brand: ULTRA-TURRAX

Maximum Viscosity: 5000 mPas

Manufacturer SKU: 3646000

Unit of Measure: EA

Electrical Specifications: 120 V, 0.2 A, 20 W, 50/60 Hz

Weight, Product: 1.7 lb

Dimensions, Product: 3.9" W x 6.3" D x 1.6" H

Weight, Shipping: 15 lb

Dimensions, Shipping: 8" W x 12" D x 10" H

Package Type: Box

Buy Accessories
  1. ST-20 Tube with stirring device, 25 pcs
    $367
    Increase Down Increase Up

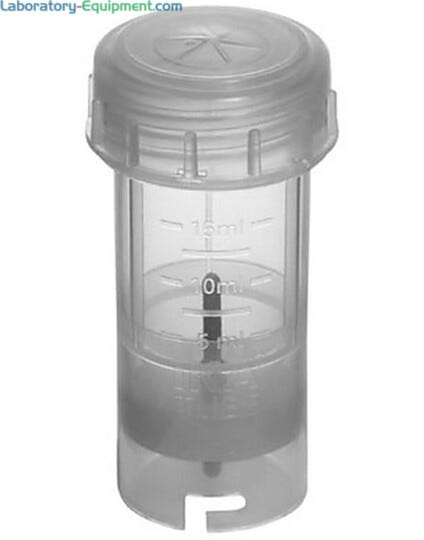

  2. Mixing, extractions, preparation of soil sample suspensions and solubility testing for medication | 6925-38 displayed
    $546
    Increase Down Increase Up

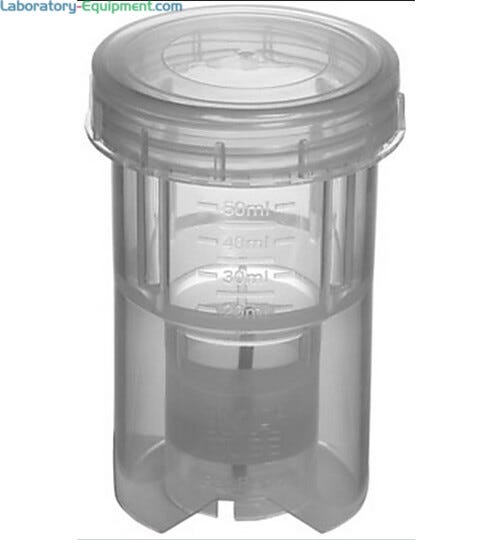

  3. Mixing, extractions, preparation of soil sample suspensions and solubility testing for medication | 6925-39 displayed
    $181
    Increase Down Increase Up

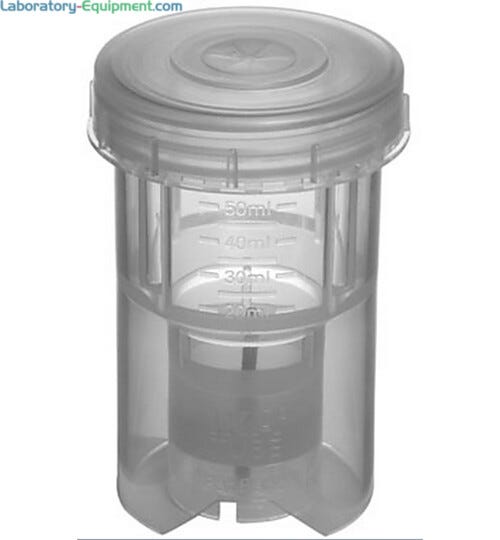

  4. Mixing, extractions, preparation of soil sample suspensions and solubility testing for medication | 6925-41 displayed
    $467
    Increase Down Increase Up
  5. DT-20 Tube with rotor-stator element, 25 pcs
    $393
    Increase Down Increase Up

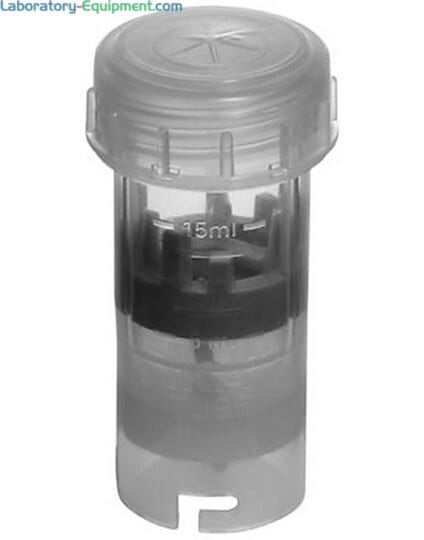

  6. Dispersion, homogenization, suspensions | 6925-43 displayed
    $548
    Increase Down Increase Up
  7. Dispersion, homogenization, suspensions | 6925-44 displayed
    $211
    Increase Down Increase Up

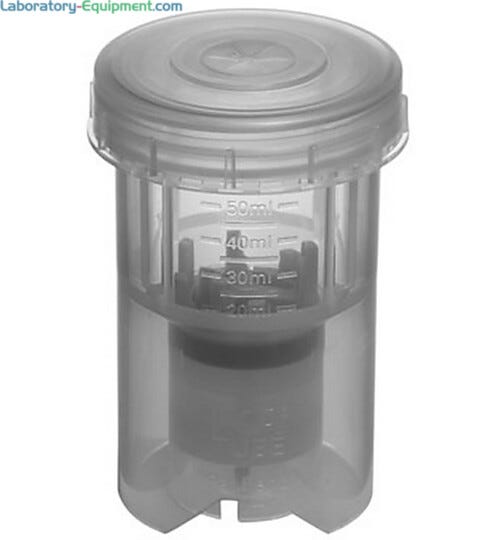

  8. Dispersion, homogenization, suspensions | 6925-46 displayed
    $469
    Increase Down Increase Up
  9. BMT-20-S Tube for grinding with stainless steel balls, 25 pcs
    $405
    Increase Down Increase Up

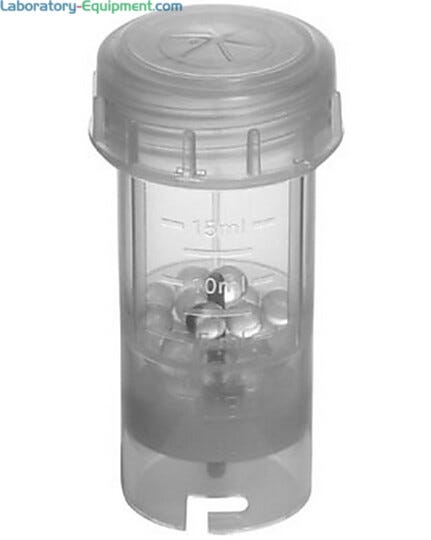

  10. Dry milling of dry and brittle samples, cell maceration, processing of materials mixed with fluids | 6925-48 displayed
    $405
    Increase Down Increase Up

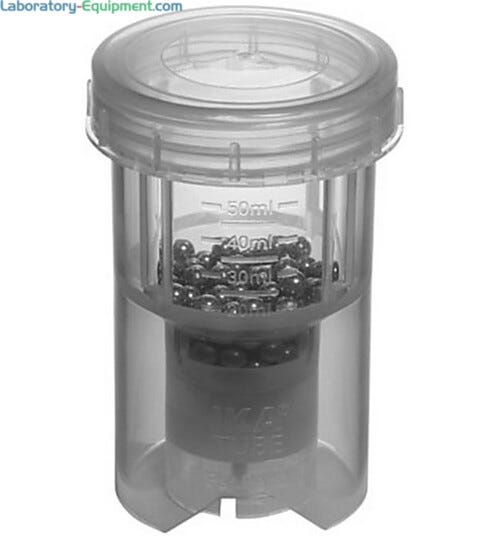

  11. Dry milling of dry and brittle samples, cell maceration, processing of materials mixed with fluids | 6925-50 displayed
    $211
    Increase Down Increase Up

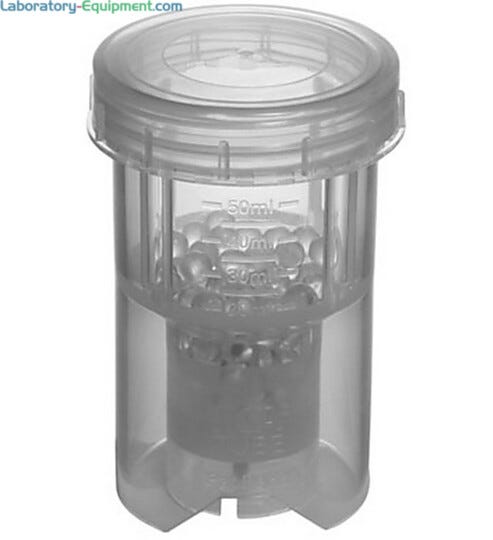

  12. Dry milling of dry and brittle samples, cell maceration, processing of materials mixed with fluids | 6925-51 displayed
    $211
    Increase Down Increase Up

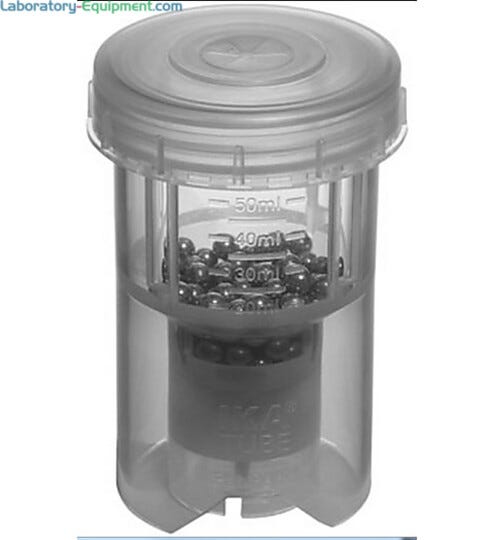

  13. Dry milling of dry and brittle samples, cell maceration, processing of materials mixed with fluids | 6925-54 displayed
    $467
    Increase Down Increase Up
  14. TC-20 cover for 20 ml tubes, 25 pcs
    $181
    Increase Down Increase Up

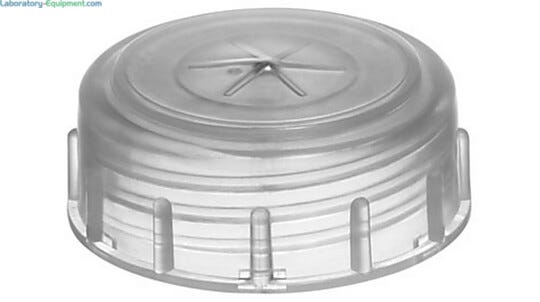

  15. Prevents operators from coming into contact with toxic, infectious and noxious materials | 6925-56 displayed
    $187
    Increase Down Increase Up

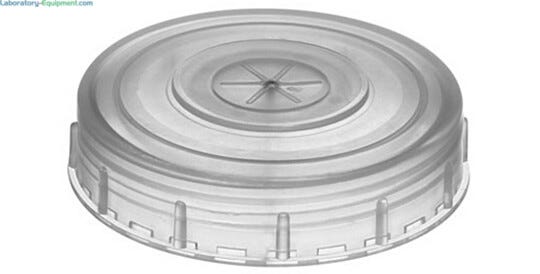

  16. Prevents operators from coming into contact with toxic, infectious and noxious materials | 6925-58 displayed
    $186
    Increase Down Increase Up

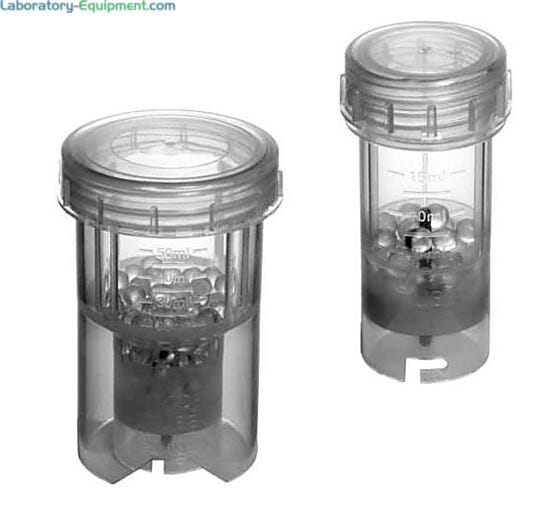

  17. 250 g glass balls with a diameter of 6 mm | 6925-59 displayed
    $204
    Increase Down Increase Up
  18. 250 g stainless steel balls with a diameter of 6 mm | 6925-60 displayed
    $204
    Increase Down Increase Up
  19. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Applications and Specifications

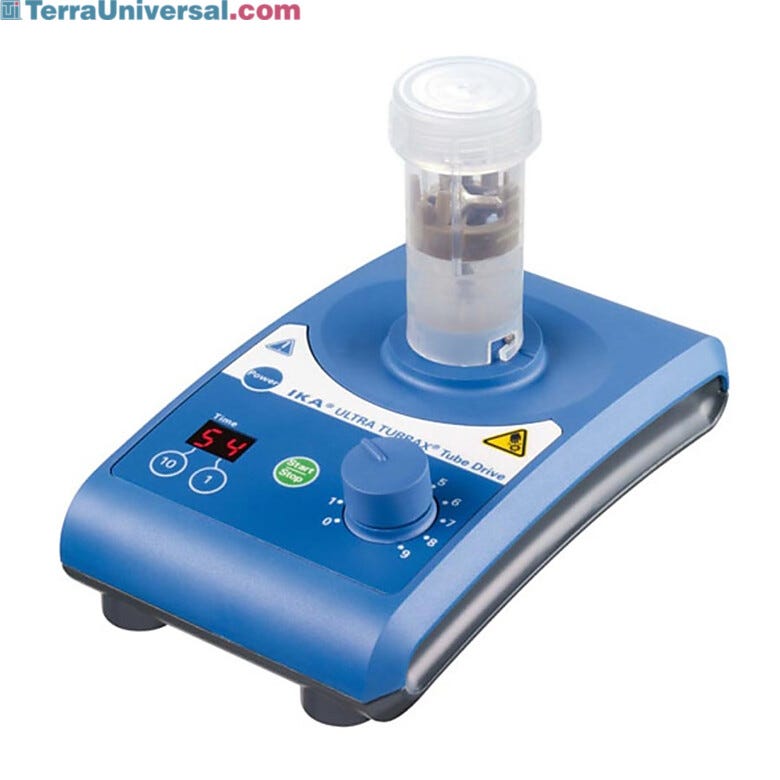

Winner of the 2012 Red Dot Design Award, ULTRA-TURRAX® Tube Drive (UTTD) and Tube Drive Control accommodate hermetically sealed tubes with integrated dispersing tools. The design of the UTTD eliminates cross-contamination and safely disperses toxic, infectious or noxious substances without the operator coming in contact with the material. Available workstations are ideal for quickly equipping labs with all the components needed for homogenizing hard and soft sample materials.


Application Areas for ULTRA-TURRAX Tube Drive, Tube Drive Control and Workstations


Human medicine, pathology, veterinary medicine, animal hygiene institutes, foodstuffs testing laboratories, toxicology, medical research, pharmaceutical research, biological research, tumor biology, chemistry, cosmetics


UTTD Hermetically Sealed Tubes with Integrated Dispersing Tools


The integrated tool within UTTD Processing Tubes prevents operators from coming into contact with toxic, infectious and noxious materials being processed. These hermetically sealed tubes remain sealed even when dispersion speed is as high as 8000 revolutions. Select tubes have pierceable membranes for adding or removing samples and gamma-sterilized tubes are ideal for sensitive procedures requiring additional sterility.









Sampling of mint leaves for homogenization



Attach the tube to the UTTD Control device






Set and run the operation



Tube covers with pierceable membranes all sampling

























Specifications for ULTRA-TURRAX® Tube Drive and Tube Drive Control









































































































 ULTRA-TURRAX® Tube Drive
ULTRA-TURRAX® Tube Drive Control
Motor rating input/output20/17 W28/17 W
Speed range300 - 6000 rpm400 - 8000 rpm
Reversible direction of rotationnoyes
Speed deviation10%3%
Speed controlstepless10 RPM Steps
Speed deviationscaleOLED
Timernoyes
Timer displayN/AOLED
Dimensions (W x H x D)3.9 x 6.3 x 1.6 in.
(100 x 160 x 40 mm)
4.8 x 7.0 x 6.1 in.

(122 x 178 x 54 mm)
Weight1.65 lbs. (0.75 kg)1.98 lbs. (0.9 kg)
USB interfacenoyes
Noise without element50 dB(A)
Maximum viscosity5000 mPas
Voltage100 - 120 V
Frequency50/60 Hz
DC Voltage24 V=
Current consumption800 mA
Protection class per DIN EN 60529IP 20
Process typebatch
