Terra Part # 6924-79
$1,096
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Accessories related to Terra Part # 6924-79
62322

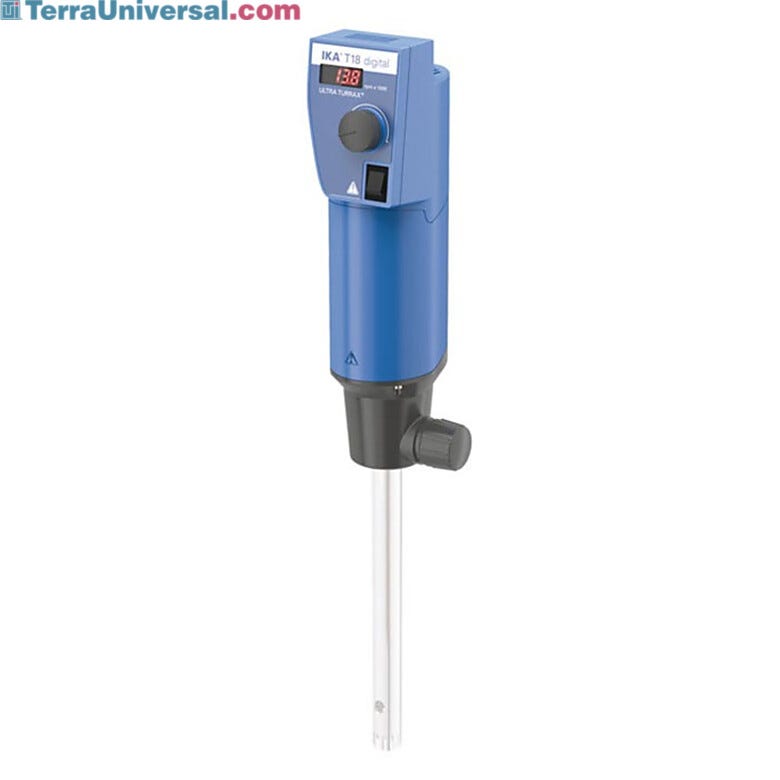

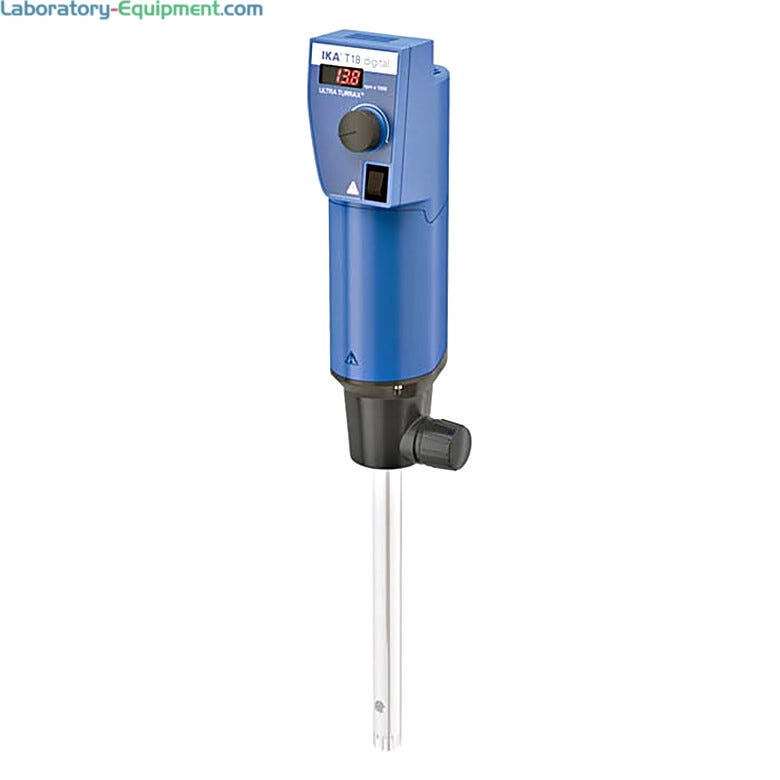

Disperser; T 18, Digital, ULTRA-TURRAX, IKA, 120 V

• Permissible ON time: 100%

• Speed range: 3000 rpm - 25000 rpm

• Motor rating input/output: 500W/300W

• Optional Dispersing Element sold separately

• Volume range min/max: 1 to 1500 ml (H2O)

• Viscosity maximum: 5000 mPas

• Display resolution: 200 rpm

Speed deviation: <1%

• Noise without element: 75 dB(A)

• Extension arm diameter/length: 13 mm/160 mm

• Permissible ambient temperature: 5 to 40°C

• Permissible relative humidity: 80%

• Enables high circumferential speeds

• Digital speed display and electronic speed control

• Digital error code display makes troubleshooting a breeze

• Electronic overload protection prevents motor damage

• Wide range of dispersing elements available (sold separately)

• Quick-connect coupling for fast and easy tool change-out

• Ergonomic, lightweight unit ideal for manual operation

• Protection class per DIN EN 60529: IP 20

Type: Batch

Maximum Processing Volume: 1500 mL

Maximum Speed: 25000 rpm

Speed Range: Stepless

Controls: Digital

Model: T 18

Brand: ULTRA-TURRAX

Maximum Viscosity: 5000 mPas

Manufacturer SKU: 3720001

Unit of Measure: EA

Electrical Specifications: 120 V, 4.2 A, 500 W, 50/60 Hz

Weight, Product: 5.51 Lbs

Dimensions, Product: 3.42"W x 4.17"D x 10.67"H

Weight, Shipping: 20 Lbs

Dimensions, Shipping: 7" W x 8" D x 14" H

Package Type: Box

Buy Accessories

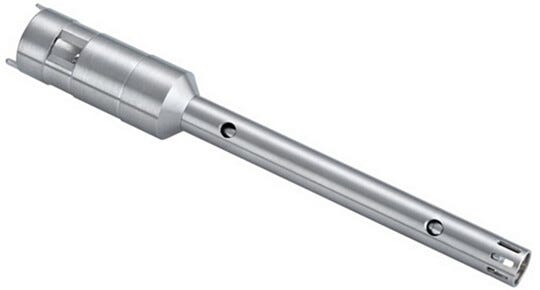

  1. Achieves the desired sample consistency from coarse to fine sample reductions.  |  6924-80 displayed
    Element; Dispersing, S 18 N - 10 G, for T 18 ULTRA TURRAXX Disperser Stocked Item is in stock and ready for immediate shipping
    $1,221
    Increase Down Increase Up

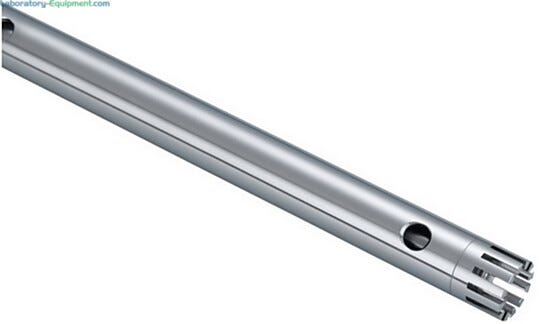

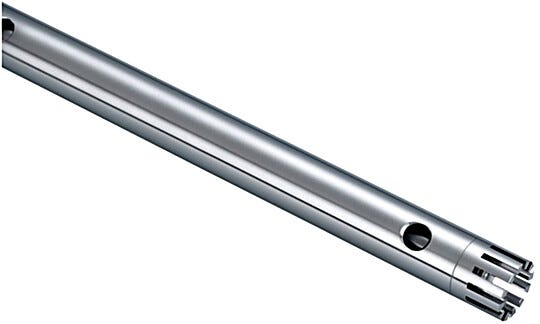

  2. T18 Ultra Turraxx dispersing element for solvents and abrasives; volume range from 10 - 1500 ml  |  6924-81 displayed
    Element; Dispersing, S 18 N - 19 G, for T 18 ULTRA TURRAXX Disperser Stocked Item is in stock and ready for immediate shipping
    $1,221
    Increase Down Increase Up

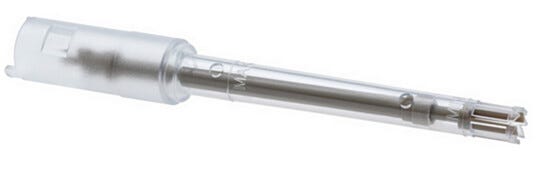

  3. Achieves the desired sample consistency from coarse to fine sample reductions.  |  6924-82 displayed
    Element; Dispersing, S 18 D - 10 G - KS, Plastic, for T 18 ULTRA TURRAXX disperser Stocked Item is in stock and ready for immediate shipping
    $696
    Increase Down Increase Up

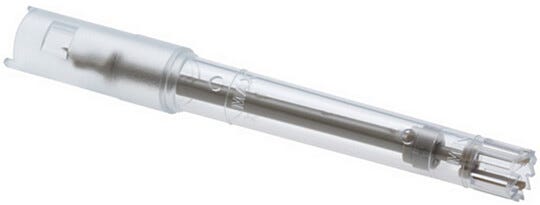

  4. Achieves the desired sample consistency from coarse to fine sample reductions.  |  6924-83 displayed
    Element; Dispersing, S 18 D - 14 G - KS, Plastic, for T 18 ULTRA TURRAXX disperser Stocked Item is in stock and ready for immediate shipping
    $696
    Increase Down Increase Up
  5. Plate Stand, R 1825, 560 mm height
    Plate Stand, R 1825, 560 mm height Stocked Item is in stock and ready for immediate shipping
    $204
    Increase Down Increase Up
  6. Plate Stand, R 1826, 800 mm height
    Plate Stand, R 1826, 800 mm height Stocked Item is in stock and ready for immediate shipping
    $230
    Increase Down Increase Up
  7. Plate Stand, R 1827, 1000 mm height
    Plate Stand, R 1827, 1000 mm height Stocked Item is in stock and ready for immediate shipping
    $240
    Increase Down Increase Up
  8. For affixing dispersion unit to plate stand  |  6924-87 displayed
    R 182 Boss head clamp Stocked Item is in stock and ready for immediate shipping
    $42
    Increase Down Increase Up
  9. Secures vessel against wall during dispersion  |  6924-88 displayed
    RH 3 Strap Clamp Stocked Item is in stock and ready for immediate shipping
    $70
    Increase Down Increase Up
  10. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

IKA T 18 ULTRA-TURRAX Specifications

Specifications for T 18 digital ULTRA-TURRAX® Dispension Unit

  • Motor rating input/output 500W/300W
  • Volume range min/max 1 to 1500 ml (H2O)
  • Viscosity maximum 5000 mPAS
  • Speed range Stepless
  • Speed display 3-digit LED; displayed value x 1000 = motor speed in rpm
  • Display resolution 200 rpm
  • Speed deviation <1%
  • Noise without element 75 dB(A)
  • Extension arm diameter 13 mm
  • Extension arm length 160 mm
  • Process type batch
  • Timer No
  • Permissible On time 100%
  • Dimensions (W x D x H ) 3. 42 x 4.17 x 10.67 in. (87 x 106 x 271 mm)
  • Weight 5.51 lbs. (2.5 kg)
  • Permissible ambient temperature 5 to 40°C
  • Permissible relative humidity 80%
  • Protection class per DIN EN 60529 IP 20
  • Contamination level 2
  • Protection class II
  • Overvoltage category II
  • Operation at a terrestrial altitude Maximum 2000 m above sea level
  • RX 232 interface and analog output No
  • Voltage 115V; 230V also available; Contact us for details
  • Frequency 50/60 Hz
  • Power input 500W
