Terra Part # 6924-71
$1,231
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping

Maximum Speed: 29900 rpm

• Speed Range: 8,000 - 30,000 rpm

• Motor rating output: 75 W

• Extension arm diameter and lenght: 8 mm/100 mm

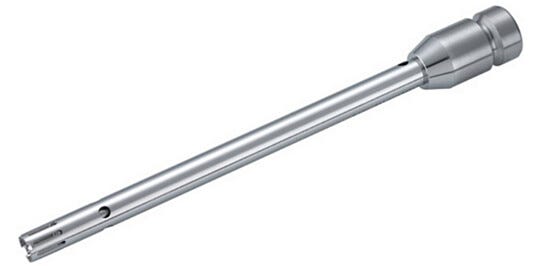

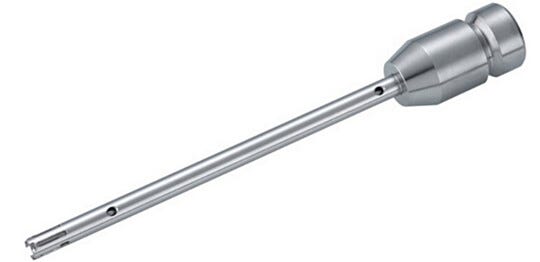

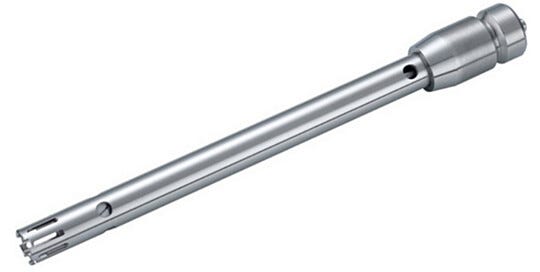

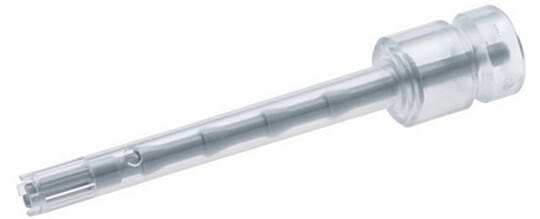

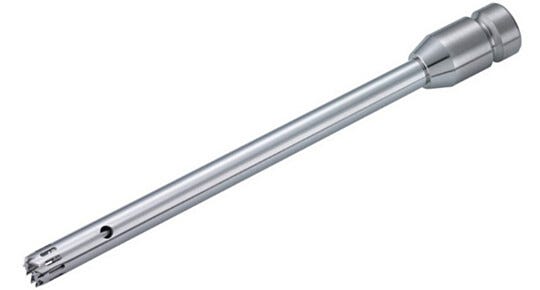

• Optional Dispersing Element sold separately

• Volume range min/max.: 0.5 to 100 ml (H2O)

• Speed display: Scale

• Noise without element: 65 dB(A)

• Permitted on time ON: 10 minutes

• Power OFF time after on: 5 minutes

• Permissible ambient temperature: 5°C to 40°C

• Permissible relative humidity: 80%

• Mixes and disperses products with a wide range of miscibility

• High performance drive for speed stability

• Small scape dispersing system ideal for analytical research

• Ergonomic, lightweight unit ideal for manual operation

• Use as hand-held or standalone operation

• Protection class according to DIN EN 60529: IP 30

Maximum Processing Volume: 100 mL

Maximum Viscosity: 5000 mPas

Maximum Speed: 29900 rpm

Electrical Specifications: 115 V, 1.1 A, 125 W, 50/60 Hz

Weight, Product: 1.1 Lbs

Weight, Shipping: 10 lb

Dimensions, Product: 2.2"W x 2.59"D x 7.01"H

Dimensions, Shipping: 5" W x 5" D x 10" H

Type: Batch

Package Type: Box

Unit of Measure: EA

Features and Benefits

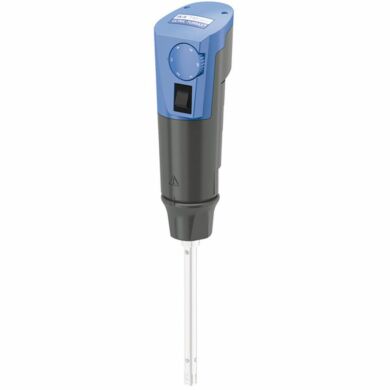

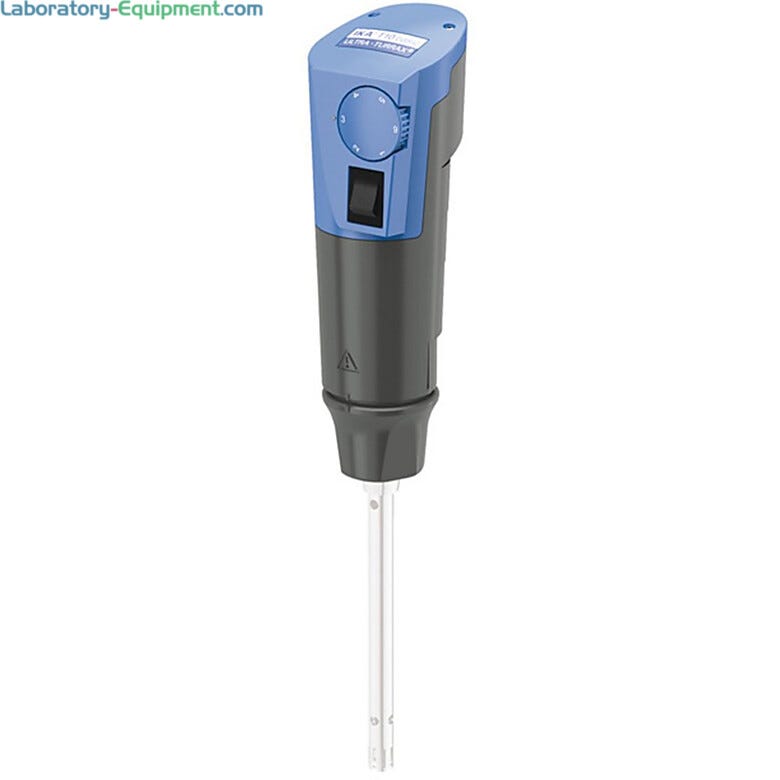

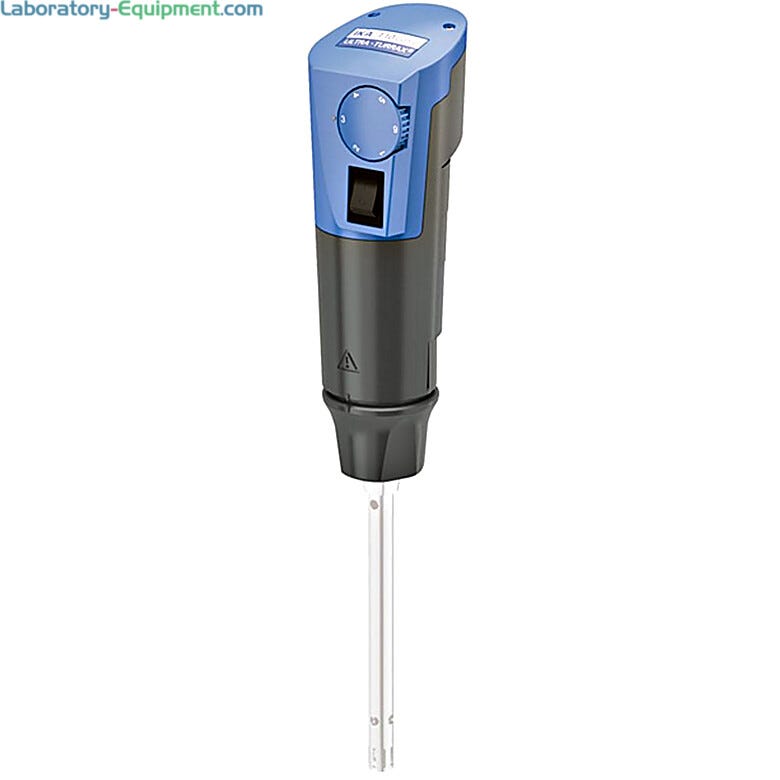

T 10 basic ULTRA-TURRAX-LE-2240

Specifications for T 10 basic ULTRA-TURRAX® Dispension Unit

  • Motor rating input/output: 125W/75W
  • Volume range min/max: 0.5 to 100 ml (H2O)
  • Viscosity maximum: 5000 mPAS
  • Speed range: Stepless
  • Speed control: Stepless
  • Speed variation on load change: <6%
  • Noise without element: 65 dB(A)
  • Extension arm diameter: 8 mm
  • Extension arm length: 100 mm
  • Process type: batch
  • Permitted ON time: 10 minutes
  • Power OFF time after on: 5 minutes
  • Overload/blocking protection: Locking bimetallic switch; temperature and power sensitivity
  • Dimensions: (W x D x H) 2.20 x 7.01 x 2.59 in. (56 x 178 x 66 mm)
  • Clamp arm dimension: (Ø x L) 0.315 x 3.94 in. (8 x 100 mm)
  • Weight: 1.10 lbs. [0.5 kg]
  • Permissible ambient temperature: 5°C to 40°C
  • Permissible relative humidity: 80%
  • Protection class per DIN EN 60529: IP 30
  • Contamination level: 2
  • Protection class: II
  • Overvoltage category: II
  • Operation at a terrestrial altitude Maximum 2000 m above sea level
  • Voltage: 115V; 230V also available; contact us for details
  • Frequency: 50/60 Hz
  • Power input/output: 125W/75W
Adjusting wheel scale123456
No-load speed [RPM]8,0009,50011,50014,50020,50030,000
Speed in 5 ml water [RPM]7,5009,40011,40014,40020,40029,900
Speed Control Table for T 10 Dispersion Unit
Calculations in speed table based on a dispersion of 5 ml water using dispersing tool S 10 N-5G. Speeds will vary depending on dispersing tool used. Speed is dependent on the dispersion element used, viscosity of the medium, and its volume
