5607-26
Terra Part # 5607-26
Request Quote
Usually ships in 22-28 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5607-26
59101

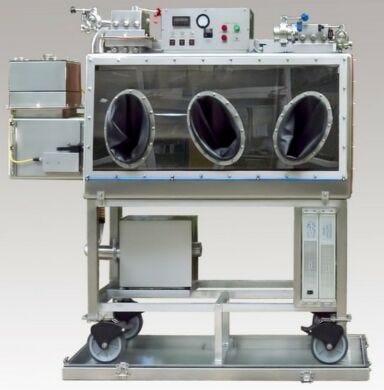

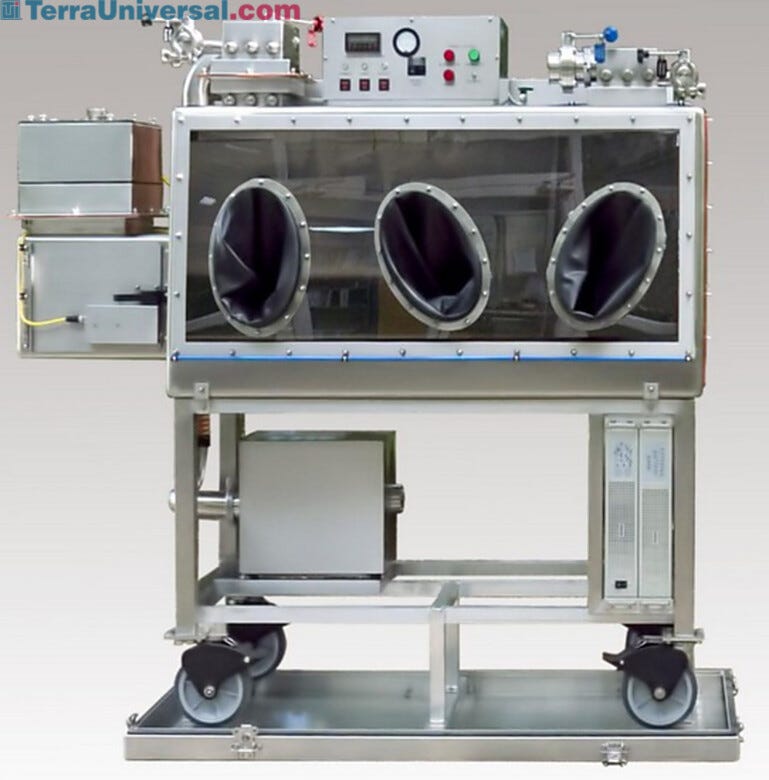

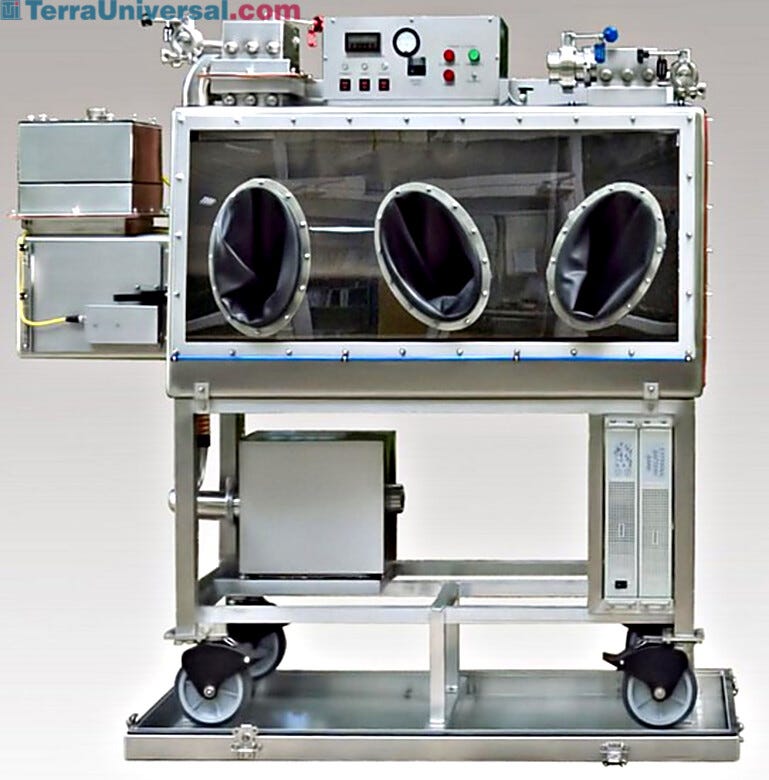

Biosafety Cabinet: SEA-III Class III, 316 SS, 76" W x 25" D x 38" H, 3 Glove Ports, Germfree, 120 V
Product Details
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Construction: Interior coved corners and radius bends
  • 180-grit pharmaceutical grade (#4) finish facilitates cleaning and decontamination
  • Exhaust System Requirements: 50 cfm @ 2” H2O (8.5 M3/hr.  @ 500 Pa)
  • Complies with standard EN 12469-2000
  • Airlock doors include PLC controlled, double-door interlocking mechanism
  • Interior airlock door opening: 12" W x 13" H (305 x 330 mm)
  • Front facing airlock door opening: 12" W x 10" H (305 x 250 mm)
  • Gloveports: Sealed into the window at an ergonomic “V” angle
  • Double groove gloveports allow glove changes without breaking containment
  • Fitted with one set of 815 mm long Hypalon(R)  (CSM) gloves, size 9.75 ambidextrous
  • Viewing Window: angled and sealed to glovebox with airtight gaskets
  • Inlet and exhaust HEPA filters: Rated at 99.99% efficient at a 0.3μm particle size;
  • HEPA filters can be individually aerosol tested, sealed to glovebox with stainless steel frame
  • 76mm diameter inlet and exhaust ducts with sanitary shut off butterfly valves
  • Removable bolt on side panel for setup of equipment prior to use. (After decontamination)
  • All interior surfaces reachable through gloveports for surface wipe-down without breaking containment
  • All welded tubular stainless steel stand
  • Safe sample entry with double door airlock that can be mounted on left or right side (specify upon ordering)
  • Includes passive HEPA purge
  • Easy to access panel features: digital and mechanical pressure gauges
  • Low-pressure alarm with audible and visual functions
  • Separate main and light on/off power switches and circuit breaker reset
  • Exterior mounted non-glare fluorescent light
  • Exhaust blower mounted on stand below glovebox
  • Two sealed electrical receptacles provided in work area
  • Product categorized by the Export Administration Regulations (EAR) under Export Control Classification Number (ECCN) 2B352: Biological Processing Equipment.  Export of this product outside of the United States may require a license to be obtained by the exporter, unless the client holds an active license exemption.  Any fees associated with obtaining an export license will be borne by the customer.

Material Type: Stainless Steel

Application: Sterile Drug Compounding (USP 797)

Material: 304 Stainless Steel

Number of Glove Ports: 3

Window Material: Acrylic

Maximum Working Height: 30"

Chamber Width: 22"

Chamber Depth: 22"

Chamber Height: 30"

Unit of Measure: EA

Marks & Listings: CE, UL, USP 797

Electrical Specifications: 120 V, 15 A, 1,500 W, 60 Hz

Dimensions, Product: 76" W x 25" D x 38" H

Weight, Shipping: 760 lb

Dimensions, Shipping: 82" W x 31" D x 42" H

Package Type: Palletized
