3031-39-T
Demo Available

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Terra Part # 3031-39-T
$66,269
Usually ships in 15-21 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3031-39-T
61340

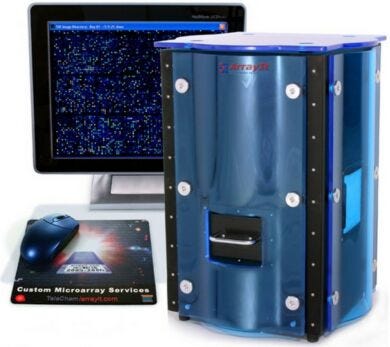

ArrayIt® SpotLight™ Turbo Microarray Scanner, 6-color detection
Product Details
  • Channels: 6-color detection
  • Resolution: 10 µm
  • Detection Wavelengths: FITC 488 nm, Cy3 532 nm, Cy5 635 nm and three additional channels
  • Optional detection wavelengths: 455 nm, 470 nm, 488 nm, 505 nm, 590 nm, 617 nm, 625 nm and white light
  • Includes: SpotLightâ„¢ Personal Two-Color Fluorescence Microarray Scanner, Power supply with Voltage, Appropriate Power Cable, High-Speed Firewire Cable, High-Speed USB Cable, Ethernet Cable, BioBlue High- Speed Personal Computer, SpotLightâ„¢ Controller Software (Pre-Loaded on Computer), SpotLightâ„¢ Flat Panel Display with Monitor Cable and Power Cord, Computer Power Cord, Computer Keyboard, Computer Mouse, Computer Mouse Pad, Microarray for Test Scanning
  • Format: Standard glass slide 25 x 76 mm (1 x 3")
  • Sensitivity: <0.1 fluors per square micron and <1,000 fluors per spot
  • Standard Detection Label: Fluorescent
  • Optional Detection Label: chemilluminescent and colorimetric
  • Standard Filter Sets: optimized for Cy3 and Cy5
  • Optional filter sets: Fluorescein and fluorescein analogs, TRITC (Rhodamine), APC, ethidium bromide, Alexa dyes, and several GFP variants
  • Scan Area: 25 x 76 mm
  • Single image scan size: 1392 x 1024 pixels
  • Single image file size: 2.7 MB
  • Dynamic Range: >10,000-fold
  • Standard Tiff Intensity Value Range: 0-65, 536
  • Operating System: Windows 7
  • Software requirements: Win 2000, Win XP
  • Computer Hardware requirements: P IV2.0 GHz, 256 megs RAM, 20 GB drive
  • Instrument Size: 14.25"W x 17.5"D x 19.4"H (460 x 300 x 460 mm)
  • Instrument Weight: 42 lbs.  (21kg)
  • Electrical: 120 or 240 Vac, 50-60Hz
  • Scans all types slide based microarrays
  • Compatible with all types of surface chemistries including glass, plastic, hydrogels, nitrocellulose and nylon
  • Signal-to-background of up to 10X higher than some commercial scanners
  • Low heat emission and energy consumption
  • DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])

• Equipment Type: Scanner

• Detection Modes: Fluorescent

• Slide Capacity: 1 Slide

• Detection Wavelength: Variable

• Detection Channels: 6

• Manufacturer SKU: SLMST

• Unit of Measure: EA

• Weight, Product: 42 Lbs

• Dimensions, Product: 15"W x 18"D x 20"H

• Weight, Shipping: 72 Lbs

• Dimensions, Shipping: 20"W x 22"D x 25"H

• Package Type: Vendor

Buy Accessories
  1. Arrayit High-Performance Instrument Cleaner
    $116
    Increase Down Increase Up
  2. Product Training/In-Service
    Request Quote
    Increase Down Increase Up
  3. Planned Maintenance Service
    Request Quote
    Increase Down Increase Up
  4. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: SpotLight 2 and Turbo Models

More Information

Model SpotLightâ„¢ 2 Microarray Scanner
#SLMS2 and #SLMS2B (Blue Edition)
SpotLightâ„¢ Turbo
Microarray Scanner #SLMST
Dimensions 14.25W x 13.25D x 19.4H in
(360 x 340 x 490 mm)
14.25W x 17.5D x 19.4H in
(460 x 300 x 460 mm)
Number of Channels 2-color 6-color
Microarray Format standard glass slide 1 x 25 x 76 mm 25 x 76 mm
Software Requirements Windows 7 Win 2000, Win XP
Excitation Wavelength #SLMS2: 570 nm and 670 nm
#SLMS2B: FITC 488 nm
FITC 488 nm, 532 nm, 635 nm and 3 additional channels
Product Components
  • SpotLightâ„¢ 2 Personal Two-Color Fluorescence Microarray Scanner
  • Power supply with Voltage Appropriate Power Cable
  • High-Speed Firewire Cable
  • High-Speed USB Cable
  • High-Speed Ethernet Cable
  • BioBlue High-Speed Personal Computer
  • SpotLightâ„¢ 2 Controller Software (Pre-Loaded on Computer)
  • SpotLightâ„¢ 2 LED Flat Panel Display with DVI Monitor Cable and Power Cord
  • Computer Power Cord with Voltage Appropriate Connector
  • Computer Keyboard, Mouse and Mouse Pad
  • Microarrays for Test Scanning
  • SpotLightâ„¢ Personal Two-Color Fluorescence Microarray Scanner
  • Power supply with Voltage Appropriate Power Cable
  • High-Speed Firewire Cable
  • High- Speed USB Cable
  • High- Speed Ethernet Cable
  • BioBlue High-Speed Personal Computer
  • SpotLightâ„¢ Controller Software (Pre-Loaded on Computer)
  • SpotLightâ„¢ Flat Panel Display with Monitor Cable and Power Cord
  • Computer Power Cord with Voltage Appropriate Connector
  • Computer Keyboard, Mouse and Mouse Pad
  • Microarray for Test Scanning
Software Compatibility MAPIX®, GenePix® and other software packages
Resolution 10 µm
Standard Detection Wavelengths Cy3 (532 nm) and Cy5 (635 nm)
Optional Detection Wavelengths 455 nm, 470 nm, 488 nm, 505 nm, 590 nm, 617 nm, 625 nm and white light
Standard Filter Sets Cy3 and Cy5
Optional Filter Sets fluorescein and fluorescein analogs, TRITC (Rhodamine), APC, ethidium bromide, Alexa dyes, and several GFP variants
Standard Detection Label Fluorescent
Optional Detection Labels chemiluminescent and colorimetric
Sensitivity <0.1 fluors per square micron and <1,000 fluors per spot
Signal to Background up to 10X higher than some commercial scanners
Dynamic Range >10,000 fold
Single Image Scan Size 1392 x 1024 pixels
Single Image File Size 2.7 MB
Max. Scan Area 25 x 76 mm
Computer Hardware Requirements P IV-2.0 GHz, 256 megs RAM, 20 GB drive
Image File Format Standard 16-bit TIFF (0-65, 536)
Electrical requirements 100 or 240 Vac and 50-60 Hz
