100/240 V Benchtop 2 °C–40 °C H2O-ARST-UP-T Arium Comfort or Arium Pro 1017-42 80879 $2,779 12-16 Days 2
Ships Free Free shipping in contiguous USA
100/240 V Wall-Mount 2 °C–40 °C H2O-ARST-UP-B Arium Comfort or Arium Pro 1017-43 80880 $2,779 12-16 Days 3
Ships Free Free shipping in contiguous USA
Voltage
Configuration
Temperature Range
Manufacturer SKU
Water System Connection
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Compact, benchtop or wall-mount Arium Smart Station Ultrapure Water Remote Dispenser with a flexible design for multiple points of use placement in labs

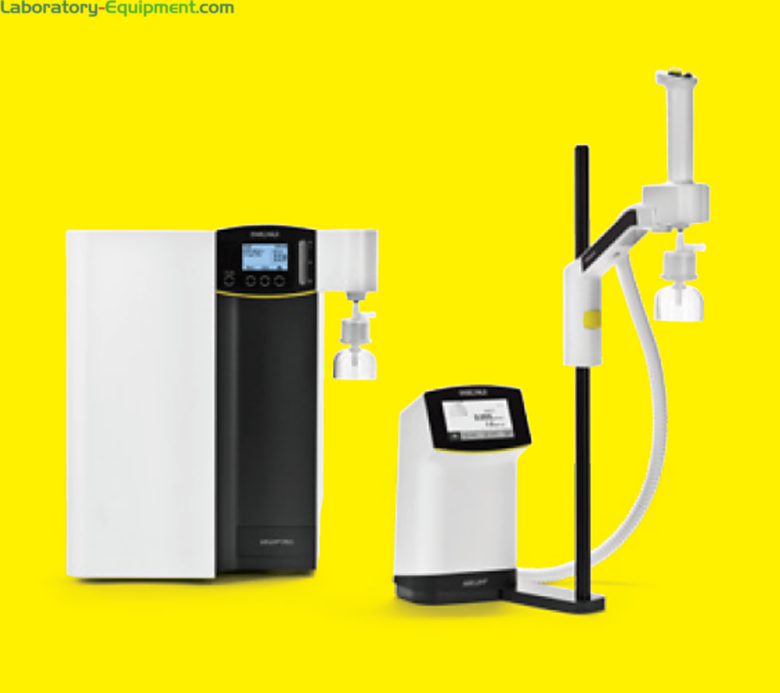

  • Directly connects to Arium Comfort and Arium Pro Water Purity Systems for Type 1 water
  • Dispensing functions of up to 2 liters per minute or manually-controlled drop-by-drop function
  • Flexible remote dispensing design for right or left-handed users delivers precise and accurate volume dispensing for reliable buffer and sample preparation
  • Stepless height a  djustment fills a wide range of container sizes and intuitive color touchscreen display for direct access of important functions
  • Stepless height adjustment from 8.5-65cm
  • 360 degree arm rotation
  • Fills sample tubes and bottles from 1.5ml up to 5L
  • Volume dispense: 50 ml to 50 liters
  • Additional Features: space-saving and ergonomic design, 4.3” touchscreen display, smart recirculation ensures highest ultrapure water quality,  media separated valve avoids cross-contamination, application-specific filters, fills various vessels, magnetically connected handheld dispenser with controls (start/stop dispensing button, volume dispense, increase/decrease flow rate)
  • Optimal height designed to fit under standard lab shelf
  • Touch-activated display: intuitive menu navigation with Smart Icons, visual guidance of dispensing, menu function (for settings, cleaning and care programs), displays (conductivity, TC and temperature), volume adjustment
  • Specifications of Arium Smart Station Ultrapure Remote Dispensers:
  • Operating range of flexible hand held: 0.7 meter
  • Operating range of dispensing arm: 16.9 × 18.7 × 32.9” (benchtop); 9.5 × 3.5× 11.8” (wall-mounted)
  • Tubing (included) length to connected Arium Pro or Arium Comfort model: 2 meters
  • Volume Accuracy: ± 5 %
  • Volume-controlled dispensing: 50 ml–50 l
  • Accessory: Arium Tubing Extension Set UP(4m #H2O-ATES-UP ) connects with water source or additional Smart Stations
  • Application-specific filters: easy exchange with quick connector
  • Consumables:
  • Arium Sterile Plus #5441307H4--CE: Sartopore® 2 150 capsule), 0.2 μm pore size; qty. per pkg.: 1
  • Arium® Cell Plus Ultrafilter #2O-CUF: qty. per pkg.: 1
  • Accessory:
  • Arium Extended Connection Set Ultrapure #H2O-ATES-UP

Water Purity Systems

  • Video for Arium® Smart Station: A Water Dispensing System to Simplify Your Lab Water Use Arium Smart Station: A Water Dispensing System to Simplify Your Lab Water Use
Video for Arium® Smart Station: A Water Dispensing System to Simplify Your Lab Water Use
Features & Benefits

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Ergonomic Design

Arium Smart Stations are designed for right and left handed operation and adjusts without the need for tools

Handheld Dispenser

Magnetic handheld dispenser offers convenient release and top of dispenser features buttons for start/stop, decrease/increase flowrate and volume dispense

Adjustable Arm

Models feature an adjustable arm for easy positioning with various vessels, and dispensers easily fit under a standard lab shelf

Touchscreen Display

Fully-functioning 4.3” touchscreen computer display shows all relevant information for full-user control

Flexible Dispensing

Available extended 4-meter connection set #H2O-ATES-UP connects up to three Arium Smart Stations to a single ultrapure water system for different applications
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Arium Extended Connection Set #H2O-ATES-UP

    Increases operation range of supplied tubing set from 2 meters up to 4 meters
