Part # 1696-05A

Glove Box; Insulated, 304 Stainless Steel, 41" W x 33" D x 43" H, 2 Glove Ports, Full Tilt-Up Window, 120 V

  • Available Certified ISO Grade™ Designs: ISO 6, ISO 7, ISO 8
ULus Listed ISO 6 Icon
Terra Part #: 1696-05A
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
$13,710
Part #: 1696-05A
Usually ships in 35-41 business days

Want it faster ? Read about FasTrak

Product Details

  • Available Certified ISO Grade™ Designs: ISO 6, ISO 7, ISO 8
  • Includes LED illuminator
  • Features two 10" diameter ports that provide a wide range of motion
  • Double-glazed polycarbonate tilt-up viewing windows provide visibility of work-in-progress and access to insert equipment or supplies
  • For optional use with Constant Temperature Control system 1694-77
  • Double-walled, insulated chamber boosts thermal efficiency to create stable process temperatures.

Specs

• Window Material: Polycarbonate

• Number of Glove Ports: 2

• Access: Full Tilt-Up Window

• Maximum Working Height: 38.82"

• Chamber Width: 41"

• Chamber Depth: 33"

• Chamber Height: 43"

• Material: 304 Stainless Steel

• UL File Number: E484299

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Electrical Specifications: 120 V, 0.15 A, 18 W, 1 Ph, 50/60 Hz

• Weight, Product: 584 lb

• Dimensions, Product: 41" W x 33" D x 43" H

• Weight, Shipping: 929 lb

• Dimensions, Shipping: 46" W x 42" D x 58" H

• Package Type: Palletized

Download Manual

  • Refrigerated glove box for pharmaceutical research and development Refrigerated Glove Box for Pharmaceutical Research and Development
  • Refrigerated glove box for testing electronics under different atmospheres and temperatures Refrigerated Glove Box for Testing Electronics Under Different Atmospheres and Temperatures
  • stainless steel refrigerated glove box with full-view tilt-up window Full-View Tilt-Up Window for Convenient Access
  • Interior view of refrigerated stainless steel glove box Configure Accessories to Meet Your Requirements
  • Adjustable ULPA Filtration Enhances Personnel and Product Protection

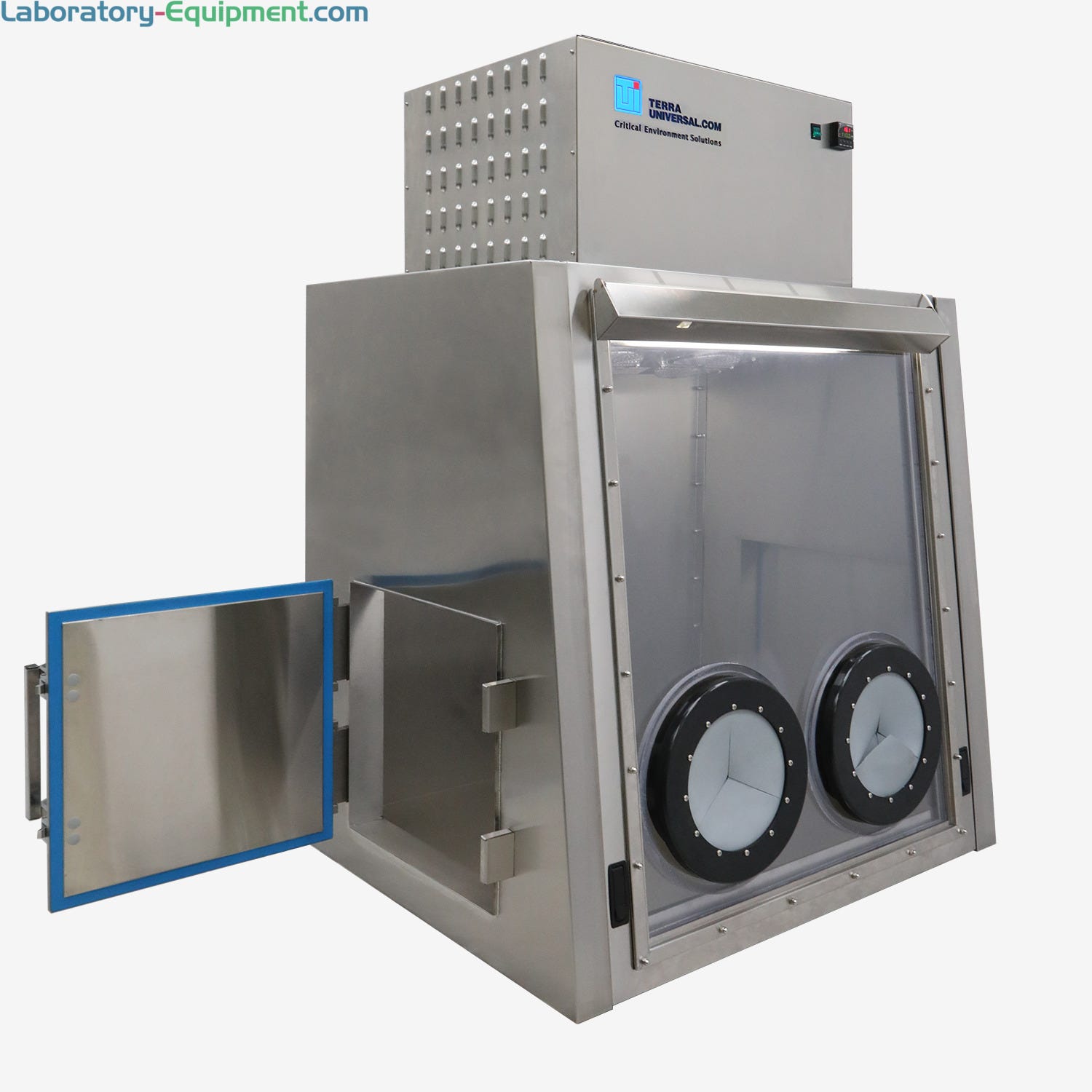

Refrigerated glove box for pharmaceutical research and development
Refrigerated Glove Box for pharmaceutical research and development; stainless steel, insulated double-wall design, with full-view tilt-up window | 1696-05A displayed Refrigerated Glove Box for Pharmaceutical Research and Development This refrigerated glove box for pharmaceutical research and development features a durable stainless steel construction with insulated double-walls to minimize temperature fluctuations. The full-view tilt-up window provides easy access to move large equipment and clean the chamber’s interior.

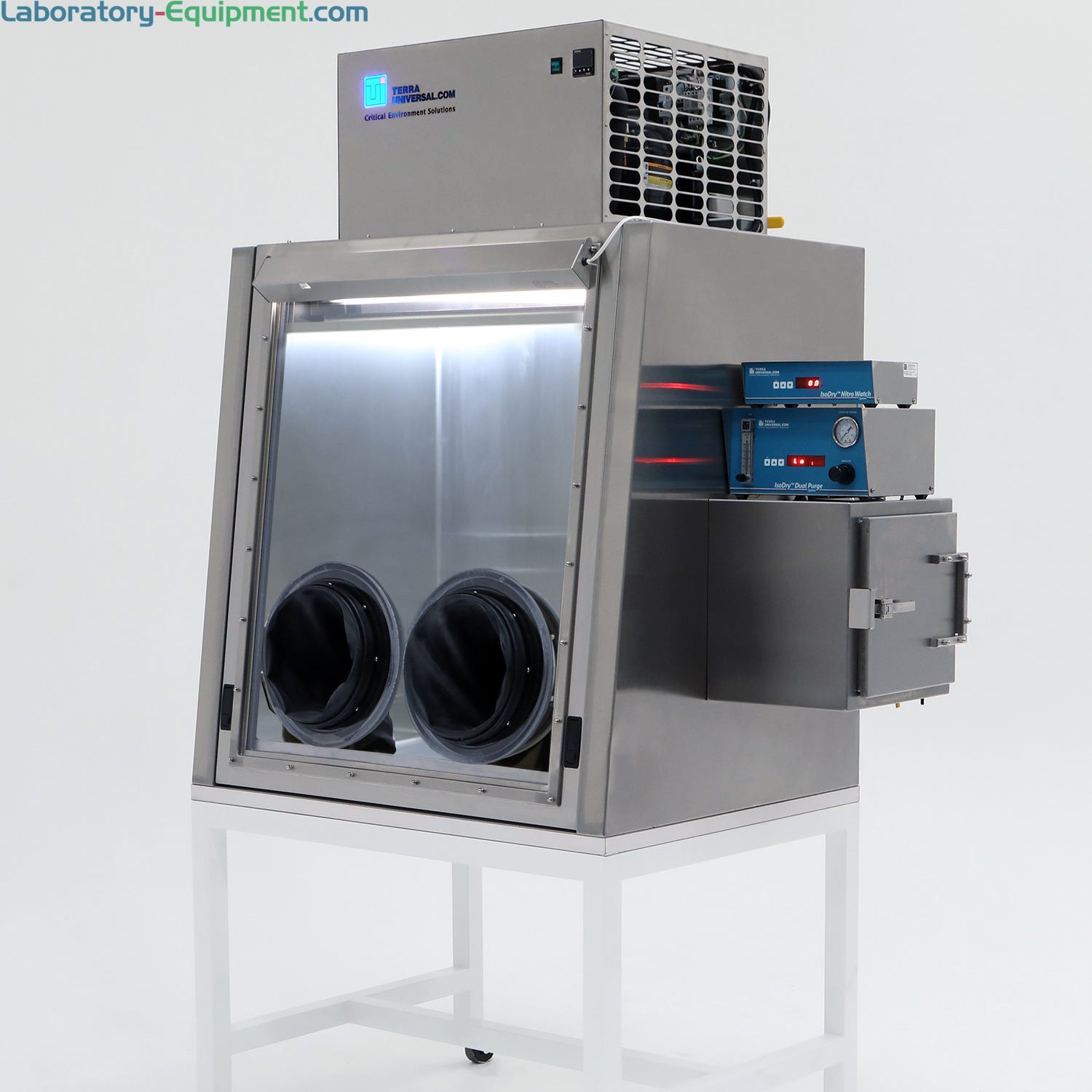

Refrigerated glove box for testing electronics under different atmospheres and temperatures
Refrigerated glove box for testing electronics under different atmospheres and temperatures; configured with automatic nitrogen gas humidity control system | 1696-05A displayed Refrigerated Glove Box for Testing Electronics Under Different Atmospheres and Temperatures Refrigerated stainless steel glove box designed for testing electronics under different atmospheres and temperatures. The system is configured with Terra’s Dual Purge™ and NitroWatch™ which automatically purges the chamber with dry nitrogen gas to control relative humidity.

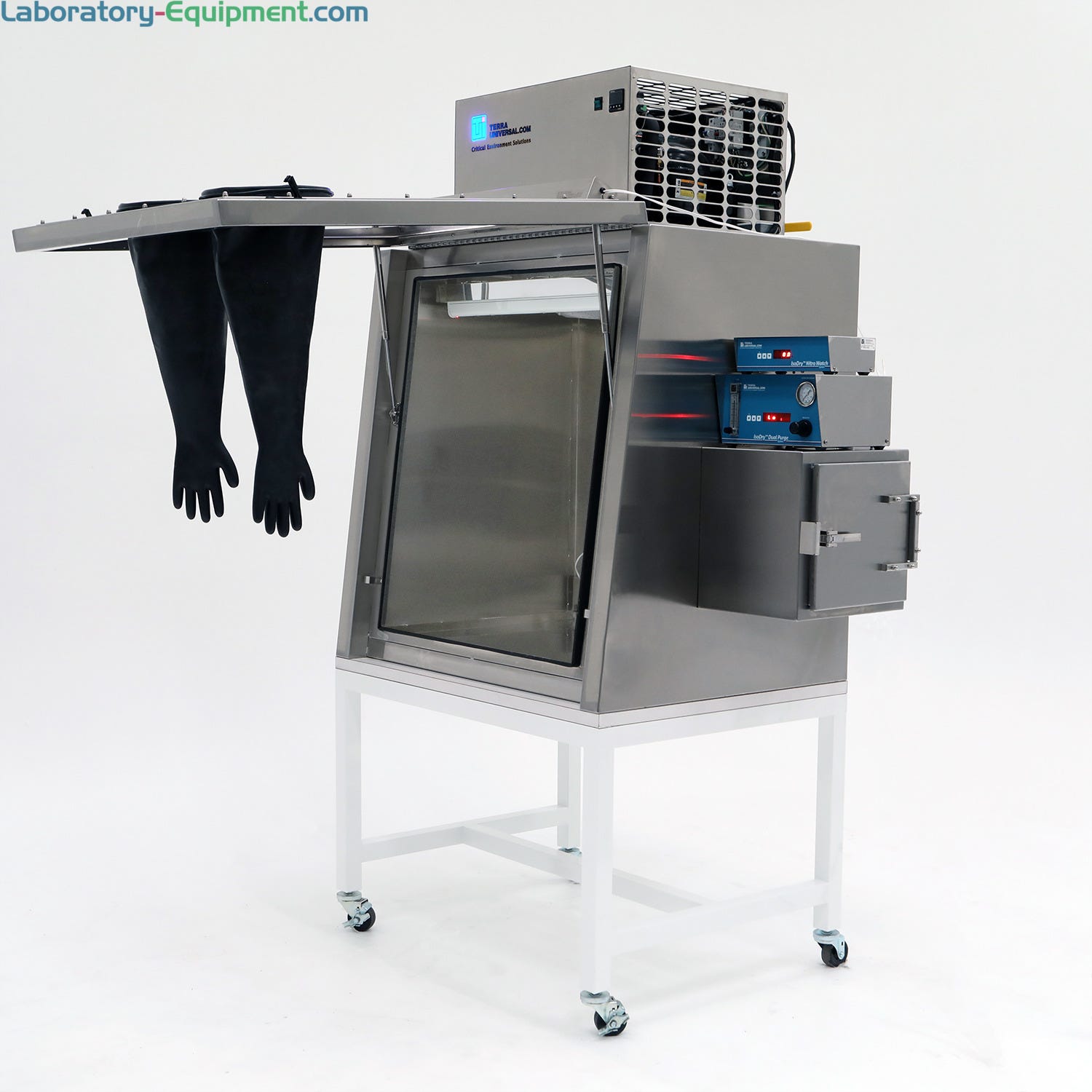

stainless steel refrigerated glove box with full-view tilt-up window
Stainless steel refrigerated glove box with full-view tilt-up window and automatic nitrogen gas purge system | 1696-05A displayed Full-View Tilt-Up Window for Convenient Access Corrosion-resistant stainless steel gas struts on both sides of the tilt-up window use compressed nitrogen to lift and hold open the tilt-up window. A one-piece, thermoplastic gasket around the chamber opening compresses to form a tight seal when the window is closed and latched.

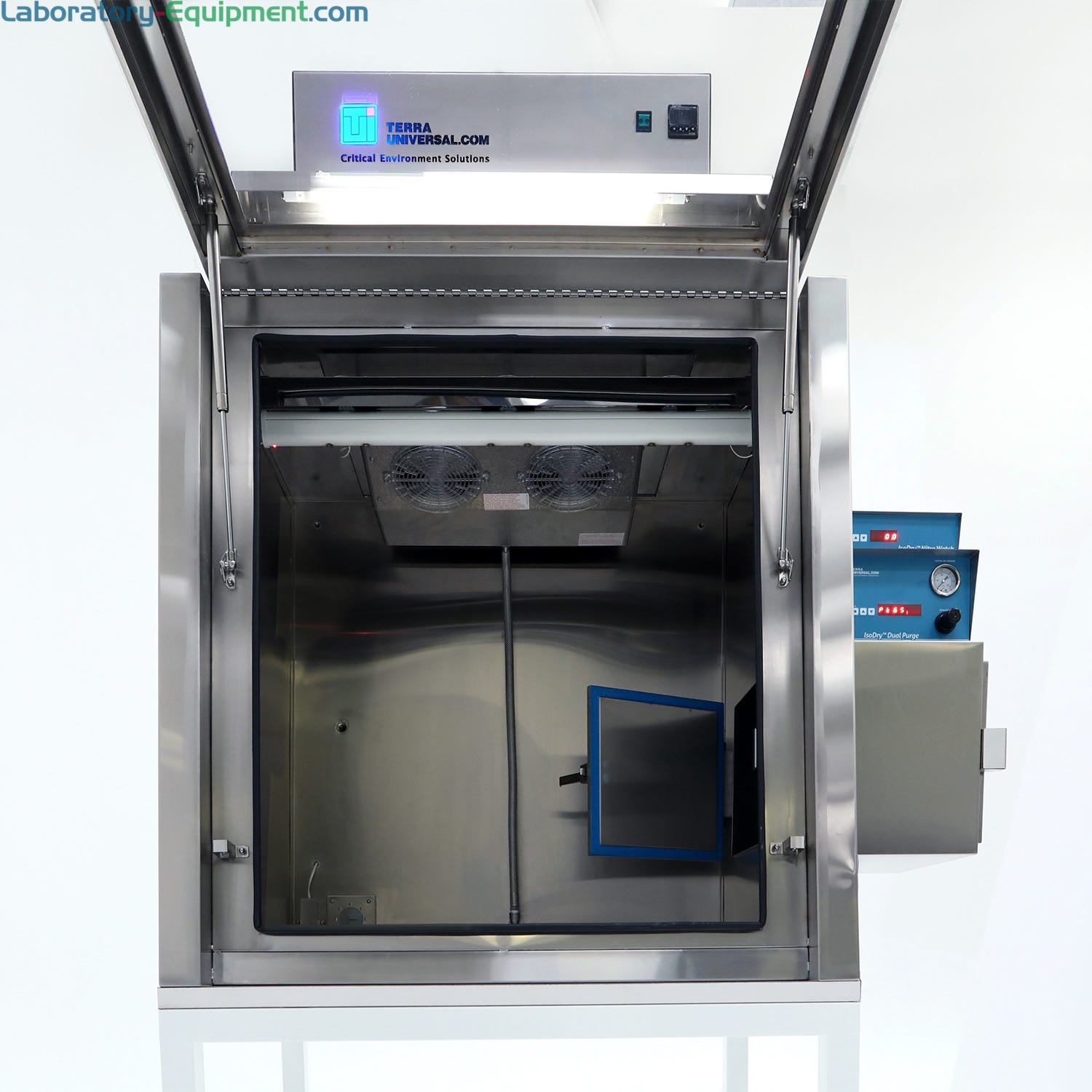

Interior view of refrigerated stainless steel glove box
Refrigerated double-wall stainless steel glove box to test electronics; with ionizing bar, ULPA filtration system, and automatic nitrogen gas purge system | 1696-05A displayed Configure Accessories to Meet Your Requirements Customize your glove box with add-on systems to meet your application requirements. Popular accessories include refrigeration, ion bars, ULPA filtration, automatic nitrogen gas purge, inert air locks, cord pass-throughs, and more.

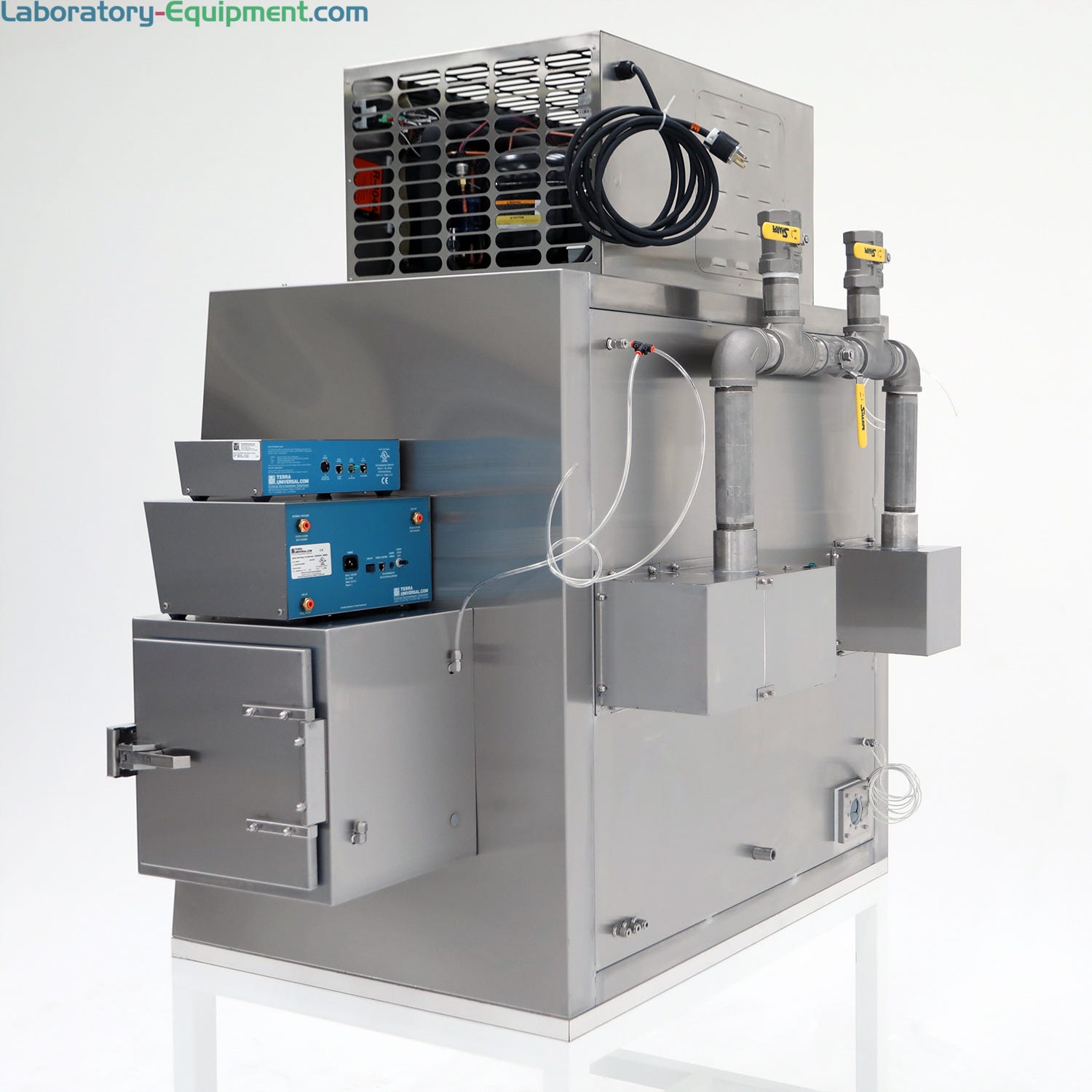

Refrigerated and insulated stainless steel glovebox, backside view; configured with ULPA filtration system and automatic nitrogen gas purge system | 1696-05A displayed Adjustable ULPA Filtration Enhances Personnel and Product Protection Optional ULPA filtration allows for open- or closed-loop circulation. The versatile system removes airborne particulates and powders inside the chamber to maintain a Class 100 ultra-low particle environment.
