Part # 1694-13B

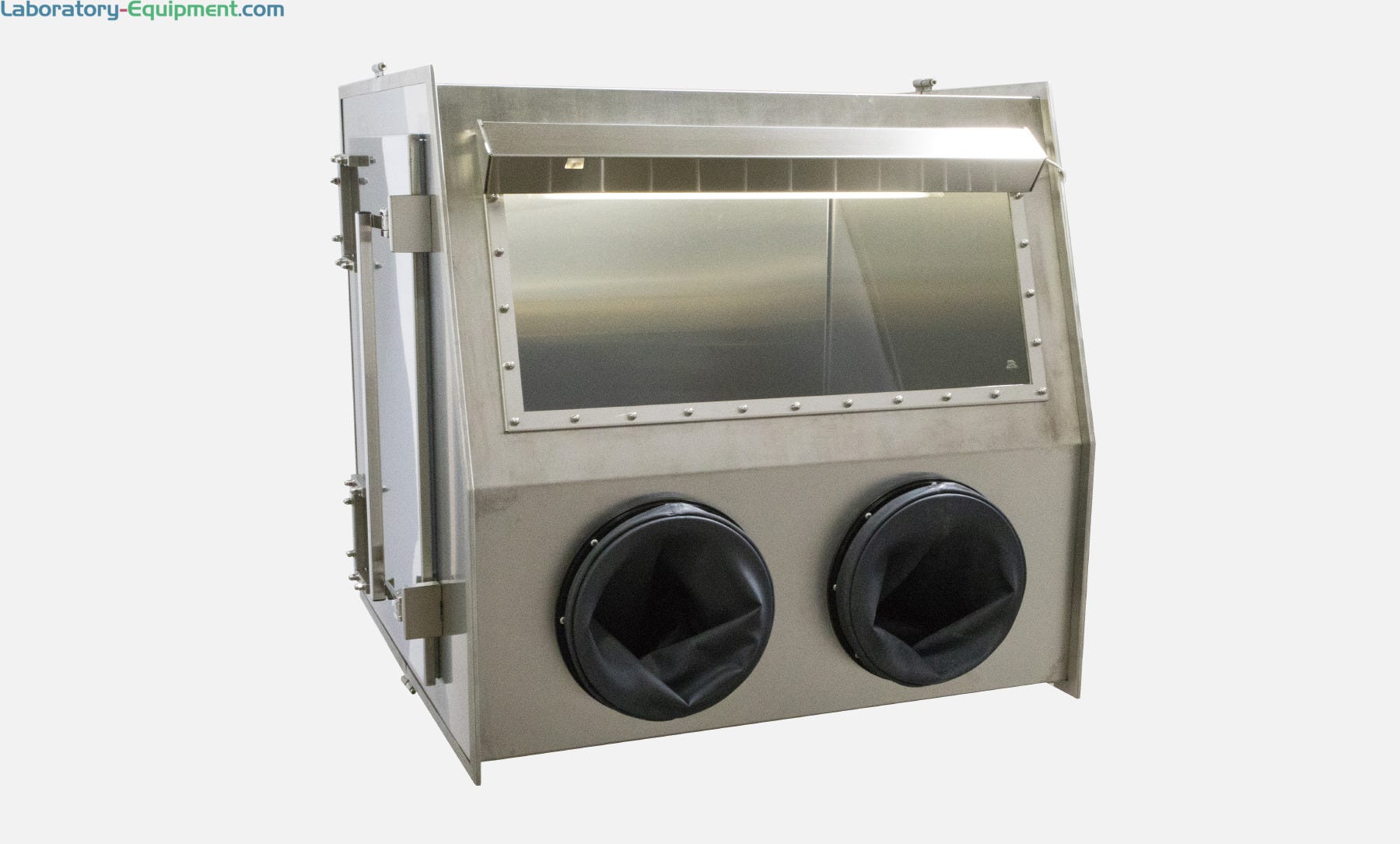

Glovebox; Series 400, 304 Stainless Steel, 35" W x 33" D x 33" H, Tempered Glass Window, 120 V

ULus Listed
Terra Part #: 1694-13B
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
$7,306
Part #: 1694-13B
Usually ships in 35-41 business days

Want it faster ? Read about FasTrak

Product Details

  • Ideal for vacuum processing down to -5"Hg (with vacuum pump running continuously)
  • Includes front tempered glass window along with externally mounted fluorescent light fixture
  • Single unit features two 10" (254 mm) diameter ports that provide a wide range of motion
  • Note that glove boxes do not get side access doors unless ordered as a separate accessory
  • Not an air-tight containment chamber; not suitable for use with biohazards
  • Provides a clean, controlled environment for various manufacturing processes

Specs

• Chamber Width: 35"

• Chamber Depth: 33"

• Chamber Height: 33"

• Maximum Working Height: 33"

• Window Material: Tempered Glass

• Number of Glove Ports: 2

• UL File Number: E484299

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Electrical Specifications: 120 V, 0.25 A, 1 Ph, 50/60 Hz

• Weight, Product: 300 lb

• Dimensions, Product: 35" W x 33" D x 33" H

• Weight, Shipping: 431 lb

• Dimensions, Shipping: 41" W x 39" D x 41" H

• Package Type: Palletized

  • Vacuum chambers animation Watch Terra's Vacuum Chamber Video
  • Filtration Modules for Series 300 and Series 400 Filtration Modules for Series 300 and Series 400
  • Stainless Steel Glovebox Isolator Stainless Steel Glove Box Isolator, 2-Port
  • Stainless Steel Glove Box Isolator with Air Lock Stainless Steel Glove Box Isolator, Series 400
  • Vacuum-ready stainless steel glove box isolator with two glove ports Stainless Steel Negative Pressure Glovebox with Removable Side Panels
Vacuum chambers animation
Terra offers a wide selection of high-quality vacuum chambers for every application. Watch Terra's Vacuum Chamber Video Terra offers a wide selection of high-quality vacuum chambers for every application. Economical, high-visibility acrylic vacuum chambers are ideal for most manufacturing, testing, and research applications. Terra's 1" thick welded acrylic (plexiglass) vacuum chambers hold a full vacuum (29.9"Hg) for 72 hours with no detectable leaks. Powder-coated aluminum vacuum chambers offer better chemical resistance than acrylic chambers, particularly when using disinfectants, such as isopropyl alcohol, or sporicidal agents. Stainless steel vacuum chambers are more suitable for chemical, biopharmaceutical, and microelectronics applications with higher temperatures and/or corrosive chemicals.
Filtration Modules for Series 300 and Series 400
HEPA filtration module, shown mounted to a Series 300 Glove Box Filtration Modules for Series 300 and Series 400 This HEPA filtration module, shown mounted to a Series 300 Glove Box, circulates air through a 99.99% efficient filtration module to remove submicron particles.
Stainless Steel Glovebox Isolator
Series 400 Stainless Steel 2-Port Glove Box shown with optional oversized side access door and gloves | 1694-13B displayed Stainless Steel Glove Box Isolator, 2-Port This stainless steel glove box provides a particle-free, low-humidity environment for processing contamination-sensitive parts when equipped with nitrogen controller (shown with gloves and oversized side access door for equipment transfer).
Stainless Steel Glove Box Isolator with Air Lock
Series 400 Stainless Steel 2-Port Glove Box shown with optional nitrogen controller, air lock and stand. | 1694-13B displayed Stainless Steel Glove Box Isolator, Series 400 This stainless steel glove box provides a particle-free, low-humidity environment for processing contamination-sensitive parts (shown this optional nitrogen controller, air lock and gloves).

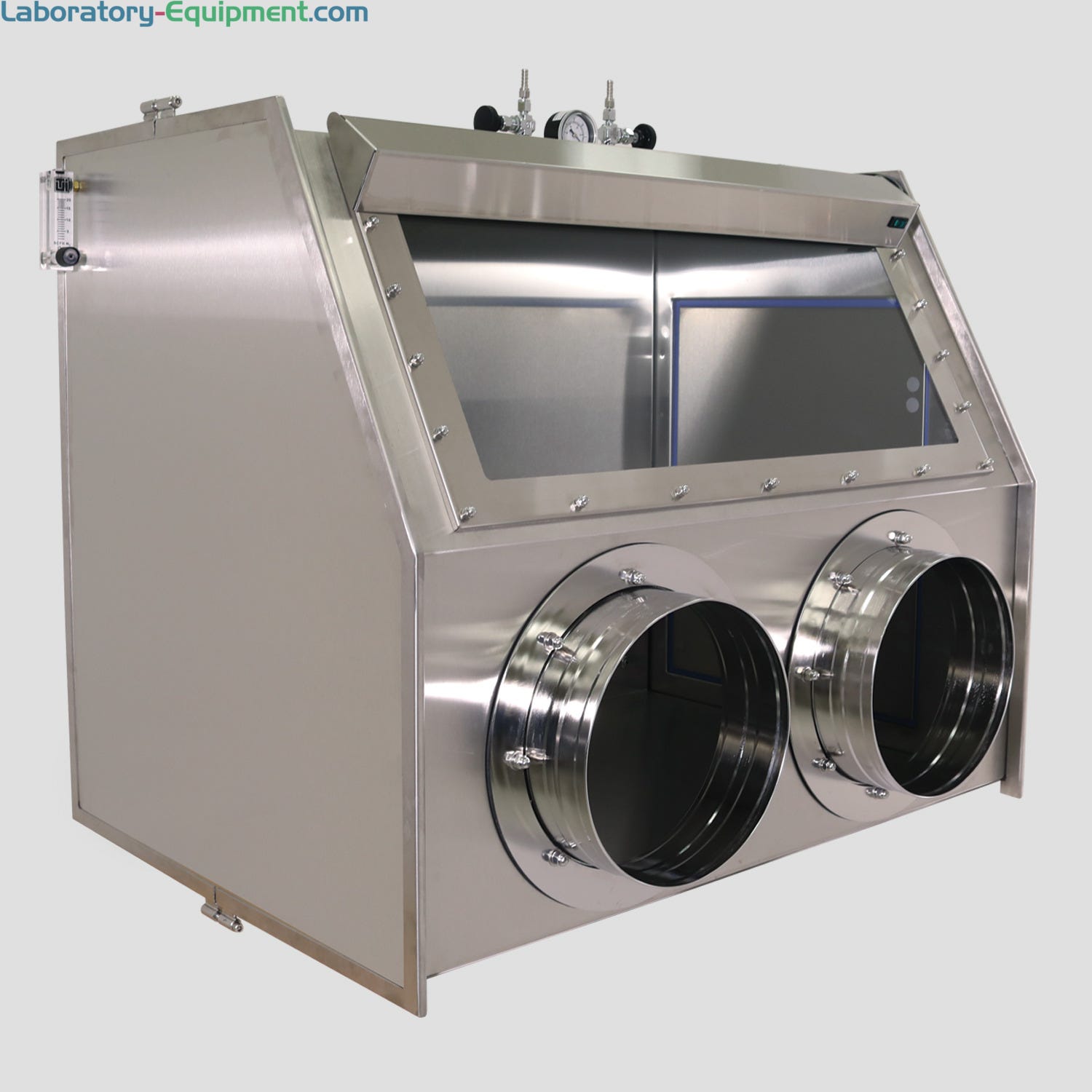

Vacuum-ready stainless steel glove box isolator with two glove ports
Stainless steel glove box with optional stainless steel glove ports, allows for -5"Hg (<20% vacuum) processing | 1694-13B displayed Stainless Steel Negative Pressure Glovebox with Removable Side Panels Stainless steel glove box provides a clean, controlled environment with -5"Hg vacuum processing capacity. Optional plastic 10" dia. glove ports can be removed to change glove types. Versatile removable side panels allow for transfer of large equipment, attachment to pass-through ovens, or connection to an adjacent glove box.
