Product Details
- Available Certified ISO Grade Designs: ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
- Refer to sales order and/or drawings for dimensions and other details
- Specified height is from the floor to filter face. FFUs add 13" (330 mm) overhead clearance to this measurement. To assure proper air flow and installation, allow an additional 11" (279 mm) between the top of the FFUs and the ceiling or other overhead obstruction (total of 24" (610 mm) between the cleanroom filter face and the surrounding facility ceiling).
- 304 stainless steel panels inside and out, use a unique, rigid double-wall design that requires no external bracing
- 1" (25 mm) radius corners eliminate voids, allow easy cleaning and disinfecting

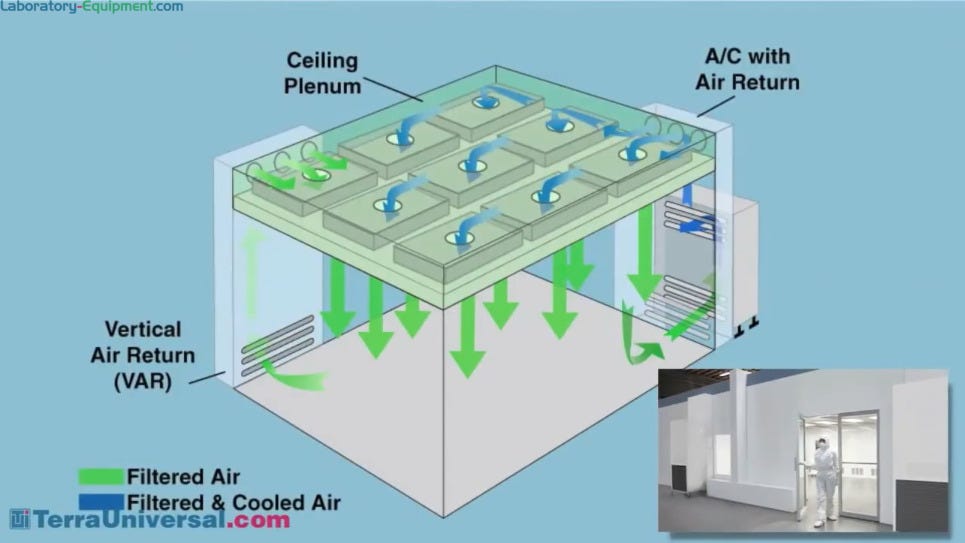

- Includes 304 stainless steel ceiling grid (FFU and light supports) that forms 2' x 4' (610 mm x 1219 mm) bays for filter/fans, lights or blank panels (order ceiling modules separately)
- Standard exhaust register (one per 4'-wide panel) is 36" W x 10"H (914 mm x 254 mm), mounted 4" (102 mm) above floor
- Other options include access doors, windows, air conditioning, air locks and antechambers, air flow and pressure gauges, raised flooring, anti-microbial coatings, and furnishings
- Control Panel provides on/off switches for FFUs, lights and other system options, and includes Status Indicators(Order Separately)
- NOTE: Request UL Listing Declaration (order separately) for cleanroom electrical system, which helps meet municipal and other permitting requirements that may apply
- Panels create ultra-smooth surfaces that are easy to wipe down and disinfect.
- Unique double-wall panel design creates strong, rigid surface without external bracing.
- Modules are easy to assemble, disassemble, and reconfigure as needs change.
- Accommodates flush-mount control panel and utility options without dirty, unsightly conduit
- Optional ceiling HEPA filter/fan units meet Class 100 cleanliness conditions (order separately)
- Optional lighting: fluorescent, 254nm UV germicidal, and 365nm fluorescence detection
- Optional HVAC system maintains constant temperature between 60ºF and 140ºF, (15.5°C and 60°C) insulation available (order separately)
- Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes.
- Check your local planning department to see what regulations apply to your installation.
- Seismic analysis available; specify Part Number 6600-98. Changes required after approval, if any, are to be covered by change orders.
- Standard and/or extended warranty coverage for this cleanroom requires professional installation by Terra Universal. Consult your Terra representative for details.
- NOTE: Standard and/or extended warranty coverage for this cleanroom requires professional installation by Terra Universal. Consult your Terra representative for details.
Specs
• Overall Dimensions: Custom
• Frame Material: Stainless Steel
• Panel Material: 304 Stainless Steel
• Unit of Measure: EA
• Marks & Listings: UL, ULC
• Electrical Specifications: None
