Part # 6606-29

ValuLine™ Gowning Room; Softwall, 6'W x 6'D x 8'H

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Compatible with ValuLine™ Softwall Modular Cleanrooms
  • To be positioned adjacent to the cleanroom's main entrance
Stocked ULus Logo ISO 8 Icon<br/>
Terra Part #: 6606-29
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
$3,780
Part #: 6606-29
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Only 8 left in stock

Product Details

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Compatible with ValuLine™ Softwall Modular Cleanrooms
  • To be positioned adjacent to the cleanroom's main entrance
  • COMPONENTS INCLUDED:
  • Powder-coated steel frame – posts and beams of 2.5" (280 mm) square tubing, powder coated
  • Steel ceiling grid – joists and cross members 3" (76 mm) T-bars
  • Steel reinforcing gussets – two on each corner post
  • Curtain mounting system for easy suspension of curtains and strip shields
  • Curtain Panels – 40 mil anti-static PVC, corner notched, precut, hangs from Flex-Track
  • Strip Shield Doors – alternating clear/frost SDPVC strips, pre-cut, hung from Flex-Track at each end
  • ACCESSORIES INCLUDED:
  • LED Light Modules – 48 W, 4500 lumens, 120-277 VAC
  • Ceiling Panel -- 2' x 4', polypropylene, white, as required to complete ceiling grid
  • All electrical components UL and UL-C listed
  • Order number of HEPA Fan/Filter Units separately to meet desired ISO cleanliness rating
  • Requires UL Listing Declaration (order separately) for customized cleanroom electrical system, which helps meet municipal and other permitting requirements that may apply
  • Room is sent disassembled with assembly instructions. Two assemblers make the process easier
  • FFUs and lights plug into Power Supply Unit. Power Supply Units plug into standard US wall receptacles  Each PSU requires a separate, free 20 A circuit. Power Supply Unit Switch mounted on corner post. Strip door mounts at any corner
  • FFUs add 13" (330 mm) overhead to height. Additional 9" to 11" (230 to 280 mm) clearance is required for air flow and installation.  Total clearance required above filter face is 22" to 24" (560 to 610 mm)
  • Heavy-duty casters may be ordered at additional cost
  • Shipped in crate with casters; fits through 36" doorway. Forklift, lift gates and pallet jacks may be required.
  • Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes.
  • Check your local planning department for regulations applying to your installation.

Specs

• Frame Material: Powder-Coated Steel

• Height: 8'

• Depth: 6'

• Width: 6'

• Panel Material: Anti-Static Vinyl Soft Panels

• Available Certified ISO Grade Designs: ISO 7, ISO 8

• UL File Number: E472687

• UL Standard: UL 508

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Dimensions, Product: 72" W x 72" D x 96" H

• Dimensions, Shipping: 78" W x 78" D x 102" H

  • Air Curtains shoot ULPA filtered air downwards to prevent outside air from entering Air Curtain Smoke Test
  • Cleanroom LED Light Panel Cleanroom LED Light Panel
  • Sanuvair S300 and S1000 Air Purification Systems by Sanuvox Sanuvair S300 and S1000 Air Purification Systems by Sanuvox

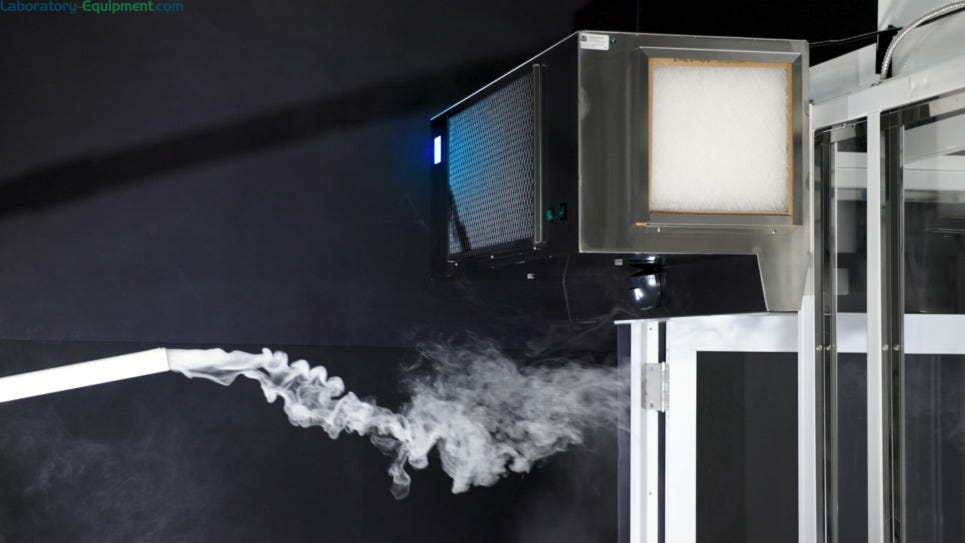

Air Curtains shoot ULPA filtered air downwards to prevent outside air from entering
