Part # 6600-69A-SS

Cleanroom; Hardwall, Modular, Tempered Glass Panels, 304 Stainless Steel Frame

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
ULus Logo WhisperFlow ISO 5 Icon
Terra Part #: 6600-69A-SS
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Request Quote
Part #: 6600-69A-SS
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Product Details

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Refer to sales order and/or drawings for dimensions and other details
  • 0.375"-thick tempered glass panels are center mounted to 2" stainless steel uprights to create a smooth easy-clean internal surface
  • Mirror-finish stainless steel L-bracket trim strips provide an attractive, easy-clean exterior
  • Includes stainless steel ceiling grid that forms 2' x 4' bays for filter/fans, lights or blank panels (order ceiling modules separately)
  • Mirror-finish SS control panel includes all specified blower, light and other utility switches
  • Upgrade to frosted, insulated glass cleanroom panels - talk to your Terra sales specialist for pricing
  • Tempered glass panels offer full visibility
  • Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes. Check your local planning department to see what regulations apply to your installation
  • Other options include access doors, air conditioning, air locks, antechambers, air flow, pressure gauges, and furnishings
  • Specified height is from the floor to filter face. FFUs add 13" overhead clearance to this measurement. To assure proper air flow and installation, allow an additional 11" between the top of the FFUs and the ceiling or other overhead obstruction (total of 24" between the cleanroom filter face and the surrounding facility ceiling).
  • Control Panel provides on/off switches for FFUs, lights and other system options, and includes Status Indicators (order separately, P/N 6600-23)
  • Seismic analysis available; specify Part Number 6600-98. Changes required after approval, if any, are to be covered by change orders.
  • NOTE: Standard and/or extended warranty coverage for this cleanroom requires professional installation by Terra Universal. Consult your Terra representative for details.

Specs

• Frame Material: 304 Stainless Steel

• Overall Dimensions: Custom

• Panel Material: Tempered Glass

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Package Type: Skid

  • ISO 6 Amber Cleanroom for Laser Testing, 32' x 18' x 10'H ISO 6 Amber Cleanroom for Laser Testing, 32' x 18' x 10'H
  • full view of custom hardwall modular cleanroom Custom Hardwall Modular Cleanroom for Healthcare Applications
  • slightly to the left full view of usp compounding cleanroom USP Compounding Cleanroom for Sterile Pharmaceutical Preparations
  • full view of custom hardwall modular cleanroom Custom Hardwall Modular Cleanroom for Semiconductor Industry
  • front left view of custom hardwall modular cleanroom Custom Hardwall Modular Cleanroom for Military Applications
  • full view of usp compounding cleanroom USP Compounding Cleanroom for Pharmaceutical Industry
  • full view of middle room of hardwall modular cleanroom Hardwall Modular Cleanroom for Pharmaceutical Applications
  • Corner view of extended height cleanroom for dietary supplement and sports nutrition manufacturing Extended Height Nutraceutical Cleanroom Suite
  • full front view of hardwall modular cleanroom Custom Hardwall Modular Cleanroom for Aerospace Applications
  • Top view of custom cleanroom Custom Cleanroom: Polypropylene Ceiling Panels and Fan Filter Units
  • right back view of custom hardwall modular cleanroom Custom Hardwall Modular Cleanroom for Pharmaceutical Industry
  • Extra-tall modular hardwall cleanroom for injection and extrusion blow molding Modular Hardwall Cleanroom for Injection and Extrusion Blow Molding
  • BioSafe Wash-Down Tempered Glass Cleanroom BioSafe Wash-Down Tempered Glass Cleanroom
  • Portable HEPA Filtration System Watch Terra's Portable HEPA Filtration System Video
  • top view of custom hardwall modular cleanroom Custom Hardwall Modular Cleanroom for Medical Applications
  • cleanroom technician looking through papers and parts Hardwall Cleanroom Installation for Pharmaceutical Applications
  • Extra-tall multi-suite modular hardwall cleanroom for electronics assembly. Extra Tall Class 1,000 Modular Cleanroom for Electronics Assembly
  • Hardwall Modular Cleanroom – Multi-Room Configuration Hardwall Modular Cleanroom – Multi-Room Configuration
  • Pharmaceutical airlocks Watch Terra's Video on Pharmaceutical Air Lock Designs
  • Hardwall Cleanroom with Acrylic Wall Panels ISO-Rated Hardwall Cleanroom with Acrylic Wall Panels
  • Hardwall Modular Cleanroom Equipment Enclosure Hardwall Modular Cleanroom Equipment Enclosure
  • Frame Assembly - Hardwall Modular Cleanroom Frame Assembly - Hardwall Modular Cleanroom
  • Hardwall Modular Cleanroom Equipment Enclosure Hardwall Modular Cleanroom Equipment Enclosure
  • Hardwall Modular Cleanroom – Polycarbonate Wall Panels Hardwall Modular Cleanroom – Polycarbonate Wall Panels
  • Insulated Hardwall Modular Cleanroom Insulated ISO-Rated Hardwall Modular Cleanroom
  • Industry Specific Designs Industry Specific Designs
  • Hardwall Modular Clean Room Equipment Enclosure Hardwall Modular Clean Room Equipment Enclosure
  • Hardwall Modular Cleanroom Hardwall Modular Cleanroom
  • Hardwall Modular Cleanroom with Multiple Suites Multi-Suite ISO-Rated Hardwall Modular Cleanroom
  • Modular Cleanroom Equipment Enclosure Cleanroom Equipment Enclosures
  • Thermal Vacuum Chamber Enclosure Thermal Vacuum Chamber Enclosure
  • Assembly of Modular hardwall cleanroom with Ducted AC System Modular Hardwall Cleanroom Installation
  • Class 1,000 modular cleanroom for quartz rod processing Class 1,000 Modular Cleanroom for Quartz Rod Processing
  • modular hardwall cleanroom installed inside a laboratory Modular Hardwall Cleanroom Installed in Laboratory
ISO 6 Amber Cleanroom for Laser Testing, 32' x 18' x 10'H
ISO 6 (Class 1,000) 32' x 18' x 10'H amber cleanroom for defence manufacturing. The orange amber panels help block UV light and lasers, while permitting visible | 6600-63A displayed ISO 6 Amber Cleanroom for Laser Testing, 32' x 18' x 10'H ISO 6 (Class 1,000) 32' x 18' x 10'H amber cleanroom for defence manufacturing. The orange amber panels help block UV light and lasers, while permitting visible light for a safe work environment.

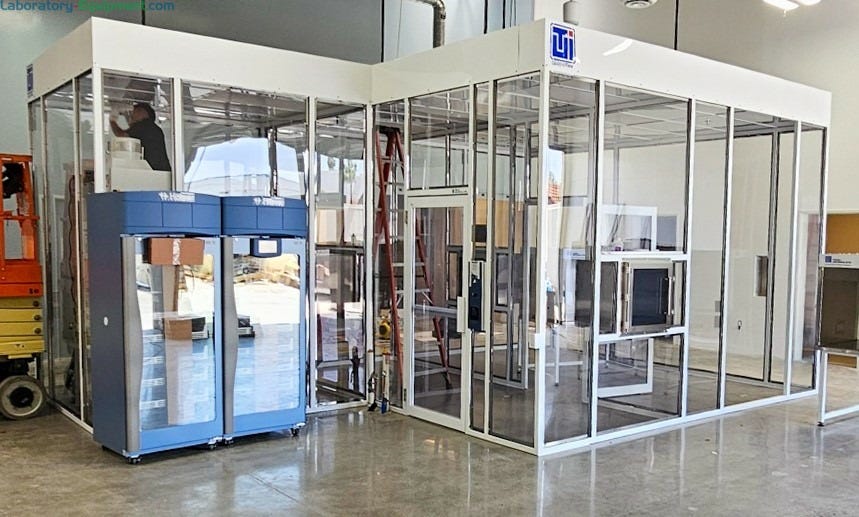

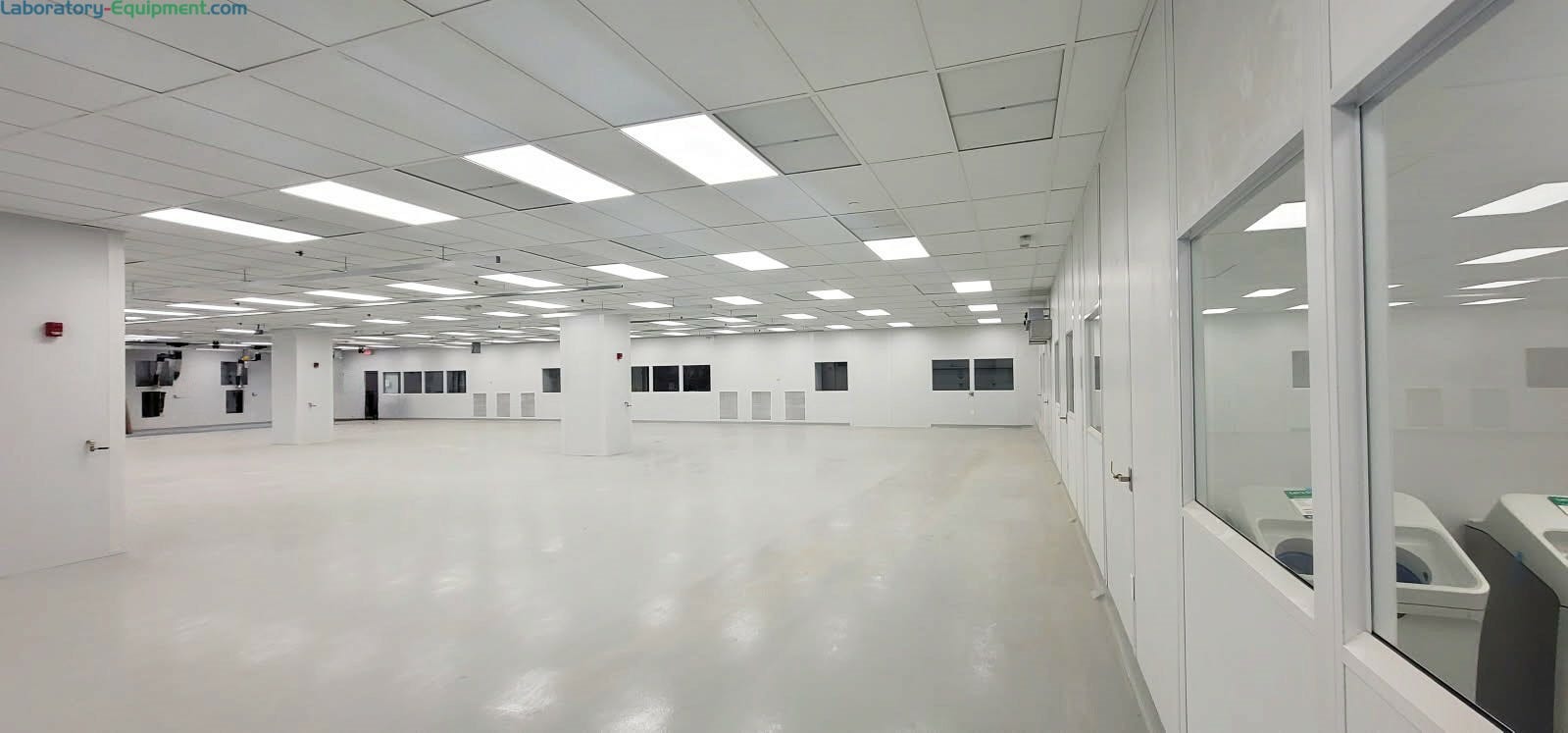

full view of custom hardwall modular cleanroom
interior full view of custom hardwall modular cleanroom
straight on interior view of custom hardwall modular cleanroom

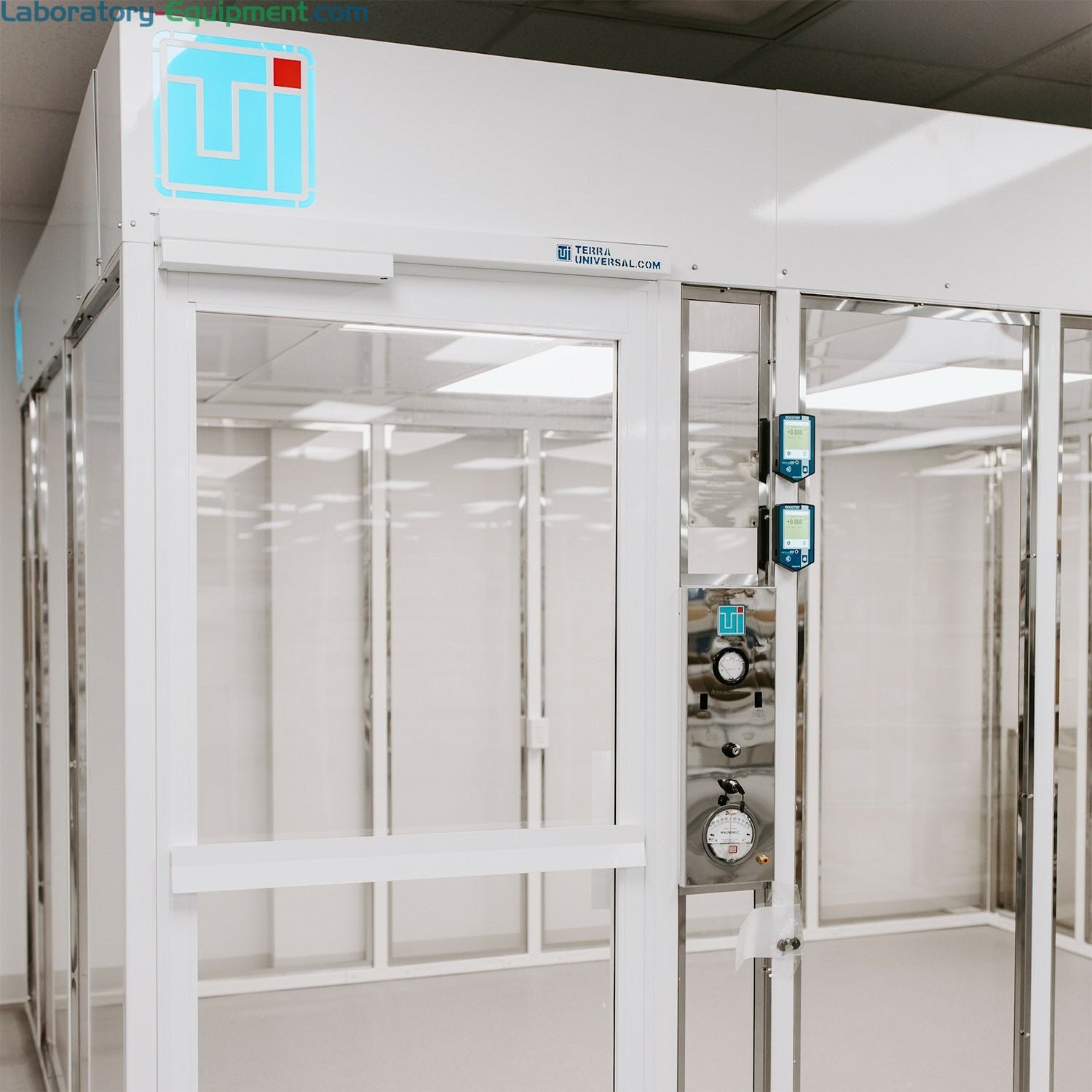

close up view of door of custom hardwall modular cleanroom
two air conditioners attached to custom hardwall modular cleanroom

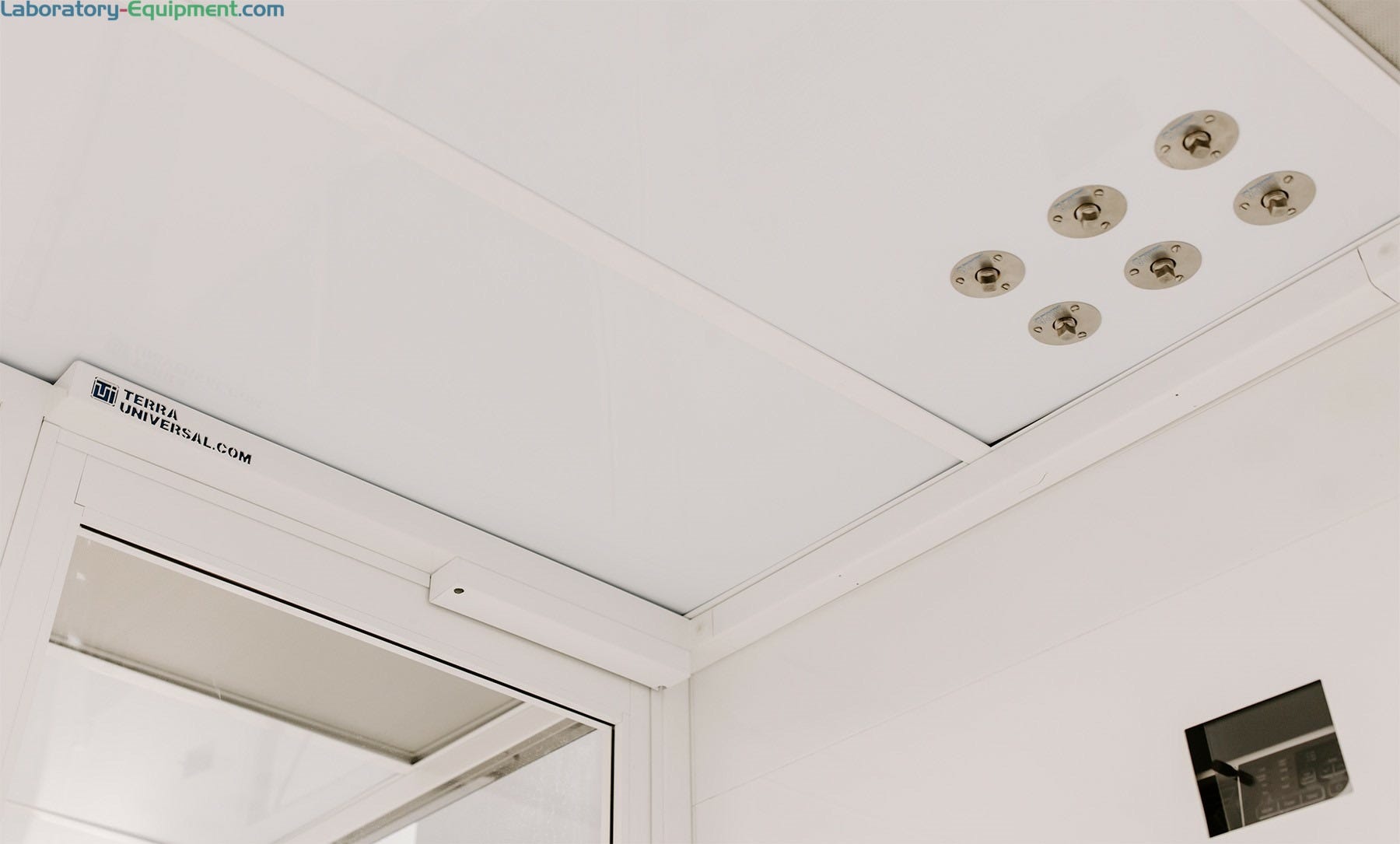

ceiling view of custom hardwall modular cleanroom
close up of control panel for air conditioner
air conditioner unit inside of cleanroom with remote and panel

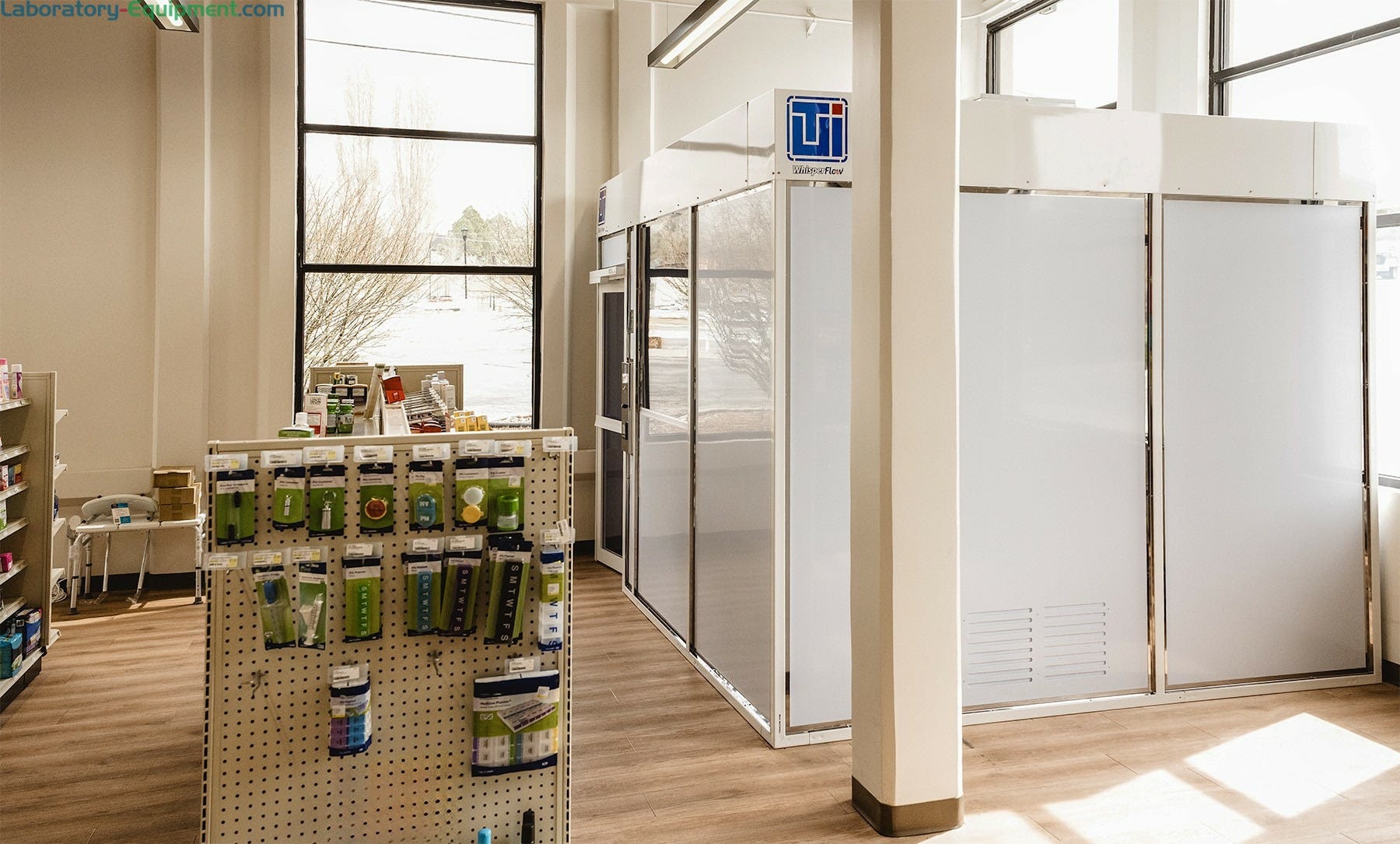

slightly to the left full view of usp compounding cleanroom

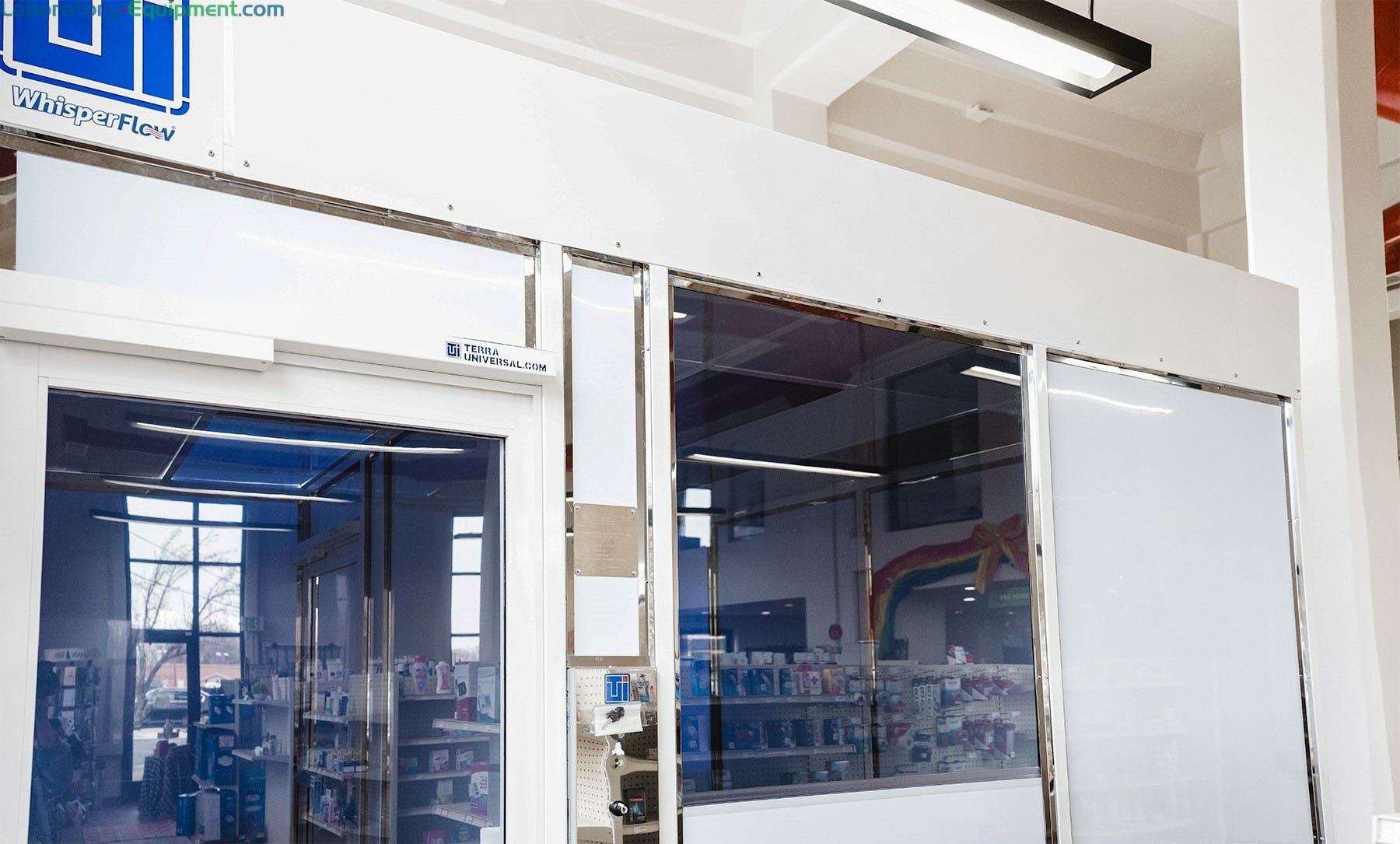

straight on full view of usp compounding cleanroom
slightly to the right full view of usp compounding cleanroom

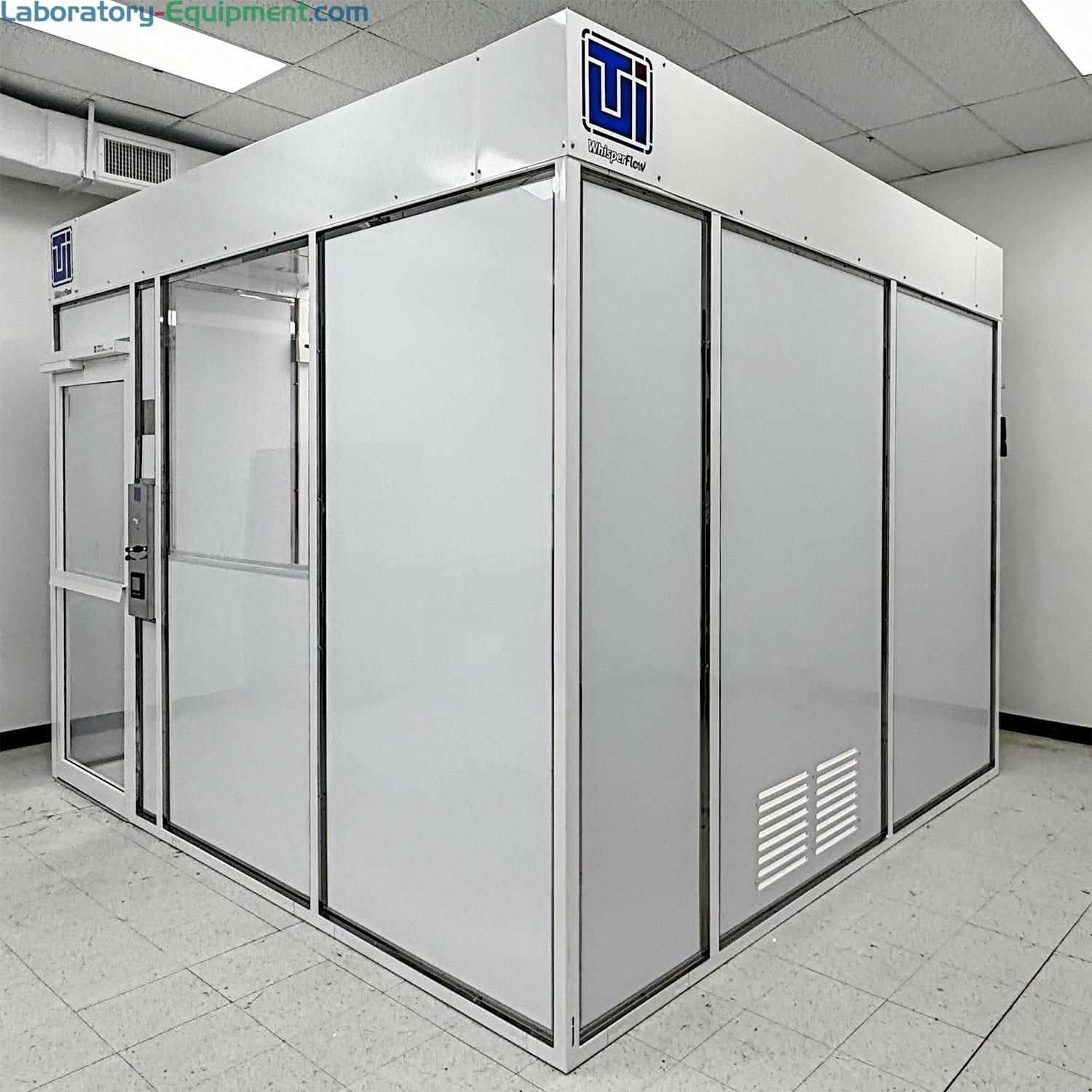

from the corner full view of usp compounding cleanroom

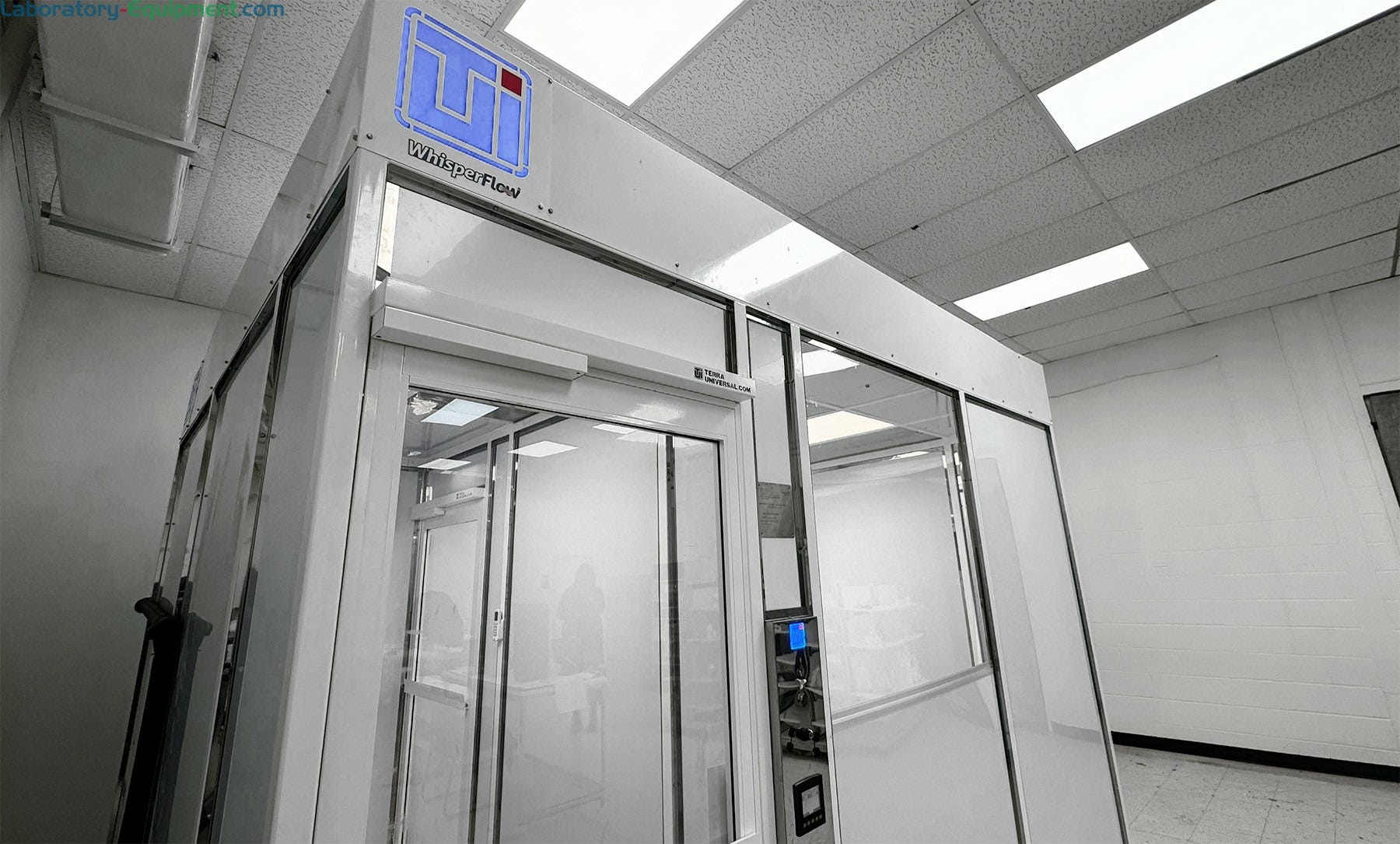

off to the left shot of top half of usp compounding cleanroom
full view of custom hardwall modular cleanroom
straight on view of custom hardwall modular cleanroom

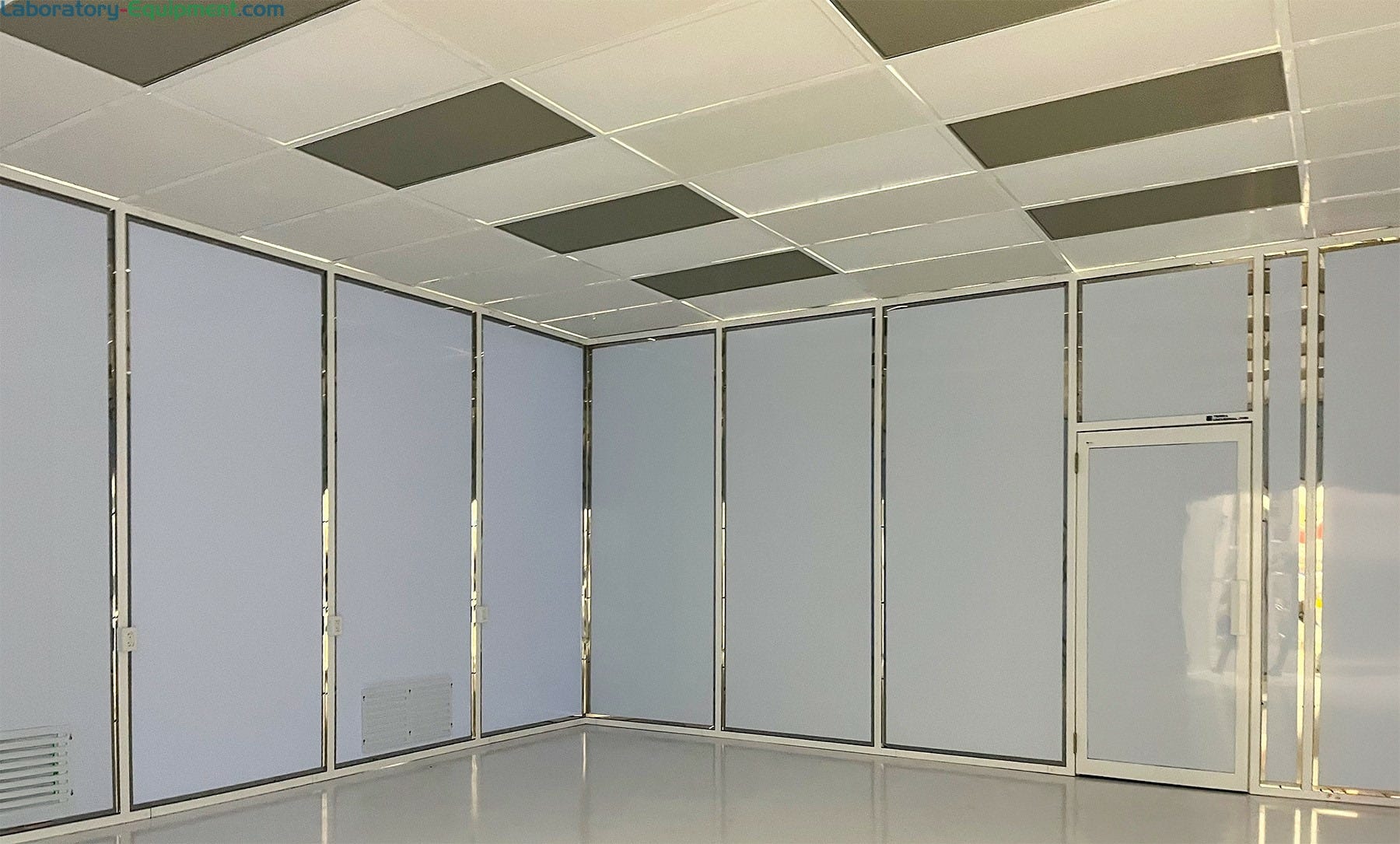

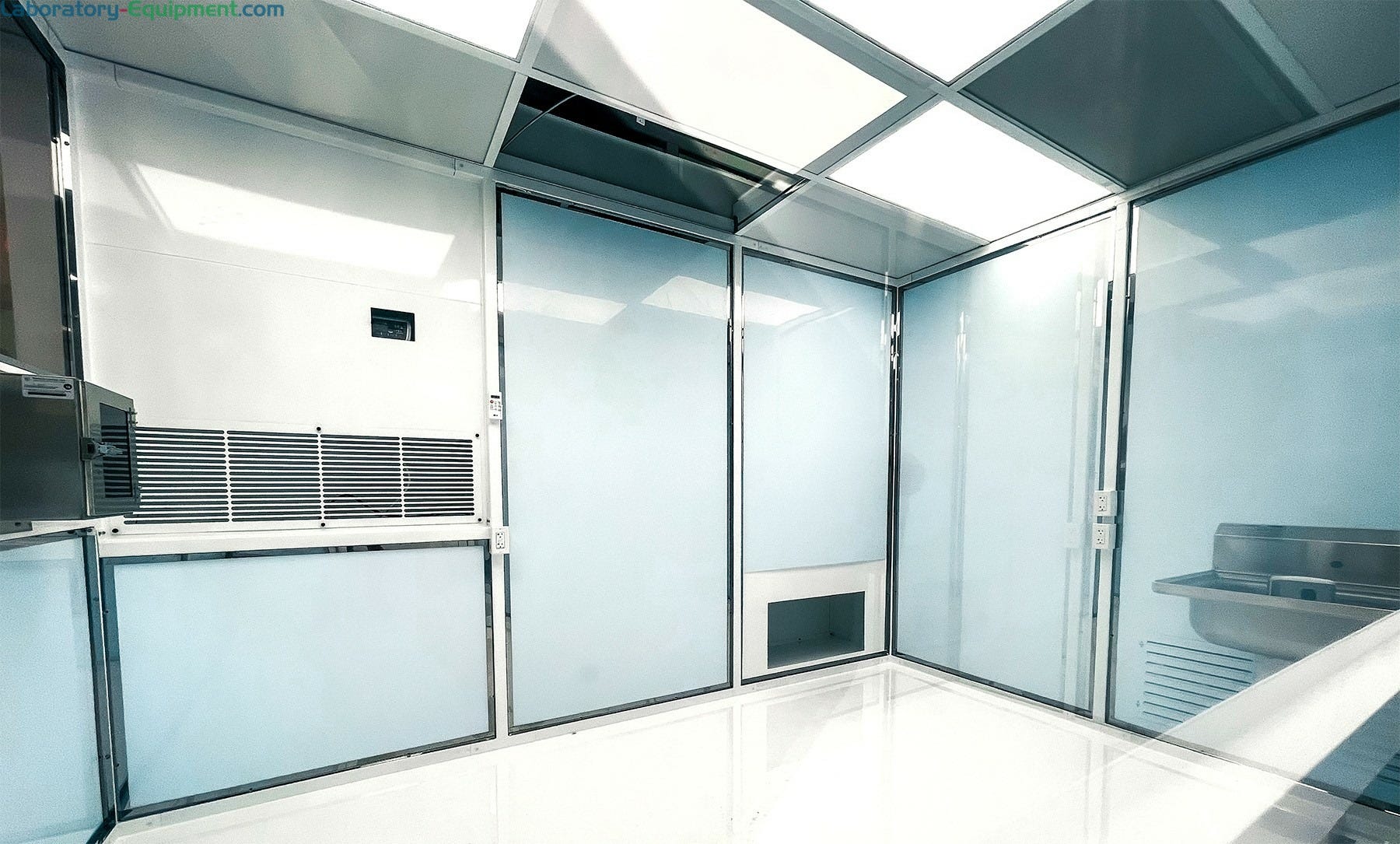

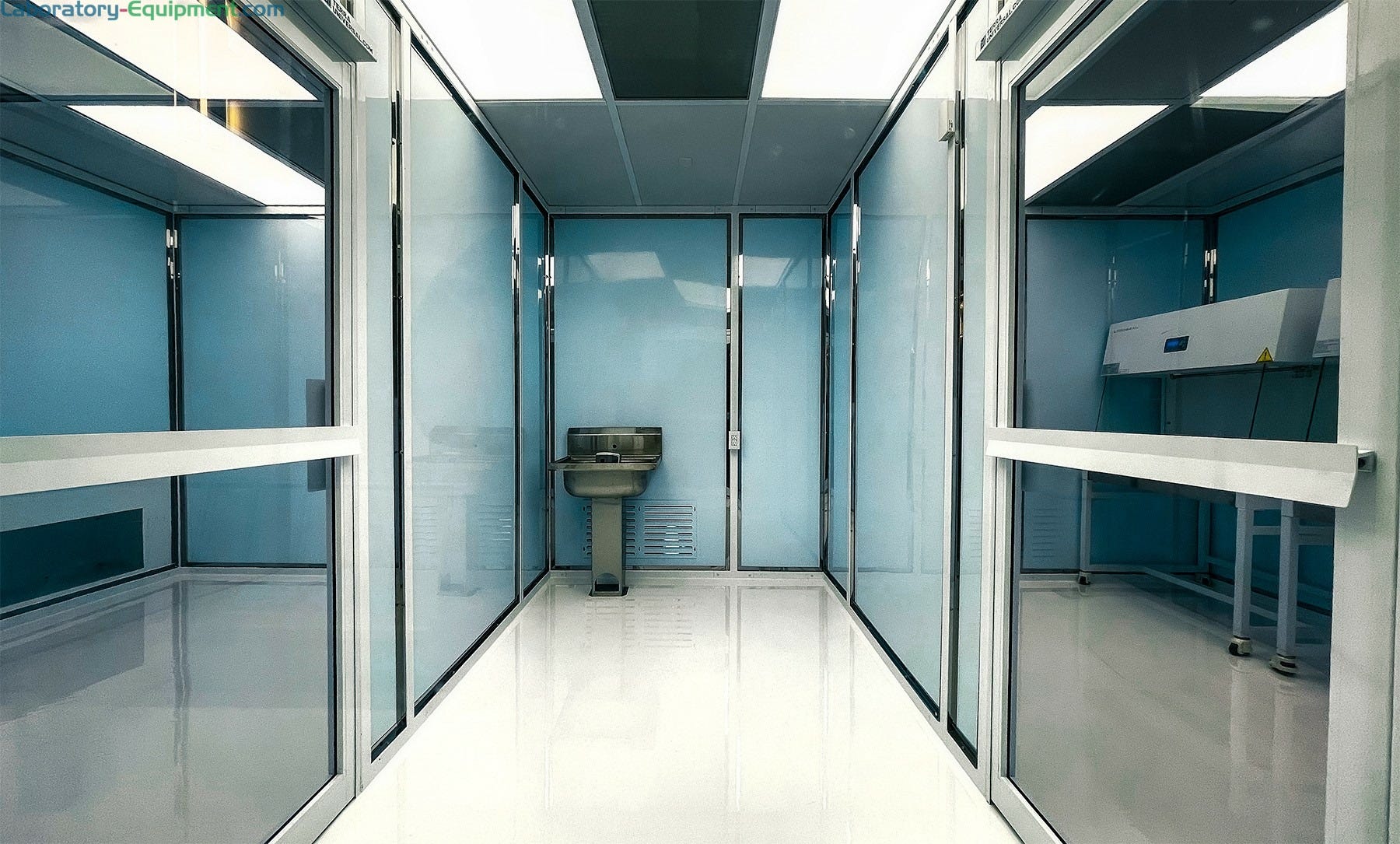

interior view of custom hardwall modular cleanroom

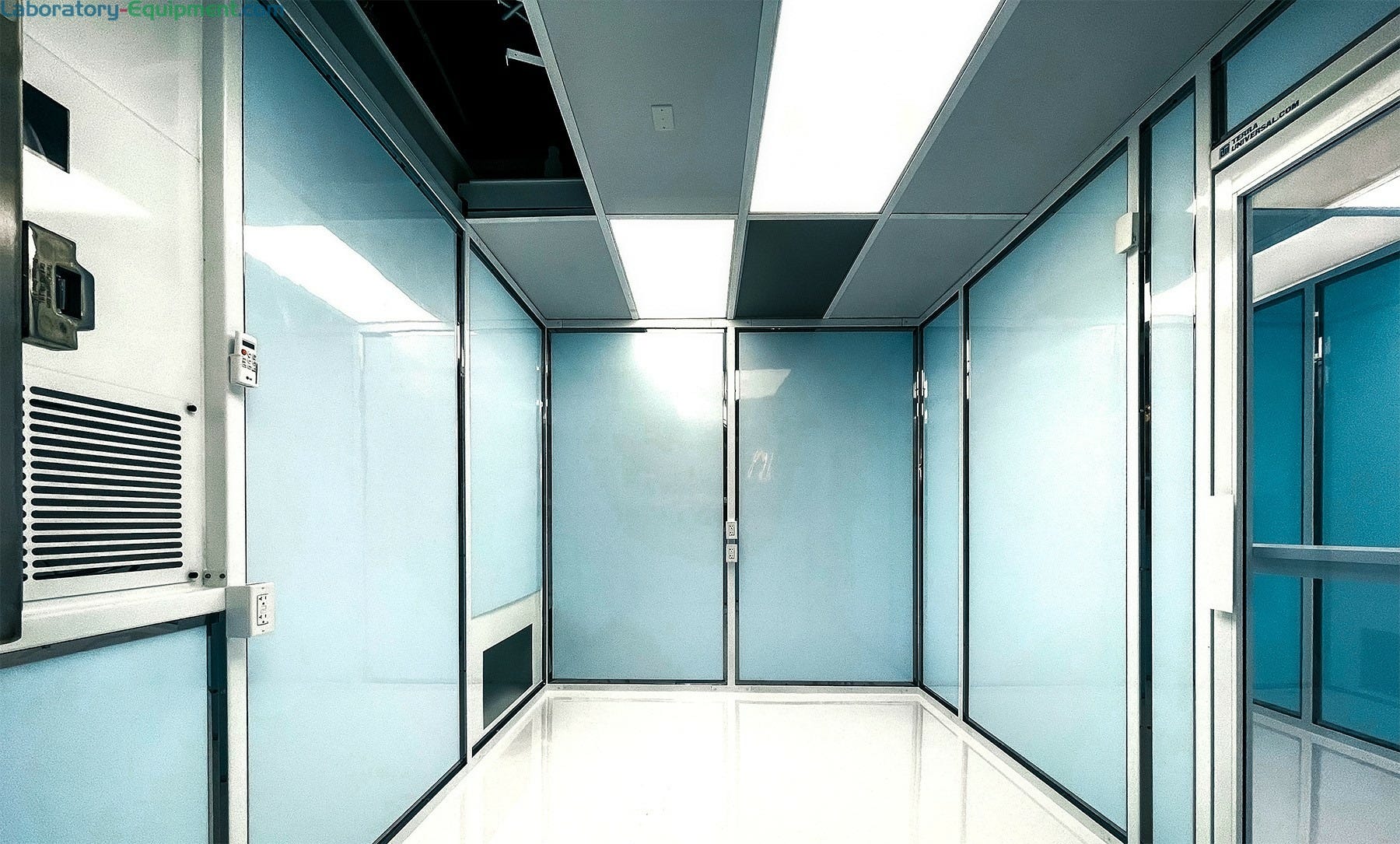

interior view of right room of custom hardwall modular cleanroom

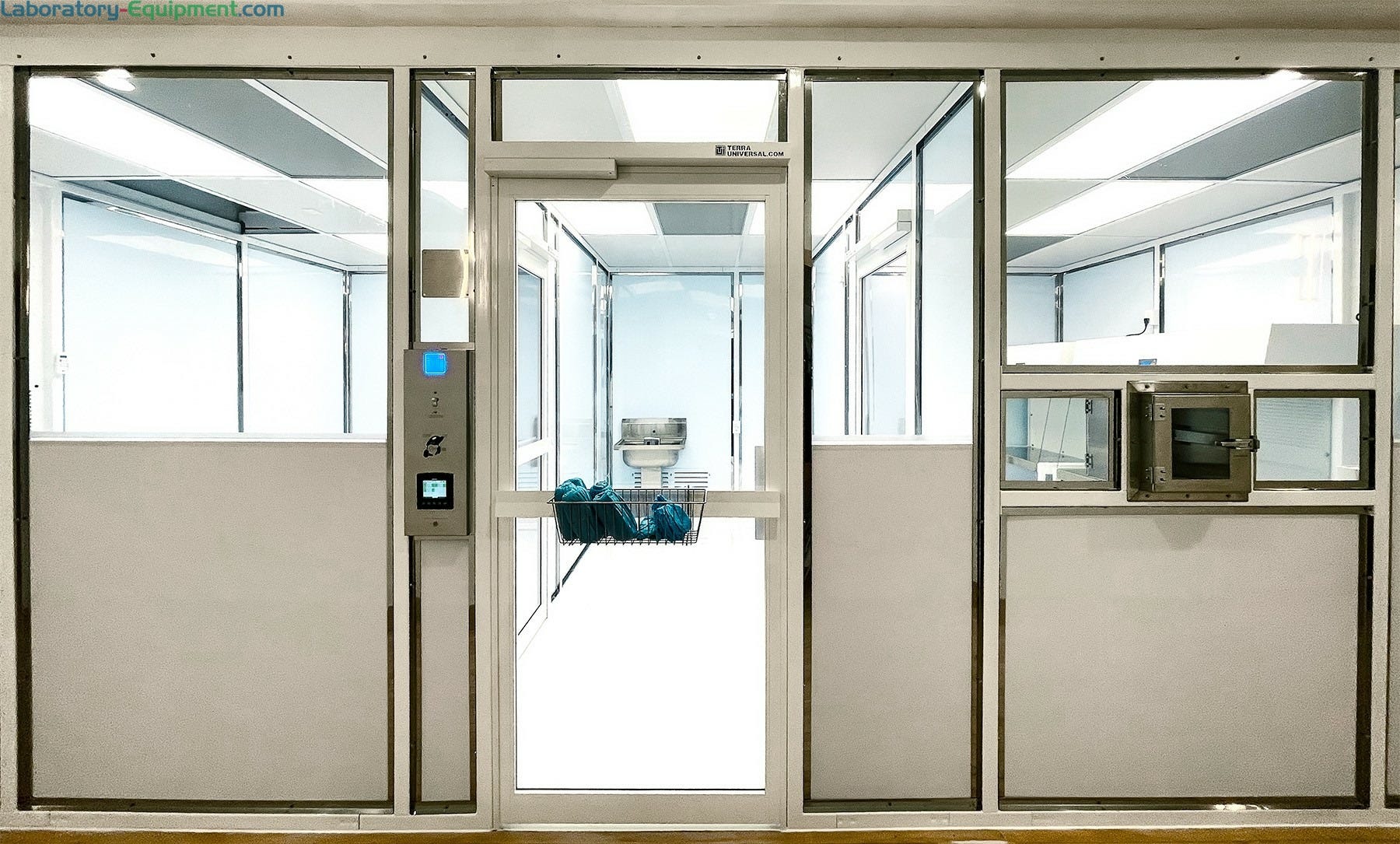

exterior view of corner of custom hardwall modular cleanroom

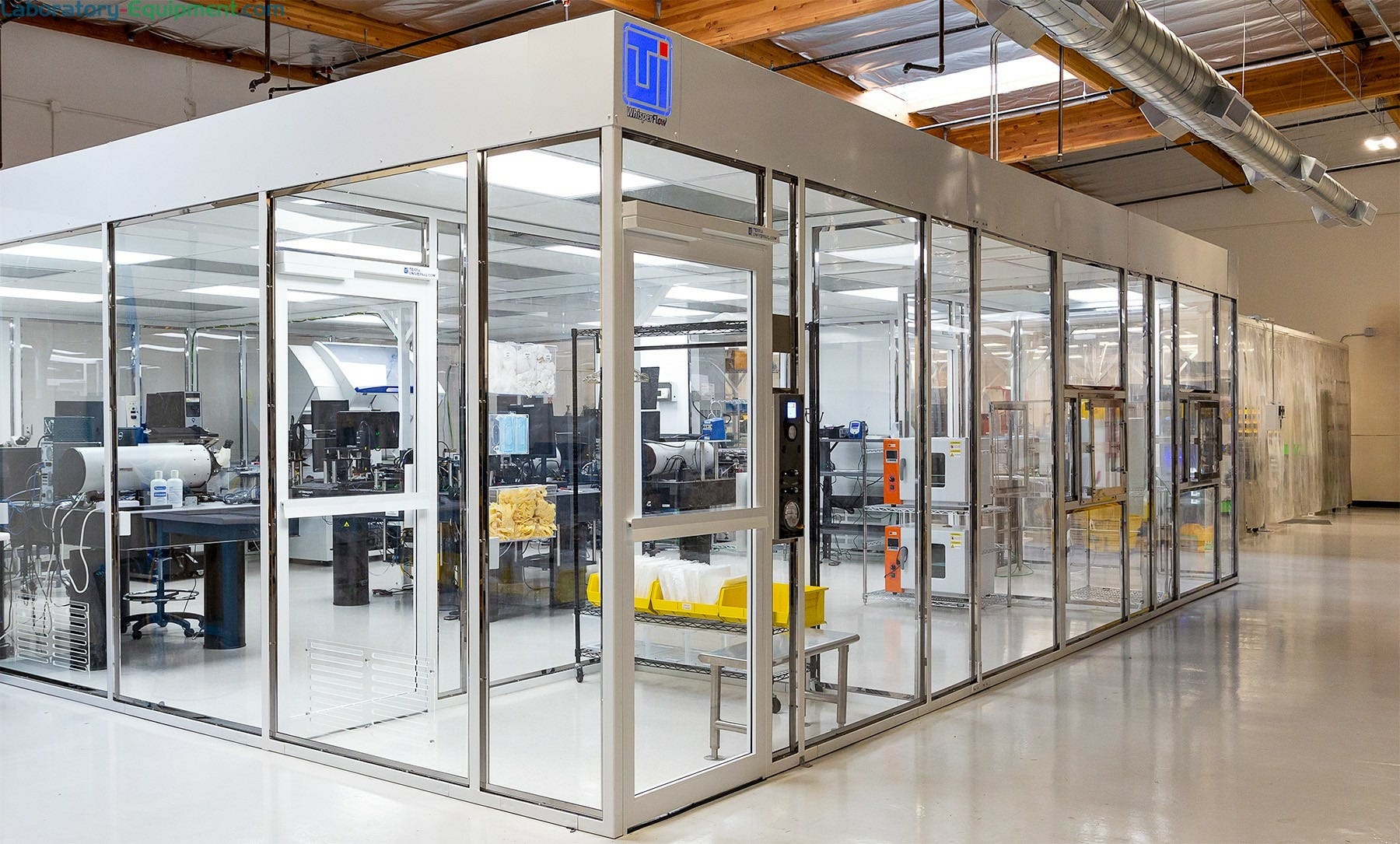

front left view of custom hardwall modular cleanroom
front right view of custom hardwall modular cleanroom
front view of custom hardwall modular cleanroom

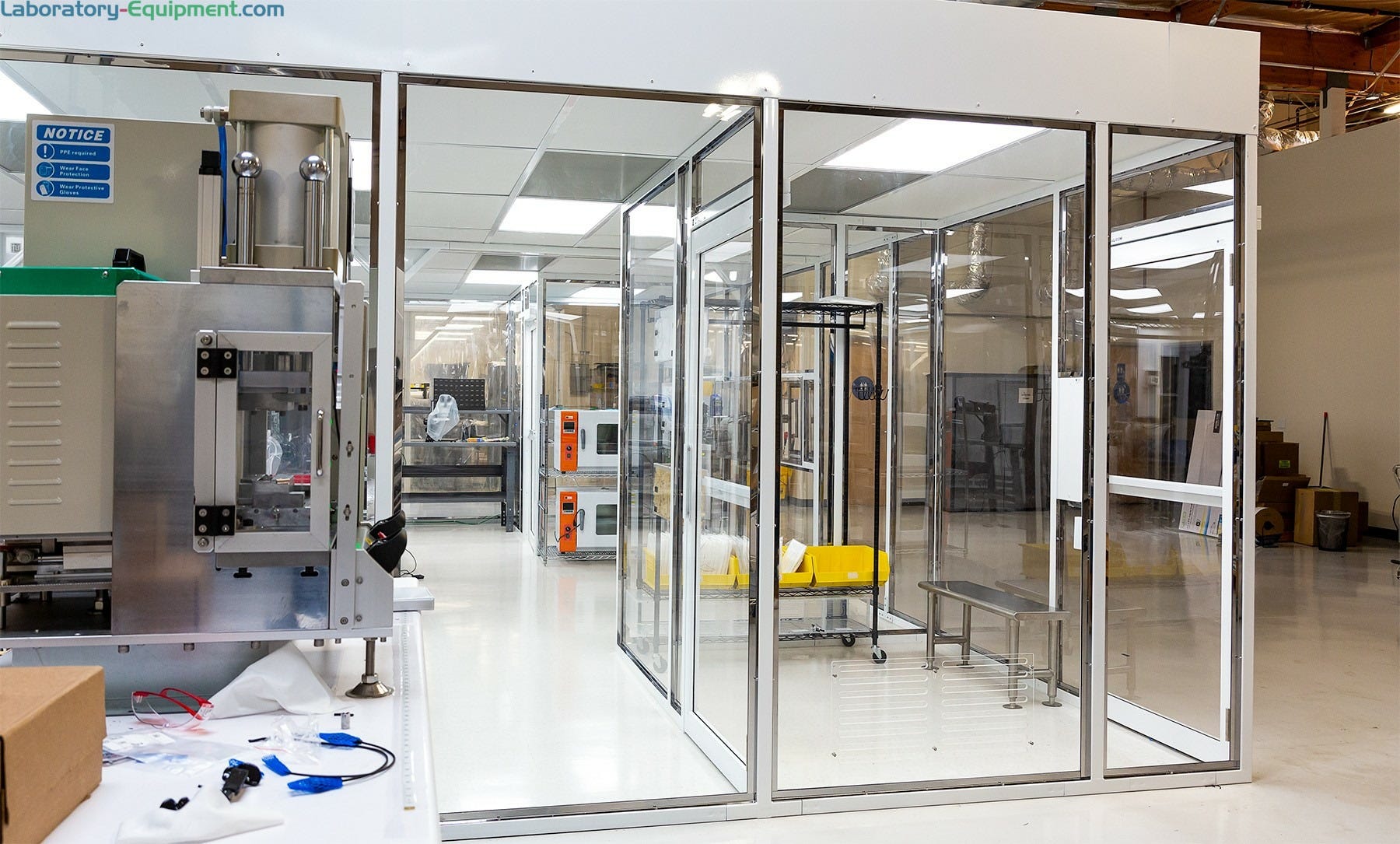

back left view of custom hardwall modular cleanroom

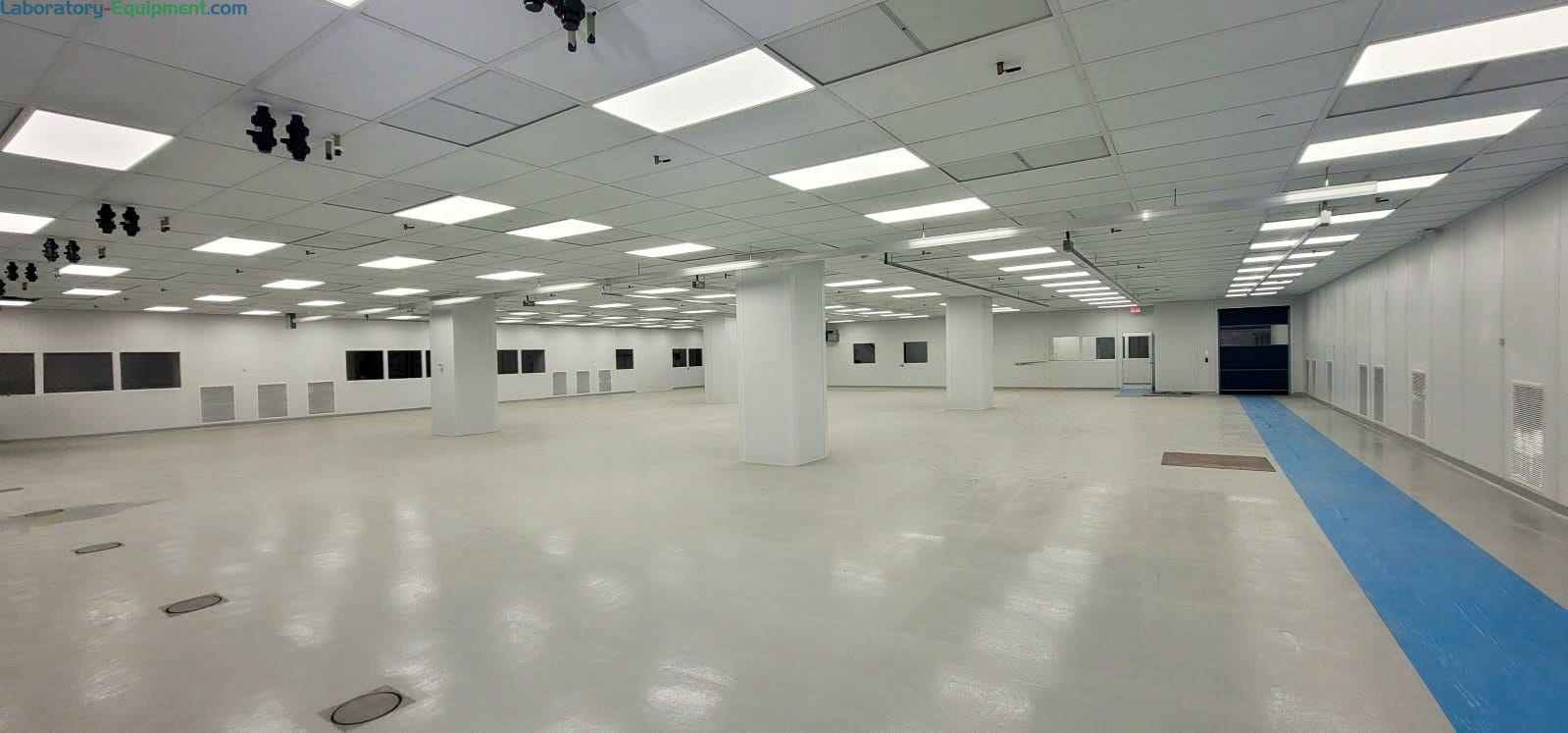

back right view of custom hardwall modular cleanroom

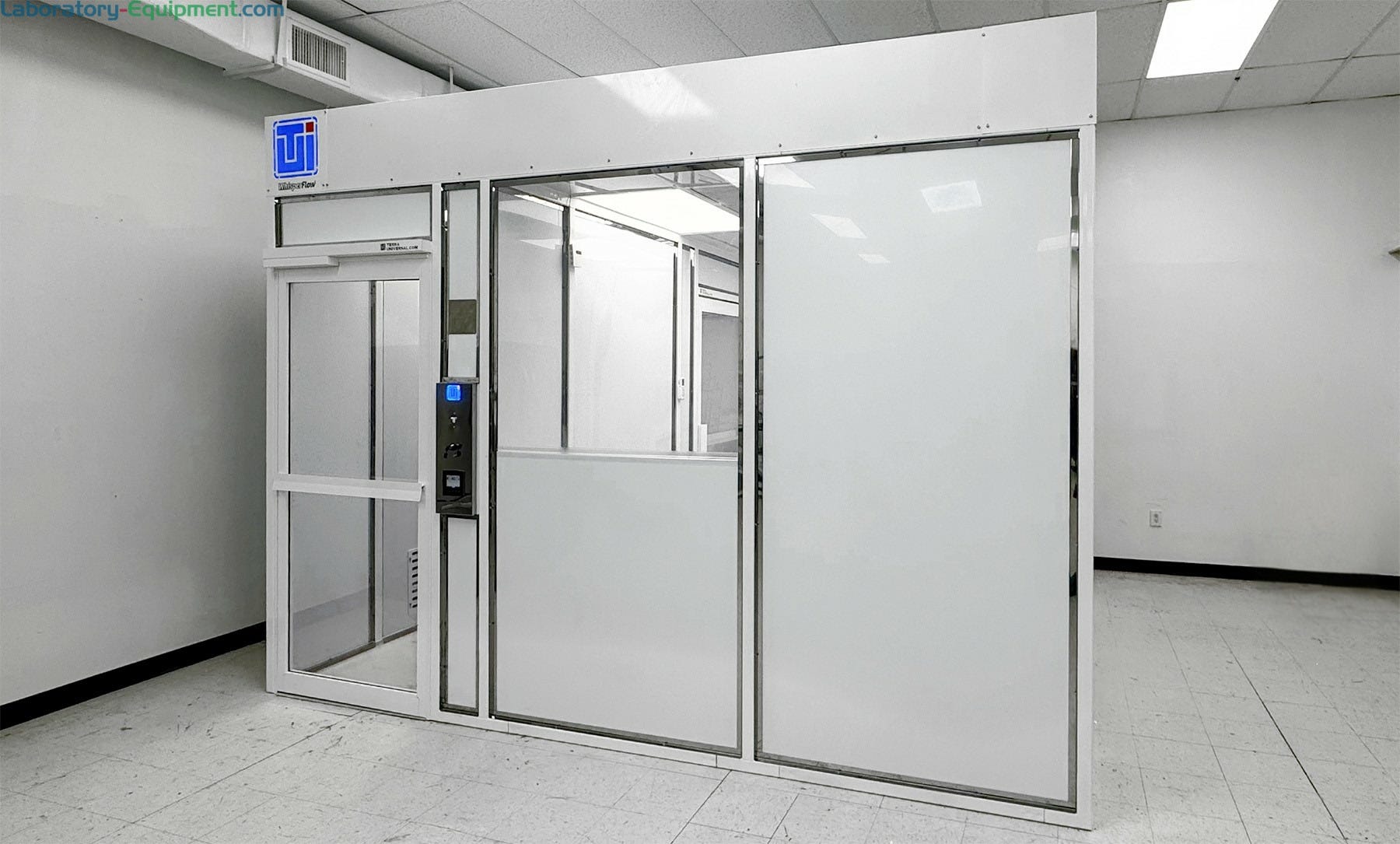

full view of usp compounding cleanroom
front view of top half of usp compounding cleanroom
full view of right side of usp compounding cleanroom

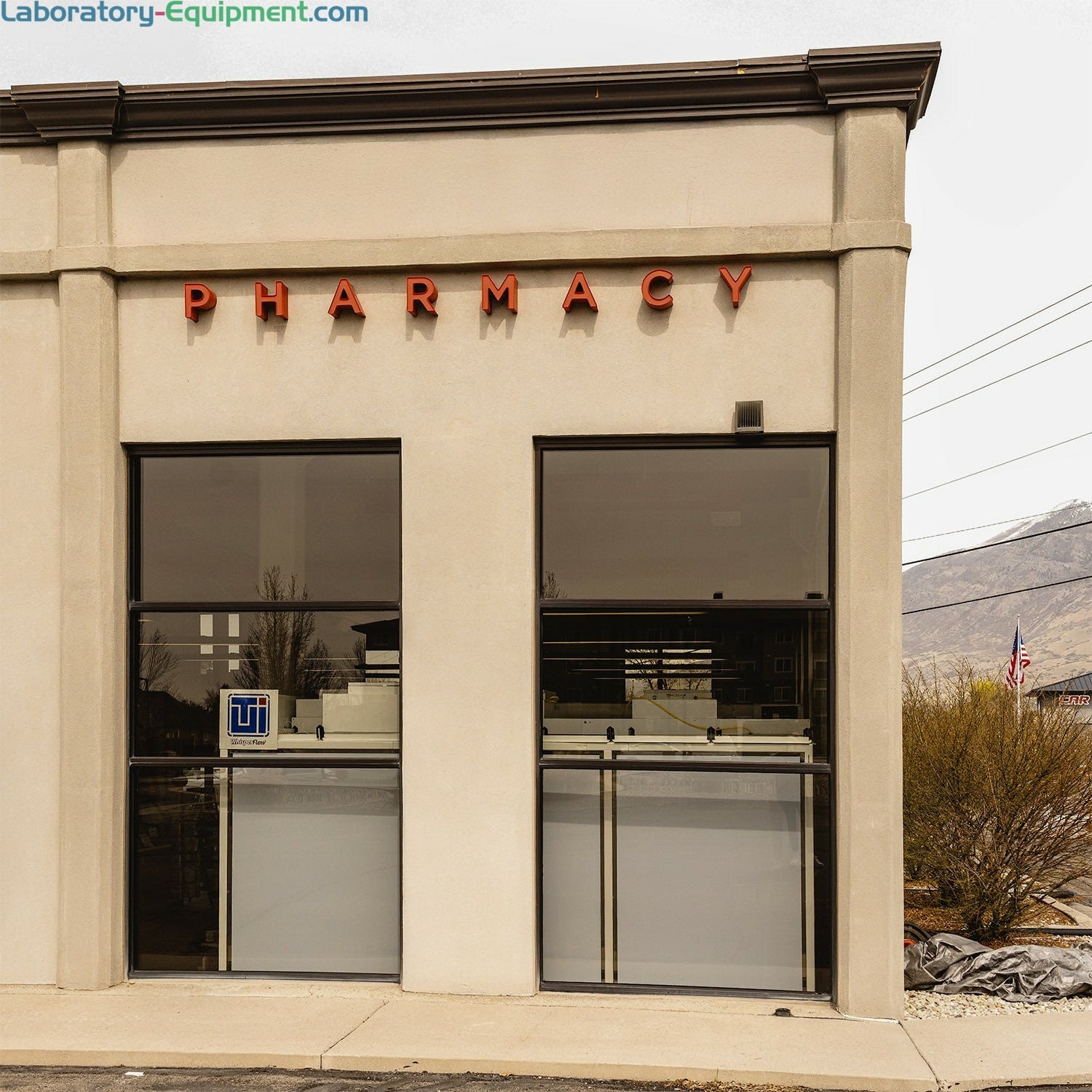

view from outside of usp compounding cleanroom
full view of middle room of hardwall modular cleanroom
full view of right room of hardwall modular cleanroom
full view of left room of hardwall modular cleanroom
corner view of left room of hardwall modular cleanroom
full front view of exterior of hardwall modular cleanroom

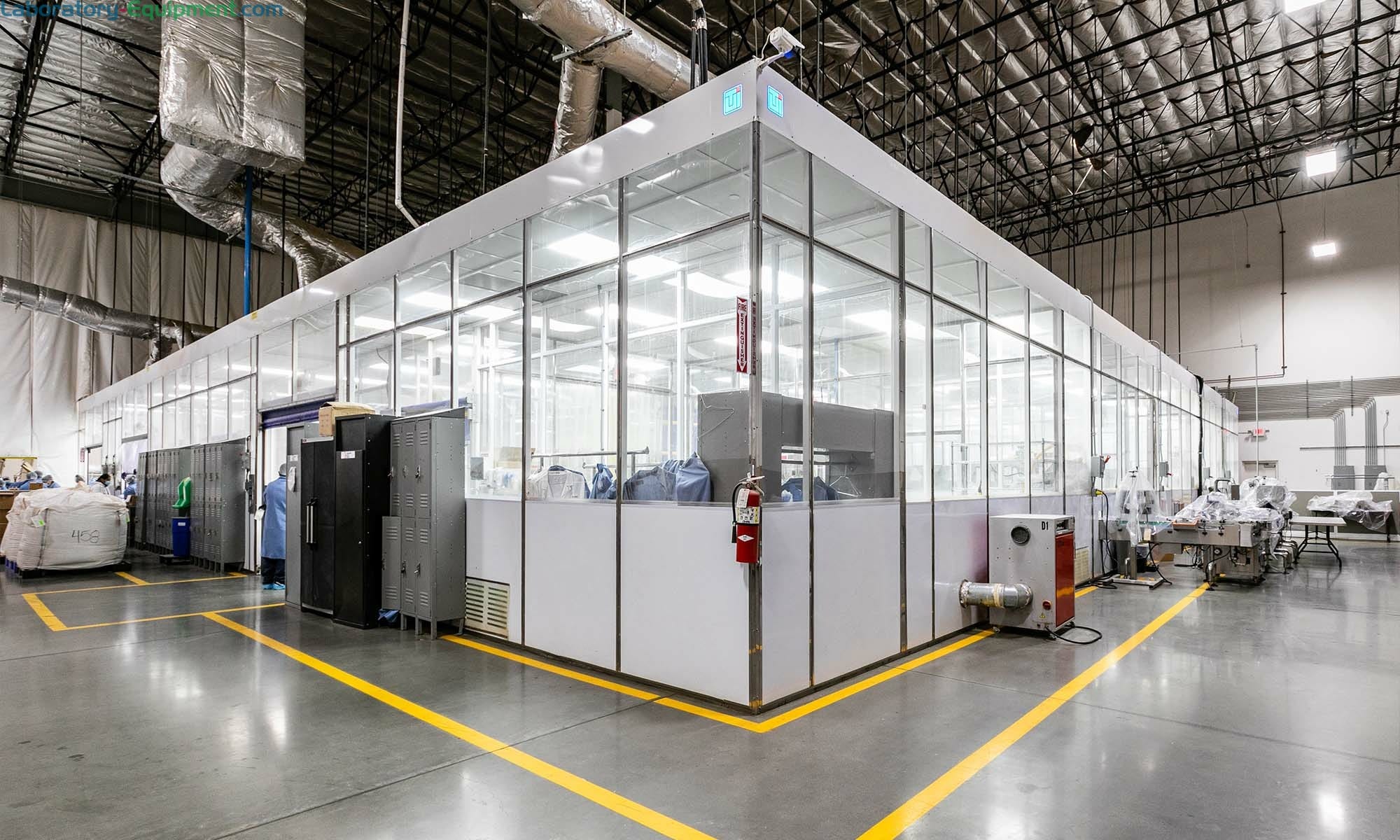

Corner view of extended height cleanroom for dietary supplement and sports nutrition manufacturing
cGMP extended height cleanroom, 122' x 50' x 13'H, for dietary supplement manufacturing and packaging Extended Height Nutraceutical Cleanroom Suite cGMP extended height cleanroom, 122' x 50' x 13'H. For dietary supplement and sports nutrition manufacturing. Includes rooms for gowning, mixing, pill making, mixing, packing, and storage.
full front view of hardwall modular cleanroom
full back view of hardwall modular cleanroom
full view of interior of hardwall modular cleanroom
Top view of custom cleanroom

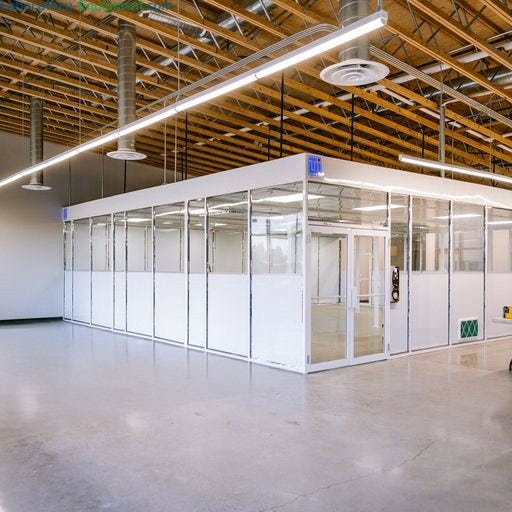

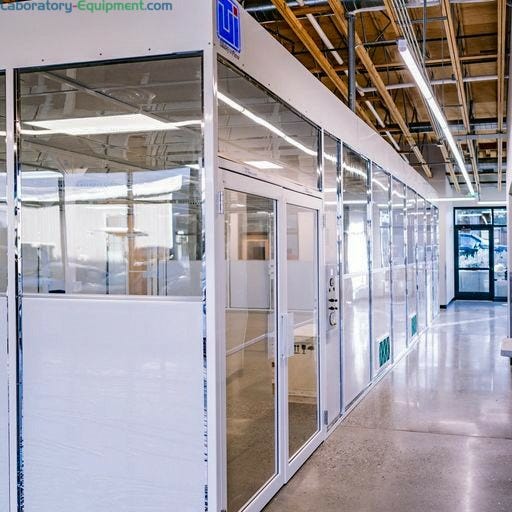

Quarter-view of a custom Terra hardwall cleanroom
Front right view of custom hardwall cleanroom

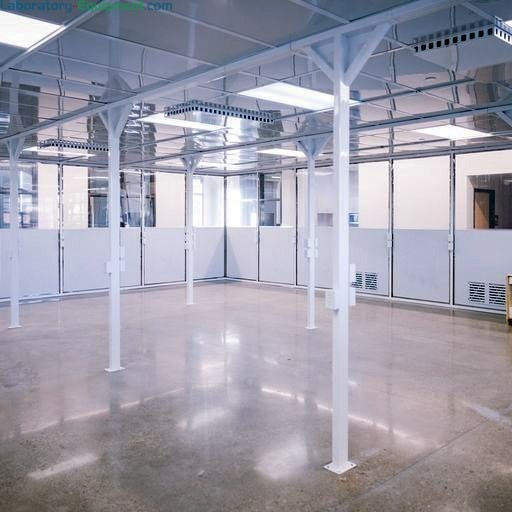

Inside view of hardwall modular cleanroom; powder-coated steel frames
Quarter-view of custom cleanroom entrance

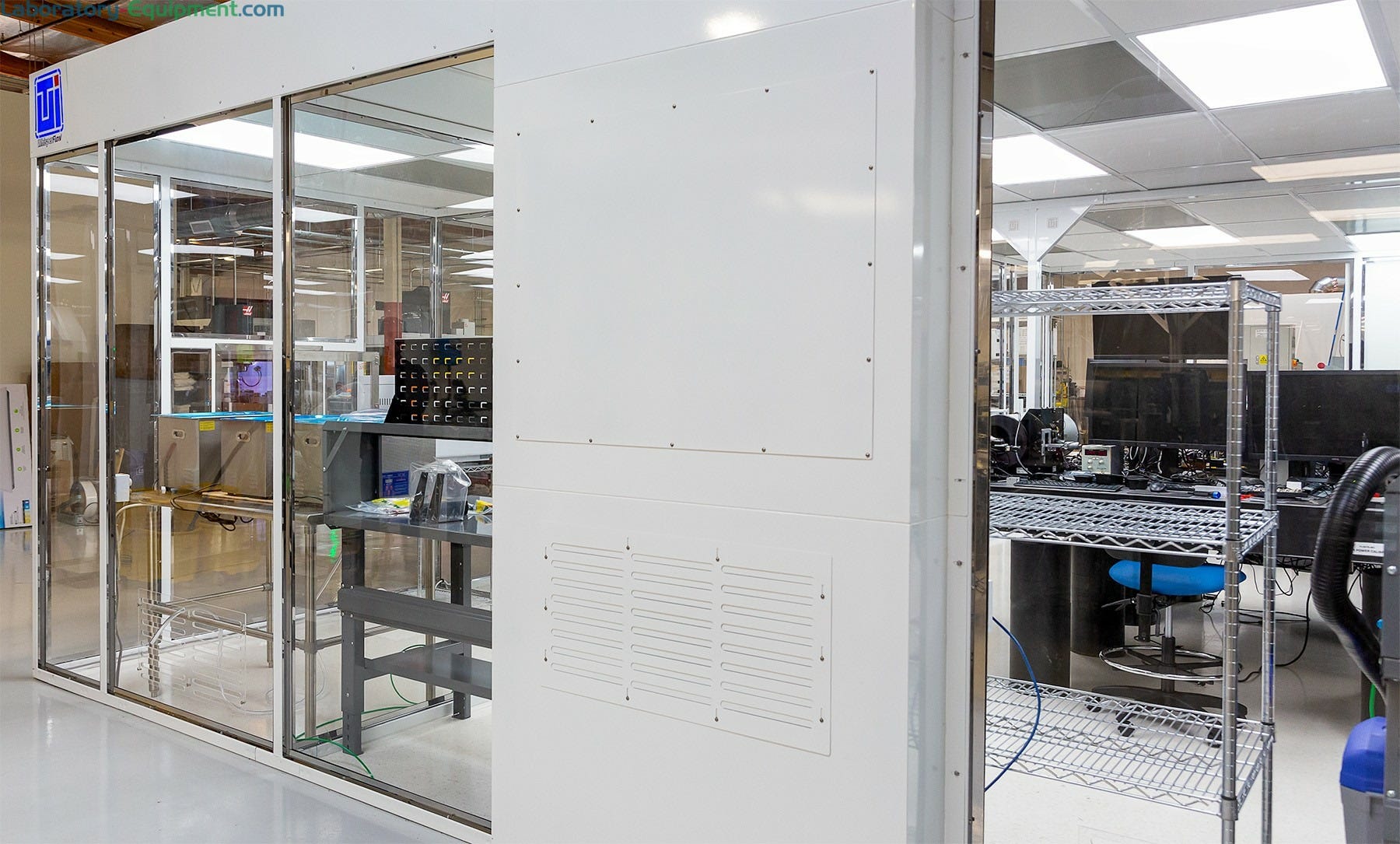

right back view of custom hardwall modular cleanroom
center front view of custom hardwall modular cleanroom
right side view of custom hardwall modular cleanroom

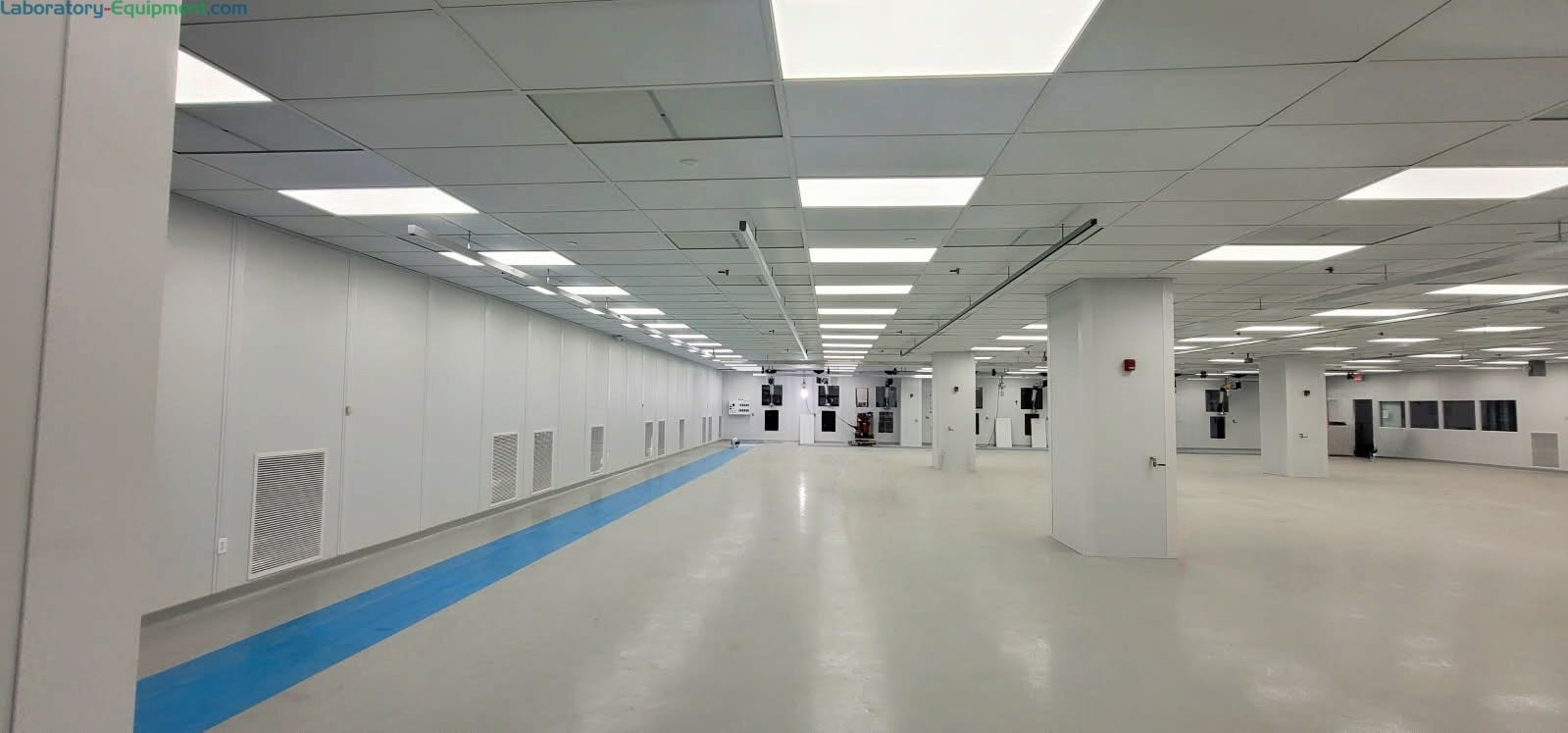

left center view of custom hardwall modular cleanroom

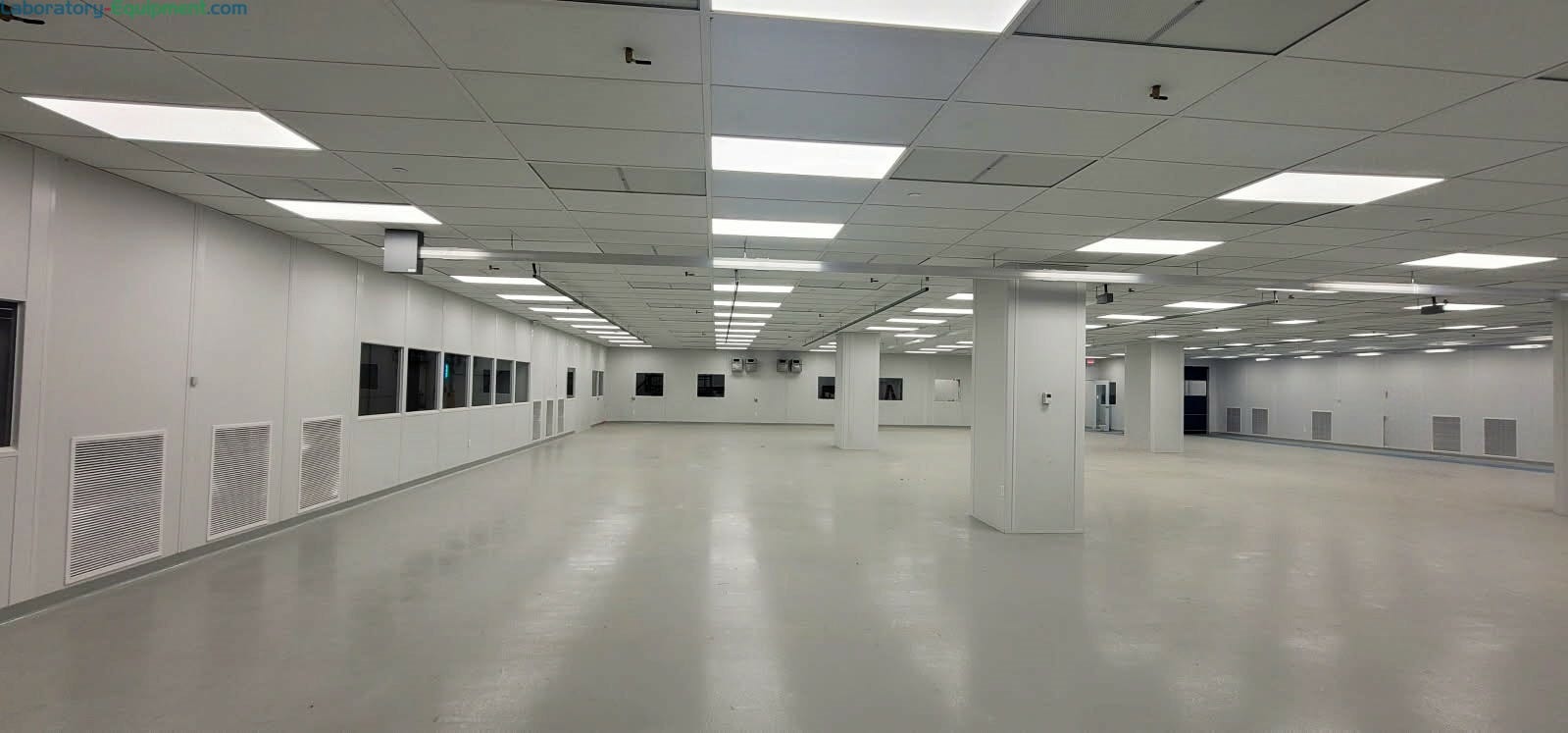

back left view of custom hardwall modular cleanroom

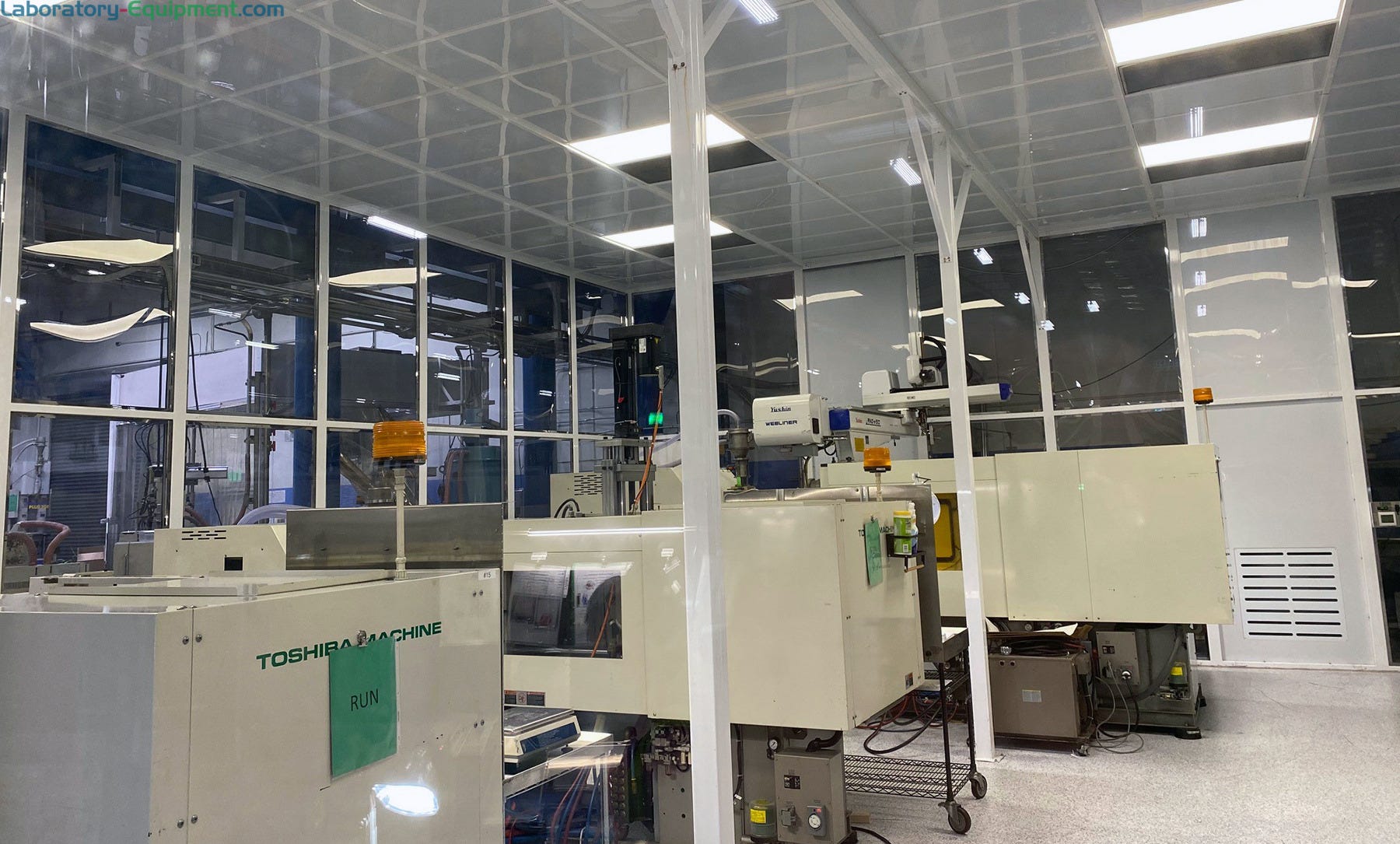

Extra-tall modular hardwall cleanroom for injection and extrusion blow molding
Extra-tall hardwall cleanroom for injection and extrusion blow molding; 36’L x 32’W x 14’H; Class 100,000, air conditioned | 6600-63A displayed Modular Hardwall Cleanroom for Injection and Extrusion Blow Molding Terra’s rigid free-standing modular cleanroom allows for tall, spacious interiors to fit large equipment for injection and extrusion blow molding. Vertical air returns mounted on back wall recirculate cooled air to increase air conditioning efficiency.

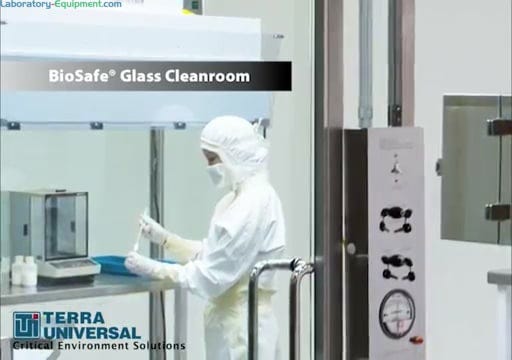

BioSafe Wash-Down Tempered Glass Cleanroom
Video overview of BioSafe® glass wash-down cleanroom BioSafe Wash-Down Tempered Glass Cleanroom This video demonstrates benefits of a BioSafe cleanroom and the easy-clean feature of a tempered glass, including suitability for wash-down disinfection.
Portable HEPA Filtration System
Terra's in stock portable HEPA filtration systems provide high quality and medical grade air filtration for your ambient environment. Watch Terra's Portable HEPA Filtration System Video The mobile/ self contained filtration system converts to any room to a negative pressure isolation room which then makes it well suited for medical clinics, schools, waiting rooms and other confined areas.

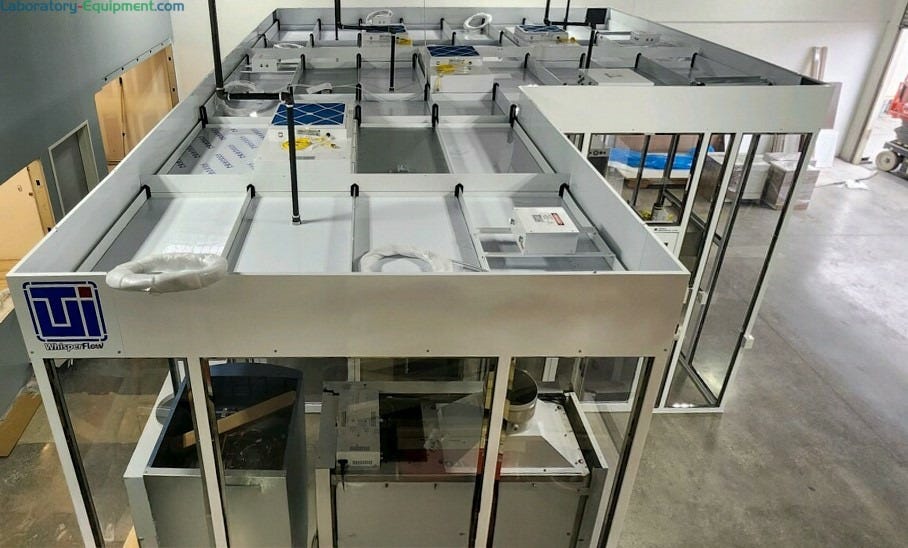

top view of custom hardwall modular cleanroom
full view of custom hardwall modular cleanroom

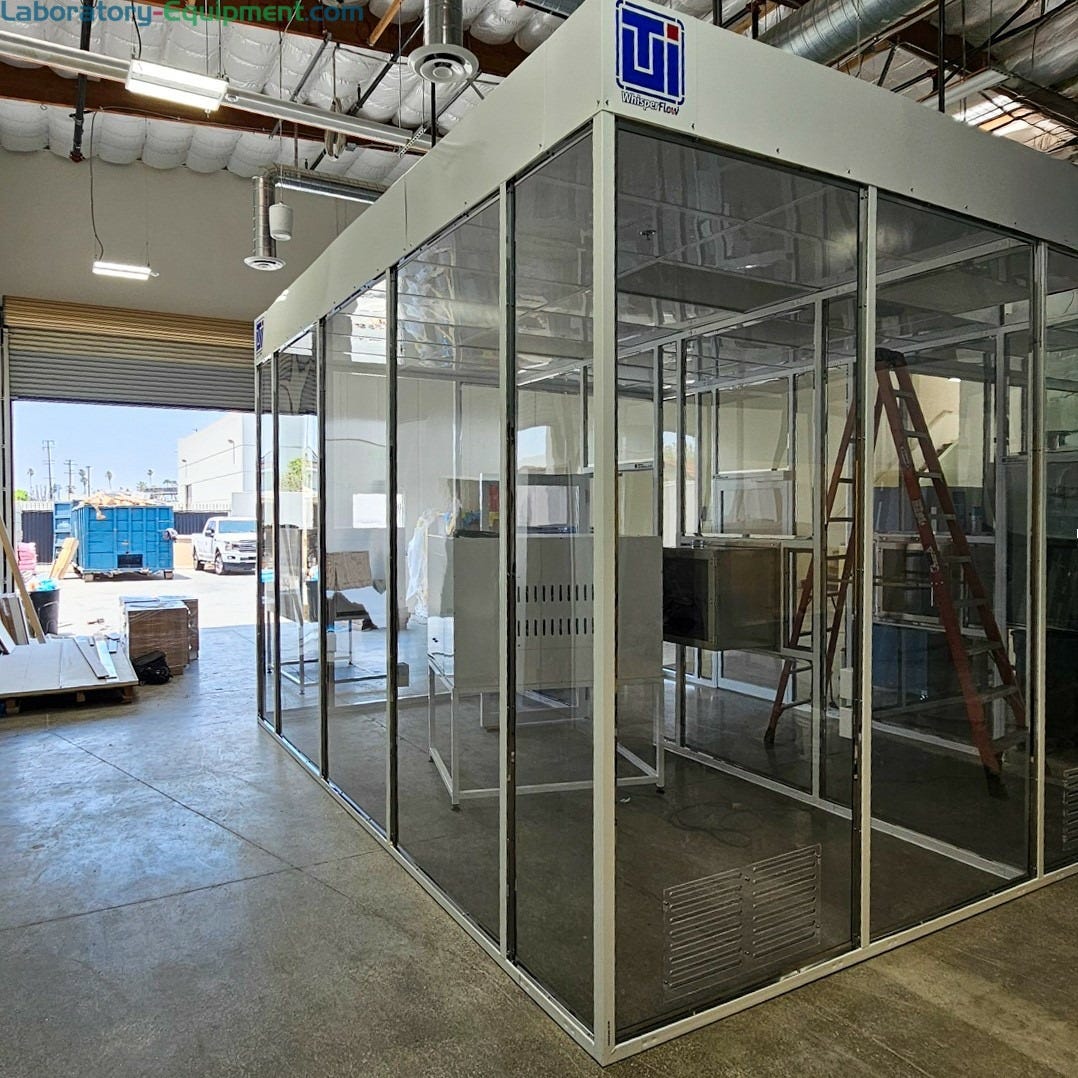

back view of custom hardwall modular cleanroom
front view of custom hardwall modular cleanroom

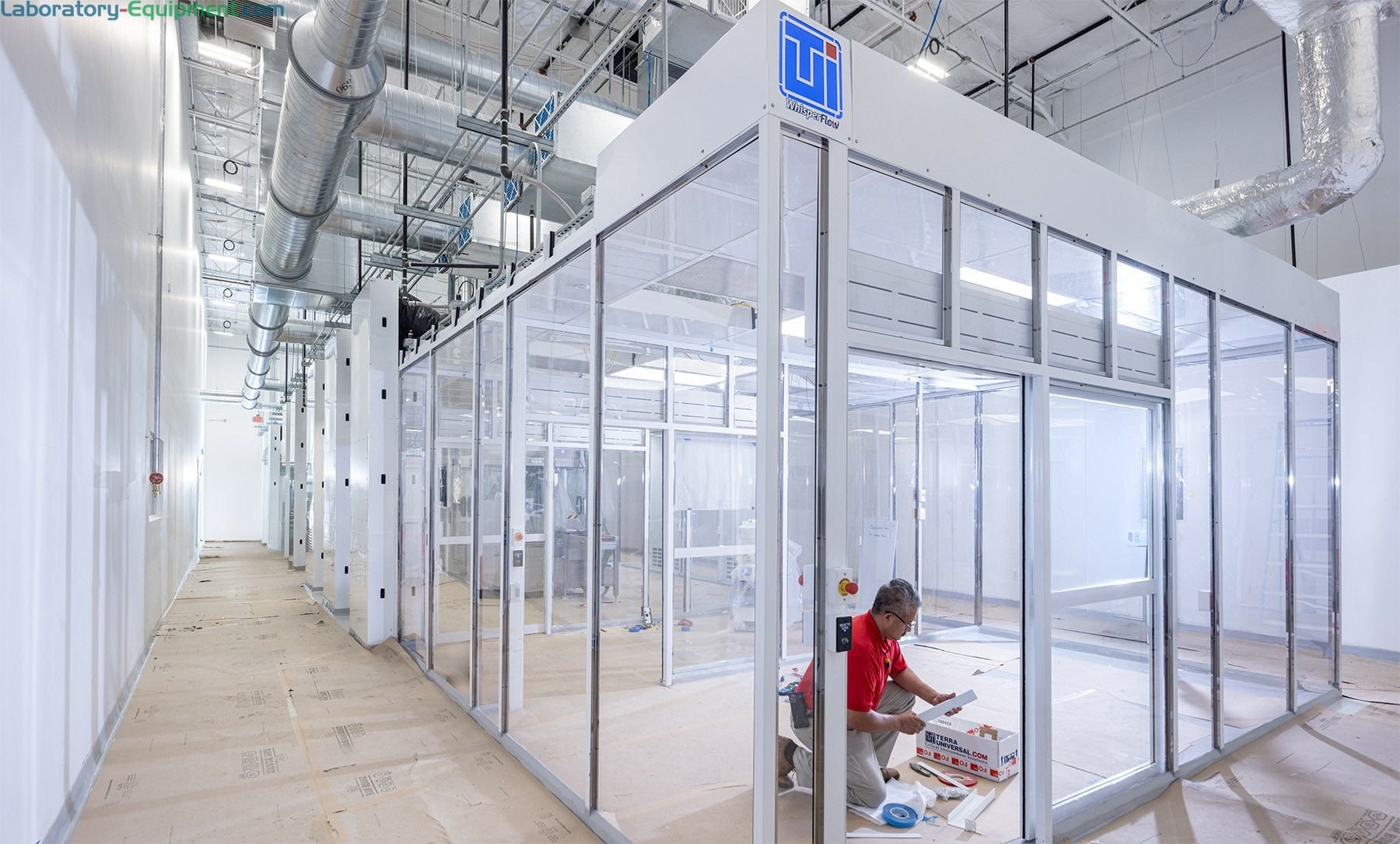

cleanroom technician looking through papers and parts
view of a couple doors within the installed cleanrooms
view of the top half of the installed cleanrooms

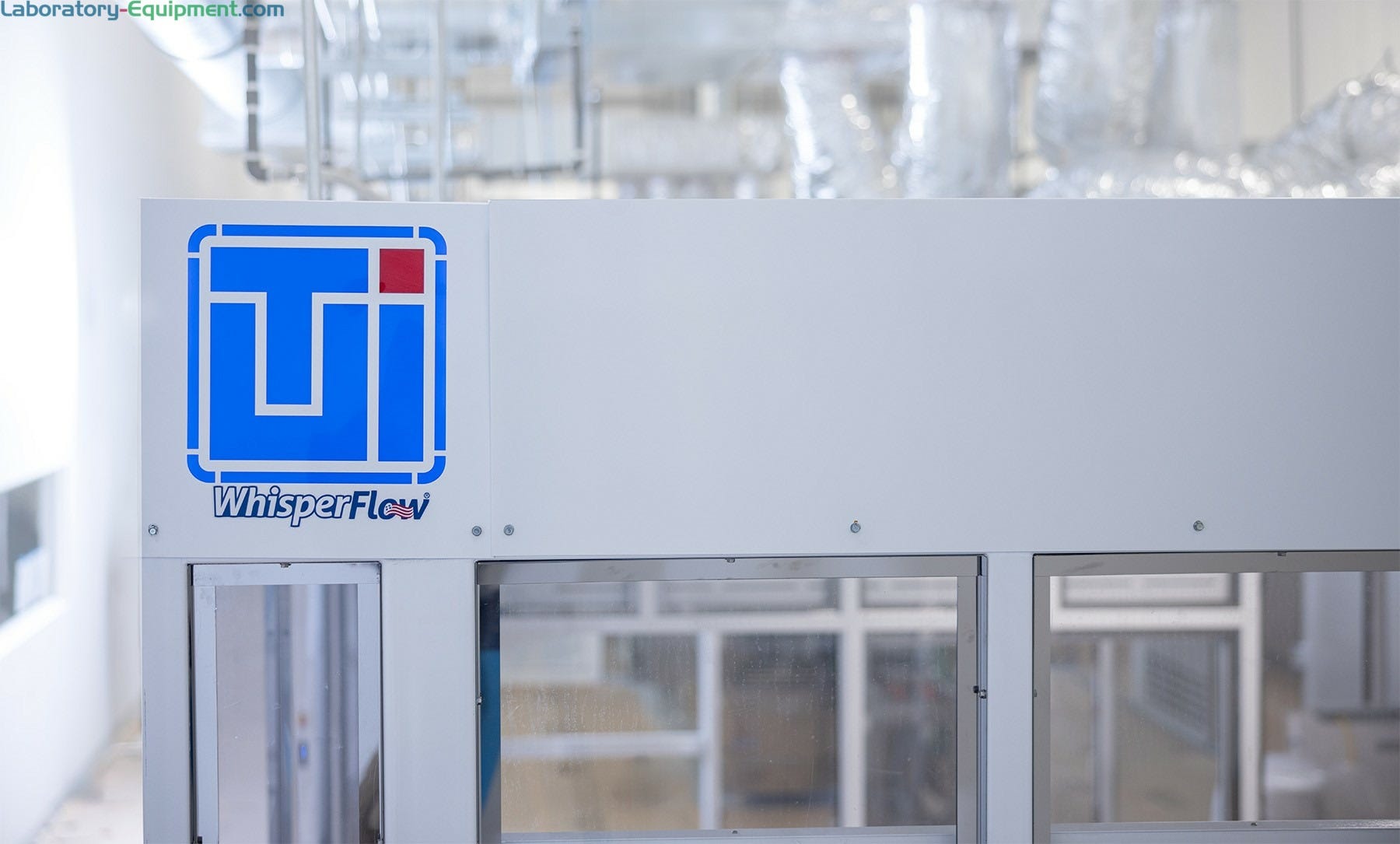

terra universal logo at the top of one of the cleanrooms

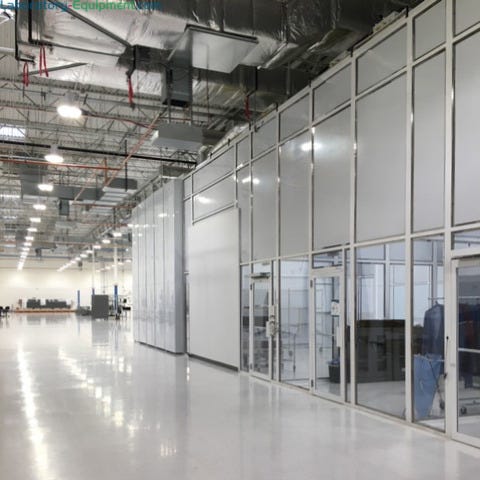

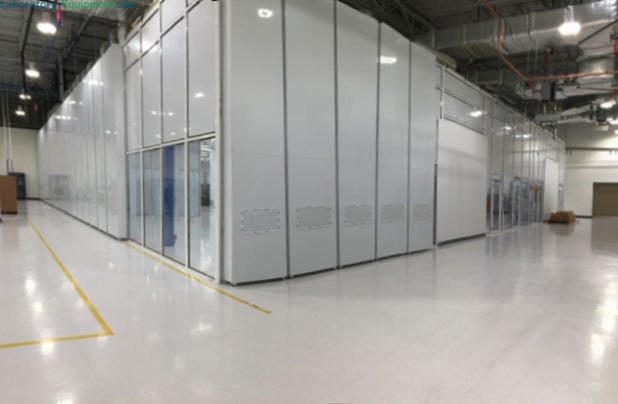

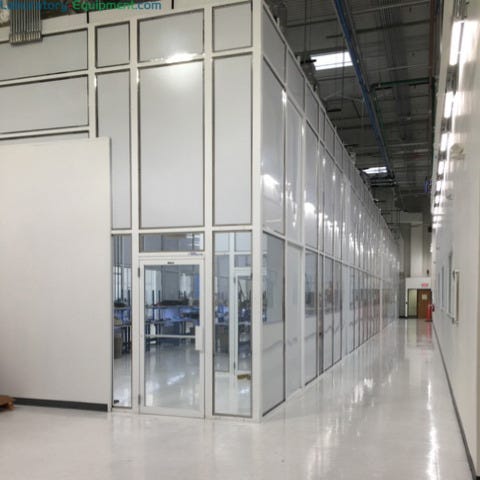

Extra-tall multi-suite modular hardwall cleanroom for electronics assembly.

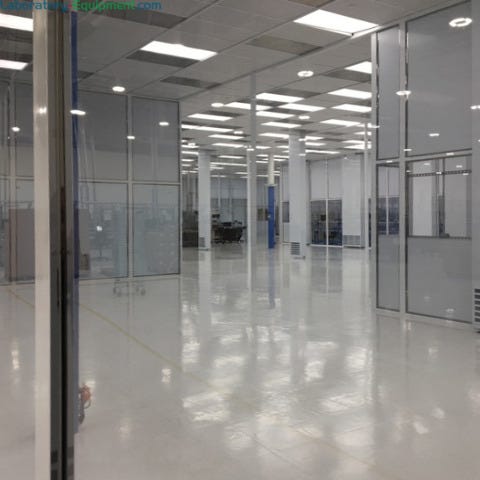

Large multi-suite modular hardwall cleanroom for precision coil manufacturing
extra tall multi-suite modular cleanroom for electronics assembly
extra large multi-suite modular cleanroom for electronics assembly
extra tall multi-suite modular cleanroom for electronics assembly
Hardwall Modular Cleanroom – Multi-Room Configuration
Control Panel for Hardwall Modular Cleanrooms
Pharmaceutical airlocks
Airlocks safeguard cleanrooms, preventing cross contamination during transfers Watch Terra's Video on Pharmaceutical Air Lock Designs Airlocks are a crucial part of protecting your cleanroom from contamination while maintaining the required ISO rating. By preserving pressure differentials between adjoining rooms, air locks prevent cross contamination when personnel, materials and samples are transferred between contiguous spaces. The pressure cascade created from the gowning room to the personnel air lock to the ISO-rated cleanroom acts as a safeguard against the accidental influx of particles, dust and microbial contaminants.
Hardwall Cleanroom with Acrylic Wall Panels
Hardwall modular cleanrooms, shown with 10'-high economical acrylic wall panels, meet ISO 5 - 8 requirements ISO-Rated Hardwall Cleanroom with Acrylic Wall Panels Hardwall modular cleanrooms come in several application-specific materials, including these 10'-high economical acrylic wall panels mounted on a powder-coated steel frame.
Hardwall Modular Cleanroom Equipment Enclosure
This custom equipment enclosure was designed to provide HEPA-filtered airflow over a large conveyor system; includes multiple access doors Hardwall Modular Cleanroom Equipment Enclosure This custom equipment enclosure was designed to provide HEPA-filtered airflow over a large conveyor system; includes multiple access doors.

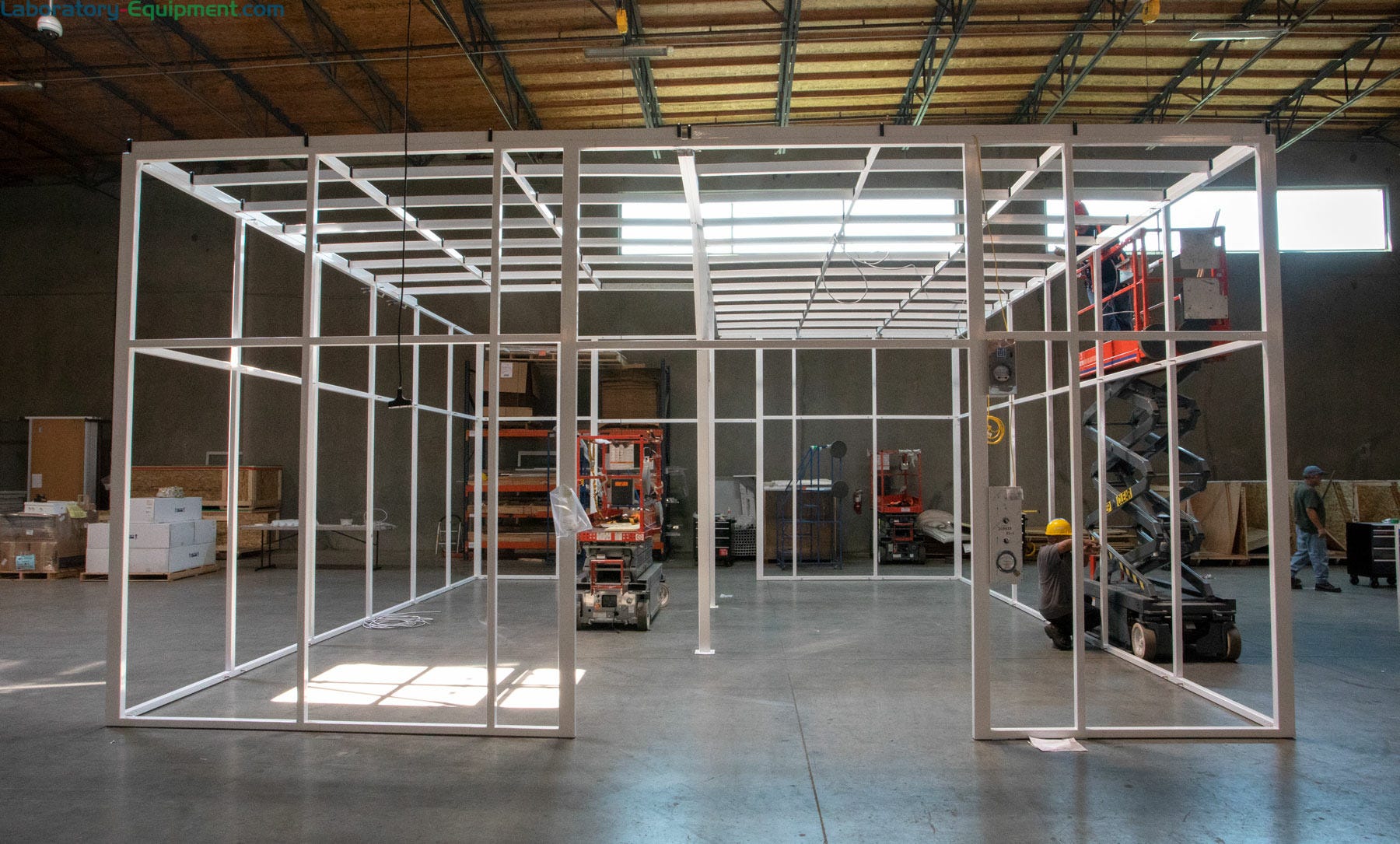

Frame Assembly - Hardwall Modular Cleanroom
Terra’s modular cleanrooms feature free-standing steel support frames that assemble quickly and require no external bracing Frame Assembly - Hardwall Modular Cleanroom Terra’s modular cleanrooms feature free-standing steel support frames that assemble quickly and require no external bracing.
Hardwall Modular Cleanroom Equipment Enclosure
Terra modular cleanrooms accommodate available space and unique equipment interface requirements Hardwall Modular Cleanroom Equipment Enclosure Terra modular cleanrooms accommodate available space and unique equipment interface requirements.
Hardwall Modular Cleanroom – Polycarbonate Wall Panels
Terra Universal’s modular hardwall cleanrooms convert any space into an ISO-compliant cleanroom Hardwall Modular Cleanroom – Polycarbonate Wall Panels Terra Universal’s modular hardwall cleanrooms convert any space into an ISO-compliant cleanroom; multi-suite configuration shown with polycarbonate panels.
Insulated Hardwall Modular Cleanroom
Insulated ISO-Rated Hardwall Cleanroom with polypropylene panels | 6601-19 displayed Insulated ISO-Rated Hardwall Modular Cleanroom Insulated Hardwall Cleanroom with polypropylene panels reduces energy costs and increases temperature stability.
Industry Specific Designs
Modular clean rooms meet requirements of pharmaceutical manufacturing, drug compounding, material testing and semiconductor processing | 6600-68A displayed Industry Specific Designs Modular clean rooms meet requirements of pharmaceutical manufacturing, drug compounding, material testing, semiconductor processing and other industries.
Hardwall Modular Clean Room Equipment Enclosure
Versatile panel designs allow utility feed-throughs and equipment interface modules to accommodate particle-sensitive instruments and processes | 6600-68A displayed Hardwall Modular Clean Room Equipment Enclosure Versatile panel designs allow utility feed-throughs and equipment interface modules to accommodate particle-sensitive instruments and processes.
Hardwall Modular Cleanroom
Terra’s modular cleanrooms accommodate tight space restrictions | 6600-64A displayed Hardwall Modular Cleanroom Terra’s modular cleanrooms are configured for tight spaces and accommodate posts, overhead obstructions and other floor plan restrictions.
Hardwall Modular Cleanroom with Multiple Suites
Economical ISO-compliant, modular construction is ideal for multiple cleanroom suites | 6600-73A displayed Multi-Suite ISO-Rated Hardwall Modular Cleanroom Economical modular designs accommodate complex floorplans, ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels.
Modular Cleanroom Equipment Enclosure

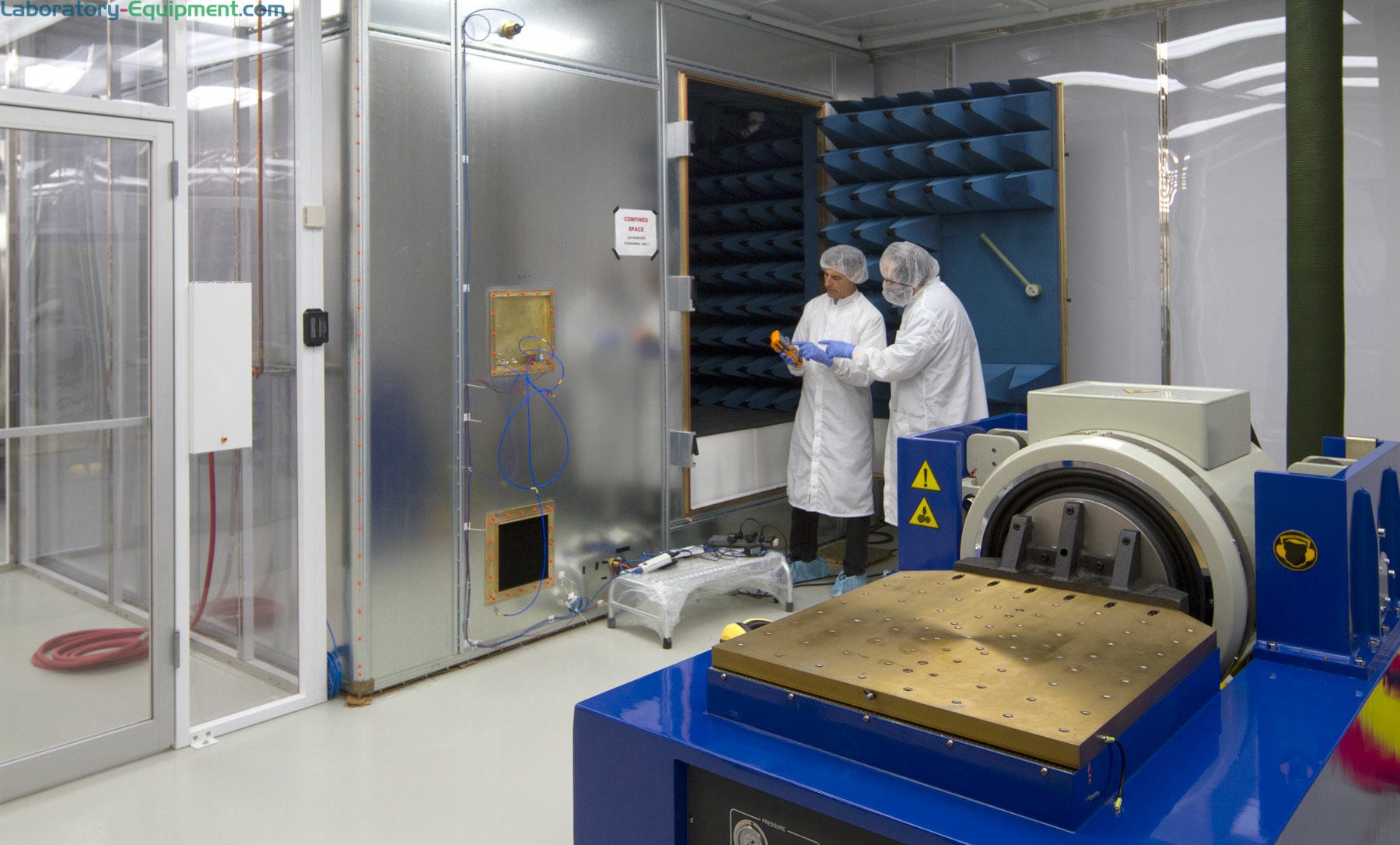

Sound and vibration testing room in a Terra Cleanroom installed in the University of Toronto Microsatellite and Technology Center Cleanroom Equipment Enclosures Modular controls allows integration of diverse equipment. Shown: sound and vibration testing room in a Terra Cleanroom, with modifications for specilized utilities and test equipment.

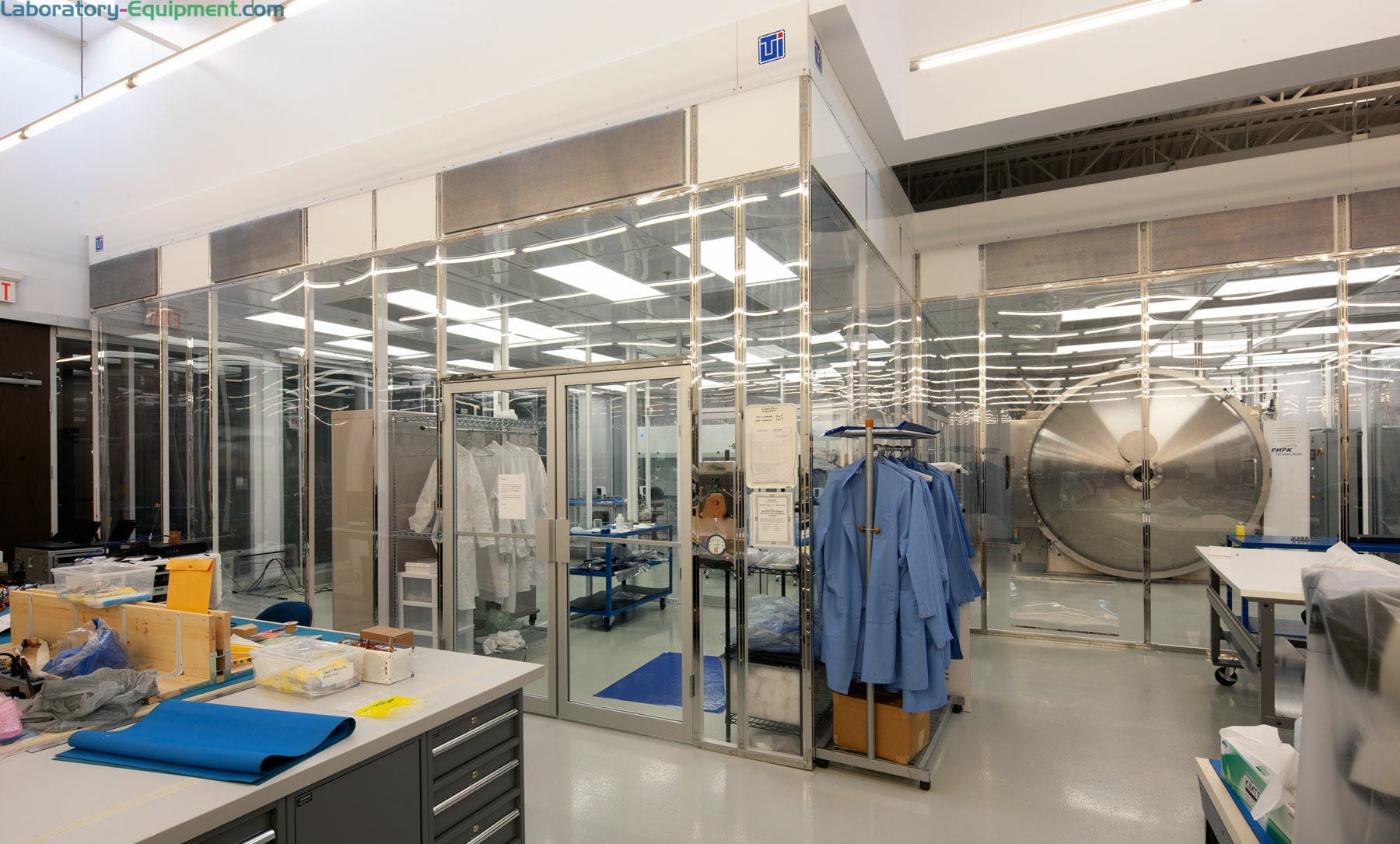

Thermal Vacuum Chamber Enclosure
Static-dissipative PVC clean room modified to accommodate a thermal vacuum chamber Thermal Vacuum Chamber Enclosure Static-dissipative PVC hardwall clean room modified to accommodate utility drops and clearance requirements of a thermal vacuum chamber used to test micro-satellites.
Assembly of Modular hardwall cleanroom with Ducted AC System
Modular Hardwall Cleanroom installed with split-A/C units Modular Hardwall Cleanroom Installation Modular hardwall cleanroom with split air conditioning system: heat-generating compressor roof mounted, with cool air ducted to the cleanroom

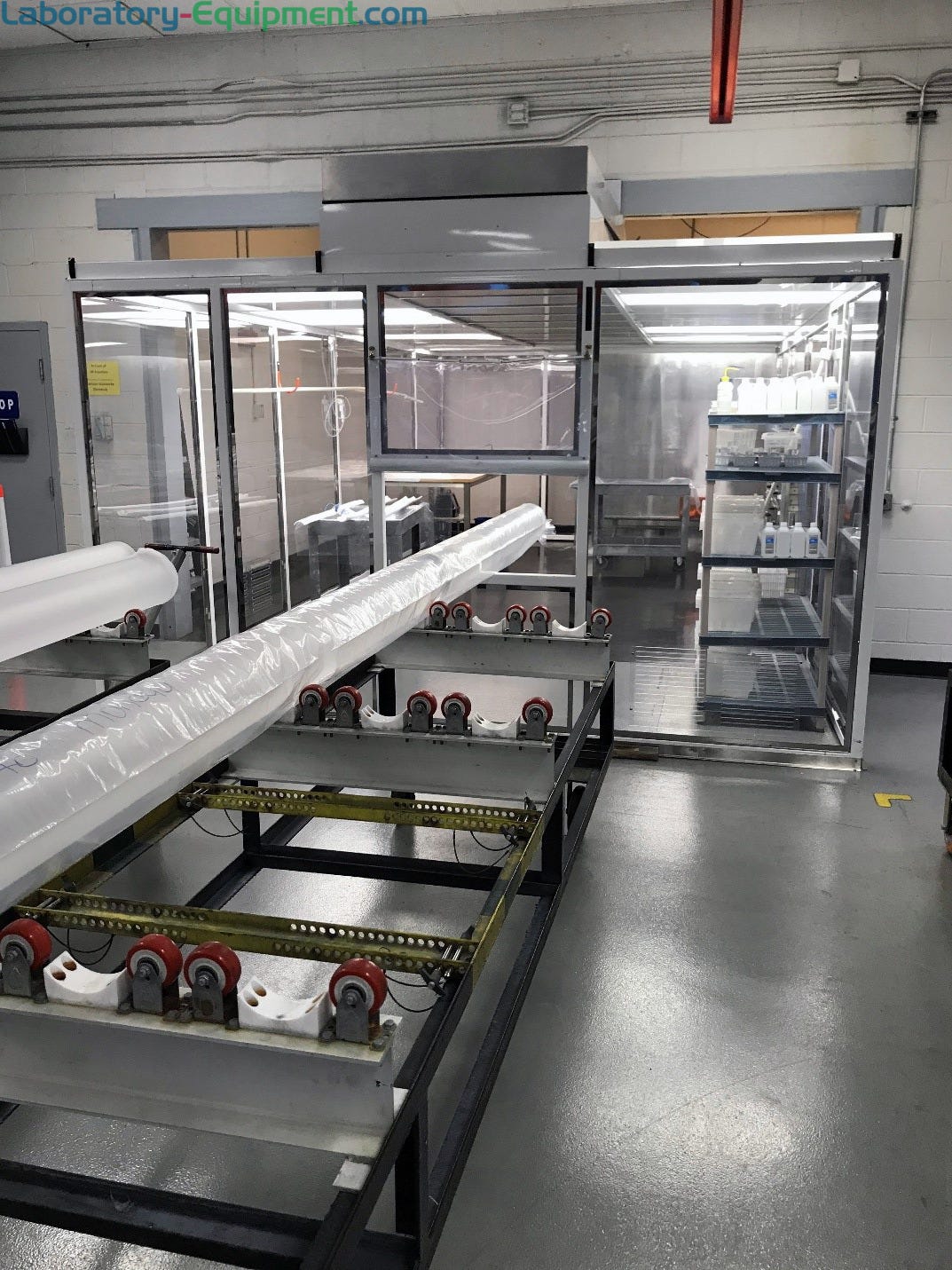

Class 1,000 modular cleanroom for quartz rod processing
Class 1,000 modular hardwall cleanroom for quartz and silica based manufacturing of precision optical equipment Class 1,000 Modular Cleanroom for Quartz Rod Processing Class 1,000 modular hardwall cleanroom for quartz and silica based manufacturing of precision optical equipment. The custom feed-through allows quartz rods to be fed into the cleanroom. FFU’s in the ceiling are aligned with the feed-through opening to further protect the rods from particle contamination.

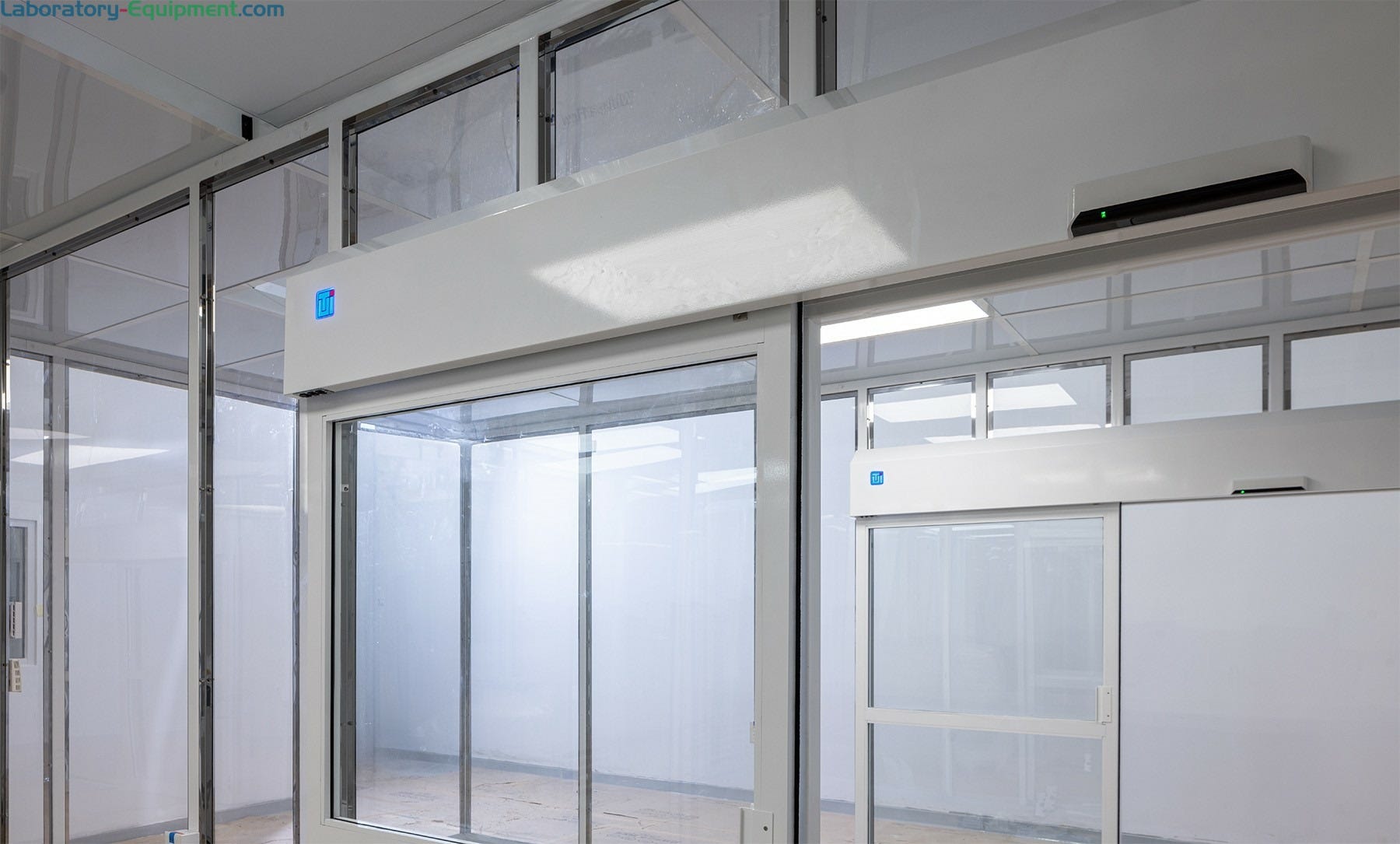

modular hardwall cleanroom installed inside a laboratory
Hardwall modular cleanroom installed inside a laboratory, featuring automatic sliding door | 6600-73A displayed Modular Hardwall Cleanroom Installed in Laboratory A hardwall modular cleanroom with automatic sliding door, installed in a laboratory
Other products you may find relevant
  1. Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 ÎĽm; ideal for spot-checking critical environments and cleanrooms
    Group of 4 products
    Lighthouse Handheld Airborne Particle Counters by LWS From
    As low as $3,824
    Some ship in 5 - 10 days
  2. Microbial air sampler for cleanrooms and aseptic environments provides continuous and periodic sampling with a 100 L/min. flowrate and a 6 hour battery life | 1510-53 displayed
    Group of 3 products
    Lighthouse ActiveCount Viable Air Samplers by LWS From
    As low as $4,230
    Some ship in 5 - 10 days
  3. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems | 2700-99 displayed
    Portable Nitrogen Gas Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H
    $4,595
    Usually Ships in 3 - 5 days
  4. 24-Gallon stainless steel ISO 4 BioSafe waste receptacle with a hands free foot pedal. | 1456-18B displayed
    Group of 10 products
    BioSafe® Cleanroom Waste Receptacles From
    As low as $443
    Some ship in 0 - 2 days
  5. ValuLine Stainless Steel Trash Cans from Rubbermaid come in 5 different sizes
    Group of 4 products
    Defenders® Square Step-On Trash Cans by Rubbermaid® From
    As low as $398
    Some ship in 21 - 23 days
  6. The MET ONE HHPC 6+ is a full-featured, six-channel handheld particle counter | 1505-50 displayed
    Group of 4 products
    MET ONE Handheld Air Particle Counters by Beckman Coulter From
    As low as $2,422
    Some ship in 3 - 5 days
  7. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    Group of 3 products
    PureFlow™ Laminar Flow Transport Carts From
    As low as $16,270
    Some ship in 1 - 1 days
  8. Yellow Slimline safety cabinets by Justrite are fire resistant double wall, air insulated and welded steel construction | 1619-90 displayed
    Group of 3 products
    Yellow Slimline Safety Cabinets by Justrite From
    As low as $1,302
    Some ship in 8 - 12 days
  9. Undercounter Flammable safety cabinets by Justrite includes dual vents with flame arresters located in the back | 1619-95 displayed
    Group of 8 products
    Sure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite From
    As low as $1,204
    Some ship in 8 - 12 days
  10. Sure-Grip EX deep SlimLine safety cabinets provides OSHA-, NFPA-compliant protection and containment of flammable materials | 1618-21 displayed
    Group of 10 products
    Sure-Grip® EX Deep Slimline Safety Cabinets by Justrite From
    As low as $2,234
    Some ship in 8 - 12 days
  11. Choose among 3 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
    Group of 4 products
    Nitrogen Membrane Gas Generators From
    As low as $6,224
    Some ship in 1 - 3 days
  12. Sure-Grip EX safety can storage cabinets protect workers, reduce fire risks, and improve productivity by storing hazardous liquids in high performance | 2820-00A displayed
    Group of 10 products
    Sure-Grip® Flammable Liquid EX Safety Can Storage Cabinets from Justrite From
    As low as $1,188
    Some ship in 3 - 5 days
  13. Corrosive Storage by Justrite features two manual stainless steel doors with 3-point stainless steel bullet latching system | 2820-09A displayed
    Group of 4 products
    Corrosive Storage Cabinets by Justrite From
    As low as $1,538
    Some ship in 8 - 12 days
  14. Respirator kit shown with head cover. | 2821-00 displayed
    Response Kit: PureAir Bio™, White
    Request Quote
    Usually Ships in 20 - 26 days
  15. CompuFlow® Thermo Anemometer measures velocity, volume, temperature, and humidity without changing probes | 3302-00A displayed
    Anemometer; Digital, Velometer Thermal Anemometer, CompuFlow
    $2,244
    Usually Ships in 5 - 10 days
  16. PureDry™ Recirculating Hand Dryers feature ULPA filtration and an integral air return that captures moisture
    Group of 5 products
    PureDry™ ULPA-Filtered Cleanroom Hand and Glove Dryers From
    As low as $1,835
    Some ship in 1 - 3 days
  17. ErgoHeight® tables provide a 15" range of vertical motion; all-stainless steel construction for | 3504-00A displayed
    Group of 21 products
    ErgoHeight® Electric Height Adjustable Cleanroom Workstations From
    As low as $1,705
    Some ship in 1 - 3 days
  18. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  19. BioSafe® stainless steel glove dispensers allow easy access to loose gloves and supplies; easy-open top for clean, fast restocking | 4951-33-2 displayed
    Group of 44 products
    BioSafe® Glove Dispensers From
    As low as $282
    Some ship in 1 - 1 days
  20. Made of stainless steel, the hand-held UPLA-filtered Micro-Vac vacuum is clean and lightweight. A complete attachment kit is included | 5100-00 displayed
    Group of 3 products
    Universal MicroVac™ Portable Cleanroom Vacuum Cleaners From
    As low as $1,815
    Some ship in 1 - 3 days
  21. Soft, durable wipes gently clean and polish scratch-sensitive optics or magnetic disk media surfaces | 5605-07 displayed
    Group of 11 products
    Cleanroom and Laboratory Wipes from Valutek From
    As low as $69
    Some ship in 8 - 14 days
  22. Anti-fatigue mats enhance worker comfort, resist chemicals and common disinfectants, and prevent accumulation of microbes | 5606-00 displayed
    Group of 21 products
    Anti-Fatigue Mats by Wearwell From
    As low as $77
    Some ship in 5 - 5 days
  23. The AirGard® Air Velocity Monitor displays air velocity to ensure laminar airflow or ventilation | 6704-65 displayed
    Group of 1 product
    Air Velocity Monitors From
    As low as $868
    Some ship in 7 - 7 days
  24. Qualification Documentation (IQ/OQ) for Terra Universal System
    Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
  25. Equipment Testing
    Equipment Testing
    Request Quote
  26. Cleanroom Cleaning Service
    Cleanroom Cleaning Service
    Request Quote
  27. White Glove Freight Service
    White Glove Freight Service
    Request Quote
  28. Cleanroom Installation Information
    Cleanroom Installation Information
    Request Quote

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
