FreeZone Triad 2.5 Liter -84C° Benchtop Freeze Dryer by Labconco handles multiple types of lyophilization, Lyo-Works OS data collection and a stainless steel co | 6923-36-220 displayed

Freeze Dryers

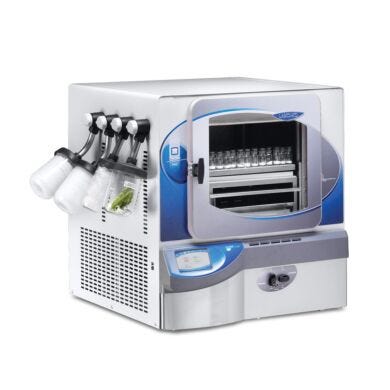

Freeze Dryer; Benchtop, 2.5L, -84°C, Labconco, FreeZone Triad, 230 V

Triad Benchtop Freeze Dryers are designed for multiple types of lyophilization: flask, bulk and stoppering vials
Triad's versatility and compact design make it perfect for busy labs
Removes 1.84 liters of water in 24 hours
Designed to handle flask, bulk, and stoppering vial lyophilization
Required: vacuum pump with 98L/min displacement, freeze dry glassware

• Ice Holding Capacity: 2.5L

• Aqueous or Solid Samples?: Low Eutectic Point

• Material: Stainless Steel

• Model: FreeZone Triad

• Manufactured by: Labconco

• Collector Temperature: -84°C

• Configuration: Benchtop

• Manufacturer SKU: 794001010

• Unit of Measure: EA

Manufacturer SKU: 794001010+CRATESKL

Manufactured By: Labconco

Warranty: 1 Year

Summary

Triad Benchtop Freeze Dryers are designed for multiple types of lyophilization: flask, bulk and stoppering vials
Triad's versatility and compact design make it perfect for busy labs
Removes 1.84 liters of water in 24 hours
Designed to handle flask, bulk, and stoppering vial lyophilization
Required: vacuum pump with 98L/min displacement, freeze dry glassware

Twin 1/3 hp HCFC/CFC-free refrigeration compressor system

Stainless steel collector coil

1" thick acrylic door with silicon gaskets

3/4" OD vacuum connection, 36" of 3/4" ID vacuum hose and two clamps

Program storage: 30 with up to 16 steps each

Hot gas defrost with auto shut off at +60° C (+140° F)

Processing shelf accommodates containers with stoppers up to 148mm max height

On/standby switch, moisture sensor and USB port

3-wire electrical cord with plug

Vacuum control valve and vacuum break valve

4 left-side mounted neoprene valves accommodate 1/2"and 3/4" flask adapters

Lyo-Works 5" touch screen features:

Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time

Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)

Operating mode (standby or run)

Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)

Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters

Data logging storage and display: table or chart format exportable via USB or Ethernet

Programmable alerts can be sent via Ethernet connection to user-entered email addresses.

Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)

Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset

Level-specific security lock-out prevents program changes

Specifications

• Ice Holding Capacity: 2.5L

• Aqueous or Solid Samples?: Low Eutectic Point

• Material: Stainless Steel

• Model: FreeZone Triad

• Manufactured by: Labconco

• Collector Temperature: -84°C

• Configuration: Benchtop

• Manufacturer SKU: 794001010

• Unit of Measure: EA

• Marks & Listings: CE, CSA

• Electrical Specifications: 230 V, 12 A, 60 Hz

• Dimensions, Product: 28.3" W x 29.5" D x 27.7" H

• Weight, Shipping: 440 lb
