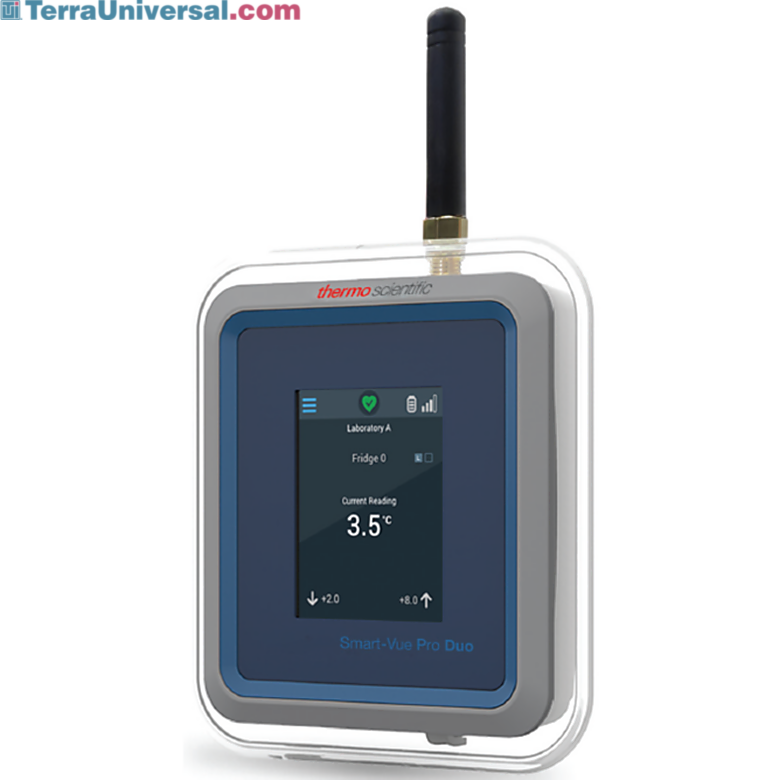

915MHz Smart-Vue Pro Duo Remote Monitoring System by Thermo Fisher Scientific with two sensor channels monitors multiple equipment simultaneously; SVPHWRMOD012 | 1620-97 displayed

Refrigerators (4°C),General Purpose Freezers (-20°C)

Smart-Vue Pro Duo Remote Monitoring System, 2 Sensor Channels, Thermo Scientific, SVPHWRMOD012

Smart-Vue Pro Duo Remote Monitoring System with two sensor channels enables simultaneous monitoring of multiple equipment ideal for use in compliant labs
LoRaWAN (Long Range wireless Area Network) a stand-alone dedicated network with a connectivity range up to 9 km
Compliance: 21 CFR Part 11 guidelines, cGxP and SOP
Compatible with Thermo Fisher Scientific Refrigerators, Freezers and multiple other brands
Includes: two 3.6 V lithium batteries, one sensor mounting kit, one mounting holder, one antenna and one 5-foot flat cable

• Manufacturer SKU: SVPHWRMOD012

• Model: Smart-Vue Pro Duo

• Manufactured by: Thermo Fisher Scientific

• Unit of Measure: EA

Manufacturer SKU: SVPHWRMOD012

Manufactured By: Thermo Fisher

Warranty: One-Year Manufacturer Warranty for Parts and Labor

Summary

Smart-Vue Pro Duo Remote Monitoring System with two sensor channels enables simultaneous monitoring of multiple equipment ideal for use in compliant labs
LoRaWAN (Long Range wireless Area Network) a stand-alone dedicated network with a connectivity range up to 9 km
• Compliance: 21 CFR Part 11 guidelines, cGxP and SOP
Compatible with Thermo Fisher Scientific Refrigerators, Freezers and multiple other brands
• Includes: two 3.6 V lithium batteries, one sensor mounting kit, one mounting holder, one antenna and one 5-foot flat cable

Instant alerts enable proactive response before out-of-range samples are compromised

Remote monitoring ideal for compliant labs: automatic and continuous data logging for a permanent audit trail

Supports asset/cost optimization by preventing replacement of samples and equipment

LoRaWan Network features:

LoRa (Long Range) technology enables scalability with single gateway enabling coverage of large areas; eliminates the need for repeaters

Each gateway supports up to 300 data-logging parameters

Dedicated wireless network

Setup requires minimal IT support

Gateway pushes data to cloud via a local network connection (Ethernet or Wi-Fi)

Supports sample protection, compliance and asset/cost optimization

Bright 2.4" color touchscreen LCD display features:

Enables multiple viewing of multiple sensors simultaneously

Battery, wireless signal name

Red-light diffuser alarm

Easy-to-see key information and status

Audio/visual alarms for local notification

Low AC power consumption via USB port access

Automatic sensor detection (choice of wired or wireless)

Allows direct connection via 4–20 mA output

Lab Monitoring:

Ambient monitoring: Temperature with external sensor; temperature and relative humidity (RH) with external sensor

Ultra low-temperature freezers –100°C to +150°C

Auto-cascade ultra low-temperature freezers –155°C to –100°C

Thermo Scientific™ LN2 Phase Separator/CryoPlus™ Storage Systems –196°C to –100°C

Refrigerators (single-, double-, and triple-door) 0°C to +10°C

Freezers –40°C to 0°C

Refrigerator-freezer combinations per chamber (i.e., top/bottom, left/right) –30°C to +8°C

Cold rooms –30°C to +8°C; –40°C or colder

Incubators Ambient to +100°C, +120°C; and relative humidity (RH): 0–99.9%, non-condensing

Water baths Ambient to +120°C

4–20 mA current loop (0–5 V and 0–10 V) 4–20 mA; device with a 4–20 mA self-powered output

Gateway options

Smart-Vue Pro LoRaWAN 915 (#SVPHWRLGW001): 915 MHz LoRaWAN platform–enabled Ethernet/Wi-Fi connectivity

receiver with universal power supply

Smart-Vue Pro LoRaWAN 865-868 (#SVPHWRLGW002): 865–868 MHz LoRaWAN platform–enabled Ethernet/Wi-Fi connectivity receiver with universal power supply

Accessories:

Wireless Data logger #SVPWSENTCS001

Wired Temp Sensor -40/+80°C; 3.5M #SVPSENTUE001

Replacement battery

Smart Sensors

Specifications

• Manufacturer SKU: SVPHWRMOD012

• Model: Smart-Vue Pro Duo

• Manufactured by: Thermo Fisher Scientific

• Unit of Measure: EA

Features and Benefits

Security and Data Traceability

User-defined measurement and transfer protocols securely transmitted in digital format with backup; automatic and continuous data logging for a permanent record of changes with user traceability

Cloud Data Access

Convenient data access via cloud enables users to check status anytime and anywhere using a desktop, tablet or smart phone for real-time 21 CFR Part 11–compliant data-logging and monitoring of critical parameters

Long-Range Wireless Wide Area Network (LoRaWan)

Stand-alone dedicated LoRaWan network increases connectivity range by up to 9 km, supports up to 300 data-logging per gateway, pushes data to cloud, and enables a single gateway to cover a large area
