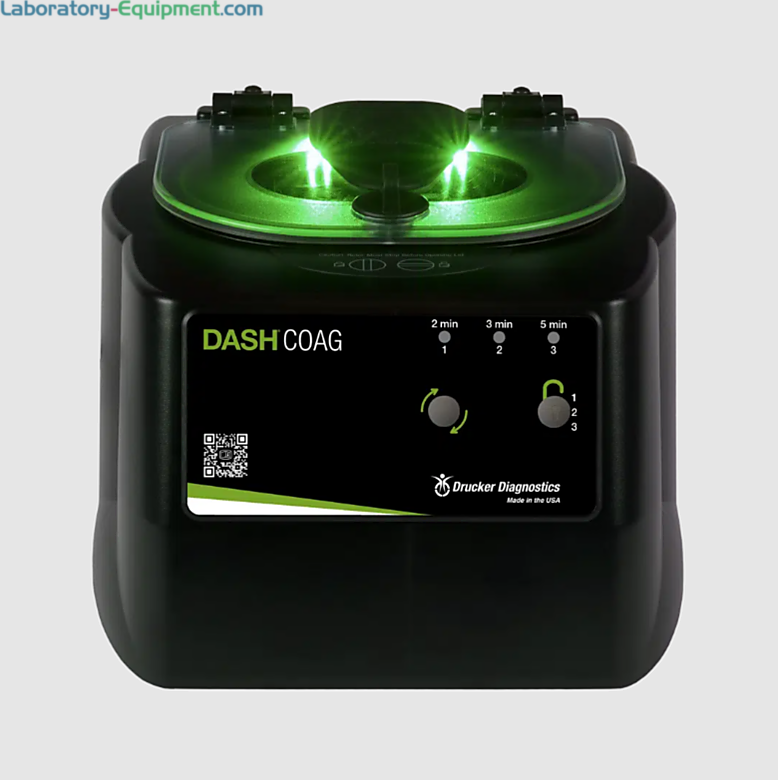

DASH Coag STAT Centrifuge by Drucker Diagnostics with a 12 x 75 mm capacity, 3 presets, a max 4,400 xg and includes rotor and tube holders; 00-676-009-000

Lab Centrifuges

DASH Coag STAT Centrifuge by Drucker Diagnostics with rotor and tube holders, 00-676-009-000

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.

Warranty: Two-Year Manufacturer Warranty; Lifetime on Rotor

Compact DASH Coag Routine STAT centrifuge with fixed-angle centrifugation provides high-quality coags in minutes
Set and lock controls streamline lab operators and eliminate errors
Two-button interface for easy programming of custom validated STAT cycles
Capacity: 12 x 75 mm
Includes: fixed-angle rotor and tube holders

• Controls: 3-settings

• Manufactured by: Drucker Diagnostics

• Model: DASH Coag

• Manufacturer SKU: 00-676-009-000

• Rotor Type: Fixed-Angle

• Capacity: 12 x 75 mm

• Max Relative Centrifugal Force (RCF): 4,400 xg

• RPM Range: 6,600 rpm

• Unit of Measure: EA

Warranty: Two-Year Manufacturer Warranty; Lifetime on Rotor

Summary

Compact DASH Coag Routine STAT centrifuge with fixed-angle centrifugation provides high-quality coags in minutes
Set and lock controls streamline lab operators and eliminate errors
Two-button interface for easy programming of custom validated STAT cycles
Capacity: 12 x 75 mm
Includes: fixed-angle rotor and tube holders

DASH Coag #00-676-009-000 centrifugation:

Maximum G-Force: 4,400 xg

Maximum RPM: 6,600 RPM

Fixed-Angle Rotor: remains at a 45° angle during processing for optimal PPP formation

Applications: STAT Coagulation, Platelet Poor Plasma (PPP)

Ideal for use in STAT labs and emergency rooms

Lid lights indicate centrifugation status and continues to flash until lid is opened

Three default preset cycles or set and lock to a single preset for maximum repeatability

Minimizes lab error, reduces turnaround time and streamlines training

Eliminates wait time by enabling use of centrifuge array in accessioning to eliminate queuing

Reinforced carbon fiber components for high strength, dual layers of protection, durability, and years of trouble-free use

Cool–Flow design prevents samples from overheating by using ambient air to keep specimens at room temperature even under the heaviest workloads

Electronic Timer: 3 preset cycles (default or custom)

Brushless DC Motor: provides years of operation with no routine maintenance

Automatic Lid Lock: will not run with the lid open and the lid stays shut while samples are spinning

Positive Lid Latching: firm mechanical latching of the lid prevents the escape of debris

Clear Shatterproof Lid: enables safe sample observation and optical calibrations

Reinforced Guard Bowl – Provides maximum safety and durability

Electrical: 95 to 253 VAC, 50/60 Hz

Listings and Compliance: FDA listed, CE, MET E112532, RoHS, ISO13485

Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards

Noise Level: 61 dBA

Preset Cycles for DASH Coag:

Preset 1: 6,600 RPM | 2 minutes | 4,400 xg

Preset 2: 6,600 RPM | 3 minutes | 4,400 xg

Preset 3: 5,200 RPM | 5 minutes | 2,700 xg

Cycle Time: 1 to 30 Minutes (± 1%)

Options:

Extended Warranty

Specifications
