Summary

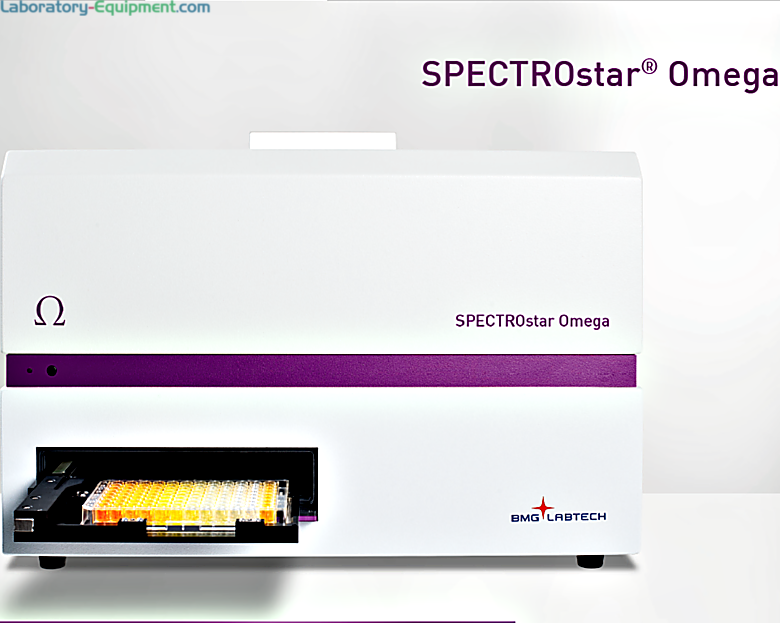

  • Flexible, upgradable high-speed SPECTROstar Omega optimizes settings for all absorbance-based assays
  • Built-in high-precision injectors with simultaneous reagent injection and detection
  • Incubation: +4 °C above ambient up to 45 °C or 65 °C
  • Built-in UV/Vis Spectrometer spectral range: 220 - 1000 nm; wavelength; precision: ≤ 0.5 nm
  • •  Upgrades for multi-mode reader: additional detection modes, reagent injectors and extended temperature control (contact a product specialist for details
  • Applications: 260/280 ratio for DNA and RNA, Protein quantitation, ELISA, Cell-based assays, Enzyme activity assay
  • Plate format measurements in up to 1536-well plates
  • Software: Multi-user Reader Control and MARS Data Analysis Software included; FDA 21 CFR Part 11 compliant
  • Reagent Injection
  • Up to 2 built-in reagent injectors
  • Injection at measurement position (6 to 384-well)
  • Individual injection volumes for each well (3 to 500 µL)
  • Variable injection speed up to 420 µL / s
  • Up to four injection events per well
  • Reagent back flushing
  • Sensitivity:
  • ABS with spectrometer
  • Selectable spectral resolution: 1, 2, 5, and 10 nm
  • Full spectrum captured in < 1 s/well
  • OD range: 0 to 4 OD; photometric resolution: 0.001 OD
  • Accuracy: < 1% at 2 OD
  • Precision: < 0.5% at 1 OD and < 0.8% at 2 OD
  • Linearity: ≤ 0.8% at 2.0 OD
  • Reproducibility: ±0.005 OD for 0 - 2 OD range
  • Wavelength Selection:
  • UV/Vis Absorbance Spectrometer
  • Full spectra or 8 distinct wavelengths in < 1 sec / well
  • Additional Features:
  • Multiple shaking options and easily integrates into automated systems
  • Well scanning with up to 900 data points per well
  • Low-volume detection
  • Easily integrated into automated systems
  • Detection Modes: UV/vis absorbance spectra
  • Measurement Modes: Endpoint and kinetic, Spectral scanning (absorbance), Well scanning
  • Microplate Formats: 6 to 1536-well plates, user-definable; optional LVis Plate with 16 low volume microspots (2 μL)
  • Microplate Carrier: Robot compatible
  • Light Sources: High energy xenon flash lamp
  • Detectors: CCD Spectrometer
  • Read Times: Full spectrum from 220 to 1000 nm in less than 1 sec/well
  • Shaking: Linear, orbital, and double-orbital with user-definable time and speed
  • Purge Gas Vent: System to inject an atmosphere or to pull a vacuum into the reader
  • Incubation: +4 °C above ambient up to 45 °C or 65 °C
  • Accessories: THERMOstar, LVis Plate, Evaluation Plate, Microplate Stacker, Atmospheric Control Unit

Specifications

Type: Plate Reader

Application: Absorbance

Plate Configuration: 1536 Well

Manufactured by: BMG LabTech

Manufacturer SKU: SPECTROstar Omega

Unit of Measure: EA

Helena

Weight, Product: 61.7 lb

Dimensions, Product: 17.32" W x 18.89" D x 11.81" H

Features and Benefits

LVis Low-Volume Microplate

BMG LabTech UV/Vis Absorbance spectrometer-based microplate readers are compatible with LVis Low-volume Microplate with cuvette slots for 2ul Samples (Sold Separately)




Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • High-performance THERMOstar Microplate Incubator by BMG LabTech

    Compatible with BMG LabTech Microplate Readers: SPECTROstar, LUMIstar, FLUOstar, CLARIOstar, PHERAstar, POLARstar and NEPHELOstar
