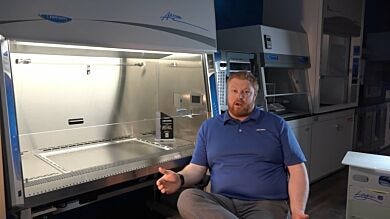

Laboratory building design took a great leap forward with the creation of this new type of Class II biosafety cabinet | 3652-PP-02 displayed Creation Story of the Axiom Type C1 Biosafety Cabinet.
Biological Safety Cabinets
Biosafety Cabinet; Purifier Axiom, Class II C1, 72" W, UV Lamp, Base Stand, Sash Opening: 8", Labconco, 110/115 V
Nominal inflow velocity of 105 feet per minute (fpm) (0.53 m/sec)
Nominal downflow velocity: 65 fpm (0.33 m/sec) for 4' models; 55 fpm (0.28 m/sec) for 6' models
Maximum sash opening height: 22.6" (58 cm)
Viewing height: 27.0" (69 cm)
Conformance: NSF/ANSI Standard 49 Listed; ADA-compliant operation UL Standard 61010-1; ISO 5 conditions per ISO 14644-1 and 2; CAN/CSA 22.2 No. 61010-1; CE Conformity Marking (230V models)
Type A mode for routine microbiological applications and cell culture work
Type B mode for handling hazardous chemicals
Filters hazardous aerosols and particulates for personnel, product and environmental protection
Included connection discharges HEPA filtered exhaust air directly back to the lab
Sash design: 10° angled fully-closing, 1/4" tempered safety glass sash with counterbalanced, anti-racking and easy-to-lift mechanism
Exclusive Labconco features of Purifier Axiom C1 BSC:
Omni-Flex™ two mode design for Type A and Type B modes
MyLogic™ Operating System
LCD information system: Smart-Start™, Night-Smart™, Filter Life Remaining" bar graph for each HEPA filter, status line alarm and alerts when filter life diminishes to 20% and 0%
Chem-Zone™ work surface with a dedicated direct exhaust for use with hazardous vapors or radionuclides
Constant Airflow Profile™ (CAP) Technology airflow monitoring system
Active Protection Protocol prevents flow of air into the lab by operating exhaust blowers for up to five minutes, in the event of exhaust system failure
Enhanced containment with Air-Wave™ Entry System and Contain-Air™ Negative Pressure Channel
Two electrical duplex receptacles and touchpad positioned on right side
Removable 3-piece work surface (304 stainless steel)
Additional benefits: Low static pressure and volumetric rate exhaust requirements in Type B mode (no need for dedicated exhaust system), safe negative pressure design, glare-free LED lighting (located outside contaminated work area), bright 0-150 footcandle, Interval/elapsed timer for experiment monitoring, electronic security lock with access code(optional activation),
Options:
NSF-Approved, powder-coated steel non-welded telescoping base stand with feet (unassembled)
Accessory Package: UV lamp (254 nm), service fixture(s) with ball-type valve(s) and Vacu-Pass™ Cord & Cable Portal
Type B mode: 10" diameter stainless steel manual damper
Bag-In/Bag-Out Package: Exhaust Filter for use with radionuclides or harmful chemicals
Omni-Flex Dual Operation Mode for operation in both Type A and B containment modes
Active Protection Protocol with Constant Airflow Profile extends operation of exhaust blower for an extra 10 seconds longer than supply blower
Maintains negative pressure during shutdown or exhaust system failure
Chem-Zone™ helps operators organize work area especially when performing critical operations with hazardous materials
MyLogic Operating System controls Smart-Start™ System allowing the user to start program and shut down operations
Night-Smart™ System for idling the blower when the sash is closed
LCD information center with Filter Life bar graph for each HEPA FILTER
ADA-compliant sash heights, touchpad control Required Accessories: Telescoping base stand with fixed feet
• Dimensions, Product: 78.3" W x 32.7" D x 64.2" H
• Weight, Shipping: 1,075 lb
• Dimensions, Shipping: 88" W x 44" D x 79.2" H
• Package Type: Skeletal Crating
Features and Benefits
Large Internal Touchscreen Display
The line-of-sight location allows for easy viewing, while the display clearly communicates cabinet status without the need to look away from critical work.
MyLogicTM OS
Conveniently displays cabinet information on 3.5" line-of-sight screen.
Ultra-Energy Efficient & Quiet EC Motor
Labconco BSCs reduce energy consumption while providing longevity and comfort. Powered by EC motors, which are 30% more efficient than prior models, exceed NSF requirements for quiet operation, and run cooler than other comparable motors.
Constant Airflow Profile
CAP™ Technology continuously monitors and adjusts airflow to keep users safe. Precise operation keeps BSC airflows within 2% of their original setpoint. Eliminates the need for airflow sensors, which are less accurate and require recalibration annually.
Magnetic Walls
Mag-Zone™ area increases accessibility, organization and improves cleaning protocols. Attach Labconco stainless-steel, magnetic accessories for pipettes, pipette aid or a waste bag.
6-Year Warranty
Axiom and Logic Biological Safety Cabinets carry a six-year manufacturer warranty from date of installation or seven years from date of shipment
Critical Environment Solutions
Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Telescoping Base Stand with Fixed Feet
Tubular, epoxy-coated steel frame base stands are adjustable to eight height positions in 1" increments from 27.5" to 34.5"; used with Labconco BSCs, hoods and enclosures
Hydraulic Lift Base Stand
Electric height adjustment from 25.5" to 33.5" ideal for operators of varying heights and wheelchair-bound users; compatible with Labconco BSCs, hoods and enclosures
Remote Blower
Labconco offers energy-efficient remote blowers with an ECM motor that handle airflow from 250 CFM to 3200 CFM satisfying various exhaust requirements
UV Sterilization Lamp
Germicidal UV lamps keep clean the interior of Labconco biosafety cabinets, hoods and benches by breaking up chemical bonds and denaturing RNA and DNA
Vacu-Pass™ Cord & Cable Port Kit
NSF-approved port for power cords and vacuum tubing for use with Labconco biosafety cabinets and hoods; 4 closed-cell neoprene plugs for 1/8, 1/4, 3/8 or 1/2 inch cords or cables
Service Fixture Kit
Available service fixture with a serrated hose tip valve, ball valve, a control handle and instructions for plumbing to services; compatible with Labconco Axiom BSCs and Purifier Logic Hoods
