- MaxQ 6000 Orbital Shakers available in incubated or incubated/refrigerated models include two adjustable shelves for increased storage capacity; requires universal (without clamps) or dedicated platforms (pre-installed clamps)
- Large viewing window and internal light for sample visibility minimizes need for frequent door openings
- Platform: 18" x 18" stainless steel; stackable with adapter set (sold separately)
- Speed Range: 15 to 500 rpm, ±1 rpm
- Temperature Range: −5°F to +140°F (Incubated/Refrigerated models); 50°F to 140°F (Incubated models)

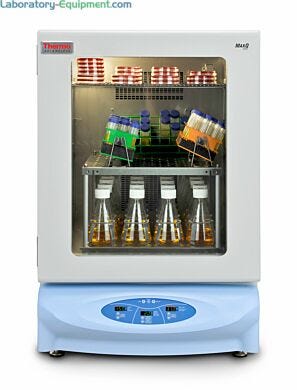

Thermo Scientific’s MaxQ™ 6000 Orbital Shakers offer a large interior volume and precise incubation of samples | 5322-22 displayed
Shakers,Cell Culture Equipment
5322-PP-05
5322-PP-05
MaxQ™ 6000 Incubated/Refrigerated Stackable Shakers by Thermo Scientific
Read more
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty
Select Product Options
Summary
- MaxQ 6000 Orbital Shakers available in incubated or incubated/refrigerated models include two adjustable shelves for increased storage capacity; requires universal (without clamps) or dedicated platforms (pre-installed clamps)
- Large viewing window and internal light for sample visibility minimizes need for frequent door openings
- Platform: 18" x 18" stainless steel; stackable with adapter set (sold separately)
- Speed Range: 15 to 500 rpm, ±1 rpm
- Temperature Range: −5°F to +140°F (Incubated/Refrigerated models); 50°F to 140°F (Incubated models)
- Applications: bacterial suspensions, hybridizations, solubility studies, diagnostic test, extraction procedures, washing procedures, general mixing, protein expression, staining and destaining, and plasmid purification
- Capacity:
- 25 250 ml flask capacity with a dedicated platform
- 16 250 ml flask capacity with a universal platform
- 2 x 6L Flasks
- Specifications:
- Temperature Resolution: ±0.1°C
- Orbit: 19 mm
- Load bearing: 35 lbs.
- Motor: Solid-state DC brushless
- Timer Range: Continuous (displays time counts up) or timed operation from 0.1 minute to 999 hours (displays time counts down)
- Interior material: corrosion-resistant stainless steel
- Exterior material: durable powder-coated, cold-rolled steel
- Platform: stainless steel
- Interface: RS 232 enables remote monitoring of speed, time and temperature
- Features:
- Stackable floor models increase flexibility, versatility and save lab space
- Versatile models combine orbital shaking with general purpose incubation
- Electrical outlet inside chamber for convenient connection to shakers, stirrers or rotators
- Accepts up to 6L flasks
- Variable speed control
- Door: left or right hinged for convenient placement; can be configured by user
- Safety interlock feature stops shaking motion when the door is open
- Soft start feature eliminates sudden starts and stops
- Precisely monitors and controls chamber temperature over complete range with ±0.1°C accuracy at 37°C with PID temperature controller
- Overtemperature safety feature (with independent thermostat) controls heat if main temperature controller fails
- Parameters retained during power failure; unit automatically restarts when power is restored
- Visual/audible alerts user to temperature deviation and turns off heat if temperature deviates ±1°C of setpoint or if unit operates ±10% of set speed
- Three individual LED displays enable simultaneous viewing of speed, operating time and temperature; minimize errors in establishing running conditions
- Stops platform motion upon detection of excess vibration due to unbalanced load
- User-adjustable speed calibration with a digital handheld tachometer (for required verification and standardized protocols)
- Accessories:
- Adapter set for stacking two platforms #3522-3
- Stacking Kit #SHK6000-10 for MaxQ 6000 Orbital Shakers
- Universal and dedicated platforms
- Clamps
- Tubes, racks (full and half size), beakers and Erlenmeyer flasks
Features and Benefits
Stackable
Space-saving MaxQ 6000 Shakers can be stacked to save lab space and the optional adapter set tiers two 18" x 18" platforms to double the shaking capacity
MaxQ 6000 Stacking Kit
Stacking Kit #SHK6000-10 enables vertical stacking of MaxQ 6000 Shakers for increased flexibility and usability ideal for small high-throughput labs
Accessories
MaxQ 6000 models accommodate a variety of flasks and tubes as well as required universal and dedicated platforms and clamps; adapter set for stacking two platforms also available
