Product Details
- Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
- Dehumidification system supplies the room with hot, dry air that is capable of maintaining a temperature of 90 °F (32 °C) and a drying capacity of 22 lbs/hr at ideal conditions of 68 °F (20 °C) at 60% RH
- Suited for EV battery assembly, adhesive curing, PC board drying, or filter assembly
- 3.5" PLC touchscreen allows control for drying levels, meters for allotted dehumidifying time, and alarm functions
- Included filters clean the air prior to entering the unit and will extend the use of the rotor
- Hot, dry air can reach a maximum temperature of +248 °F (120 °C), but changes in atmospheric pressure can affect the temperature of emitted air. Specifications are based on ideal conditions.
- Remote Operator is a downloadable software for the PLC to enable a PC to view and work with a remote controller's HMI panel.
- Desiccant dryer system does not have to be mounted on the roof of the room; it can be set to the side for easier access to the PLC touchscreen.
- If desired, the desiccant dryer system can be mounted on the roof of the room, but will require the purchase of a separate humidistat to control the unit.
- Product Dimensions that are shown are of the drying room only.
- Does not have windows, but can be added as a customization if necessary.

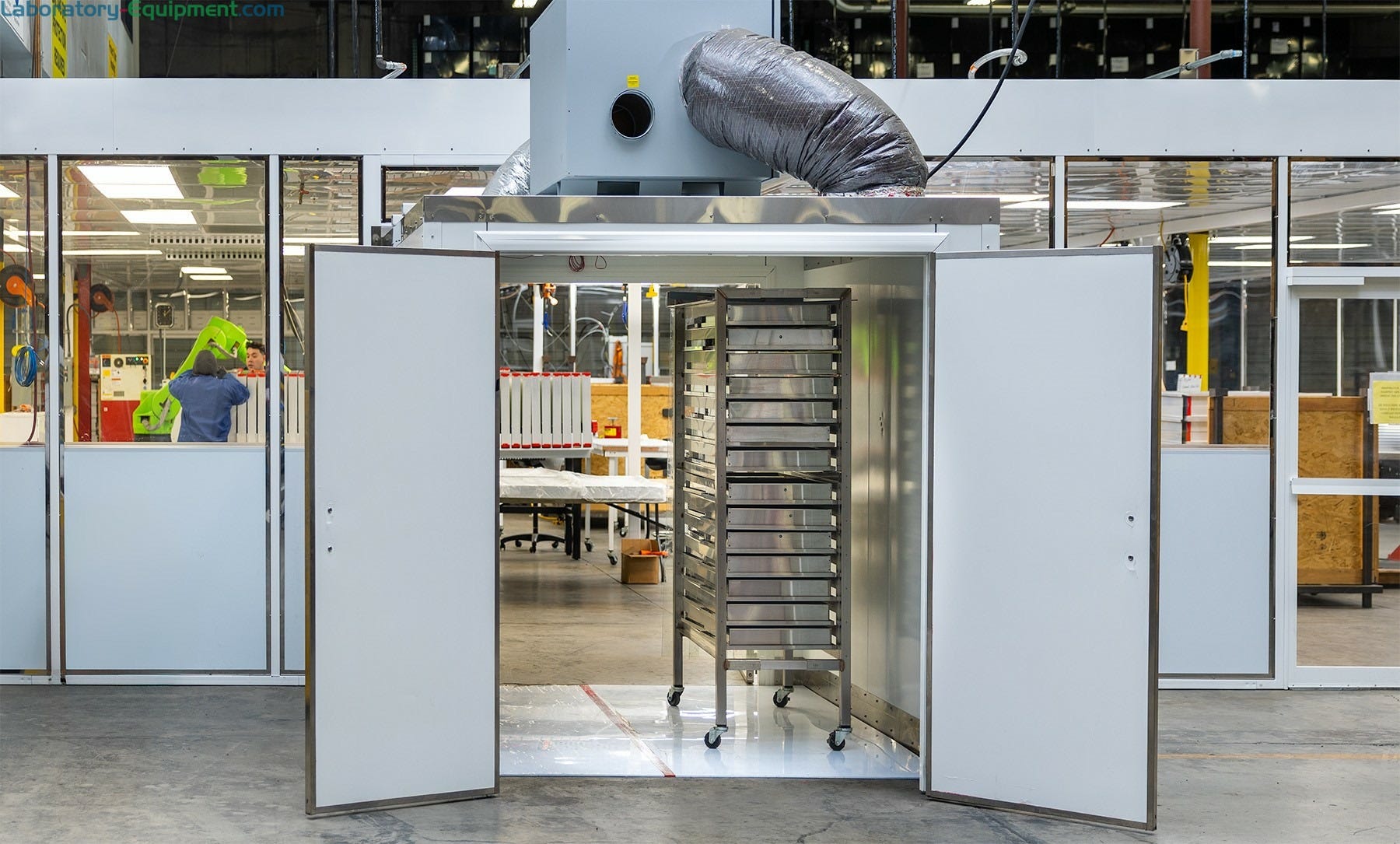

- Doors are located both in the front and back for dual side access.
- uPVC wall system option will not absorb moisture or humidity and is easily cleanable.
- Wall panels utilize joint connectors to maintain a flush finish; all gaps are filled by an FDA-grade sealant to ensure a leak-tight system without cavities where microbes colonize.
- Walls feature a plenum space to house utility and filling lines, providing the end user with convenient access to gas, vacuum and water connections along with duplex outlets, control panels, and phone jacks.
- Wall panels and walkable ceiling tested by UL to ASTM E72 for structural performance including load-bearing capacity and deflection resistance.
- Design compliant with ISO-14644, cGMP, GLP, ASTM and IEST requirements.
- Compliant with Grade B, C, D, cGMP / EU build outs.
- For applications that require additional heat, an additional heater may be purchased.
- Features hard ceilings composed of robust, rugged components capable of handling daily spray-down cycles or VHP sterilization.
- For replacement parts or customized rooms, contact a Terra product specialist via email, chat, or call at 714-578-6100
- Specifications of DA 800N Desiccant Dryer
- Nominal process air volume: 824 CFM
- Nominal regeneration air volume: 235 CFM
- Ext. compression — process air: 0.8 (in H2O)
- Ext. compression — regeneration air: 1.2 (in H2O)
- Regeneration heater power:13 kW
- Process air connection diameter in (mm): 15.7 (400)
- Dry air connection diameter in (mm): 12.4 (315)
- Humid/regeneration air connection diameter in (mm): 7.9 (200)
- Sound pressure dB: 63
- Admissible temperature: -30 to +104 °F (-1 to 40 °C)
- Admissible humidity: 0 to 100 %RH (non-condensing)
Specs
• Height: 7.5'
• Depth: 9'
• Width: 6'
• Certified ISO Grade Design: ISO 6
• Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
• Number of Doors: 1 Door
• Process Air Flow: 824 CFM
• Drying/Humidifying Capacity: 22 lb/hr
• Temperature Range: 90 °F to +248 °F
• Unit of Measure: EA
• Marks & Listings: UL, ULC
• Electrical Specifications: 208V or 480V, 3 Ph, 60 Hz
• Dimensions, Product: 72" W x 112" D x 89" H
