Part # 1990-09A

Desiccator; Double Doors w/ Windows, Heavy Duty, Stainless Steel, 48" W x 18" D x 87.5" H, Series 300

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
Stocked CE Mark Logo ULus Listed BioSafe classic logo ISO 5 Icon Quick Ship +
Terra Part #: 1990-09A
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
$13,804
Part #: 1990-09A
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available Only 3 left in stock

Product Details

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Pre-wired for integration with Terra’s automated, cabinet-level humidity control systems: Dual Purge and NitroWatch
  • Sloping top minimizes particle retention, simplifies cleaning, and reduces disturbances to laminar flow from ceiling mounting HEPA filter/blowers
  • Nitrogen-purged cabinet maintains low- humidity storage conditions to extend product shelf lives
  • Heavy-duty latches and hinges provide years of trouble-free operation
  • Included stainless steel stand with nylon leveling feet raises cabinet 4.5" (114 mm)
  • Built-in digital thermohygrometer displays internal temperature and RH to help monitor conditions
  • static-dissipative PVC viewing windows
  • Reinforcing base support raises cabinet by 1" for unobstructed door swing
  • Order removable shelves separately (4 maximum; 15" clearance between each)
  • Each reinforced shelf supports 300-lb load and requires non-removable supports (installed whether or not shelves are specified)
  • Comes with (2) Automatic RB Valves and a stand installed
  • 304 Stainless Steel Large Non-locking LiftLatches™ included
  • Upgrade to Large Non-locking 316 Stainless Steel LiftLatch™

Specs

• Chamber Dimensions: 46" W x 17" D x 83" H

• Window Material: SDPVC

• Material: Stainless Steel

• Opening Dimensions: 21.25" W x 81" H

• Number of Chambers: 1

• Model: Series 300

• Design: Cabinet

• Maximum Shelf Load: 300 lb

• Chamber Width: 46"

• Chamber Depth: 17"

• Chamber Height: 83"

• Humidity Control: Cabinet Level

• Door Type: Viewing Window

• Door Design: Leak Tight

• Unit of Measure: EA

• Marks & Listings: CE, UL, ULC

• Weight, Product: 419 lb

• Dimensions, Product: 48" W x 18" D x 87.5" H

• Weight, Shipping: 637 lb

• Dimensions, Shipping: 54" W x 24" D x 101" H

• Package Type: Palletized

  • universal adjustable base stands Universal Base Stands Offer Excellent Versatility
  • Video Overview of Stainless Steel Desiccator Cabinets Stainless Steel Desiccator Cabinets
  • Stainless Steel Desiccator Cabinet with Double Doors Single-Chamber Stainless Steel Desiccator Cabinets
  • Stainless Steel Desiccator Cabinet with Model Stainless Steel Desiccator Cabinet with Caster Addition
universal adjustable base stands
Universal adjustable base stands support and stabilize various equipment sizes Universal Base Stands Offer Excellent Versatility Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
Video Overview of Stainless Steel Desiccator Cabinets
Overview of Terra's Stainlesss Steel Desiccator Cabinets | 1600-03 displayed Stainless Steel Desiccator Cabinets Video overview of Terra Universal's nitrogen-purged stainless steel desiccator cabinets, including benchtop and floor models with automated relative humidity controls

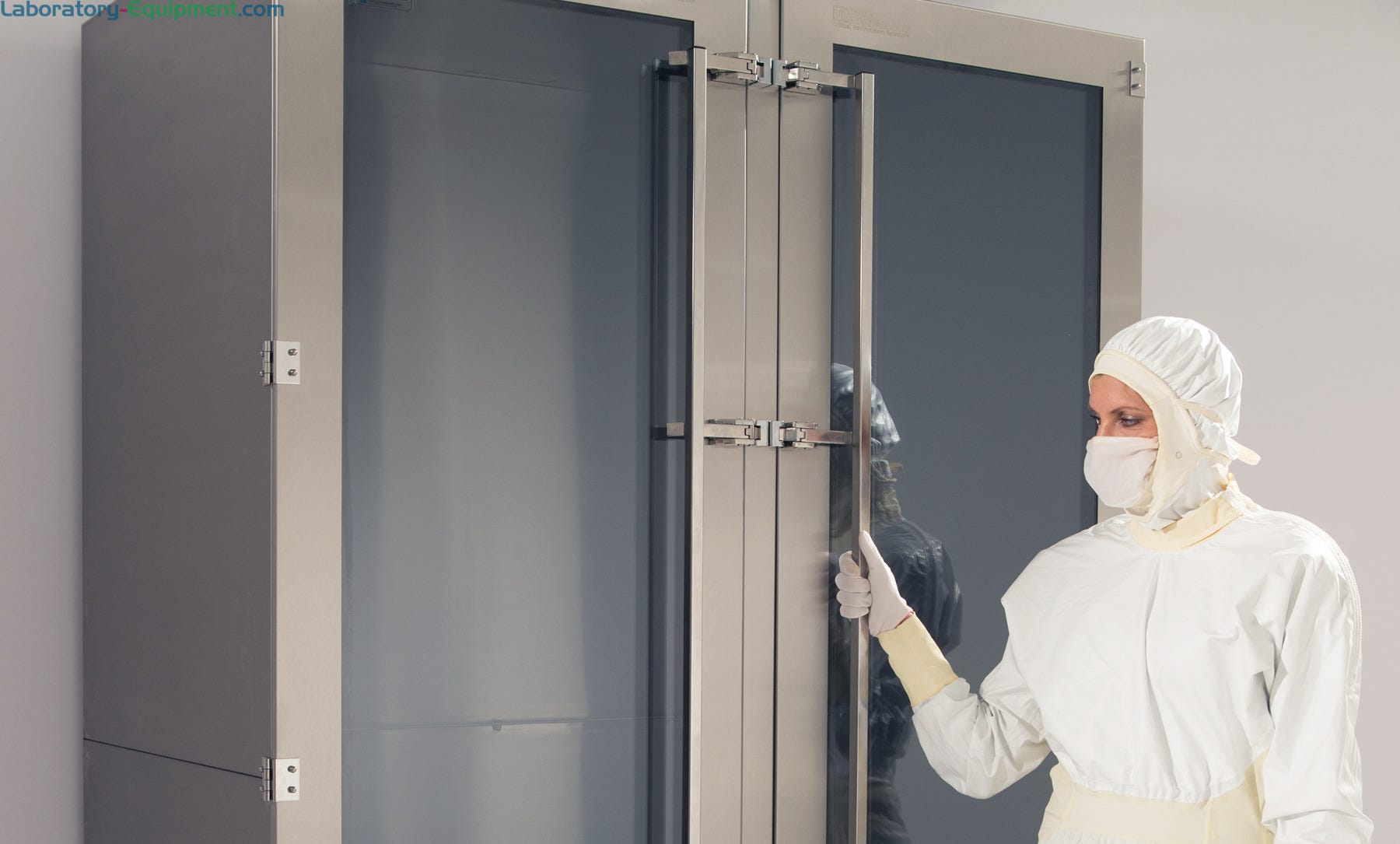

Stainless Steel Desiccator Cabinet with Double Doors
