Part # 6602-87A-R

Door, Pre-Hung; Manual Single Right Swing, 36" W x 84" H, BioSafe®, CleanSeam™ 304 or 316 SS, Full Window

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Doors and frames are designed to fit flush with an existing wall for easy cleaning
ULus Listed UL Leak Rating BioSafe classic logo ISO 5 Icon
Terra Part #: 6602-87A-R
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
$4,773
Part #: 6602-87A-R
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Product Details

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Doors and frames are designed to fit flush with an existing wall for easy cleaning
  • Flush double-glazed window design minimizes surfaces and crevices where contaminants can collect.
  • Window consists of two 1/4" tempered glass panes pre-mounted, bonded, and encased in a durable stainless steel frame.
  • 304 or 316 stainless steel hollow metal door and door frame combines superior corrosion protection with outstanding design and beauty to meet your strictest GMP, FDA, and cleanroom requirements.
  • All seams on door and door frame are continuously welded and ground smooth for a seamless finish, ideal for aseptic applications.
  • Door is equipped with a fully concealed drop-down bottom seal (automatic door bottom) that seals the bottom when the door is closed.
  • Door comes pre-hung to a frame to allow fast and easy mounting.
  • All hardware locations reinforced with internal steel backing plates.
  • Stainless steel push/pull handles
  • Heavy-duty stainless steel flush-mounted mortised hinges
  • Adjustable ADA compliant heavy-duty hydraulic door closer that meets ANSI Grade 1 standards
  • Continuous three-sided perimeter gasket for a tight seal
  • Terra Universal cleanroom doors can be delivered with most standard mortised or surface-mounted hardware to meet requirements:
  •           Mortised door locksets and strikes, with door handles or magnetic interlock
  •           Surface-mounted electric door operators
  •           Internal double door extension bolts
  • To determine if you need a left-hand or right-hand frame, stand on the side of the door where it swings away from you. If it opens to the left, it’s a left-hand door; if it opens to the right, it’s a right-hand door.
  • Door assembly is leak-rated by UL for tight seal to maintain cleanroom pressure gradients

Specs

• Type: Pre-Hung

• Opening Action: Single Right Swing

• Opening Width: 36"

• Opening Height: 84"

• Door Panel: CleanSeam™ 304 or 316 SS

• Number of Hinges: 5

• Core Material: Solid XPS bonded core

• Window Pane: Tempered glass

• Door Gauge: 16 gauge

• Lock Prep Type: None

• Frame Construction: fully-welded, 16 gauge, single rabbet

• Window Size: Full Window

• Door Frame: CleanSeam™ 304 or 316 SS

• Fire-Rating: None

• Operation: Manual

• Door Construction: CleanSeam™ Welded

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Weight, Product: 161 lb

• Dimensions, Product: 39.9" W x 4.875" D x 87" H

• Weight, Shipping: 430 lb

• Dimensions, Shipping: 48" W x 98" D x 13" H

• Package Type: Palletized

Download Manual

  • Video on pre hung door Watch Terra's Video on BioSafe Cleanroom Doors
  • Terra Universal BioSafe Doors Video Terra Universal BioSafe® Doors

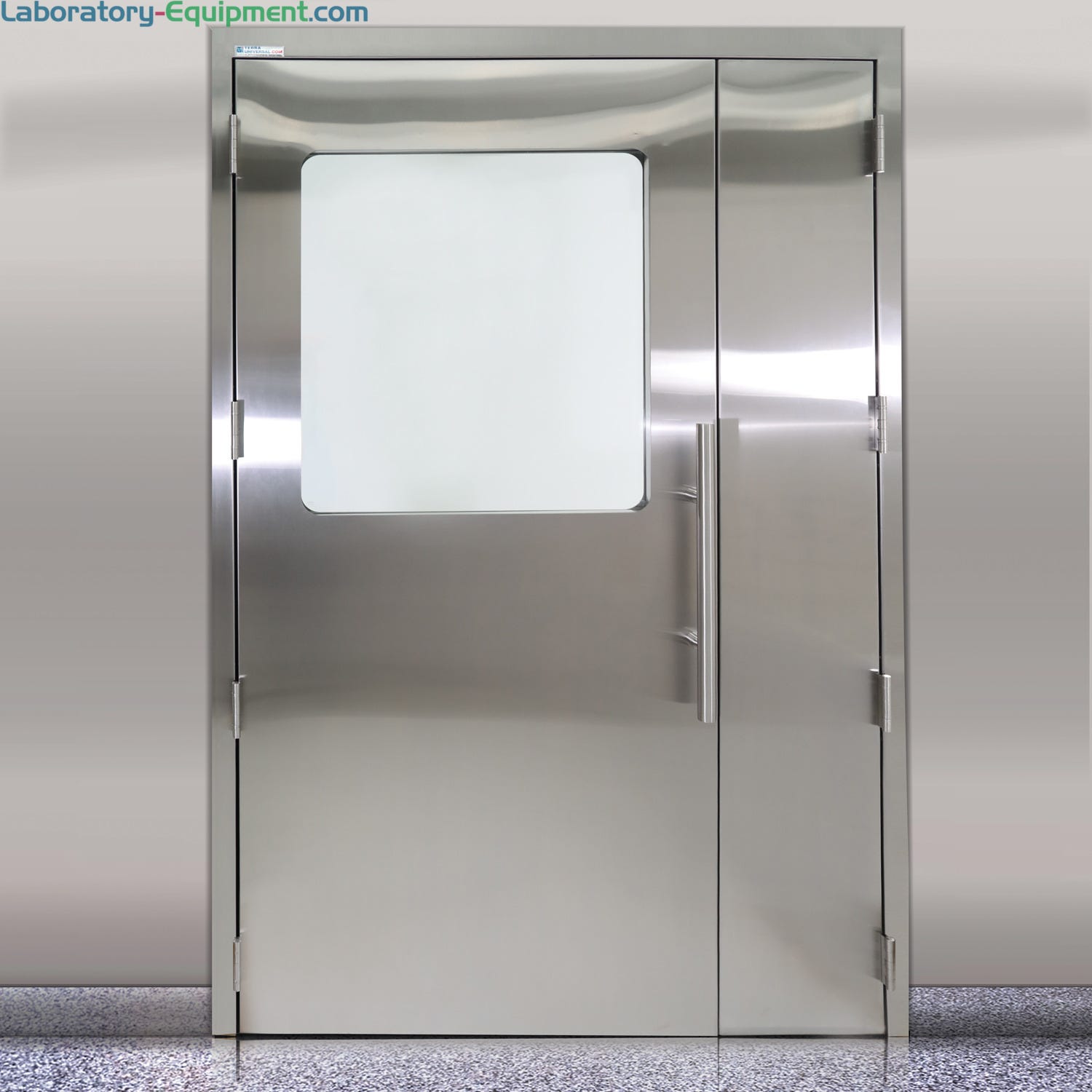

  • Custom BioSafe CleanSeam cleanroom stainless steel door with partial view window, inactive leaf and a ladder pull handle BioSafe®, CleanSeam™ Stainless Steel Door With Partial View Window and Inactive Leaf Closed View

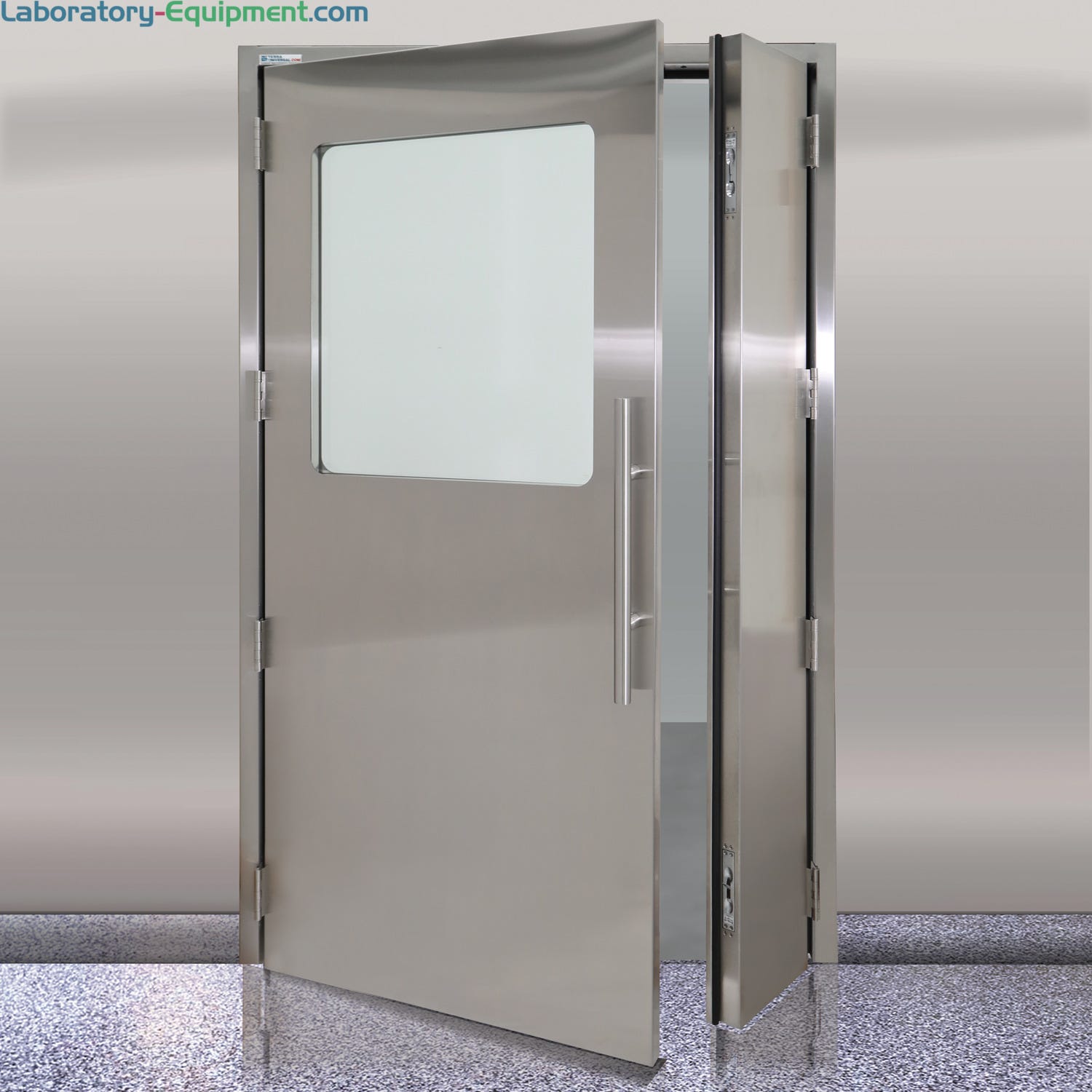

  • Custom BioSafe CleanSeam cleanroom stainless steel door with partial view window, inactive leaf and a ladder pull handle BioSafe®, CleanSeam™ Stainless Steel Door With Partial View Window and Inactive Leaf Open View
Video on pre hung door
Video detailing Terra's ISO 5-6 manual swing and automatic sliding doors Watch Terra's Video on BioSafe Cleanroom Doors Video detailing Terra's ISO 5-6 manual swing and automatic sliding doors
Terra Universal BioSafe Doors Video
Terra Universal's BioSafe® Doors are easy to sterilize maintain room pressure and resist common biocides and hospital grade disinfectants. Terra Universal BioSafe® Doors Terra Universal's BioSafe® Doors are easy to sterilize maintain room pressure and resist common biocides and hospital grade disinfectants.
Custom BioSafe CleanSeam cleanroom stainless steel door with partial view window, inactive leaf and a ladder pull handle
Custom BioSafe® CleanSeam™ stainless steel door with partial view window, inactive leaf and a ladder pull handle | 6603-80-L displayed BioSafe®, CleanSeam™ Stainless Steel Door With Partial View Window and Inactive Leaf Closed View
Custom BioSafe CleanSeam cleanroom stainless steel door with partial view window, inactive leaf and a ladder pull handle
Custom BioSafe® CleanSeam™ stainless steel door with partial view window, inactive leaf and a ladder pull handle | 6603-80-L displayed BioSafe®, CleanSeam™ Stainless Steel Door With Partial View Window and Inactive Leaf Open View
